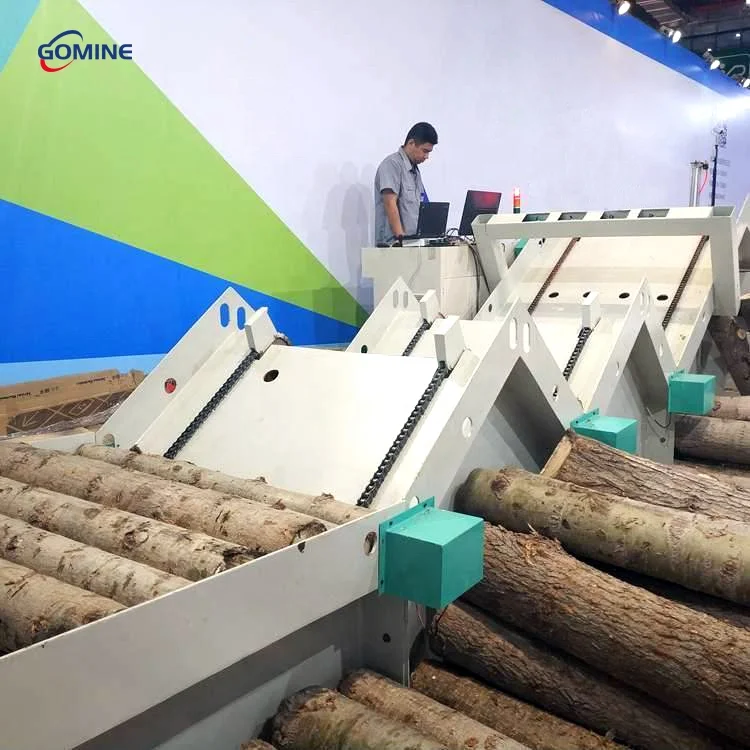

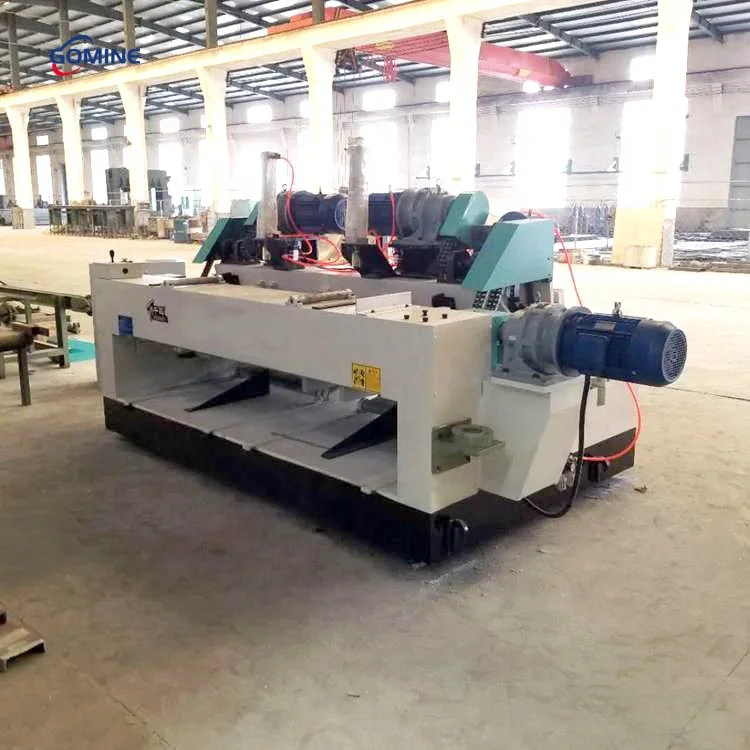

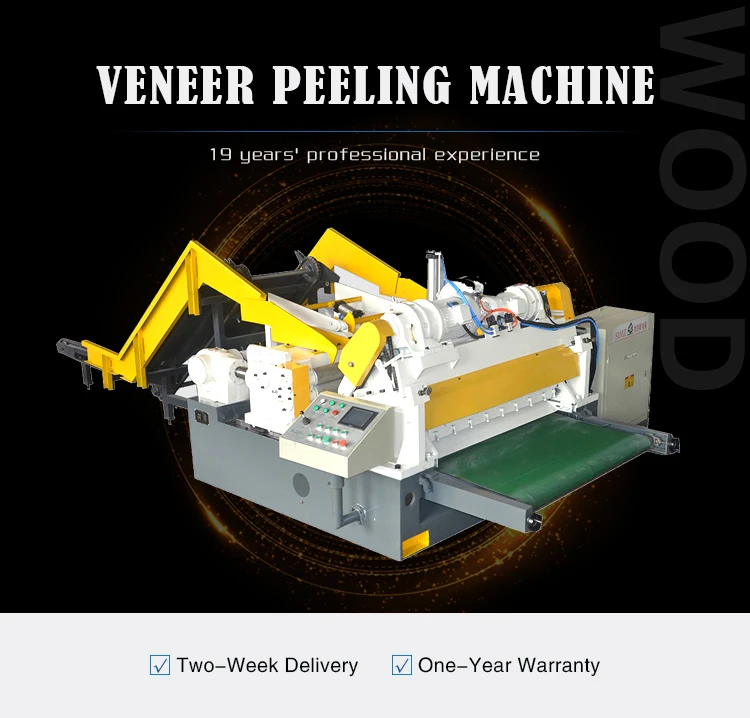

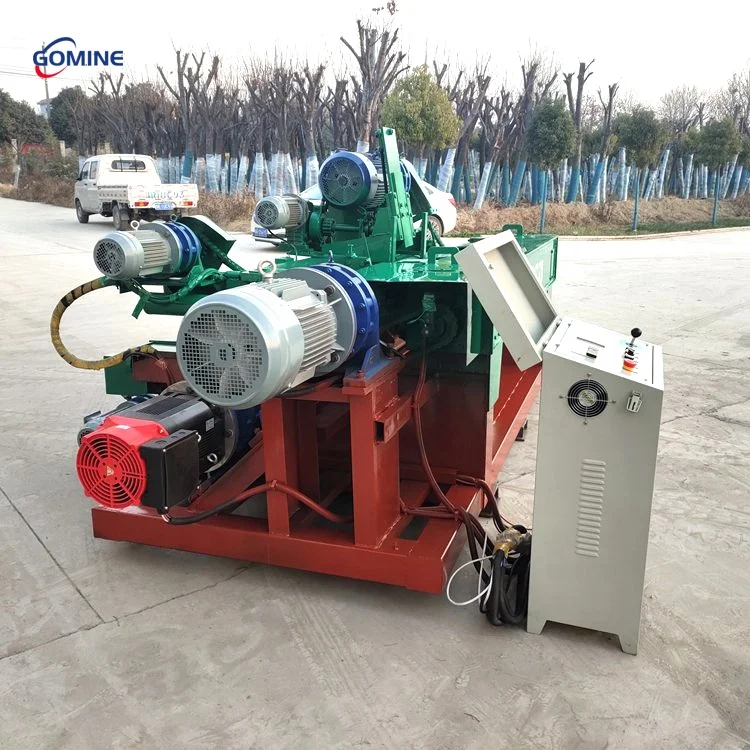

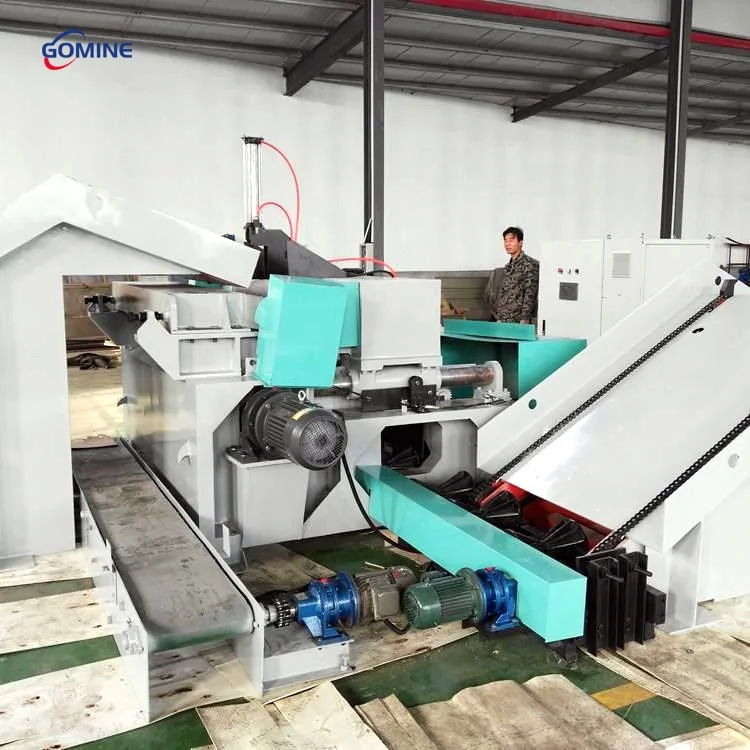

woodworking spindle/spindleless log debarker grinding rotary making plywood core wood veneer peeling lathe machine price

Product Overview

Description

log peeling length	970mm-1270mm
veneer peeling width range	660-2600mm
veneer thickness peeling range	1.0-4.0mm
Max. log diameter	650mm
min.core veneer after peeling	38mm
peeling speed	48m/min
Single roller motor	11kw*2pcs
Double roller motor	11kw*2pcs
feeding motor power	11kw
clipper and rubber roller motor	5.5kw+2.2kw
Total power	62.7kw
Leftover core clapper	pneumatic

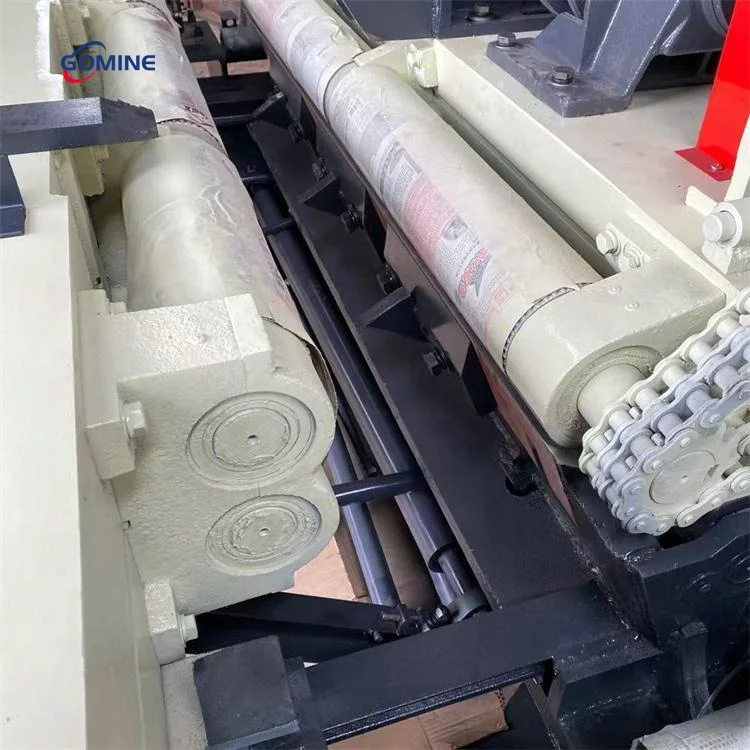

single double roller diamenter and type	125mm(diamond shape, chromeplate)
Main reducer model	R87 hardened gear surface
Total weight	13000kgs
Overall dimension	5800*2300*1500mm









Sinogomine Industrial Technology Co.,Ltd is a famous industrial company in the world, which is focusing on the provision of aggregate, mining, industrial powder, Construction waste processing equipment,technology upgrading and systematic solutions.

At present,it has production base of an area about 600,000 square meters. It has over 60sets of advanced machining lathes,advanced skill workers take up 36%, excellent produce technology, complete measuring equipment,complete quality controlled system.
