HiOSO 8 Ports Poe Switch Total power 200W dual fiber single mode unmanaged 48V switch poe ethernet switch

Product Overview

Description

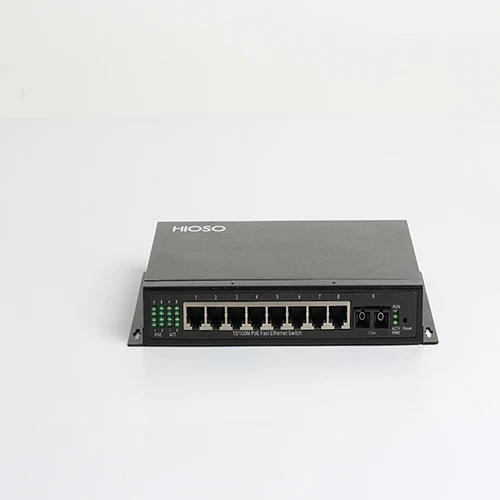

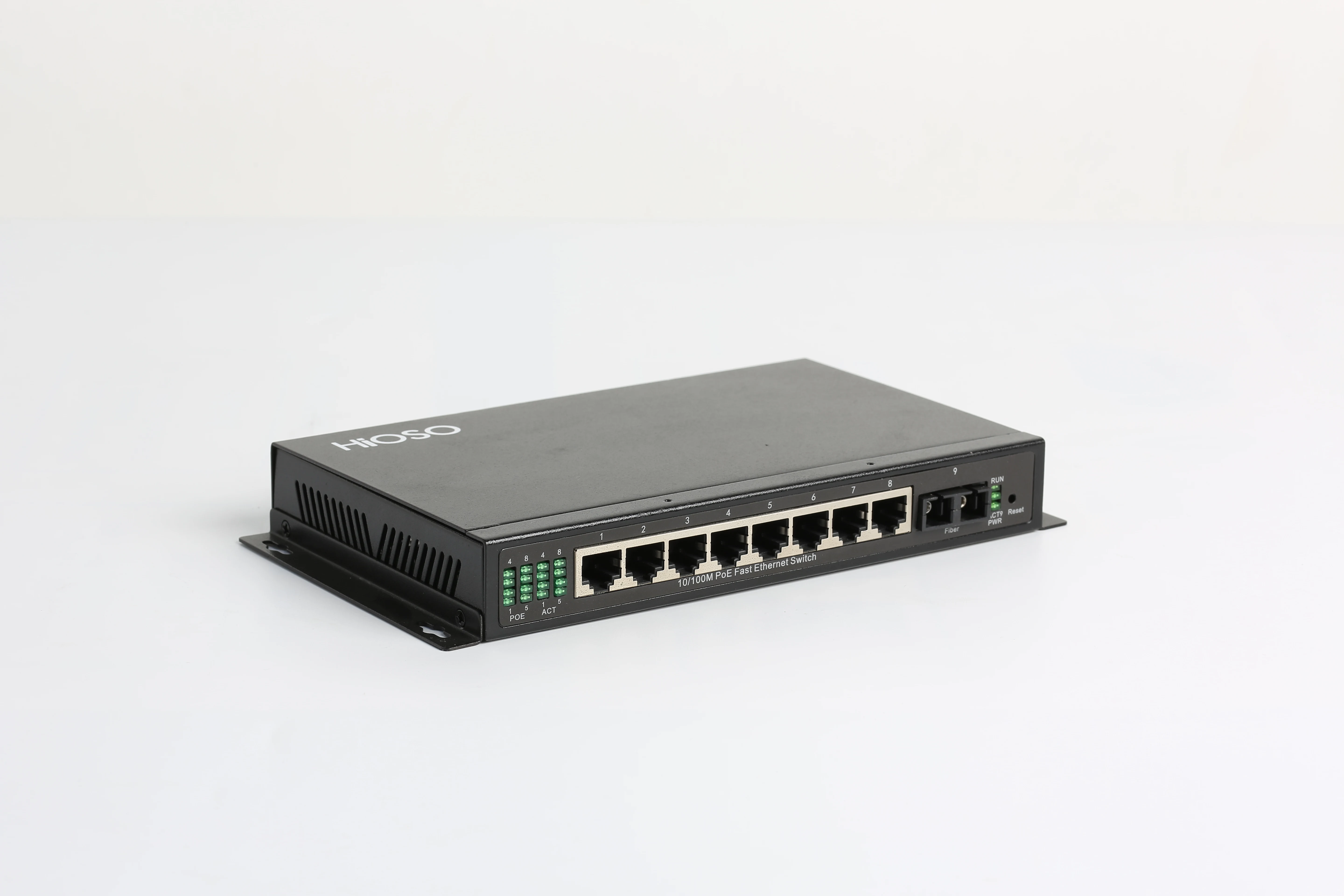

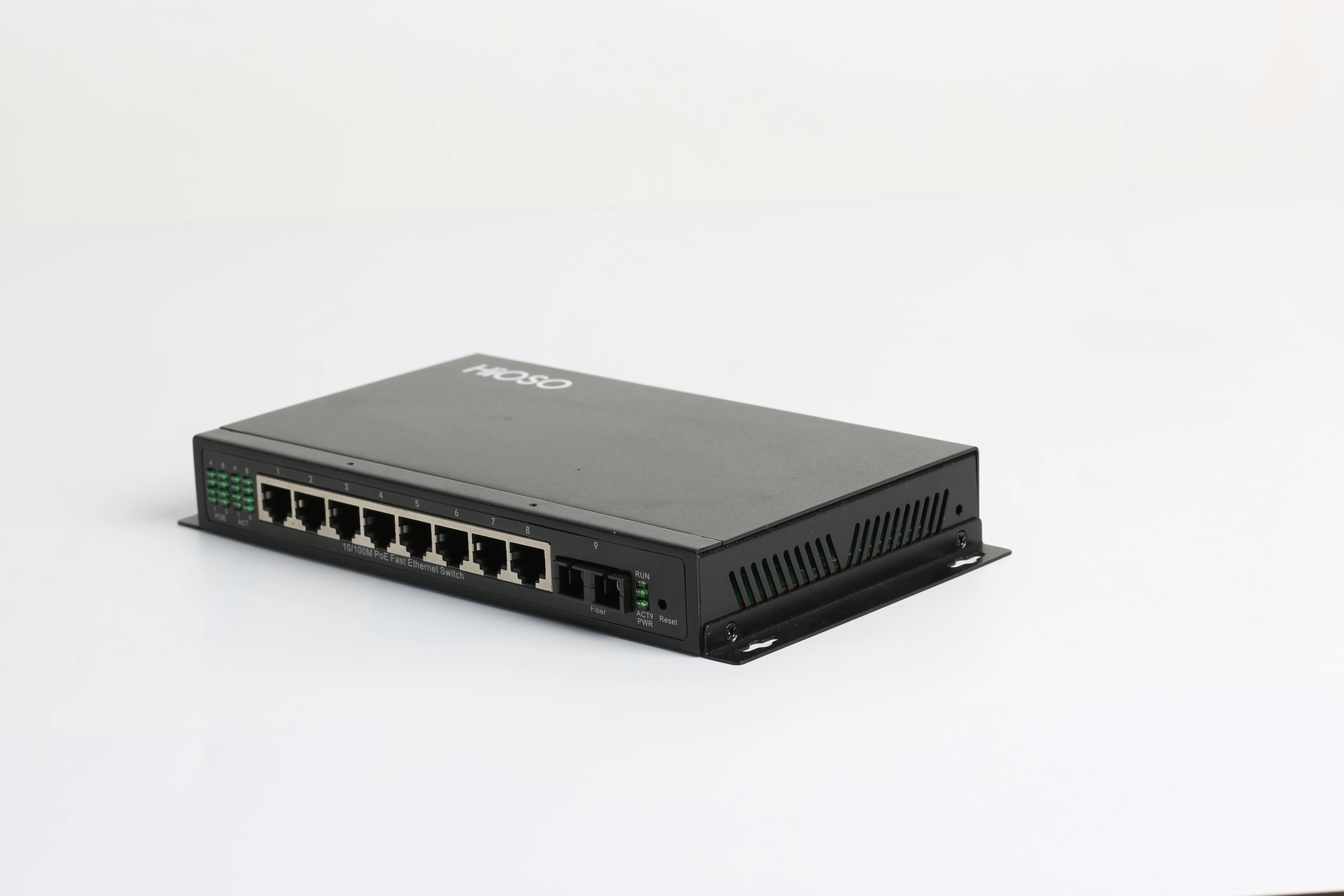

HiOSO Foway2209PFS 8 10/100M +1 100M FX UPLINK



Overview

HiOSO Foway2209PFS series 8 ports 100M Security Industrial PoE Ethernet Switches, supply 8 10/100M RJ45 PoE ports and 1 10/100M FX uplink port; support auto discovery IEEE802.3af/at standard powered devices,auto stop powering the non standard poe devices;support to supply power to IP cameras,VoIP phones,wireless access points and other network devices;support to choose web or SNMP management; support to transmit HD video flow; apply to Security system, electronic power system and traffic system requirements.





Character

l Support 8 10/100M RJ45 PoE ports and 1 10/100M FX uplink port

l Each PoE port supports auto detect the powered device

l Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards

l Support each port full rate, full-duplex non-blocking forwarding

l Support WEB management and SNMP (optional)

l Support 2K MAC learning, 1Mbit storage and forward cache space

l Each RJ45 port adopts anti-high voltage circuit, strengthen the lightning protection and anti-interference ability

l Supply redundant dual power input ports, enhance reliability

l Metal casing with Wall mounting design , better for heat dissipating and installation

Technical Specification



Parameter	Specification
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet,IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS, IEEE802.1d Spanning Tree,IEEE802.3af,IEEE802.3at
PoE	8 10/100M RJ45 PoE/PSE, support IEEE802.3af 15.4W / IEEE802.3at 30W Working mode:auto detect powered device,stop powering if not PD device
Transmission distance	CAT5: 100M
Ports	8 10/100M  ports (POE/PSE): 10/100Mbs 1 10/100M RJ45 uplink port: 10/100Mbps
MAC	2K
Buffer memory space	1Mbit
Bit error rate	<1/1000000000
MTBF	100000 hours

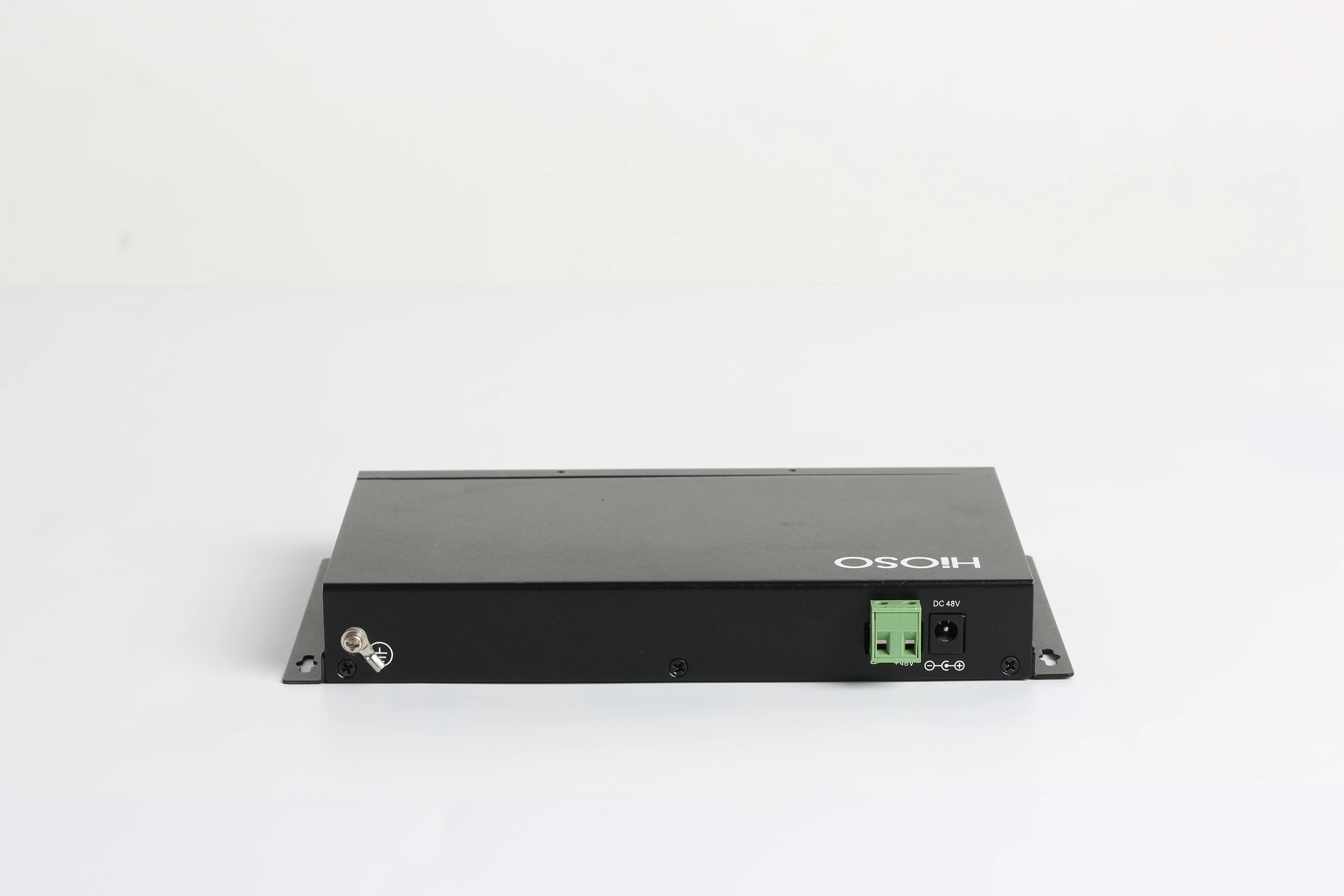

Power	DC48V  dual input redundant backup
Power consumption	Whole device:7W    POE/PSE: maximum 130W/200W
Working temperature	Common:-10~60℃; -T (wide temperature range):-40~75℃
Storage temperature	-40~80℃
Humidity	5%~90% non-condensing

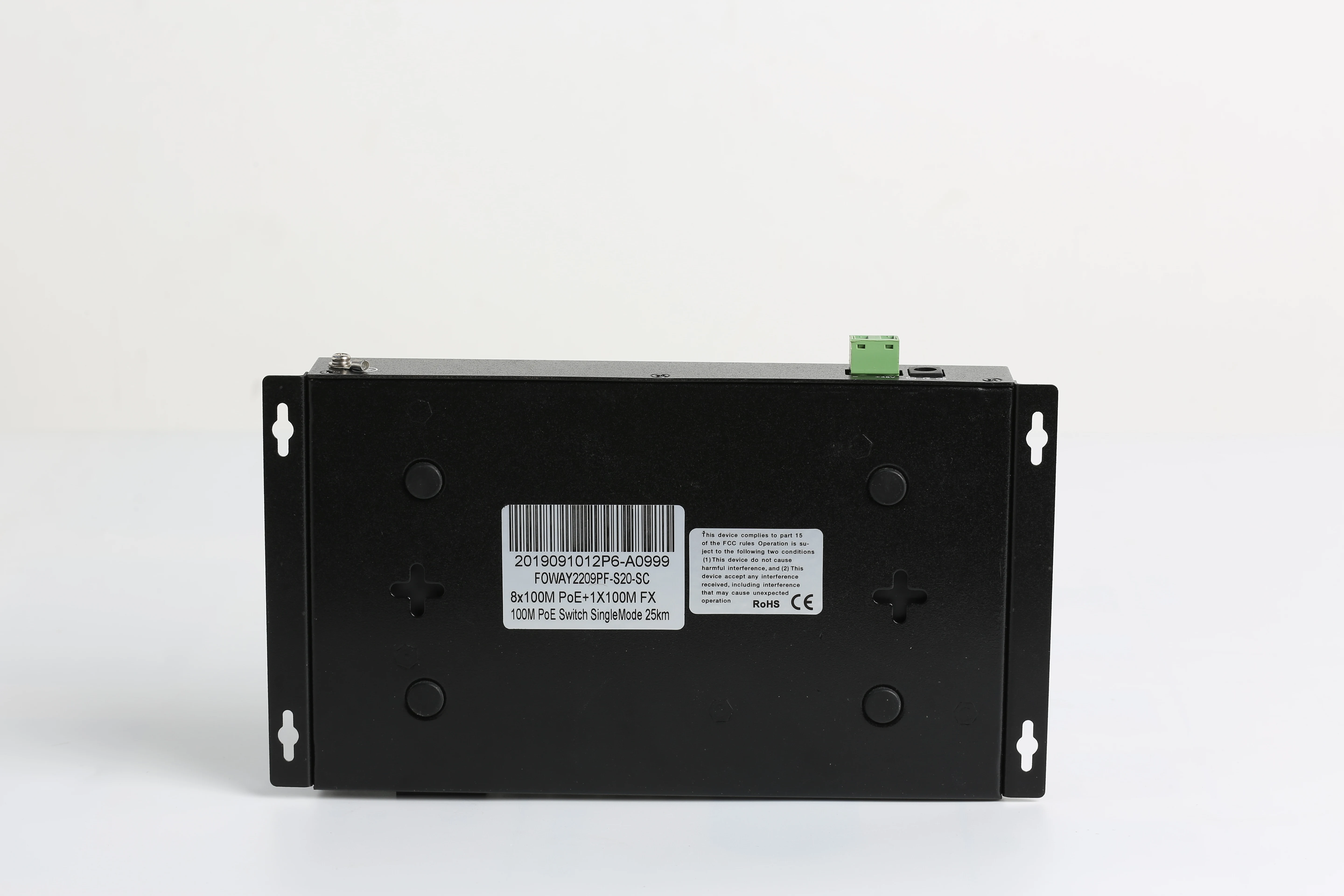

Installation	Wall mounting type
Dimension	30mm (H)×219mm(W)×119mm (D)
