TONGLING Relay Manufacture T91 12V 24V 5 Pin Relay 30A Buy Relays
- Category: >>>
- Supplier: Donghai Tongling Electric Appliance Co. Ltd.
Share on (1600715699429):

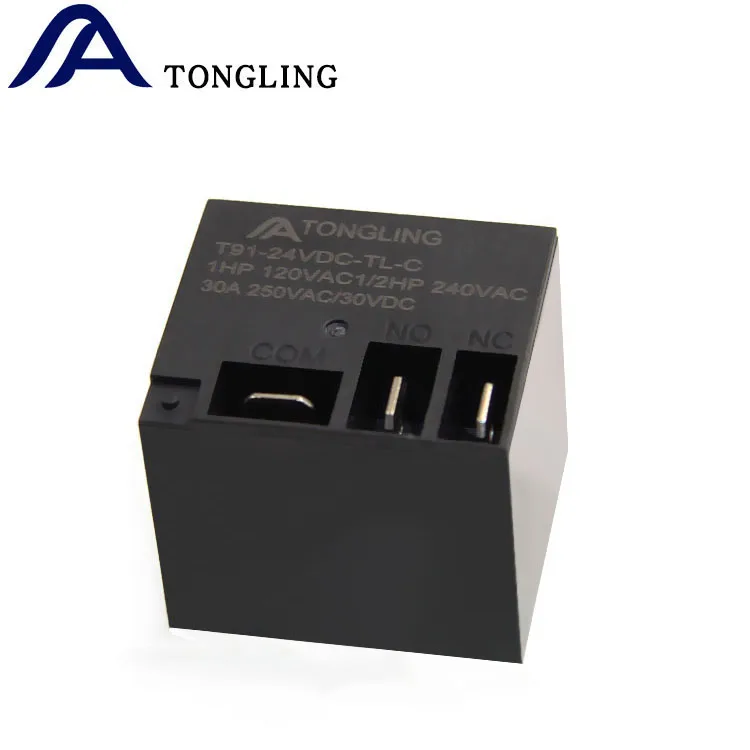

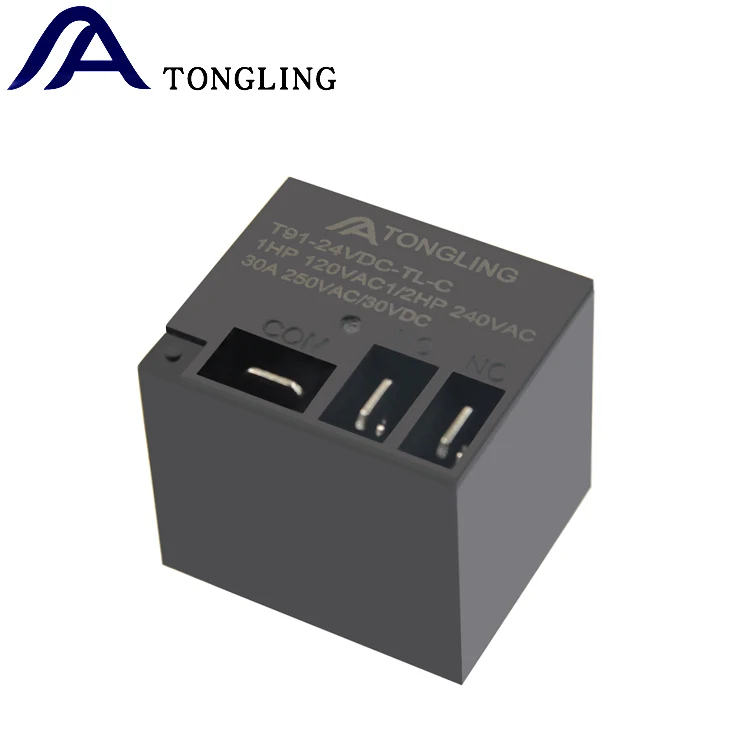

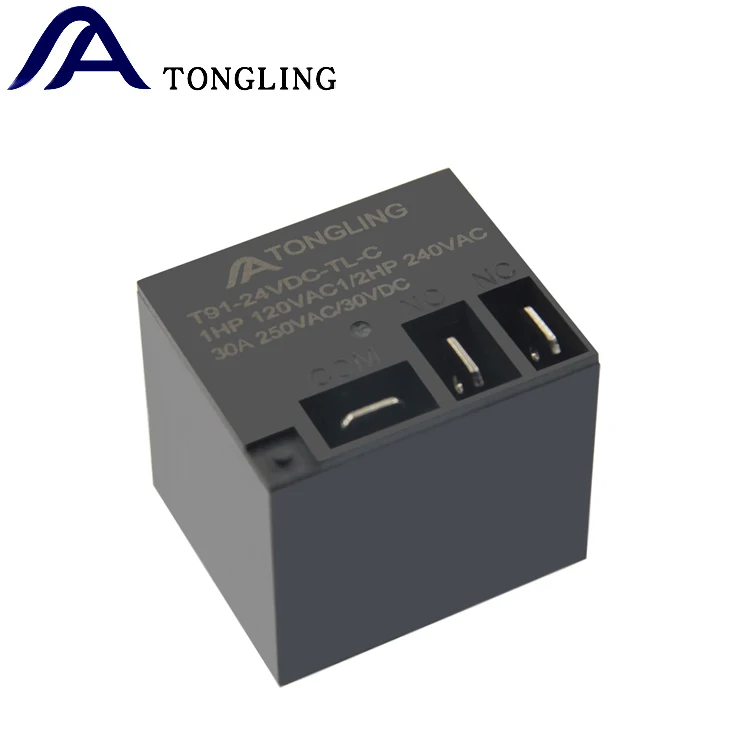

Product Overview
Description
Ordering Code
T91-12VDC-TL-C
1 2 3 4
1.Relay module:T91 relay
2.Coil Nominal Voltage
3.Brand: TLrelay
4.Contact Form:1C Form 1Z

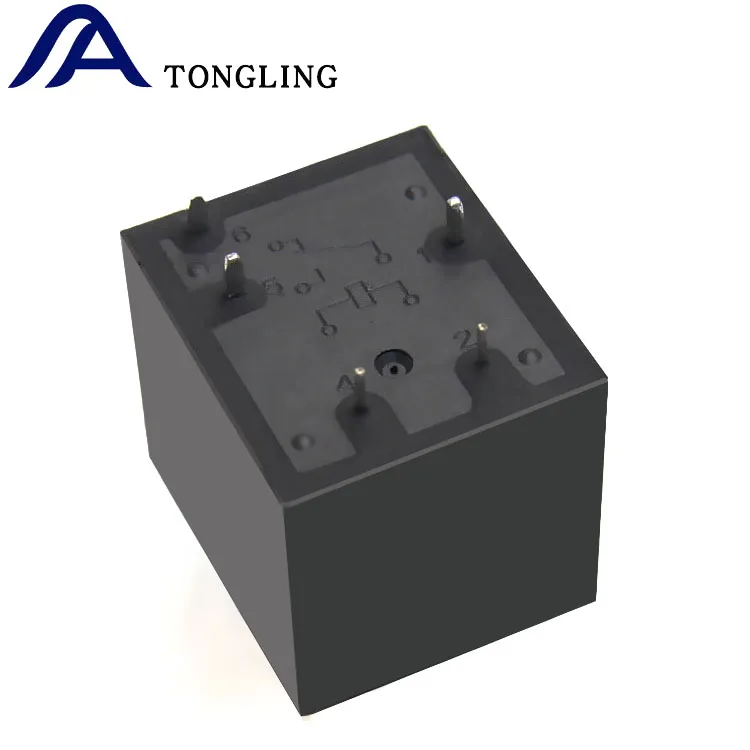

The main specific sparameters | ||
Relay module | T91 Relay | |
Coil voltage | DC: 5V 6V 9V 12V 18V 24V | |
Contact form | SPDT-1NC (1Z Form 1C)-5 pins | |
Contact Material | Silver Alloy | |
Pin | 5 Pin | |
Contact rating | 30A 250VAC | |
Coil Power | 0.93W | |
Size | 32mm*27.4mm*19.2mm | |
Coil Data(at 20℃）
Nominal Voltage(VDC) | 5 | 6 | 9 | 12 | 18 | 24 | 0.93W | ||||||||||
Coil Resistance(Ω±10%） | 27 | 39 | 87 | 155 | 350 | 620 | |||||||||||
Rated Current(mA) | 186 | 155 | 103 | 77.5 | 52 | 39 | |||||||||||
Max Release Voltage(VDC) | 3.75 | 4.5 | 6.75 | 9 | 13.5 | 18 | 0.36W | ||||||||||
Min Release Voltage(VDC) | 0.5 | 0.6 | 0.9 | 1.2 | 1.8 | 2.4 | |||||||||||
Max Applicable Voltage | 130% of the rated voltage at 70℃ and 170% at 23℃ | ||||||||||||||||
Contact Data
Contact Ratings | 30A 250VAC |
Minimum Load | 500mA 5VDC |
Max Switching Voltage | 250VAC |
Max Switching Current | 30A |
Max Switching Power | 7500VA/840W |
Contact Resistance | 100mΩMax at 6VDC 1A |
Life Expectancy | Electrical:100,000 Operations(at 30 Operations/minute) |
Mechanical:10,000,000 Operations(at 30 Operations/minute) |
Characterinstics data
Insulation Resistance | 100MΩMin at 500VDC |
Dielectric Strength Between Open Contacts | 1500VAC(50/60Hz for one minute) |
Between Contacts And Coil | 1500VAC/2500VAC(50/60Hz for one minute) |
Operate Time | 15ms |
Release Time | 10ms |
Temperature Range | -40℃ to +85℃ |
Shock Resistance | Operating Extremes:10G |
Damage Limits:100G | |
Vibration Resistance | 10-55Hz,Double amplitude of 1.5mm |
Max.switching frequency | Mechanical:18,000 operations/hr |
Electrical:1,800 operations/hr | |
Humidity | 40-85% |
Weight | Approx 36g |
Safety Standard | ROSH |
Engineering Data

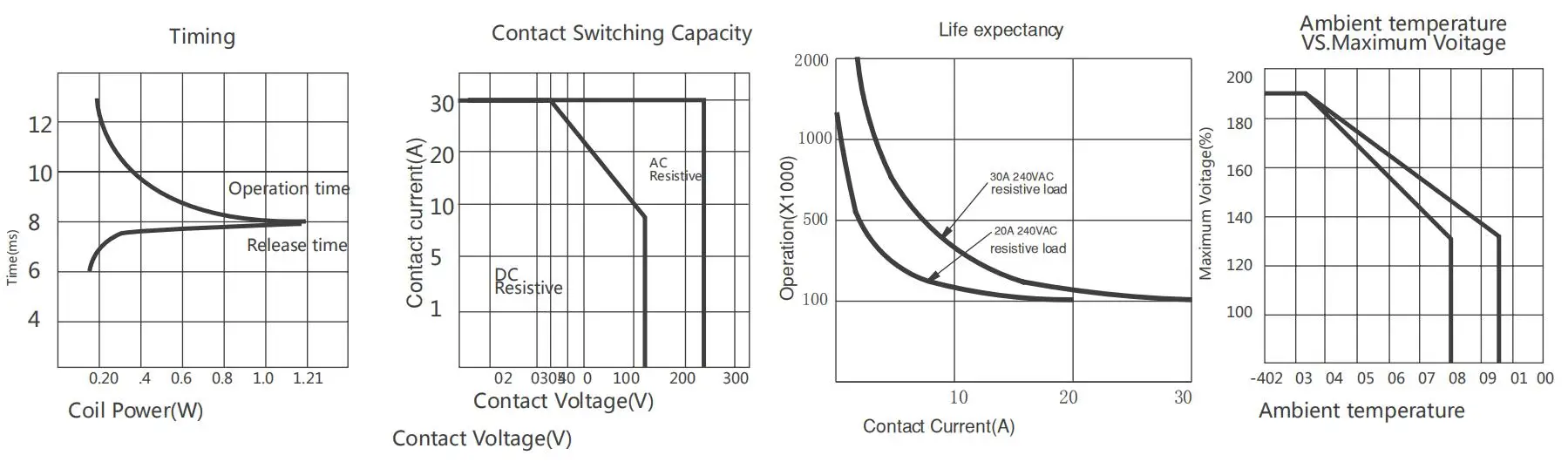

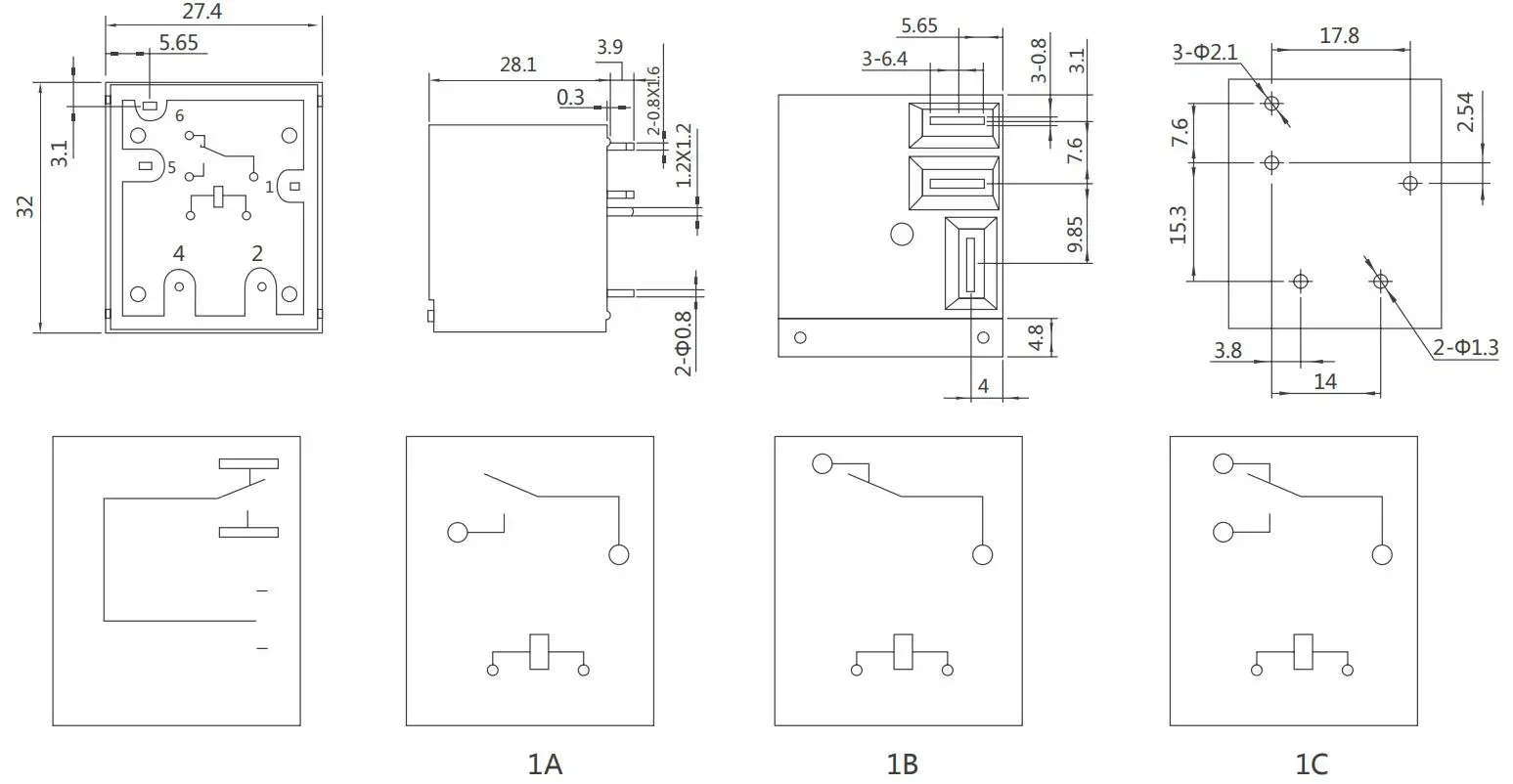

Overall And Mounting Dimensions
Size:32mm*27.4mm*19.2mm

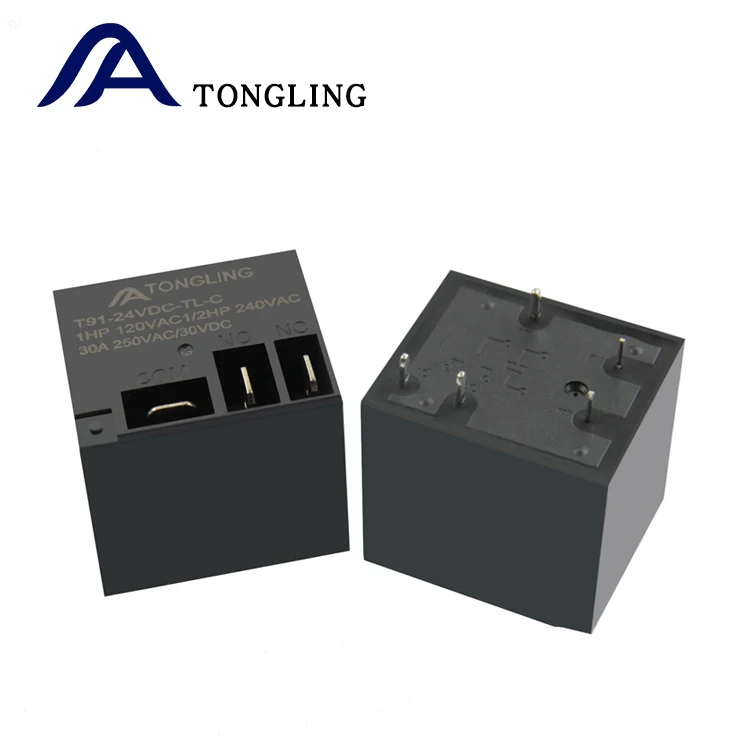

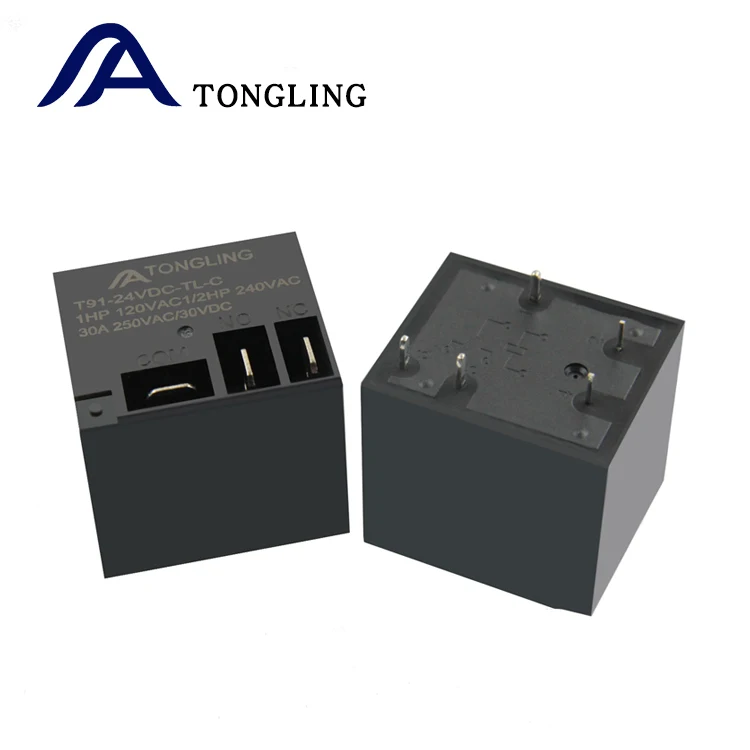

Compact size, PCB in-line welding
Beautiful welding effect
Universal relay
T91 relay is a high-power relay with circuit board in-line, which is convenient for welding. It is often used in high-power electrical appliances. Load 30A 250VAC
