Genmax High Speed Computerized Chain Stitch Multi needle Quilting Machine for Mattress Making
- Category: Home Textile Product Machinery >>>
- Supplier: Nanjing Genmax Machinery Co. Ltd.
Share on (1600715737448):
Product Overview
Description

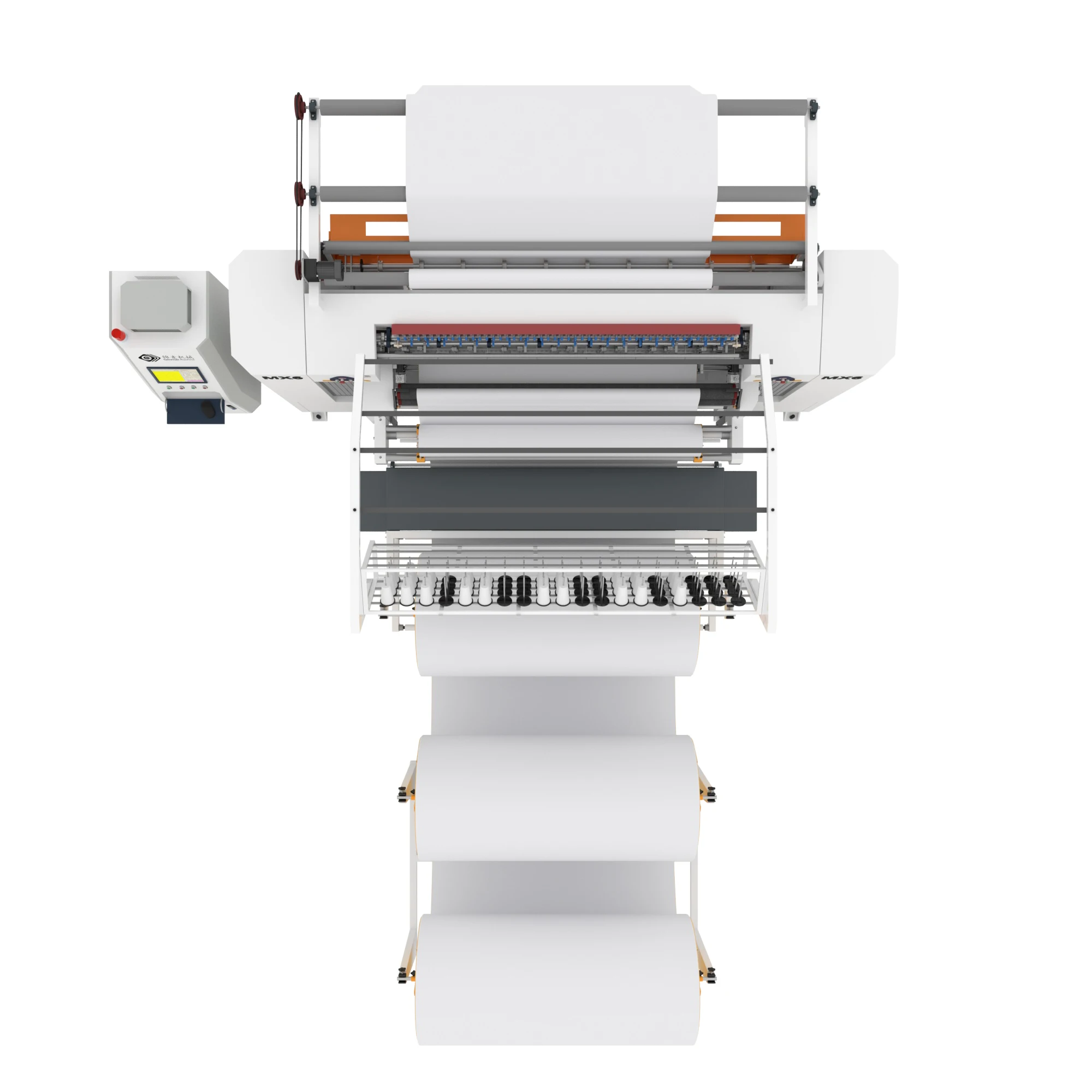

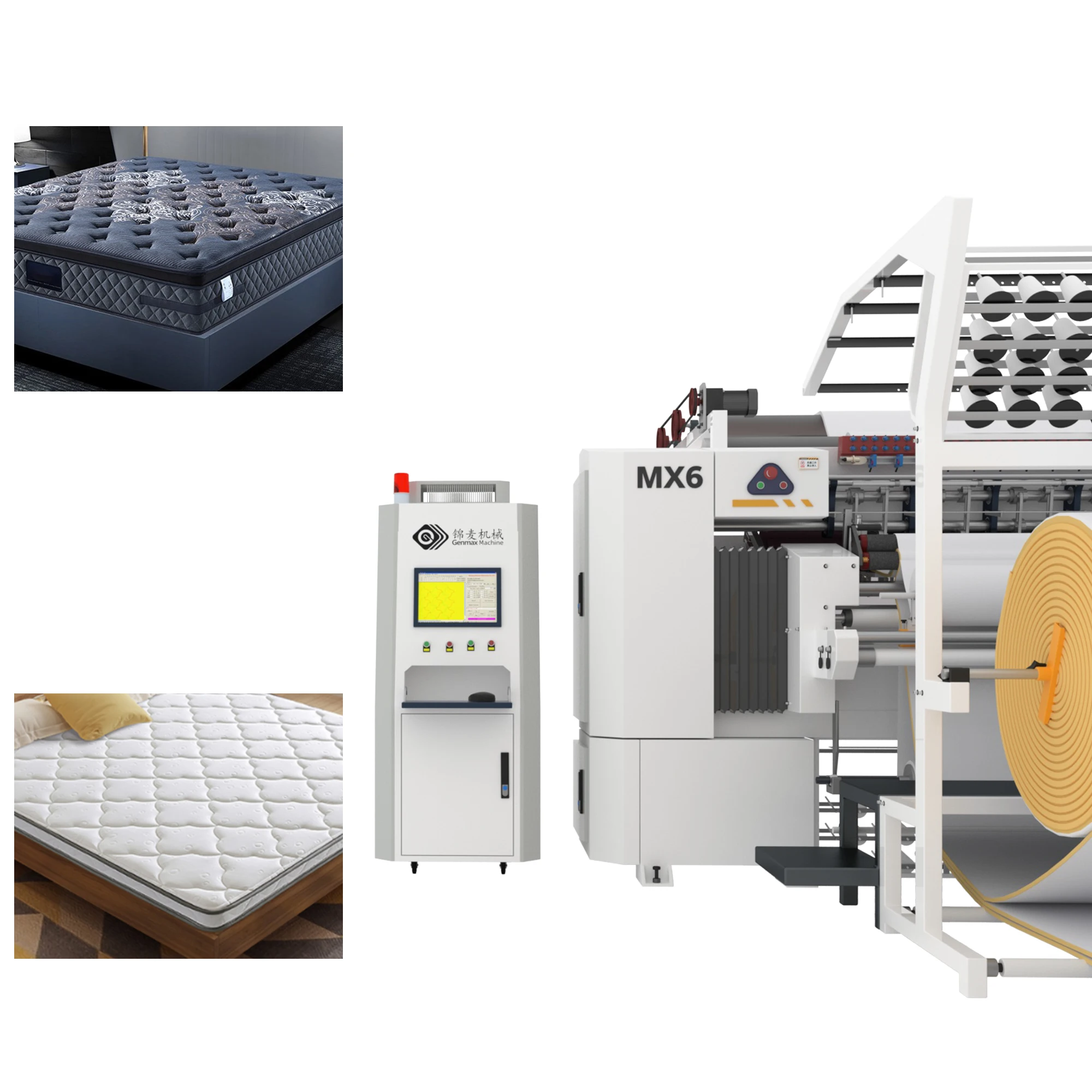

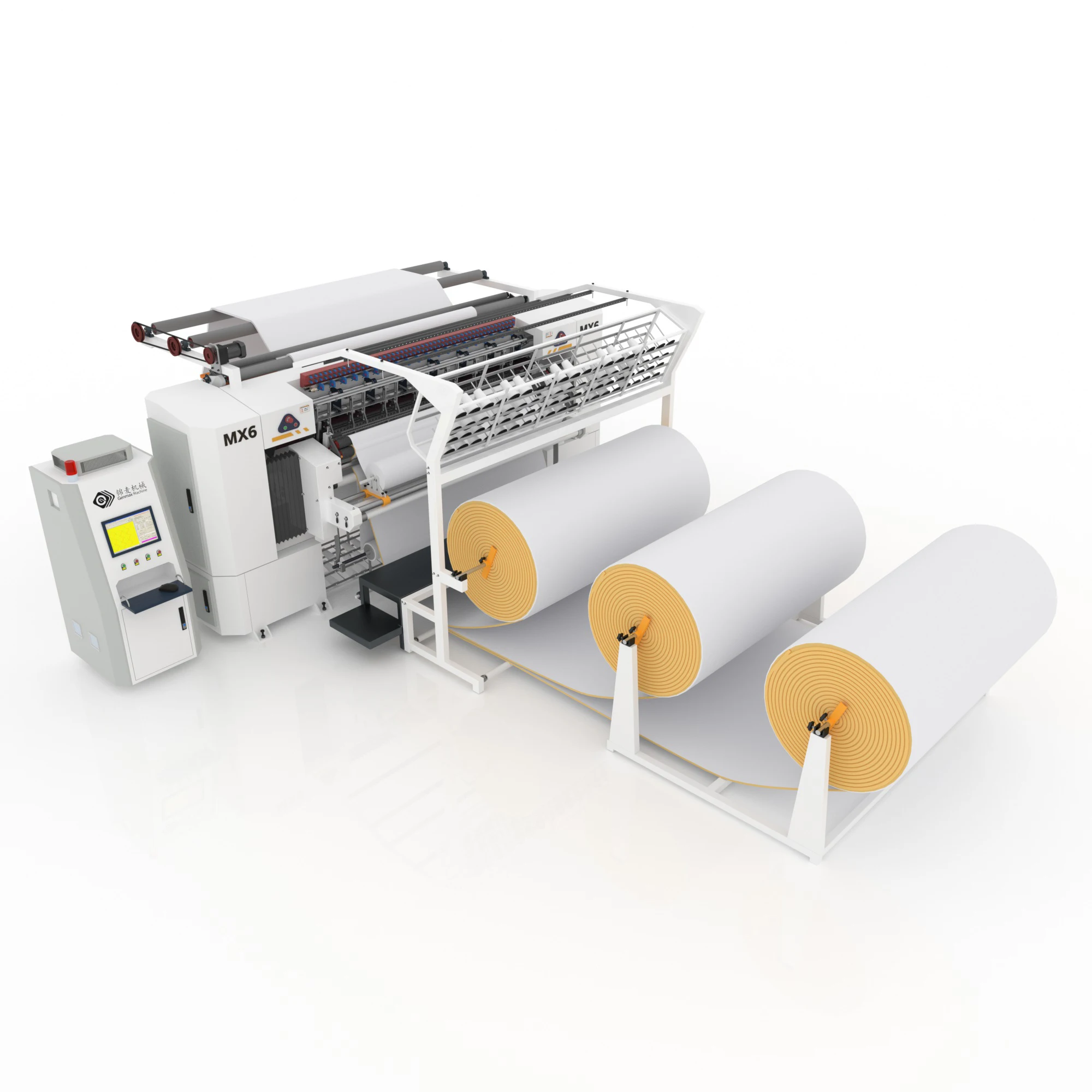

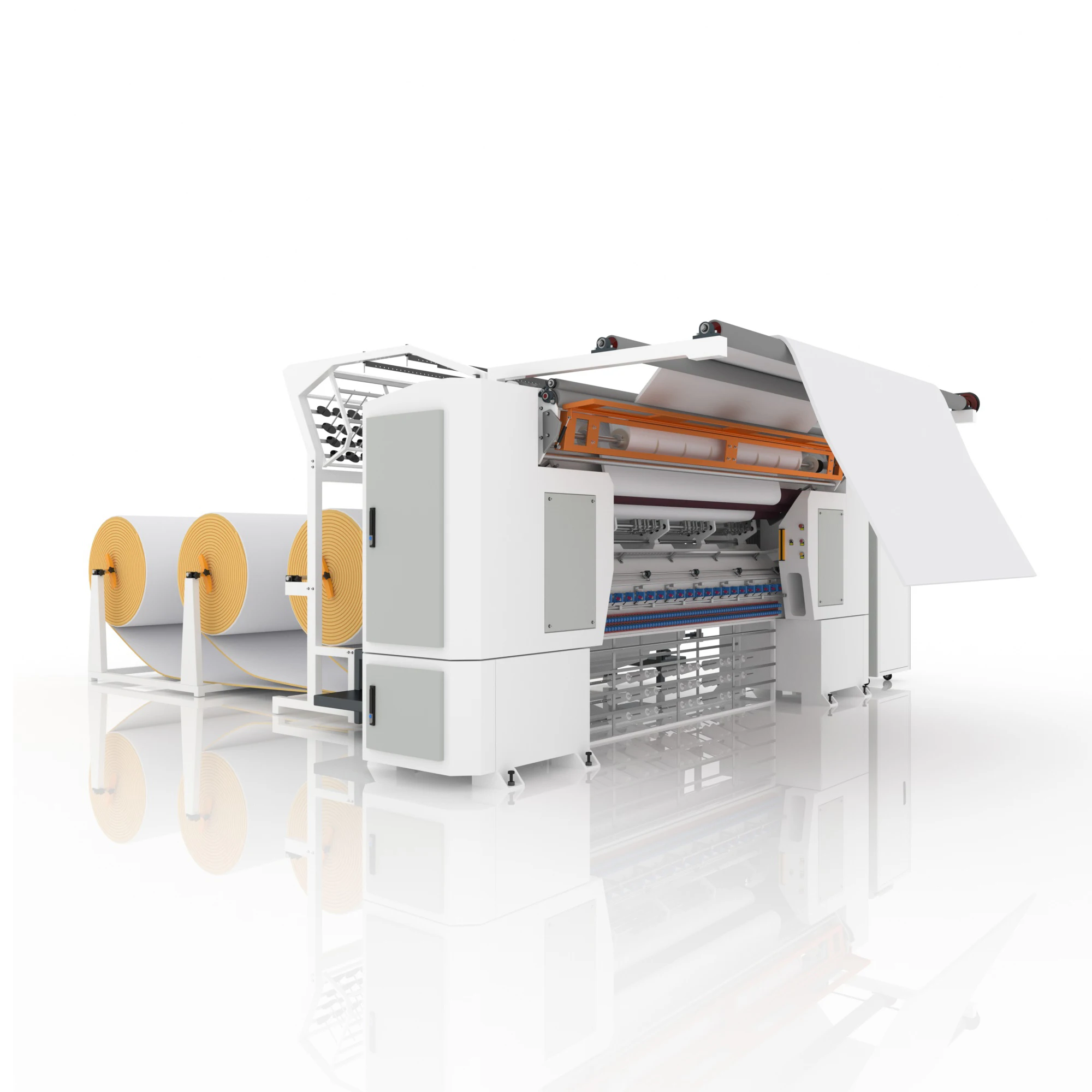

GM-MX6 Computerized Chain Stitch Quilting Machine
1. The industry first: Row pitch:0.5 inches, can be processed more specification patterns (optional).
2. The industry first: Equiped with slitting device with saddle pendulum more accurate kinetic energy cutting good around (optional).
3. Automatically set needle on Third row needle bar not affected by the position of the pallet. Update needle bar working way, Needle row drive swing arm made by specialaluminum alloy, make machine perform swing lighter and faster.
4. Hatchell drive swing arm with special aluminum after finishing the surface treatment, more stable in operation, to achieve lower vibration effect.
5. Advanced computer controlling system and machine making craft make the performance better and the speed faster. The production is raised.
6. Advanced and practical bottom line, automatic detection of line surface broken line infrared detection, feel close to the infrared sensor can automatically stop, so that you operate more secure.
7. The spindle is controlled by 6kW servo motor. Precise PlD algorithm control, automatic needles addle and roller adopts servo drive equipment, can be 360° free quilting and multiple step quilting.
8. A new generation of computer quilting control system, high precision, without too much modification pattern, computer numerical control speed, maximum speed up to 1400 rpm. 3-8mm arbitrarily set.
Products Description
Model | GM-MX6 |
Overall(Lx WxH) | 5400X1650X2050mm |
Over all weight | 5500kg |
Spindle speed | 600-1500rpm |
Capacity | 80-260 m/h |
Stitch | 3-7mm |
Model of needle | 24/180,23/160,22/140,21/130 |
Space between needle rows | (50.8,76.2,127mm)5''、（76.2,76.2,152.4mm)6'' |
Space between needles | 12.7/25.4mm |
Stroke | 304.8mm |
Quil twidth | 2450mm |
Quilting thickness | ≤80mm |
Rated voltage | 380V/220V 50Hz/60Hz |
Power | 11KW |
Company Profile
FAQ
A) Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
B) Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ.
C) How to guarantee the quality of your machine?
1) Strict detection during production.
2) Strict inspection on finished machines before shipment and intact machine packaging ensured.
B) Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ.
C) How to guarantee the quality of your machine?
1) Strict detection during production.
2) Strict inspection on finished machines before shipment and intact machine packaging ensured.
