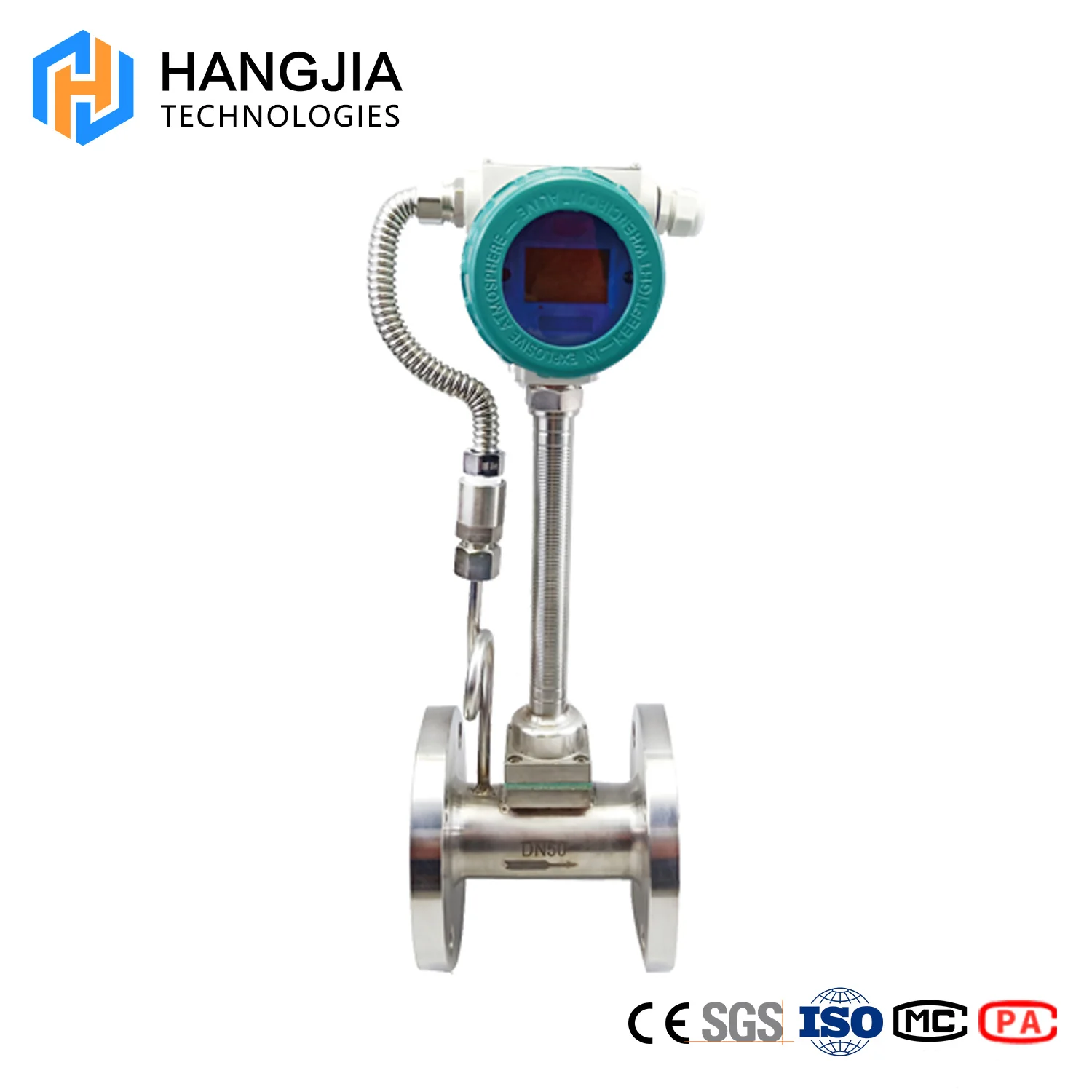

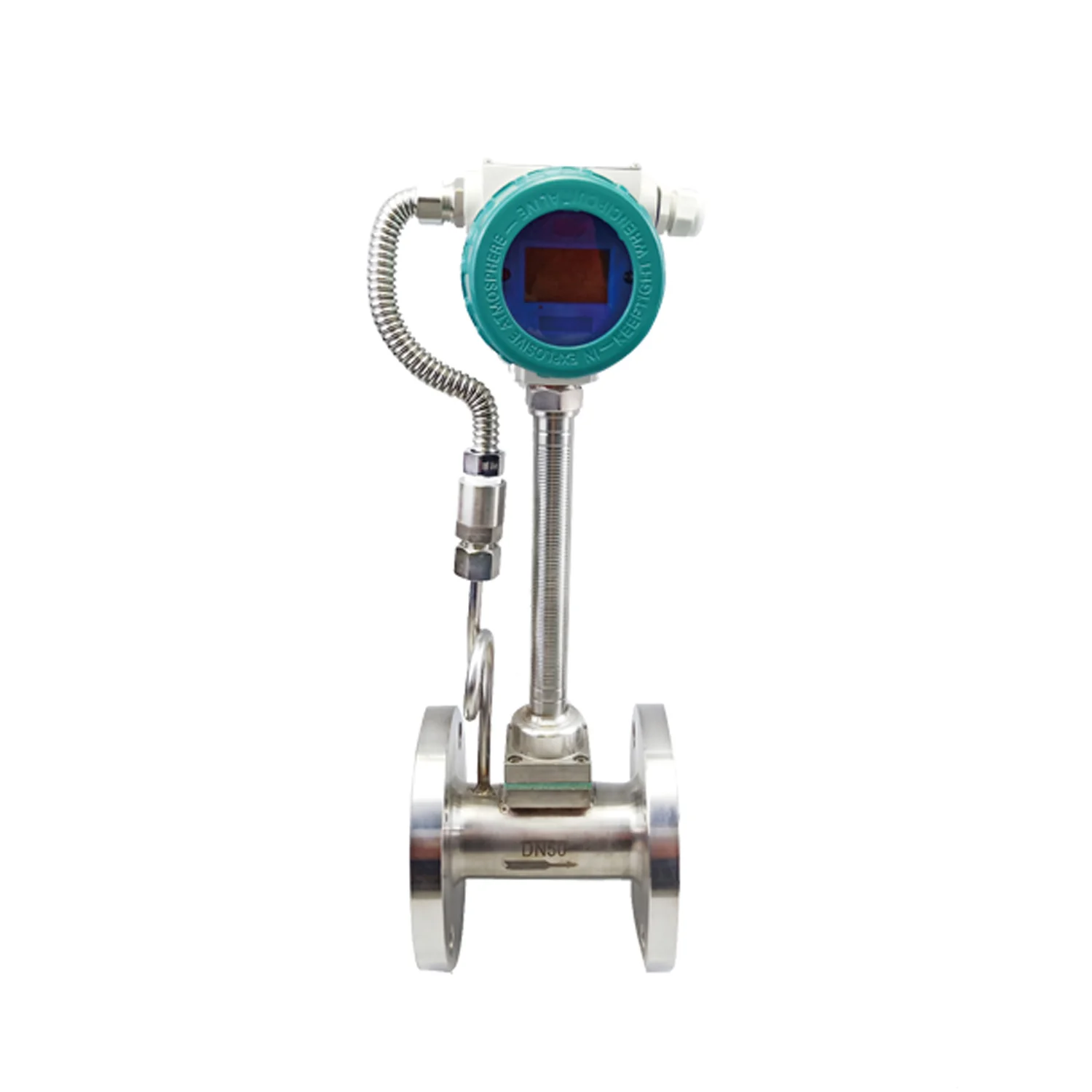

Environment Protection Metallurgy Flange Piezoelectric Vortex Flow Meter LCD display screen
- Category: >>>
- Supplier: Nanjing Hangjia Electronic Technology Co. Ltd.
Share on (1600715760293):
Product Overview
Description
Product Description
Features:
1.Clear LCD display screen, display instantaneous flow and cumulative flow respectively
2. High-strength piezoelectric crystal,integrated structure, impact resistance
3. Optional temperature compensation, pressure temperature, to meet more field services
4.The circuit board is processed through ageing before delivery, and it is with the real flow calibration for whole machine , more suitable for field use
5.No external power supply is required. It adopts 3.6V lithium batter for power supply, which can continuously work more than two years, especially suitable for use in the field where the power supply is difficult to access.
Specification
Aperture Diameter (mm) | 15, 20, 25, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300, (300~1000 plug in) |
Nominal Pressure (MPa) | DN15-DN200 4.0(>4.0, negotiation ), DN250-DN300 1.6(>1.6,negotiation ) |
Medium Temperature (ºC) | Piezoelectric type: -40~150, -40~260, -40~330; capacitive type: -40~400, -40~500 (negotiation ) |
Body Material | 1Cr18Ni9Ti, (other materials: negotiation ) |
Permissible Vibration Acceleration | Piezoelectric type:0.2g, capacitive type:1.0~2.0g |
Accuracy | ±1%,±1.5%; Plug in type: ±2.5% |
Range Rate | 1:6~1:30 |
Supply Voltage | Sensor: DC +12V, DC +24V; transmitter: DC +12V , DC +24V; battery powered; 3.6V battery |
Output Signal | Square-wave pulse(excluding battery powered): high level≥5V, low level≤1V; current: 4~20mA |
Pressure Loss Coefficient | Meet JB/T9249 standards Cd≤2.4 |
Explosion-proof Sign | Intrinsic safety type: Exd II ia CT2-T5 ; explosion type: Exd II CT2-T5 |
Ingress Protection | Normal: IP65 Diving: IP68 |
Environmental Conditions | Temperature: -20ºC~55ºC, Relative humidity: 5%~90%, Atmospheric pressure: 86~106kPa |
Suitable Medium | Gas, liquid, steam |
Transmission Distance | Three-wire pulse output≤300m, two-wire standard current output (4~20mA) ≤1500m, RS485/HART≤1200m. |
