Cnc Lathe Machine Horizontal Type JSL 20AB Hot Sale Swiss Type Cnc Automatic Lathe
- Category: >>>
- Supplier: Xiongyi Intelligent Machinery (changzhou) Co. Ltd.
Share on (1600715801802):
Product Overview
Description
Product Description
JINN FA industrial co., ltd. JSL-20AB | ||
Inside Allow | Parameter or function | |
Basic Specifications | The maximum processing diameter of the positive spindle | 20mm |
| Sub-spindle maximum machining diameter | 20mm | |
| Positive spindle maximum drilling Inside path | 10mm | |
| Sub-spindle maximum drilling Inside path | 8mm | |
| Positive spindle maximum tapping | M8 | |
| Sub-spindle maximum tapping | M6 | |
| Side drilling maximum drilling Inside path | 10mm | |
| Maximum tapping of side drill | M8 | |
Maximum processing length | Standard: 200mm | |
Use rotating guide bush: 85mm | ||
Cutting type:45mm | ||
| Number of tools | Outside diameter knife | 8 |
Inside Hole cutter | 5 | |
side drill | 4(7) | |
End drill | 4 | |
Tool size | Mouth 12mmx12mmx90mm | |
fast feed | 24M/min | |
Number of control axes | 7 | |
positioning accuracy | 0.01/100 | |
Repeatability | 0.003/200 | |

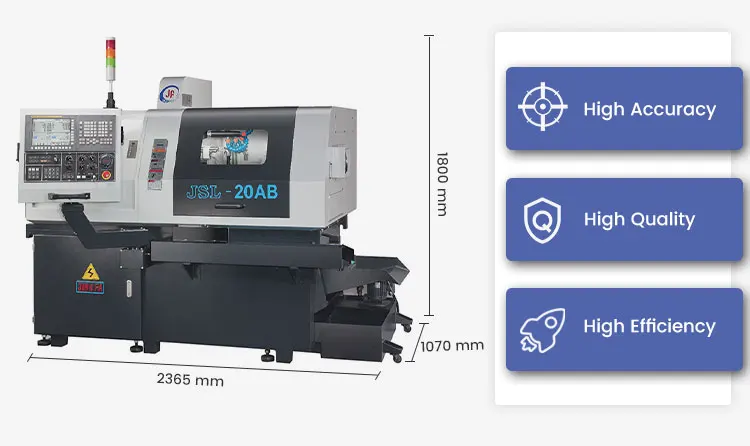

Mechanical appearance (length*width*height) | 2365x1075x1800 | |
Total mechanical weight (Kg) | 2400kg | |
Spindle | Motor model and manufacturer | Jinchang Servo Motor |
transfer method | InsideTibetan | |
Motor Power | 1.1/3.7KW | |
range of rotation | 15~8000rpm | |
maximum torque | 23.6NM | |
Spindle through hole diameter/Push tube through hole diameter | ψ29/ψ22 | |
Spindle collet | Tsugami Collet Type 20 | |
Spindle positioning | 5 ° | |
Spindle front bearing model | 7910 | |
Spindle bearing precision | P4 | |
Spindle front bearing diameter | ψ 50 | |
| lubricating medium | NBU15 KLUBER | |
| Spindle cooling method | Forced air cooling |
Please contact us for more equipment parameters.
Company Information
Packaging & Shipping
FAQ
1.What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.

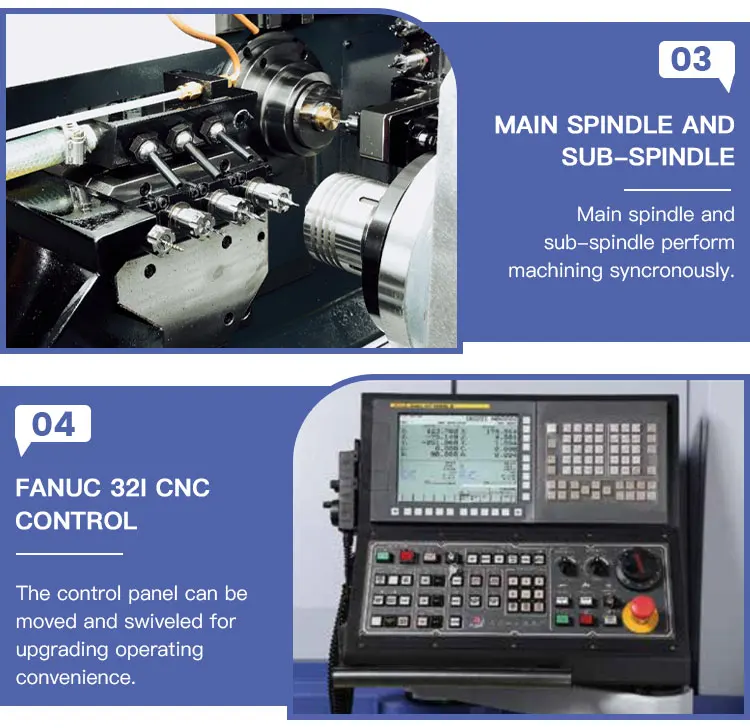

2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI, GSK,SYNTEC. It depends on your choice.
3:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
4: What's your main products of your company?
A: We specialize in selling all kinds of machine tools, such as CNC lathes, CNC milling machines, vertical machining centers, lathes, Swiss-type lathes, grinding machines and special fixtures for machine tools, tools, non-standard fixtures, tools
5: Where is our factory located? How can I visit there?
A :Our company is located at C307, Block C, Boyunhui, No. 18, Xingao Road, Niutang Town, Wujin District, Changzhou City, Jiangsu Province, China. You are warmly welcomed to visit us.
6. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
7: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
