SiAECOSYS QSMOTOR 12inch 1500W 72V 55kph Hub Motor with EM50SP controller and kits for Electric Scooter

Product Overview

Description

SiAECOSYS QSMOTOR 12inch 1500W 72V 55kph Hub Motor with EM50SP controller and kits for Electric Scooter

For 1500W motor kits, it could be used for Electric Scooter, which could be 72V 55KPH.

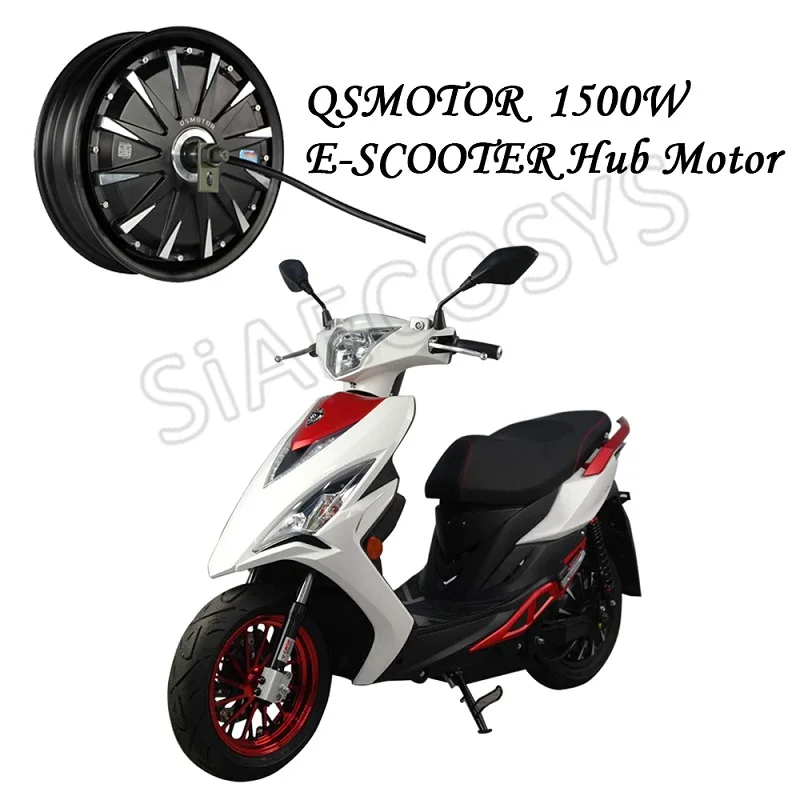

e.g. Electric Scooter

Weight, approx 95kg+80kg

Speed: peak 55km/h

Climbing slope: 15 degree@175kg

Tire: 90/90-12

One set including below kits

1. 1pcs X QSMOTOR 12X2.5inch 1500W 260 V1.12 Electric Hub Motor

2. 1pcs X EM50SP sine wave motor controller with standard CAN-BUS

3. 1pcs X DKD LCD speedometer with CAN (disable CAN as default)

4. 1pcs X Z6 throttle with combination switch

Key Features
1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

Product Description

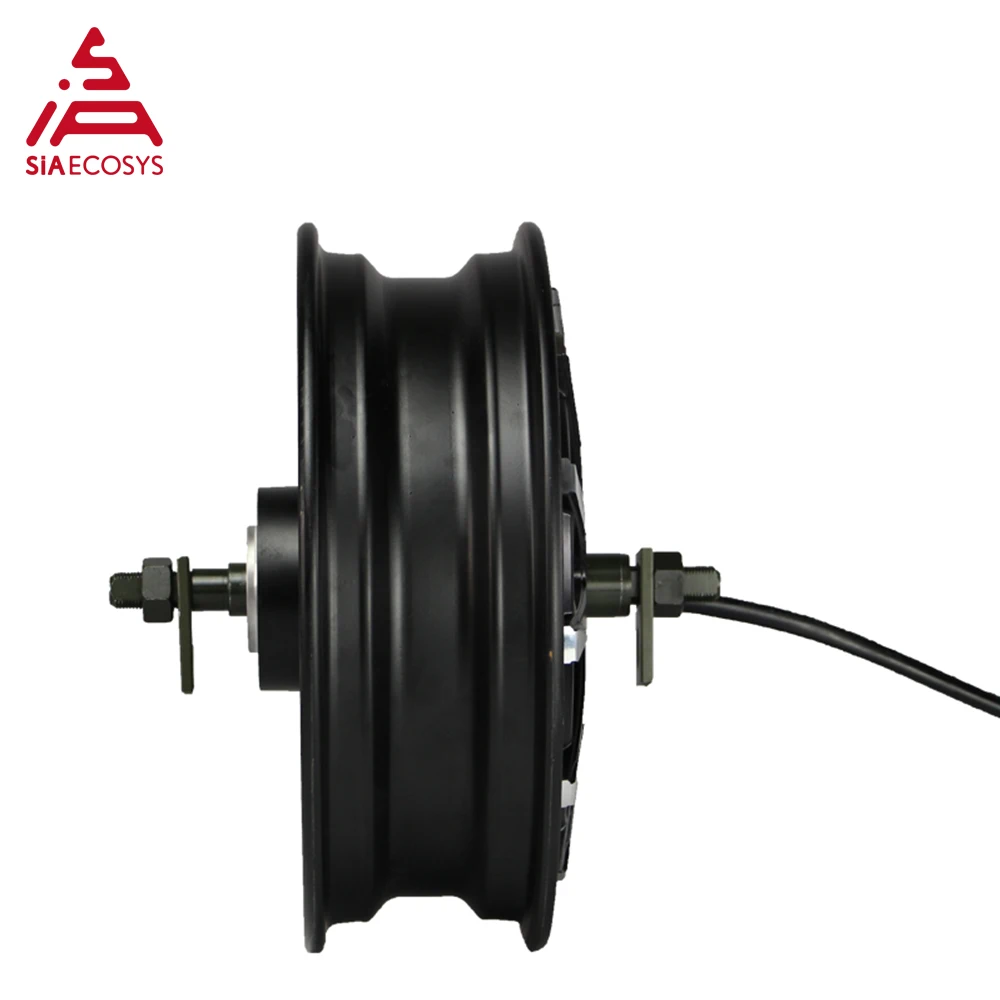

1. QSMOTOR 12X2.5inch 1500W 260 V1.12 Electric Hub Motor

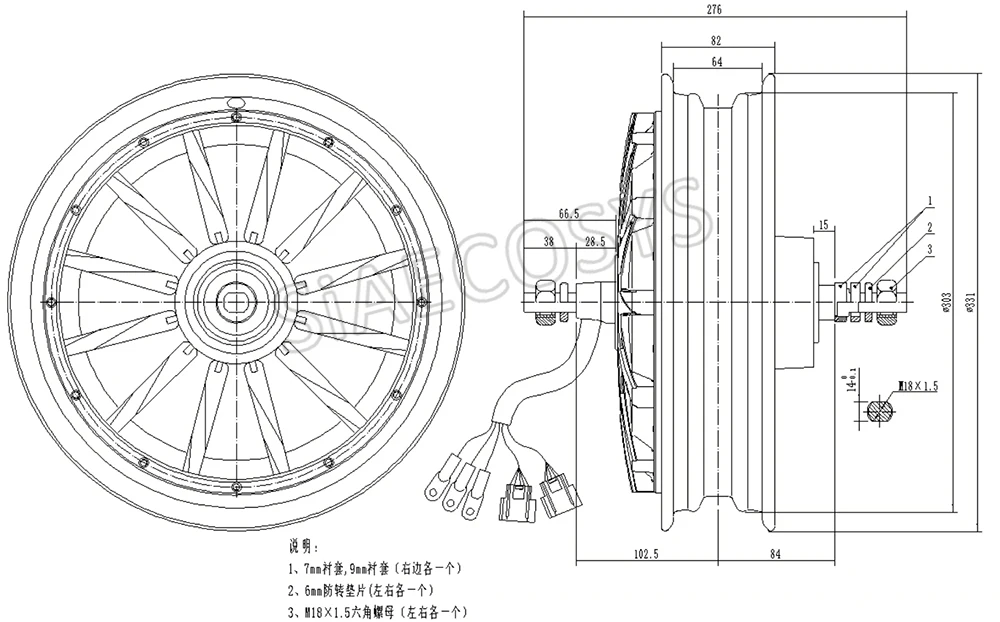

Drawing



Test Report(for reference)

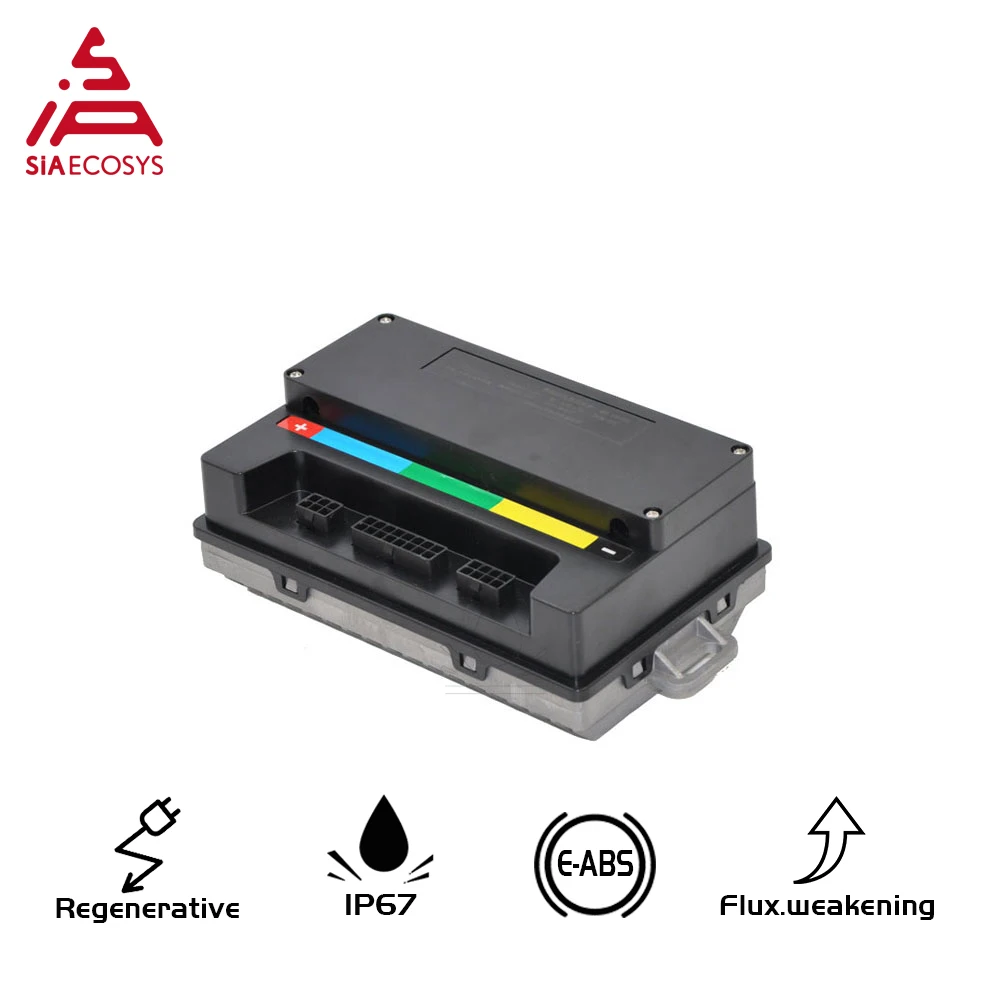

2.  EM50SP sine wave motor controller with standard CAN-BUS

Drawing

3. DKD LCD speedometer with CAN (disable CAN as default)

It display D N R, P, S gear, and battery current X5/10.

P.s.: If the working battery doesn't have can-bus communication, then the can-bus speedometer will shows lack of electricity always.

So, we suggest to do the speedometer as Line communication version if client can't get can-bus battery.



Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.
