Product Overview
Description
Shenzhen Factory FTTH Wifi ONU Huawei Compatible 1GE+1FE+WIFI GPON ONT ONU XPON

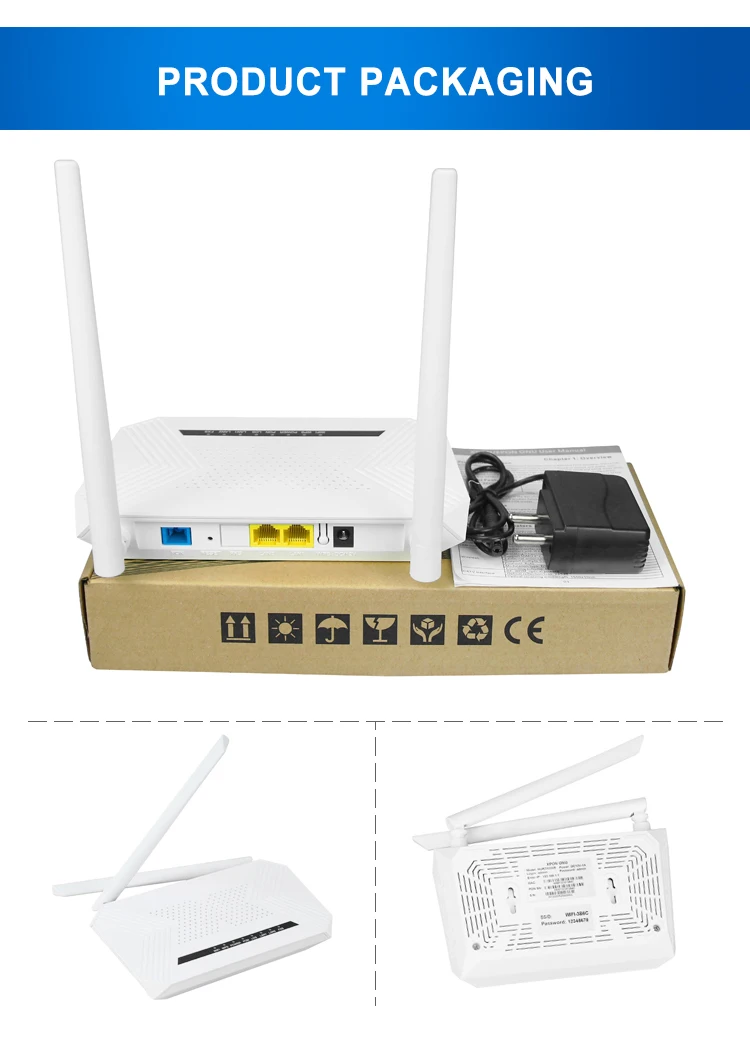

Packing
Power adapter
Product Description
1. Overview
* HUR2202XR is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides different services access.
* HUR2202XR is based on mature and stable, cost-effective XPON technology.
* HUR2202XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X.
2. Functional Feature
* Support EPON/GPON mode and switch mode automatically
* Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
* Support IPv4 and IPv6 Dual mode
* Support 2.4G WIFI 2*2 MIMO
* Support LAN IP and DHCP Server configuration
* Support Port Mapping and Loop-Detect
* Support Firewall function and ACL function
* Support IGMP Snooping/Proxy multicast feature
* Support TR069 remote configuration and maintenance
* Specialized design for system breakdown prevention to maintain stable system
* HUR2202XR is based on mature and stable, cost-effective XPON technology.
* HUR2202XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X.
2. Functional Feature
* Support EPON/GPON mode and switch mode automatically
* Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
* Support IPv4 and IPv6 Dual mode
* Support 2.4G WIFI 2*2 MIMO
* Support LAN IP and DHCP Server configuration
* Support Port Mapping and Loop-Detect
* Support Firewall function and ACL function
* Support IGMP Snooping/Proxy multicast feature
* Support TR069 remote configuration and maintenance
* Specialized design for system breakdown prevention to maintain stable system
3. Hardware Specification | ||
Technical item | Details | |
PON Interface | 1 GPON BOB （Class B+/Class C+） | |
Receiving sensitivity: ≤-27dBm/≤-29dBm | ||
Transmitting optical power: +0.5~+5dBm/+2~+7dBm | ||
Transmission distance: 20KM | ||
Wavelength | TX: 1310nm, RX: 1490nm | |
Optical Interface | SC/UPC Connector | |
Design Scheme | RTL9602C+RTL8192FR+Si32192 BOB(RTL8290B) | |
Chip Spec | CPU 625MHz,DDR2 64MB | |
Flash | SPI Nor Flash 16MB | |
LAN Interface | 1 x 10/100/1000Mbps(GE) and 1 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector | |
Wireless | Compliant with IEEE802.11b/g/n, | |
Operating frequency: 2.400-2.4835GHz | ||
support MIMO, rate up to 300Mbps, | ||
2T2R,2 external antenna 5dBi, | ||
Support: Multiple SSID | ||
Channel: Auto | ||
Modulation type: DSSS, CCK and OFDM | ||
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM | ||
LED | 7 LED, For Status of WIFI、WPS、PWR、LOS、PON、LAN1~LAN2 | |
Push-Button | 2,For Function of Reset, WPS | |
Operating Condition | Temperature: 0℃~+50℃ | |
Humidity: 10%～90%（non-condensing） | ||
Storing Condition | Temperature: -30℃~+60℃ | |
Humidity: 10%~90%（non-condensing） | ||
Power Supply | DC 12V/1A | |
Power Consumption | ≤6W | |
Dimension | 180mm×107mm×28mm（L×W×H） | |
Net Weight | 0.15Kg | |

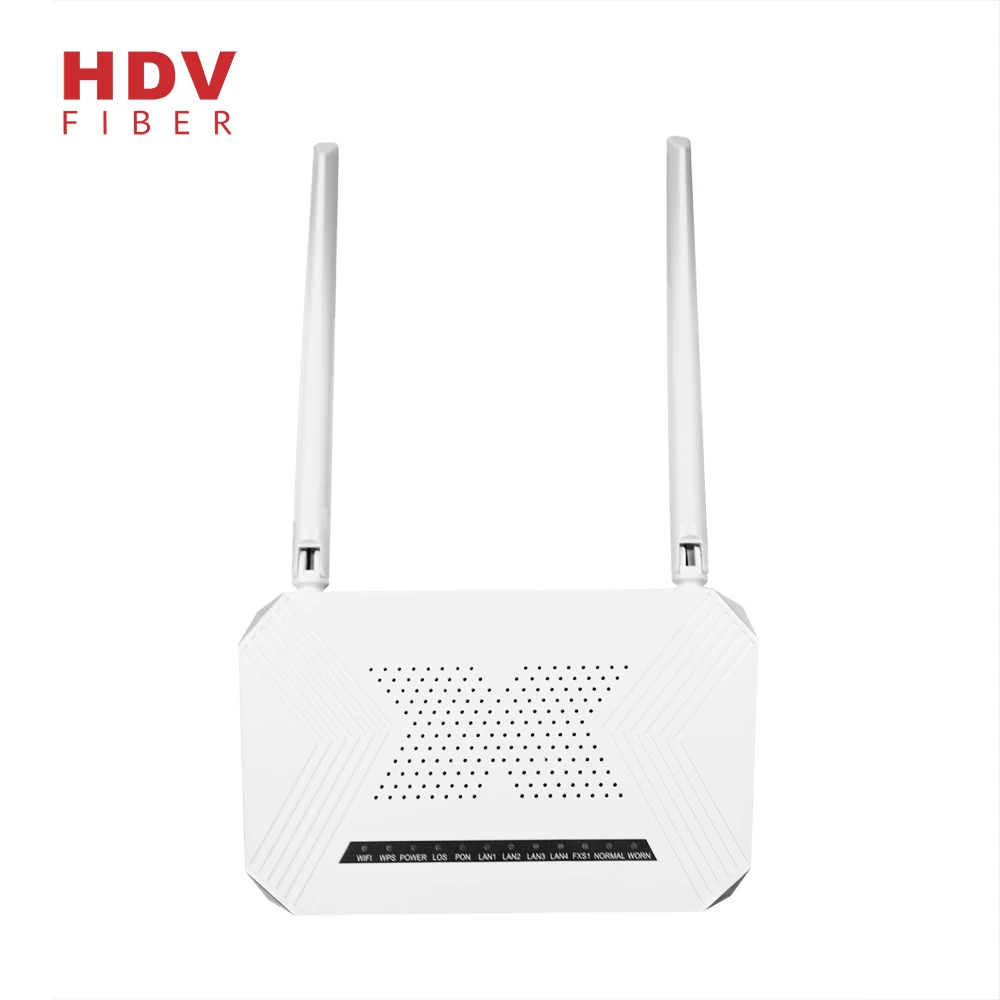

4. Panel lights Introduction | ||||
Pilot Lamp | Status | Description | ||
WIFI | On | The WIFI interface is up. | ||
Blink | The WIFI interface is sending or/and receiving data (ACT). | |||
Off | The WIFI interface is down. | |||
WPS | Blink | The WIFI interface is securely establishing a connection. | ||
Off | The WIFI interface does not establish a secure connection. | |||
PWR | On | The device is powered up. | ||
Off | The device is powered down. | |||
LOS | Blink | The device doses not receive optical signals or with low signals. | ||
Off | The device has received optical signal. | |||
PON | On | The device has registered to the PON system. | ||
Blink | The device is registering the PON system. | |||
Off | The device registration is incorrect. | |||
LAN1~LAN2 | On | Port (LANx) is connected properly (LINK). | ||
Blink | Port (LANx) is sending or/and receiving data (ACT). | |||
Off | Port (LANx) connection exception or not connected. | |||
5..Application
* Typical Solution：FTTH(Fiber To The Home)
* Typical Business：INTERNET、IPTV、WIFI etc
* Typical Business：INTERNET、IPTV、WIFI etc
