Steel Pipe Beveling Machine Solid Bar Chamfering Machine Steel Pipe Bar Chamfering Machine
- Category: >>>
- Supplier: Zhangjiagang Heshun Machinery Manufacturer Co. Ltd.
Share on (1600715833660):
Product Overview
Description
Company Profile
Products Description

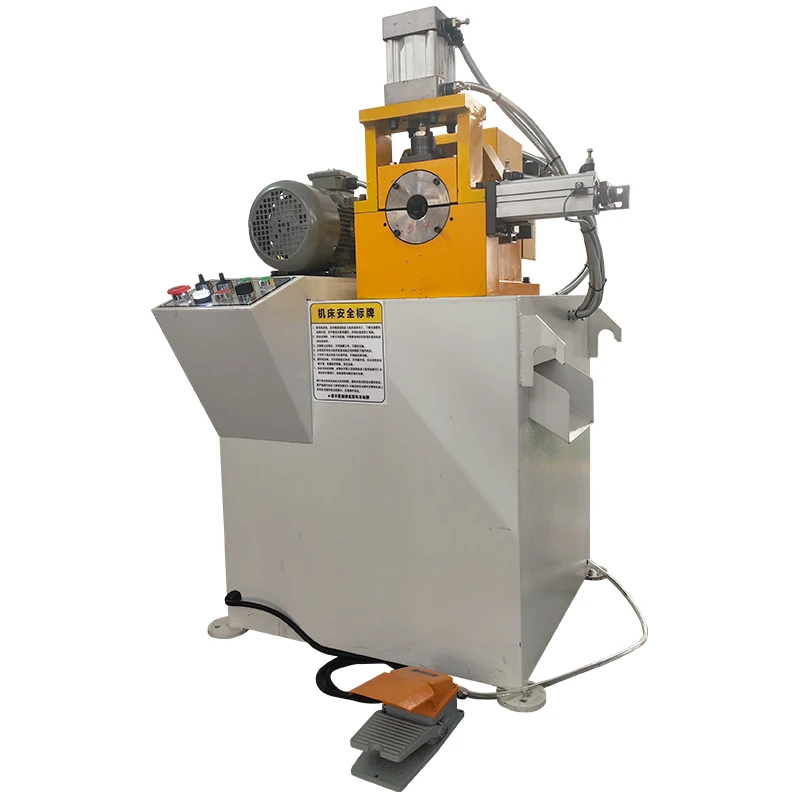

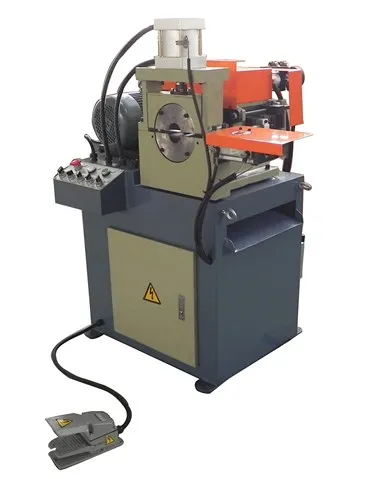

Single head pipe chamfering machine
1. The machine is for chamfering and beveling the interior and external face of round pipes and bars at the same time with the fast and high accuracy features.
2.The machine is most commonly used as a deburring machine, but also can be used for pipe beveling applications as well. The solid bar, bolts, pipe, and tubing can be machined or deburred easily and efficiently.
3.The central line of the processing object and the cutter is precise. Specal design and standardization of the blade make adjusting blade easily.
4.Only changing the cutter and adjusting the trip holder can make the machine available for different size of the workpiece.
5.Processing speed: 3-6 second/piece.
2.The machine is most commonly used as a deburring machine, but also can be used for pipe beveling applications as well. The solid bar, bolts, pipe, and tubing can be machined or deburred easily and efficiently.
3.The central line of the processing object and the cutter is precise. Specal design and standardization of the blade make adjusting blade easily.
4.Only changing the cutter and adjusting the trip holder can make the machine available for different size of the workpiece.
5.Processing speed: 3-6 second/piece.
Item | EF-PV/52 | EF-PV/80 | EF-PV/120 | EF-PV/150 |
Host power | 0.75KW | 1.5KW | 3.75KW | 4KW |
air pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa |
Cutter head | 1、standard Φ15-50mm 2、small | standard Φ20-80mm | standard Φ38-115mm | standard Φ38-115mm |
pipe diameter | Φ9-Φ52mm | Φ20-Φ80mm | Φ38-Φ120mm | Φ38-Φ150mm |
External angle | Φ9-Φ25mm | Φ9-Φ50mm | Φ9-Φ60mm | Φ9-Φ60mm |
Standard equipment | 1 Standard parts 2 A set of clamps | 1 Standard parts 2 A set of clamps | 1 Standard parts 2 A set of clamps | 1 Standard parts 2 A set of clamps |
weight | 120kg | 380kg | 450kg | 520kg |
size | 570*750*1000mm | 800*750*1350mm | 930*750*1350mm | 950*760*1350mm |
Details Images

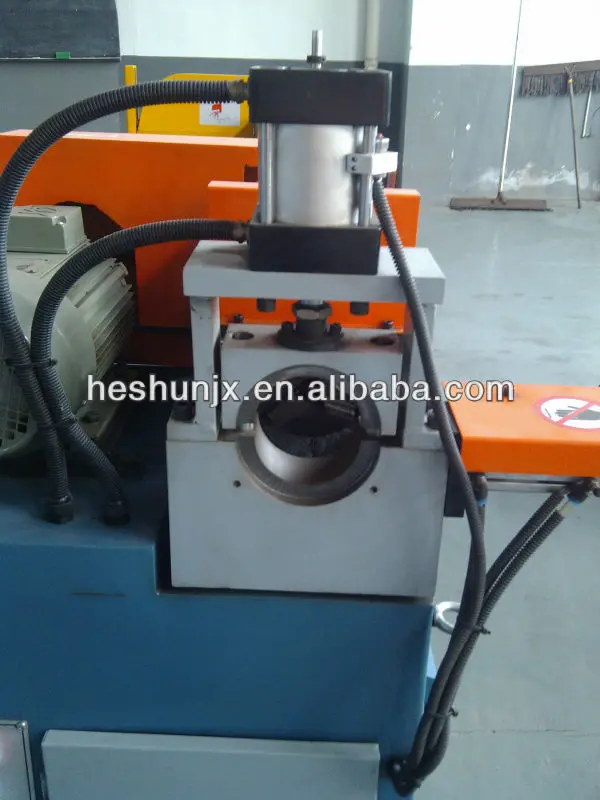

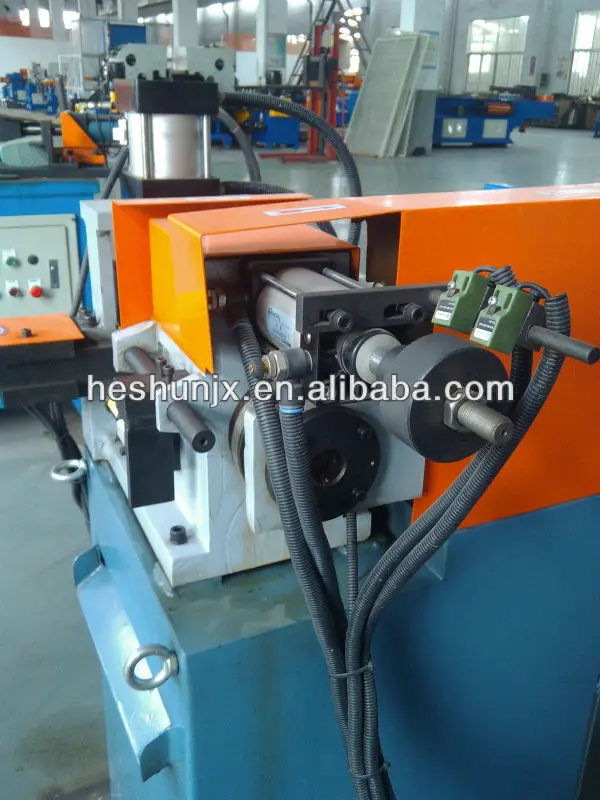

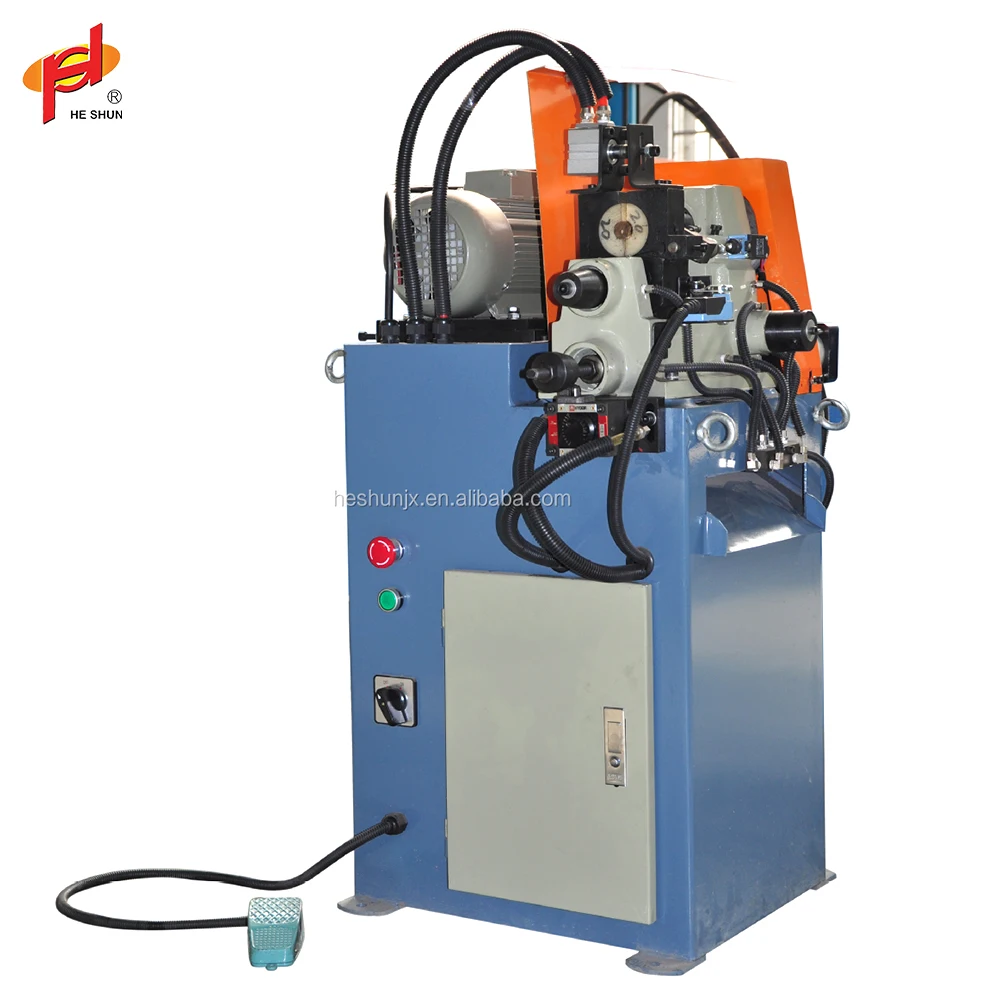

Single head chamfering machine
1.It is easy to adjsut the cutting feeding speed

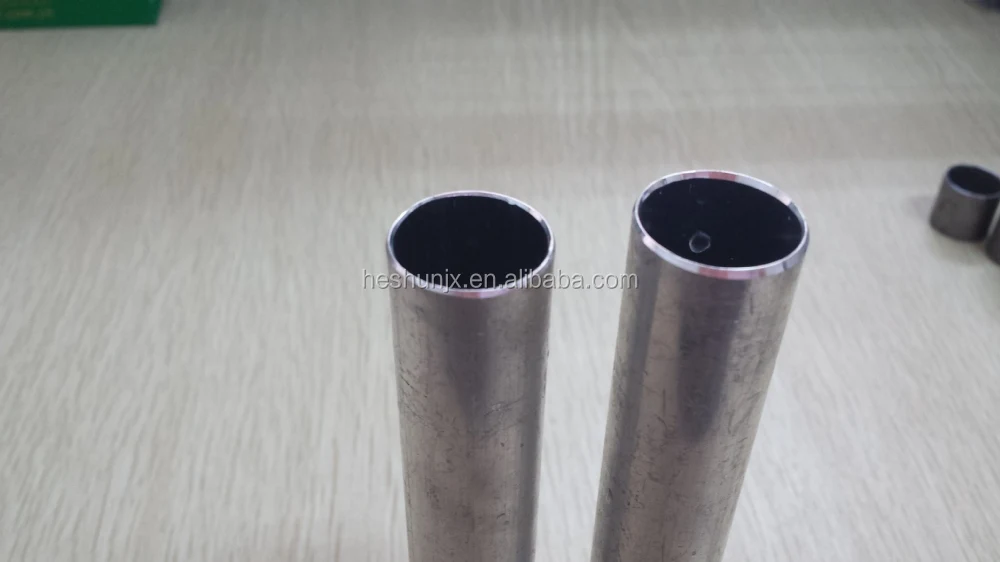

2.Dies clamper and cutter head are special designed, can finish internal angle, external angle and flat angle at the same time.
3.Rotate speed can be adjustable according to the change of belt pulley, suit for all kinds of metal material pipes.
2.Dies clamper and cutter head are special designed, can finish internal angle, external angle and flat angle at the same time.
3.Rotate speed can be adjustable according to the change of belt pulley, suit for all kinds of metal material pipes.
Certifications
Product packaging
Customer Photos
Recommend Products
FAQ
1. Who are we?
We are based in Jiangsu, China, start from 2001,sell to Domestic Market(40.00%),Northern Europe(10.00%),Southern Europe(5.00%),South America(5.00%),Western Europe(5.00%),South Asia(5.00%),Mid East(5.00%),Oceania(5.00%),Africa(5.00%),Southeast Asia(5.00%),Eastern Europe(5.00%),North America(3.00%),Eastern Asia(2.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
bending machine,pipe cutting machine,chamfering machine,pipe end forming machine,punching machine
4. Why should you buy from us not from other suppliers?
More than 20 years of experience in pipe machine design and development
Have the perfect quality control system to make sure the the machine quality
Have the perfect quality control system to make sure the the machine quality
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,DDU,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
