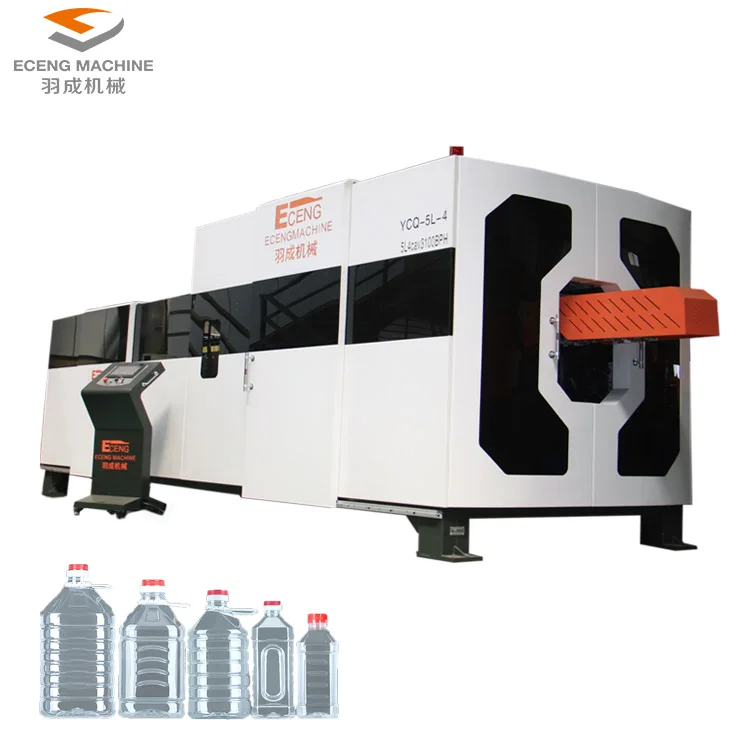

automatic blow molding machine olive oil pet bottles with reasonable price 2 cavity 5 liter bottle blowing machines
- Category: >>>
- Supplier: Zhangjiagang Eceng Machinery Co. Ltd.
Share on (1600715834290):
Product Overview
Description
specification
Item | Q5L2 | ||
Bottle type specification | Cavity | 2 | |
Theory output | 1500 | ||
Max.volume | 5L | ||
Bottle mouth maximum overall DIdiameter | 150mm | ||
Bottle biggest diameter | 180mm | ||
Bottle maximum height | 400mm | ||
Power specifications | Light tube quantity | 40pcs | |
Light tube power | 2.5KW | ||
Maximum heating power | 48KW | ||
All electric machine installation | 51KW | ||
Actual consumption | 35.7KW | ||
Air pressure specification | Work pressure | 7-9kg/cm2 | |
Low-pressure gas consumption | 1600L/min | ||
Blow bottle pressure | 25-35kg/cm2 | ||
Higher -pressure gas consumption | 3400Ltr/min | ||
Forzen water specification | Work pressure | 5-6 kg/cm2 | |
Temperature range | 10℃ | ||
Consumption | 6000kcal/hr | ||
Forzen water flow | 50L/min | ||
Machine specification | Size of the machine | 4.12x1.8x2.25 | |
Weight of the machine | 3.0ton | ||
Product Description
pet blowing machine for 5 liter Q5L2 linear bottle blowing machines are used in the production of PET water bottles, hot filling bottles, carbonated beverage bottles, edible oil bottles, and pesticide bottles.

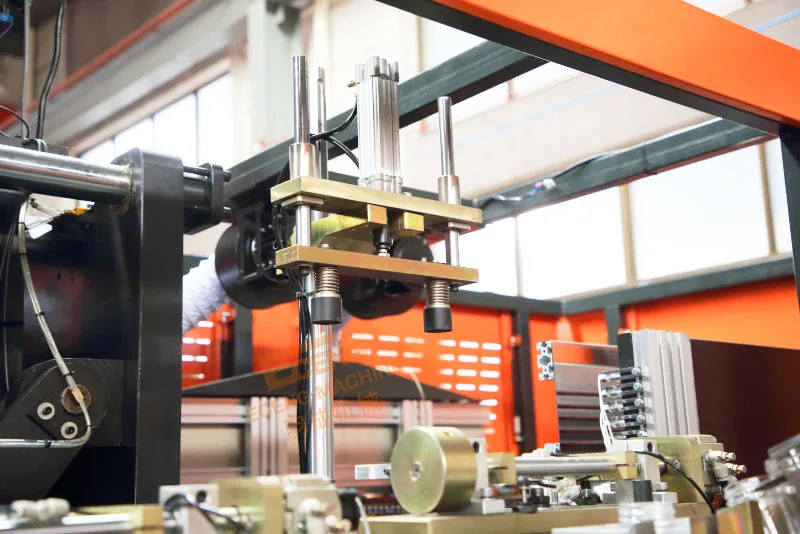

Eceng Machinery's Q linear bottle blowing machine stretches preforms by using a servo motor-controlled stretch rod. The advantage is that it can be stretched in sections,and positioning of the preform is at first in order to ensure the verticality of the preforms during stretching, then secondary stretching.Ensure the uniformity and consistency of each preform stretching.At the same time,bottle blowing machine has a fast stretching speed and precise position.
Q series is a stable two-step blow-down stretch automatic blowing machine.It is used for max volume 5L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
Eceng Machinery's Q linear bottle blowing machine stretches preforms by using a servo motor-controlled stretch rod. The advantage is that it can be stretched in sections,and positioning of the preform is at first in order to ensure the verticality of the preforms during stretching, then secondary stretching.Ensure the uniformity and consistency of each preform stretching.At the same time,bottle blowing machine has a fast stretching speed and precise position.
Q series is a stable two-step blow-down stretch automatic blowing machine.It is used for max volume 5L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

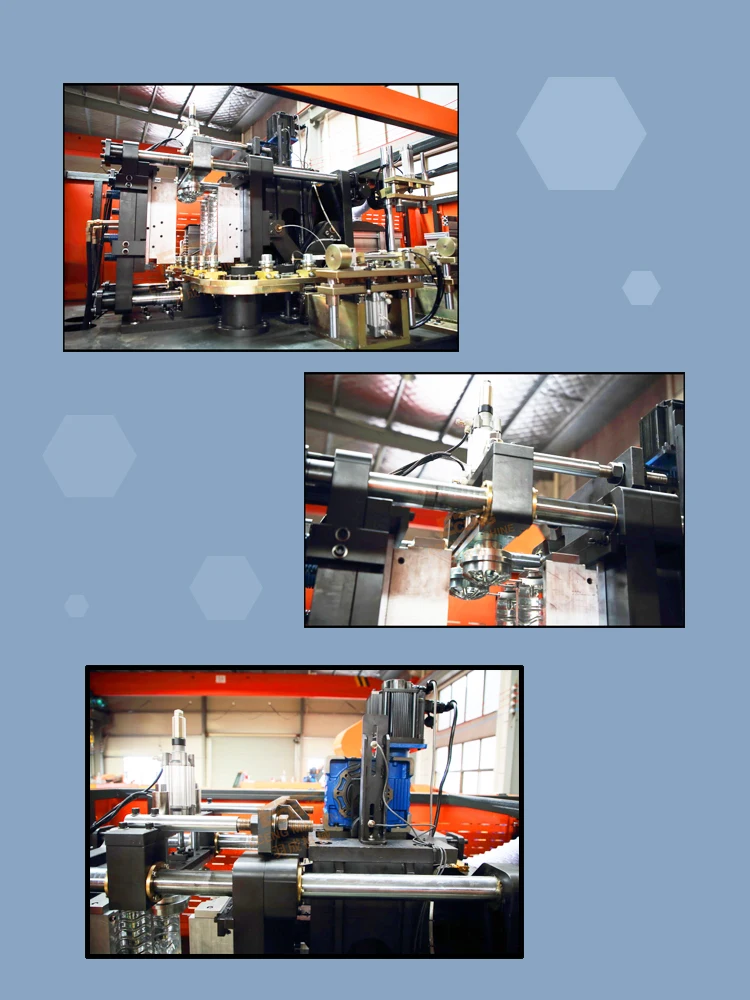

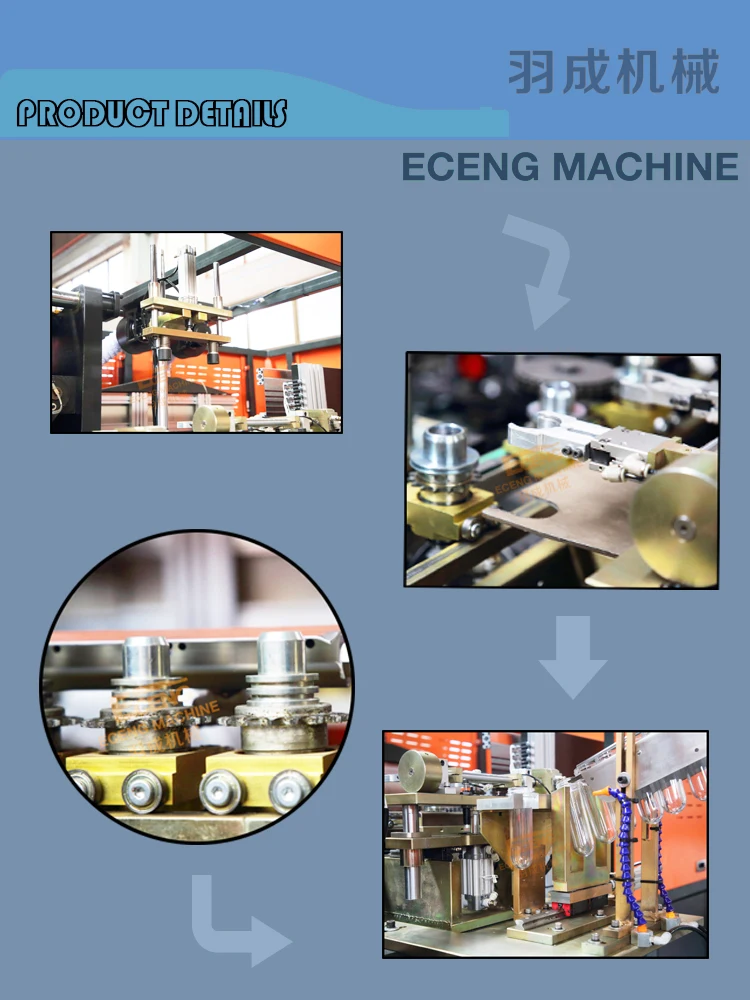

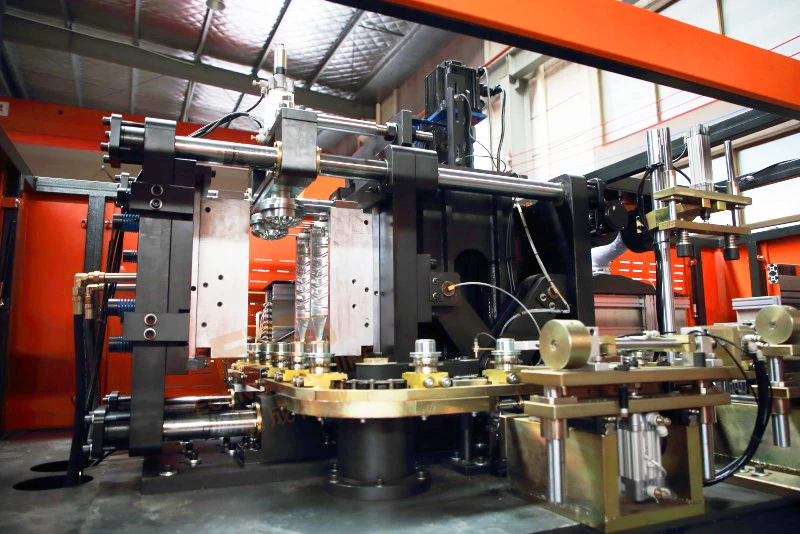

Detailed Images

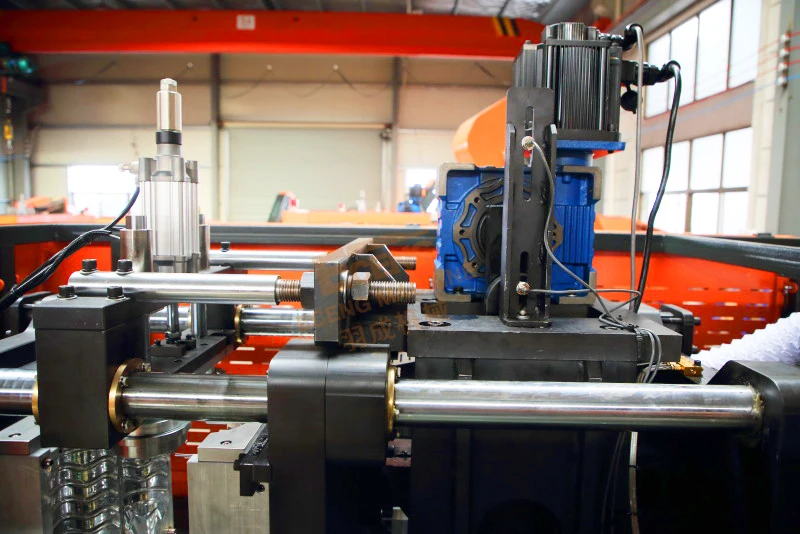

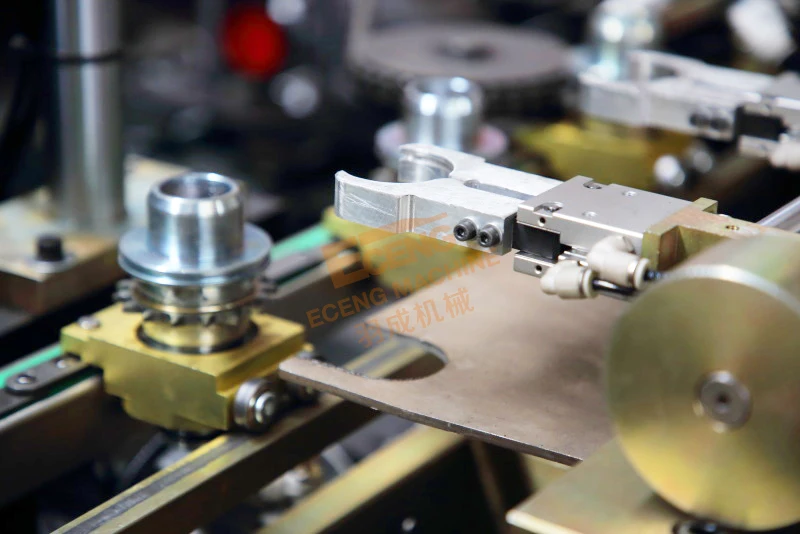

Servo transmission system
High positioning accuracy, fast speed and stability, good reliability. Gas circuit design will divide action and blowing into three parts to meet the needs of different pressure for blowing bottles and movement; Adopt high pressure and double crank arm link locking, strong clamping force.

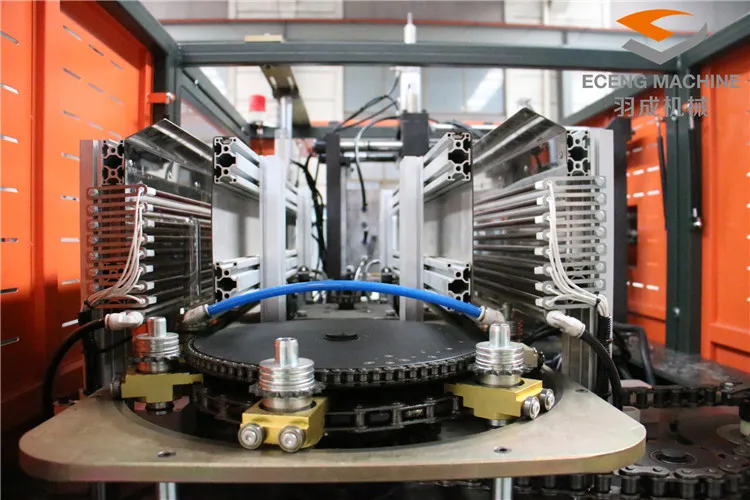

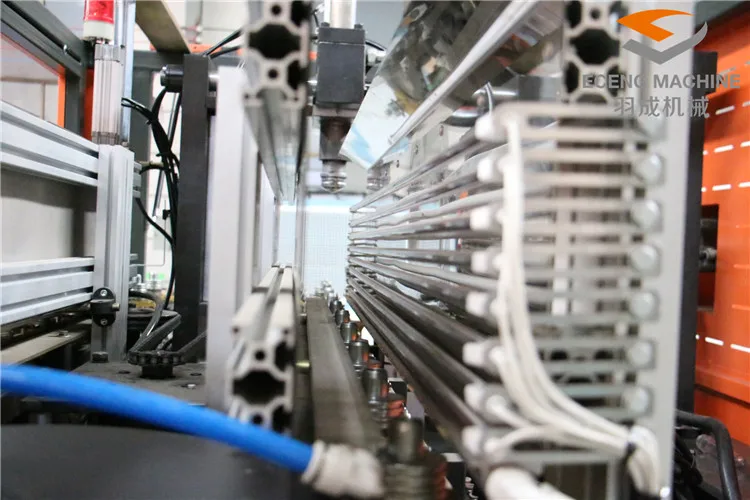

Adopt infrared lamp heating

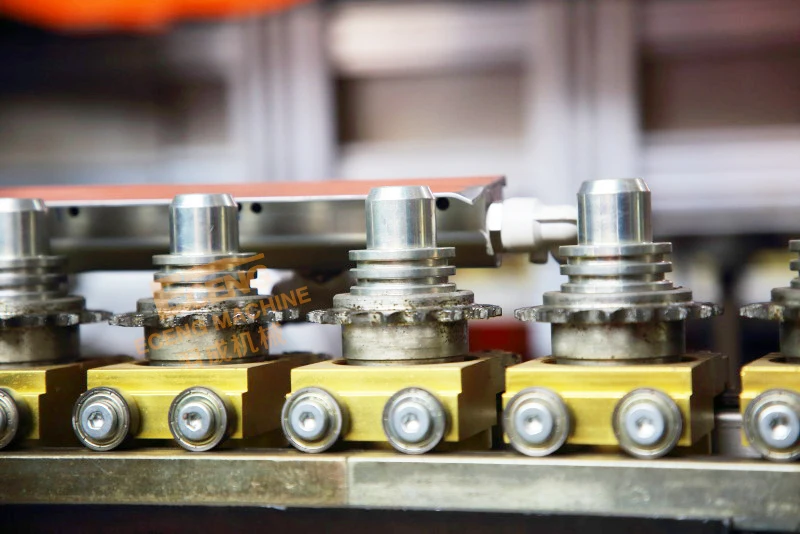

Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; Heating lamp, reflector width and height can be adjusted to suit preform heating of different structure, with automatic temperature-removal device to ensure the constant temperature of oven.

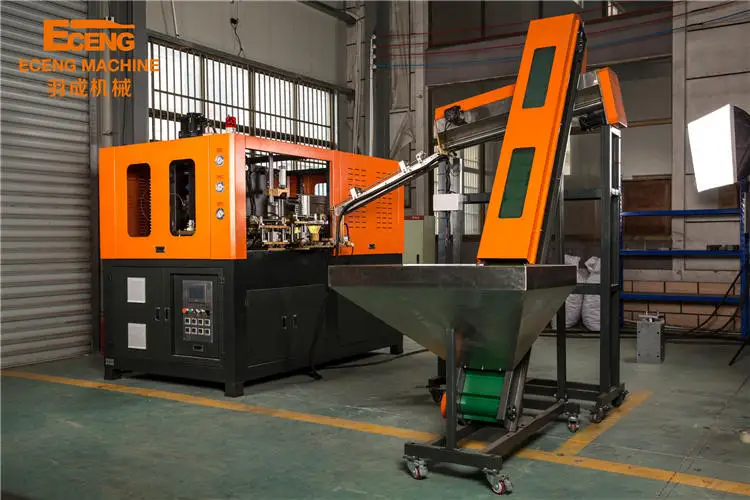

Auto-loader
Auto-loader improves working efficiency, accurate transportation, reliable and durable, raw materials are completely free of moisture, pollution, foreign matter, and loss during feeding process. Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.
Intelligent Human-Machine Interface
1.Human-machine interface control, easy operate and monitor.
2.Live production information supervise, auto record production data everyday
3.Failure warning and troubleshooting.
High positioning accuracy, fast speed and stability, good reliability. Gas circuit design will divide action and blowing into three parts to meet the needs of different pressure for blowing bottles and movement; Adopt high pressure and double crank arm link locking, strong clamping force.
Adopt infrared lamp heating
Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; Heating lamp, reflector width and height can be adjusted to suit preform heating of different structure, with automatic temperature-removal device to ensure the constant temperature of oven.
Auto-loader
Auto-loader improves working efficiency, accurate transportation, reliable and durable, raw materials are completely free of moisture, pollution, foreign matter, and loss during feeding process. Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.
Intelligent Human-Machine Interface
1.Human-machine interface control, easy operate and monitor.
2.Live production information supervise, auto record production data everyday
3.Failure warning and troubleshooting.
Q series linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .
Our Advantage
1. Resonable price 2. Good after service 3. experienced skilled workers and professional engineers 4. Good quality ,excellent service ,long life mould 5. on time delivery time
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .
Our Advantage
1. Resonable price 2. Good after service 3. experienced skilled workers and professional engineers 4. Good quality ,excellent service ,long life mould 5. on time delivery time
Company Introduction
Packing&Shipping
After Sales Service
1. Installation, debug We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.the sample service
1'We can send you the video of the running machine.
2'You are welcome to come to visit our factory,and see the machine running.
4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5.We provide one year warranty
6.well-trained & experienced staff are to answer all your inquiries in English and Chinese
7 .12 Months guarantee and life-long technical support.
8.Your business relationship with us will be confidential to any third party.
9. Good after-sale service offered, please get back to us if you got any questions.
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
