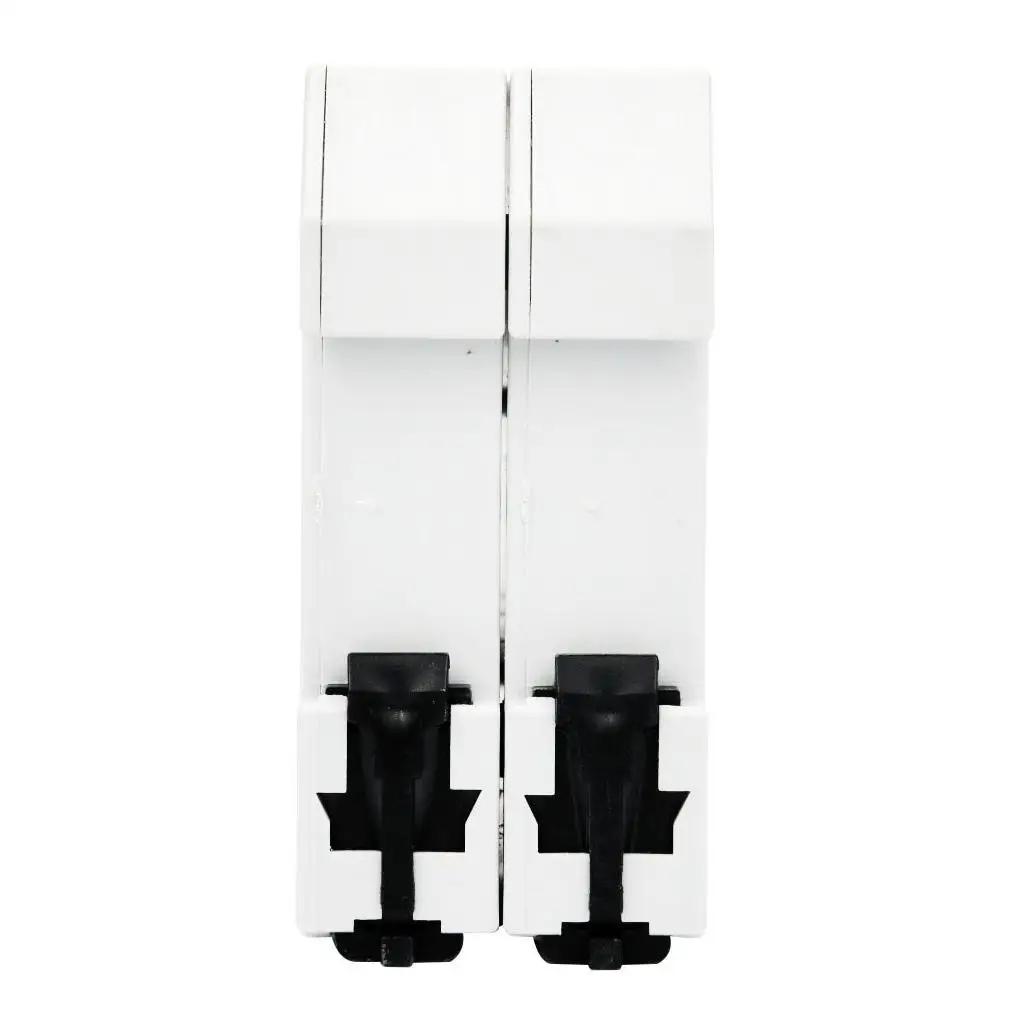

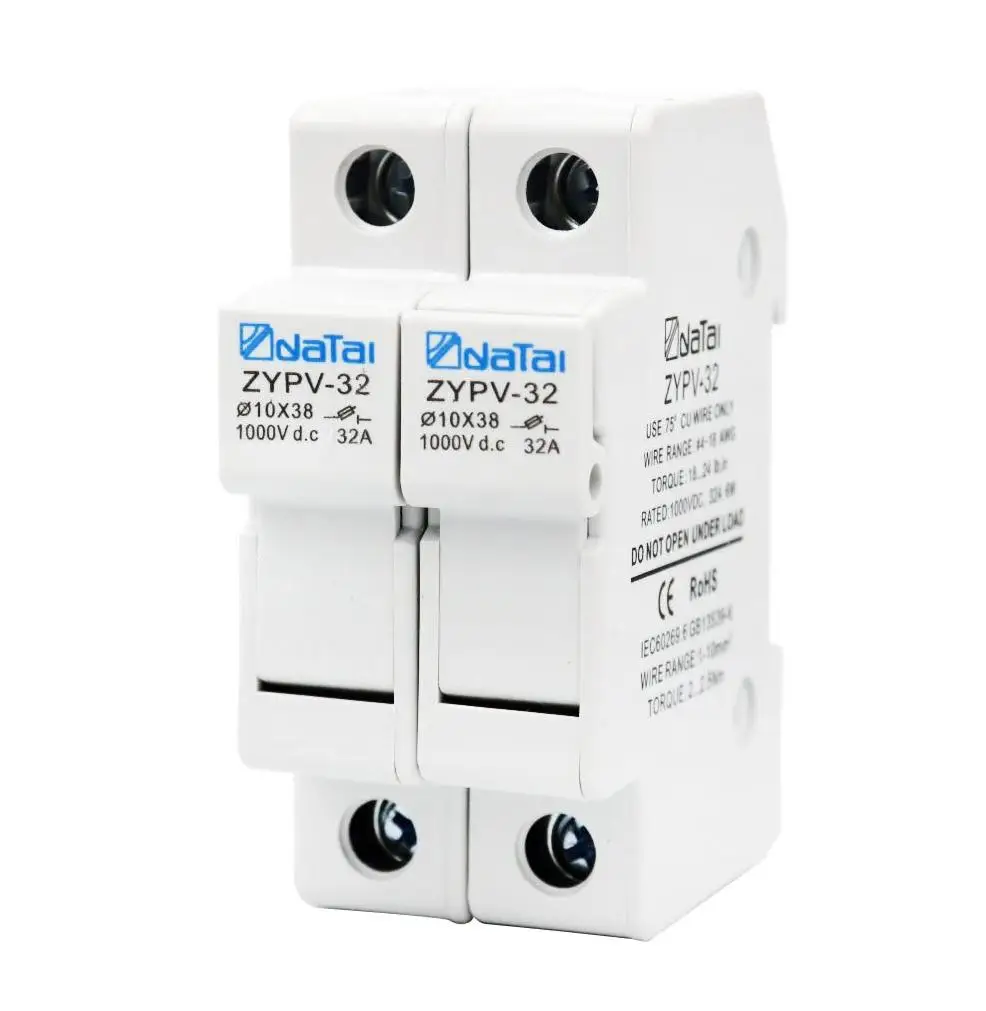

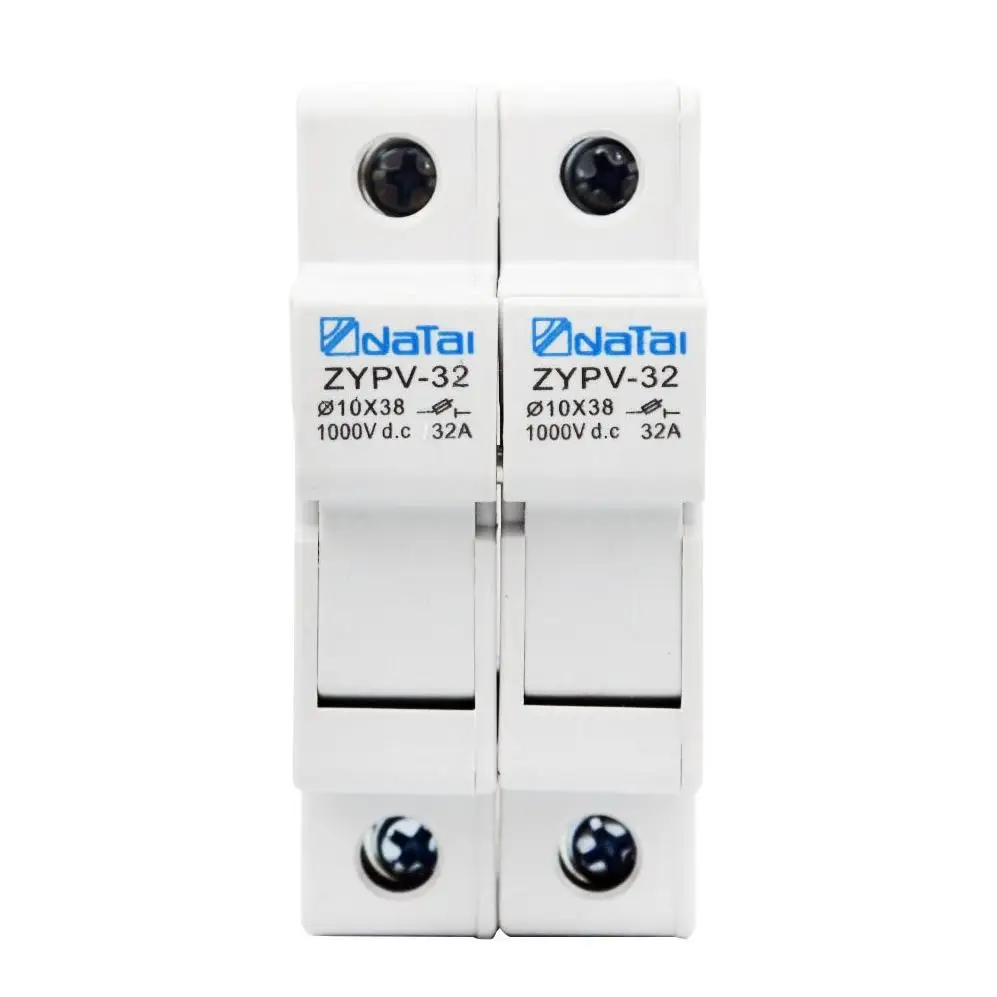

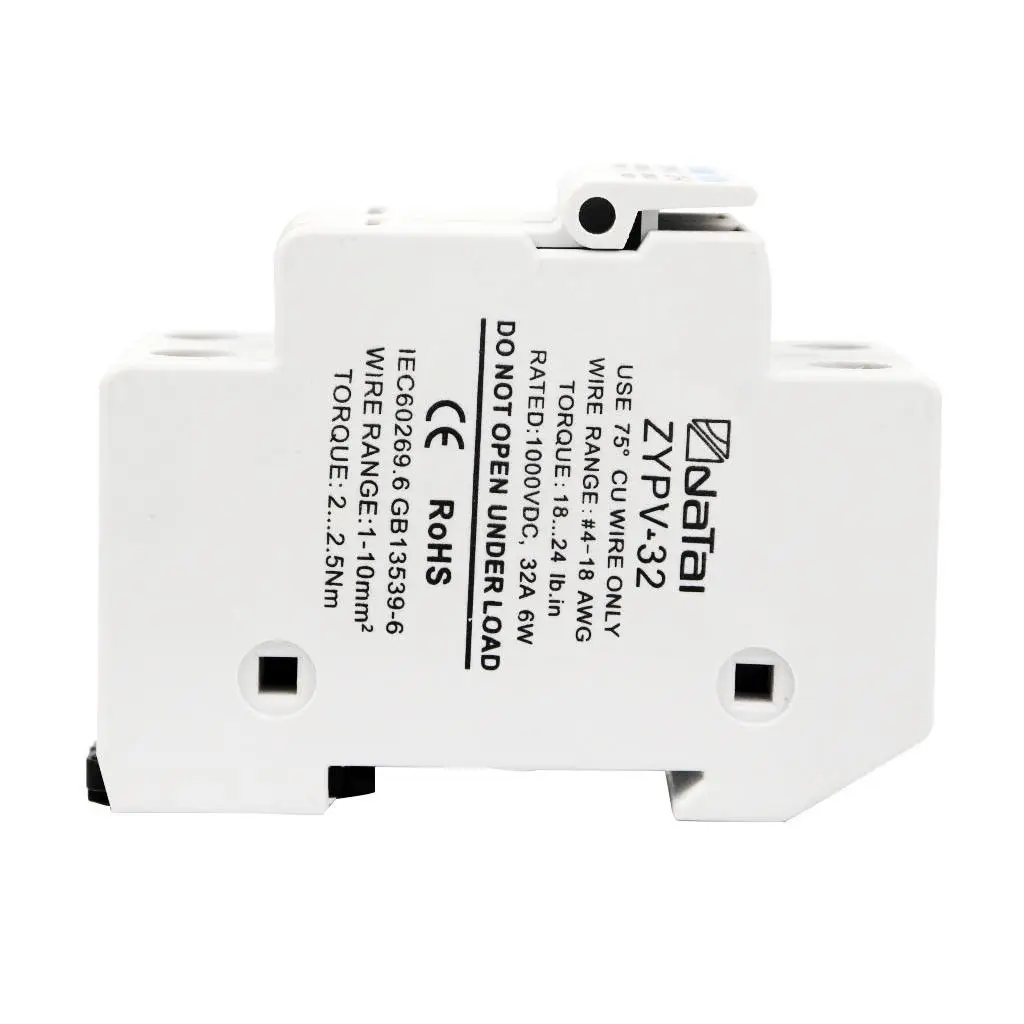

DATAI DC 2P 1000V Fuse Holder for Solar PV System Protection Fusible 10x38MM gPV PV Solar Fuse
- Category: >>>
- Supplier: Nanchang Datai Electromechanical Equipment Co. Ltd.
Share on (1600715869312):
Product Overview
Description
Product Description
PV String Fuses for solar panels gPV - 1000VDC
Tips: price in this link is for one set(1P Fuse holder with fuse)
A range of fuses in a 10x38mm package specifically designer for protection and isolation of photovoltaic strings.
The DC fuses are capable of interrupting low overcurrents associated with faulted PV (reverse current, multi-array fault) string
arrays.
Applications
Solar Panels, Solar Photovoltaic, DC Strings. ADVICE: Always use fuses on positive and negative terminal on any photovoltaic
string rated up to 1000VDC
Electrical Characteristics
* Rated voltage 1000VDC
* Amps 3A,10A,15A,20A,25A,30A
* Rated braking capacity 33kA dc
* Minimum interrupting rating 1.3x In
* Time constant under 1ms
Standard
IEC 60269-6, EN 60947-3, DC-20B

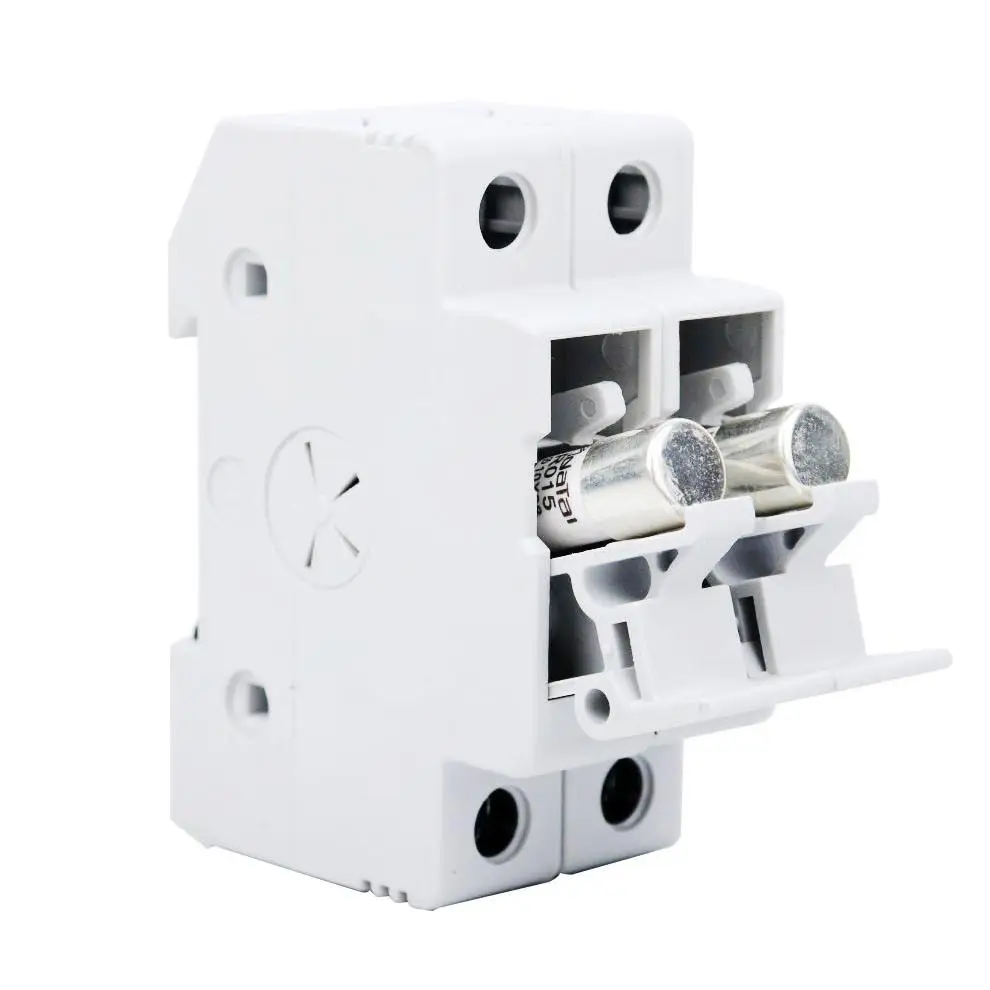

Fuse Holder for PV String Fuses
This holder is suitable for PV fuses rated 3A, 10A, 15A, 20A, 25A and 30A. The maximum voltage is 1000V. The fuse holder can be combined with the following PV String Fuses which is essential protection for solar panels.
- 1000V DC-20B
- Modular 45mm cut out - 1 module (17,5mm) X pole
- Mounting 35mm DIN rail
- High temperature resistant plastics
- Elevated insulation characteristics
The DC fuses are capable of interrupting low overcurrents associated with faulted PV (reverse current, multi-array fault) string
arrays.
Applications
Solar Panels, Solar Photovoltaic, DC Strings. ADVICE: Always use fuses on positive and negative terminal on any photovoltaic
string rated up to 1000VDC
Electrical Characteristics
* Rated voltage 1000VDC
* Amps 3A,10A,15A,20A,25A,30A
* Rated braking capacity 33kA dc
* Minimum interrupting rating 1.3x In
* Time constant under 1ms
Standard
IEC 60269-6, EN 60947-3, DC-20B
Fuse Holder for PV String Fuses
This holder is suitable for PV fuses rated 3A, 10A, 15A, 20A, 25A and 30A. The maximum voltage is 1000V. The fuse holder can be combined with the following PV String Fuses which is essential protection for solar panels.
- 1000V DC-20B
- Modular 45mm cut out - 1 module (17,5mm) X pole
- Mounting 35mm DIN rail
- High temperature resistant plastics
- Elevated insulation characteristics
