Lenovo ThinkStation P340 Computer I3 10100 8G DDR4 Memory 1T 500W Workstations computer pc

Form Factor

Tower (17L)

Processor

Up to one Intel® Core™ i3 / i5 / i7 / i9 or Intel Xeon® Processor

Graphics

Integrated Graphics
• Intel UHD Graphics 630 • Intel UHD Graphics P630
Discrete Graphics Support
Supports up to one NVIDIA® Quadro® RTX 5000 or two NVIDIA RTX A2000, 500W PSU is needed

Memory

Up to 128GB DDR4-2933
4 DDR4 UDIMM slots, dual-channel capable

Storage

Up to 2x 3.5" SATA HDD / 4x 2.5" SATA HDD / SSD + 4x M.2 PCIe® SSD
• 3.5" HDD up to 4TB each • 2.5" SATA HDD up to 1TB each• 2.5" SATA SSD up to 1TB each • M.2 PCIe SSD up to 2TB each • Optional
Intel Optane™ Memory

Power Supply

300W，100V - 240V, 80 PLUS Gold qualified
500W，100V - 240V, 80 PLUS Platinum qualified

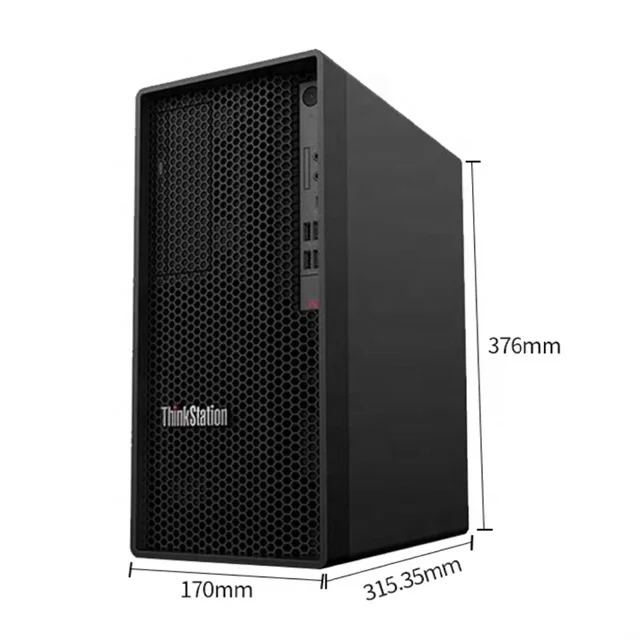

Dimensions (WxDxH)

170 x 315.35 x 376 mm (6.7 x 12.4 x 14.8 inches)

Weight

9.38 kg (20.68 lbs, maximum configuration)

Expansion Slots

• One PCIe 3.0 x16 • One PCIe 3.0 x1 • One PCIe 3.0 x16 (x4 lanes)

Expansion Slots Offering

Slot 1: PCIe 3.0 x16, full height, full length, links to CPU
Slot 2: PCIe 3.0 x1, full height, full length, links to PCH
Slot 3: PCIe 3.0 x16 (negotiable link width x4), full height, full length, links to PCH

Network Ports

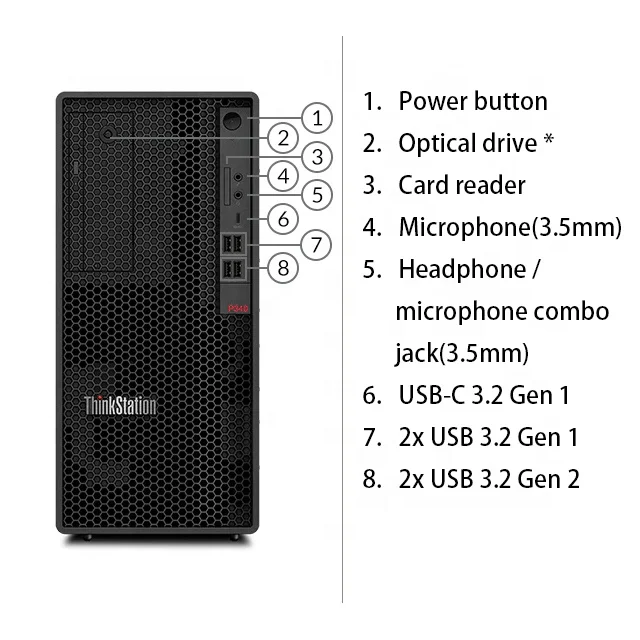

Front Ports
• 2x USB 3.2 Gen 1 • 2x USB 3.2 Gen 2• 1x USB-C® 3.2 Gen 1 • 1x headphone / microphone combo jack (3.5mm) • 1x microphone (3.5mm)

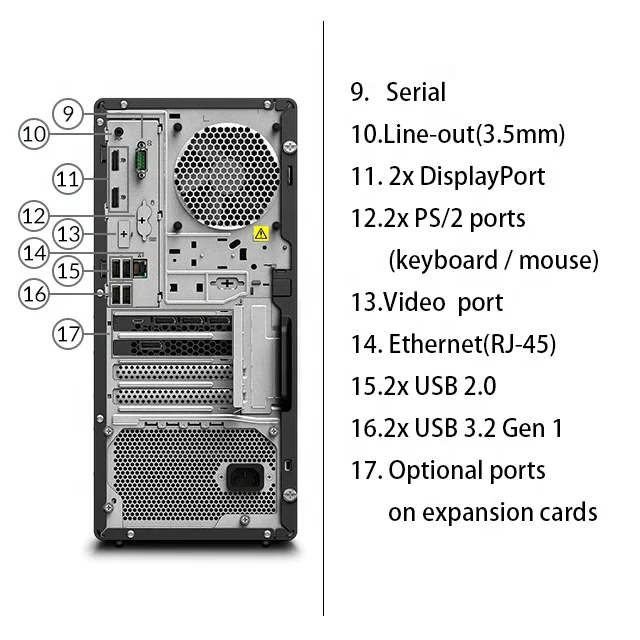

Rear Ports
• 2x DisplayPort™ • 2x USB 2.0• 2x USB 3.2 Gen 1 • 1x serial (9-pin) • 1x Ethernet (RJ-45) • 1x line-out (3.5mm)
Optional Rear Ports
• 2x USB 2.0 • 2x USB 3.2 Gen 1 (via 2-port USB expansion card, PCIe x1) • 2x USB-C 3.2 Gen 2 (via 2-port USB-C expansion card) •
1x Thunderbolt™ 3 • 1x video (DisplayPort, HDMI®, or USB-C) • 1x serial • 4x serial (via 4-port serial expansion card, PCIe x1) •
1x parallel • 2x PS/2

Warranty

3-year
