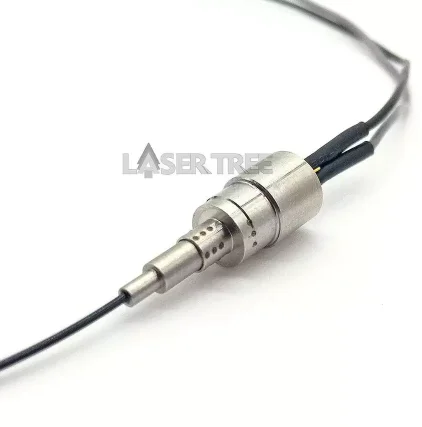

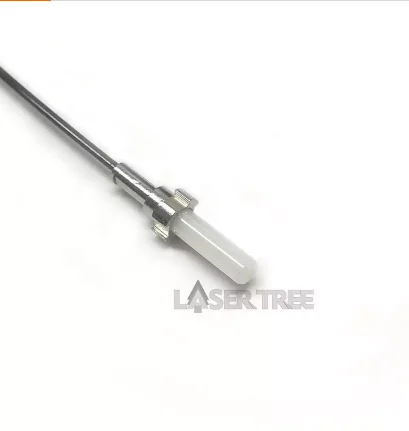

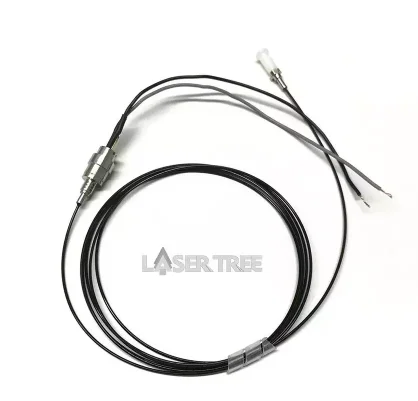

LASRT TREE 405/450/488/505/515/638/640nm Fiber Coupled Laser Diode Customizable Laser Diode
- Category: >>>
- Supplier: Shenzhen Guangchuangfeng Technology Co. Ltd.
Share on (1600715917322):
Product Overview
Description
Kindly reminding
On our working days, it usually takes about 1 week to work on the laser diode (quantity ≤ 10pcs) after we receive your payment.
If you want more than 10 pcs, please contact us first.
Thank you for your support and patience all the time!
Specifications
| Laser Diode Specs | Fiber Type | Fiber Core Diameter | Fiber Length | Iop(mA) | Vop(V) | Po(mW) | Operating Temperature | Storage Temperature |
|---|---|---|---|---|---|---|---|---|
| 405nm-150mW | Single Mode | 9/125um | 1m | ≤180 | ≤6 | 60 | -10~75℃ | -40~85℃ |
| 450nm-80mW | Single Mode | 9/125um | 1m | ≤145 | ≤6.5 | 70 | -10~70℃ | |
| 488nm-55mW | Single Mode | 9/125um | 1m | ≤135 | ≤7.5 | 30 | -10~60℃ | |
| 505nm-35mW | Single Mode | 9/125um | 1m | ≤160 | ≤7.5 | 20 | -10~60℃ | |
| 515nm-35mW | Single Mode | 9/125um | 1m | ≤135 | ≤8.5 | 20 | -10~60℃ | |
| 640nm-90mW | Single Mode | 9/125um | 1m | ≤185 | ≤2.9 | 60 | 0~60℃ | |
| Custom Made | Single Modle/ Multimode/ Polarization Maintaining | Customizable | Customizable |
