Lab Battery Grade Graphite Sheet Price
US $5.00-$15.00

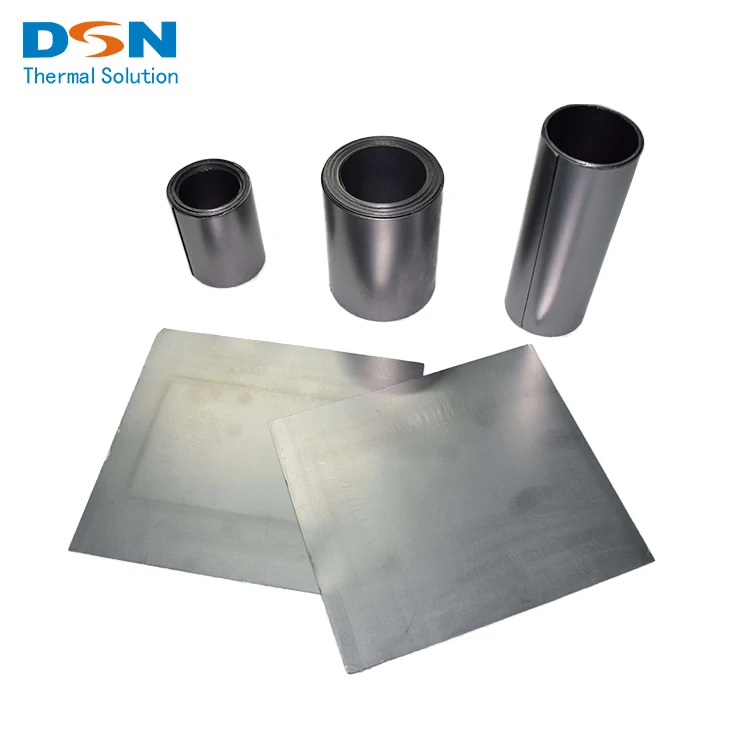

Pure graphite foil roll sheet tape expanded natural high carbon flexible sealing material graphite paper sheets
- Category: Graphite Sheets >>>
- Supplier: Suzhou,Dasen,Electronics,Material,Co.,Ltd.
Share on:
Product Overview
Description
\t\t\t\t\t\t\t\t\tProduct Information \t\t\t\t\t\t\t
Natural graphite is sintered with flake graphite and earthy graphite, and its carbon content reaches 99.4% ~ 99.8%.
Oriented film: Graphite film using advanced technology to make high-purity graphite materials to regular orientation structure
TYPE | DSN60030 | DSN60050 | DSN60080 | DSN60100 | DSN60130 | DSN60150 |
Carbon Content | 99.4% | 99.4% | 99.4% | 99.4% | 99.4% | 99.4% |
Color | Dark Grey | Dark Grey | Dark Grey | Dark Grey | Dark Grey | Dark Grey |
Thickness (mm) | 0.03 | 0.05 | 0.08 | 0.1 | 0.13 | 0.15 |
Thickness Tolerance (mm) | ±0.005 | ±0.005 | ±0.01 | ±0.02 | ±0.02 | ±0.03 |
Density (g/cm³) | 1.5±0.1 | 1.5±0.1 | 1.5±0.1 | 1.5±0.1 | 1.5±0.1 | 1.5±0.1 |
Hardness (shore A) | 85 | 85 | 85 | 85 | 85 | 85 |
Tensile Strength (psi) | 650 | 650 | 650 | 650 | 650 | 650 |
UL Flammability Rating | 94VO | 94VO | 94VO | 94VO | 94VO | 94VO |
Temperature Range | -40℃to400℃ | -40℃to400℃ | -40℃to400℃ | -40℃to400℃ | -40℃to400℃ | -40℃to400℃ |
Thermal Conductivity(X-Y axis) | 400-500 W/m.K | 400-500 W/m.K | 350-450 W/m.K | 300-400 W/m.K | 300-400 W/m.K | 250-350 W/m.K |
Thermal Conductivity (Z axis) | 7~10 W/m.K | 7~10 W/m.K | 7~10 W/m.K | 7~10 W/m.K | 7~10 W/m.K | 7~10 W/m.K |
Thermal Resistance @100pis | 0.07℃-in²/w | 0.08℃-in²/w | 0.9℃-in²/w | 0.1℃-in²/w | 0.16℃-in²/w | 0.2℃-in²/w |
@681pis | 0.42℃-in²/w | 0.51℃-in²/w | 0.57℃-in²/w | 0.66℃-in²/w | 0.95℃-in²/w | 1.07℃-in²/w |
Volume Resistivity | 11*10-4 ohm-cm | 11*10-4 ohm-cm | 11*10-4 ohm-cm | 11*10-4 ohm-cm | 11*10-4 ohm-cm | 11*10-4 ohm-cm |
Outgassing TML | 0.15% | 0.15% | 0.15% | 0.15% | 0.15% | 0.15% |
Outgassing CVCM | 0.09% | 0.09% | 0.09% | 0.09% | 0.09% | 0.09% |
TYPE | DSN60200 | DSN60300 | DSN60500 | DSN60800 | DSN61000 | DSN62000 |
Carbon Content | 99.4% | 99.4% | 99.4% | 99.4% | 99% | 99% |
Color | Dark Grey | Dark Grey | Dark Grey | Dark Grey | Dark Grey | Dark Grey |
Thickness (mm) | 0.2 | 0.3 | 0.5 | 0.8 | 1.0 | 2.0 |
Thickness Tolerance (mm) | ±0.03 | ±0.03 | ±0.05 | ±0.08 | ±0.1 | ±0.15 |
Density (g/cm³) | 1.5±0.1 | 1.5±0.1 | 1.5±0.1 | 1.0±0.1 | 1.0±0.1 | 1.0±0.1 |
Hardness (shore A) | 85 | 85 | 85 | 85 | 85 | 85 |
Tensile Strength (psi) | 650 | 650 | 650 | 650 | 650 | 650 |
ULFlammability Rating | 94VO | 94VO | 94VO | 94VO | 94VO | 94VO |
Temperature Range | -40℃to400℃ | -40℃to400℃ | -40℃to400℃ | -40℃to400℃ | -40℃to400℃ | -40℃to400℃ |
Thermal Conductivity(X-Y axis) | 250-350 W/m.K | 250-350 W/m.K | 250-350 W/m.K | 200-300 W/m.K | 100-200 W/m.K | 100-200 W/m.K |
Thermal Conductivity (Z axis) | 7~10 W/m.K | 7~10 W/m.K | 7~10 W/m.K | 7~10W/m.K | 7~10W/m.K | 7~10W/m.K |
Thermal Resistance @100pis | 0.25℃-in²/w | 0.37℃-in²/w | 0.5℃-in²/w | 0.6℃-in²/w | 0.77℃-in²/w | 0.73℃-in²/w |
@681pis | 1.16℃-cm²/w | 1.2℃-cm²/w | 1.3℃-cm²/w | 1.58℃-cm²/w | 1.7℃-cm²/w | 1.93℃-cm²/w |
Volume Resistivity | 11*10-4 ohm-cm | 11*10-4 ohm-cm | 11*10-4 ohm-cm | 11*10-4 ohm-cm | 11*10-4 ohm-cm | 11*10-4 ohm-cm |
Outgassing TML | 0.23% | 0.23% | 0.23% | 0.23% | 0.23% | 0.23% |
Outgassing CVCM | 0.16% | 0.16% | 0.16% | 0.16% | 0.16% | 0.16% |
\t\t\t\t\t\t\t\t\tProduct Application \t\t\t\t\t\t\t
* Widely used in metallurgical industry as refractories
* Widely used in the electronics industry as the electrode conductive material
* Water-resistant lubricating material
* Anti-corrosion materials in petroleum metallurgical industry
* Used in a centrifugal pump and other equipment: make a pump or a seal
* Used in an industrial furnace: make industrial furnace parts
* The point solution process is used as an electrolytic plate: quality assurance
Nine industries:
- High temperature furnace
- Metal industry
- Glass refractories
- Petrochemical industry
- Automobile industry
- Mechanical engineering
- Electric discharge
- Semiconductor industry
- Photovoltaic power generation
About Dasen
Professional solution provider including graphite sheet, silicone thermal pad, thermal gel, die-cutting, graphite products, vapor chamber, ceramic filtration membrane. www.thermalgraphite.com
* Services in telecommunications, industrial consumer electronics and medical, new energy vehicles, machinery, environmental engineering.
* Used in soft circuit board, backlight module, touch panel, mechanical hardware, finished product assembly and environmental protection engineering industry.
* Four factories: Jiangsu, Jiangxi, Anhui and Shandong.
* Certificates: ISO9001,IATF16949,ISO14001,UL...
* Used in soft circuit board, backlight module, touch panel, mechanical hardware, finished product assembly and environmental protection engineering industry.
* Four factories: Jiangsu, Jiangxi, Anhui and Shandong.
* Certificates: ISO9001,IATF16949,ISO14001,UL...
\t\t\t\t\t\t\t\t\tProduction Workshop \t\t\t\t\t\t\t
Mineral processing of natural graphite sheet:
