Size 100*150*50mm Bearing NSK 24020CAME4 Spherical Roller Bearings 24020
- Category: Spherical Roller Bearings >>>
- Supplier: Jinan,Baisite,Bearing,Co.,Limited
Share on:
Product Overview
Description
Product Description
Size 100*150*50mm Bearing NSK 24020CAME4 Spherical Roller Bearings 24020:
Spherical roller bearings with two rollers, mainly bear radial load, but also can withstand axial load in either direction. A high radial load capacity, especially suitable for heavy loads or vibration, but can not bear the pure axial load. This kind of bearing outer ring raceway is spherical shape, so the good performance of its self-aligning, can compensate concentricity error.
| Bore diameter: | 100 mm | Lubrication hole type: | Lubrication Groove & Hole | |
| Outside diameter: | 150 mm | Operating temperature range: | Maximum of +390 °F | |
| Overall width: | 50 mm | Cage material: | Steel | |
| Bore type: | Straight | Bearing material: | Steel | |
| Outer ring type: | Not Split | Cage type: | Inner Ring Guided | |
| Internal clearance: | C3 | Precision rating: | Not Rated | |
| Closure type: | Open | Finish/coating: | Uncoated |
Spherical Roller Bearing has many model suffixes, we briefly introduce the commonly used ones. If you have other doubts, please click on the right " chat now", 24 hours online, ready to answer you:
| C | Stamped steel retainer and strengthened symmetric rollers for considerably higher load ratings |
| CA | one piece brass retainer and strengthened symmetric rollers; exchange with C design, especially for large size |
| MB | Two-piece precision-machined brass retainer and strengthened symmetric rollers; equivalent to C design in load capacity. |
| CC | steel cage, replace traditionalbrass cage |
| E | Third generation design to improve stress distribution for much longer service life |
| TN | Nylon retainer |
| Others | all other types are available,sush as: CW33;MW33;KCW33;KMW33;E;EK;E1;E1K;CCK/W33;CAK/W33;EKJA/VA;EJA/VA;EK+H |

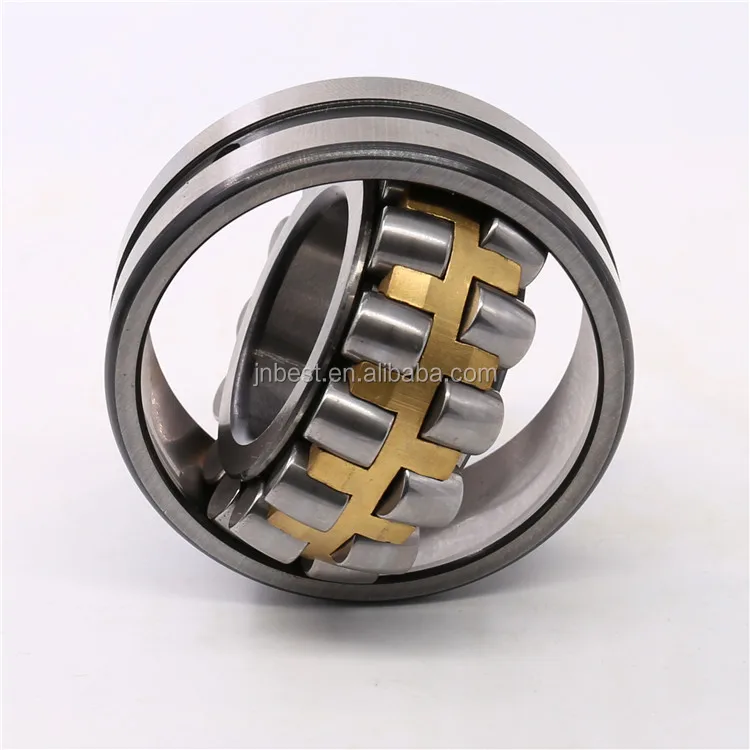

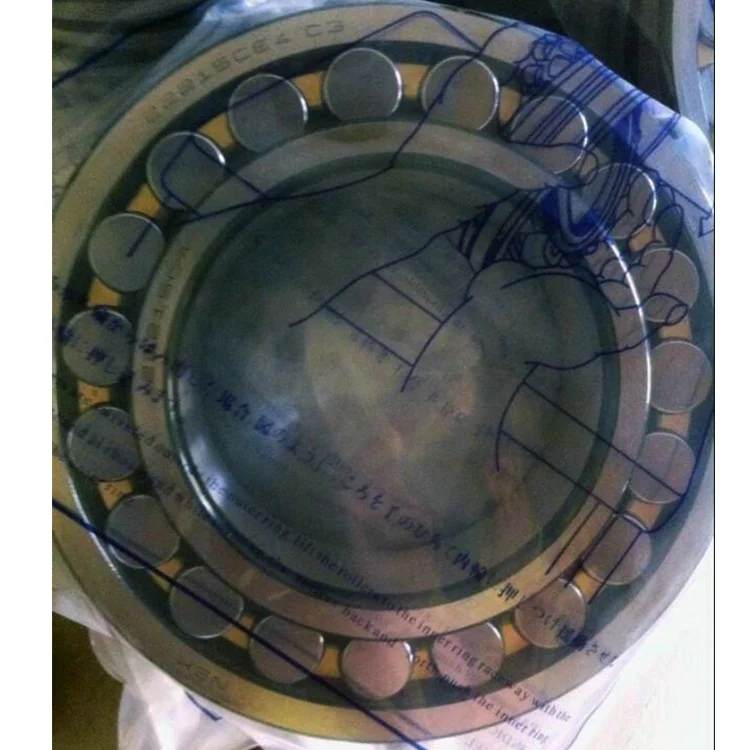

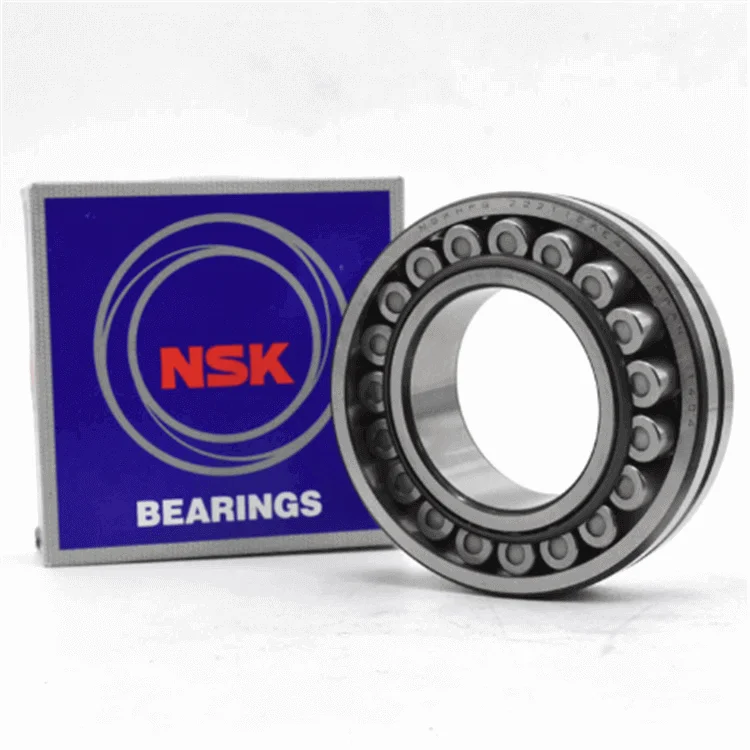

Product Picture

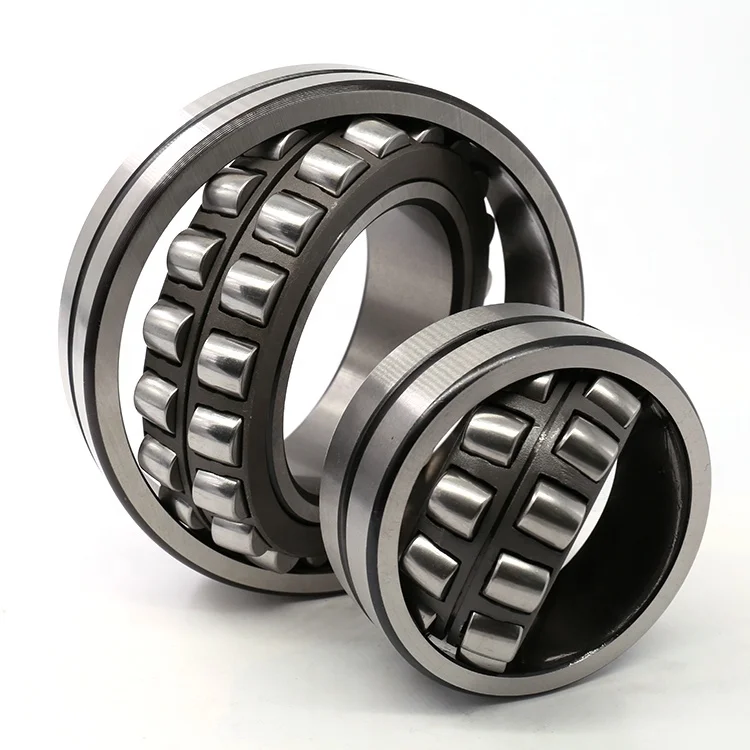

other size
We also have other series of bearings of the same type as following. If you have any needs, please click "chat now" on the right to contact me - ♥ Chili ♥
| Series | Model Number | d(mm) | D(mm) | B(mm) | Series | Model Number | d(mm) | D(mm) | B(mm) |
| 21300 series | 21307 | 35 | 72 | 23 | 22200 series | 22205 | 25 | 52 | 18 |
| 21308 | 40 | 90 | 23 | 22206 | 30 | 62 | 20 | ||
| 21309 | 45 | 100 | 25 | 22207 | 35 | 72 | 23 | ||
| 21310 | 50 | 110 | 27 | 22208 | 40 | 80 | 23 | ||
| 21311 | 55 | 120 | 29 | 22209 | 45 | 85 | 23 | ||
| 21312 | 60 | 130 | 31 | 22210 | 50 | 90 | 23 | ||
| 21313 | 65 | 140 | 33 | 22211 | 55 | 100 | 25 | ||
| 21314 | 70 | 150 | 35 | 22212 | 60 | 110 | 28 | ||
| 21315 | 75 | 160 | 37 | 22213 | 65 | 120 | 31 | ||
23000 series | 23020 | 100 | 150 | 37 | 24000 series | 24015 | 75 | 115 | 40 |
| 23022 | 110 | 170 | 45 | 24018 | 90 | 140 | 50 | ||
| 23024 | 120 | 180 | 46 | 24020 | 100 | 150 | 50 | ||
| 23026 | 130 | 200 | 52 | 24022 | 110 | 170 | 60 | ||
| 23028 | 140 | 210 | 53 | 24024 | 120 | 180 | 60 | ||
| 23030 | 150 | 225 | 56 | 24026 | 130 | 200 | 69 | ||
| 23032 | 160 | 240 | 60 | 24028 | 140 | 210 | 69 | ||
| 23034 | 170 | 260 | 67 | 24030 | 150 | 225 | 75 | ||
| 23036 | 180 | 280 | 74 | 24032 | 160 | 240 | 80 | ||
| 22300 series | 22307 | 35 | 80 | 31 | 24100 series | 24120 | 100 | 165 | 65 |
| 22308 | 40 | 90 | 33 | 24122 | 110 | 180 | 69 | ||
| 22309 | 45 | 100 | 36 | 24124 | 120 | 200 | 80 | ||
| 22310 | 50 | 110 | 40 | 24126 | 130 | 210 | 80 | ||
| 22311 | 55 | 120 | 43 | 24128 | 140 | 225 | 85 | ||
| 22312 | 60 | 130 | 46 | 24130 | 150 | 250 | 100 | ||
| 22313 | 65 | 140 | 48 | 24132 | 160 | 270 | 109 | ||
| 22314 | 70 | 150 | 51 | 24134 | 170 | 280 | 109 |
Customers Comments
Company Information
FAQ
1 Q&A
Q: Are you trading company or manufacturer ?
A:We have our own factory.
3 Q&A
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
2 Q&A
Q: How long is your delivery time?
A:We have enough stock,so support 1-2 days to deliver goods.
