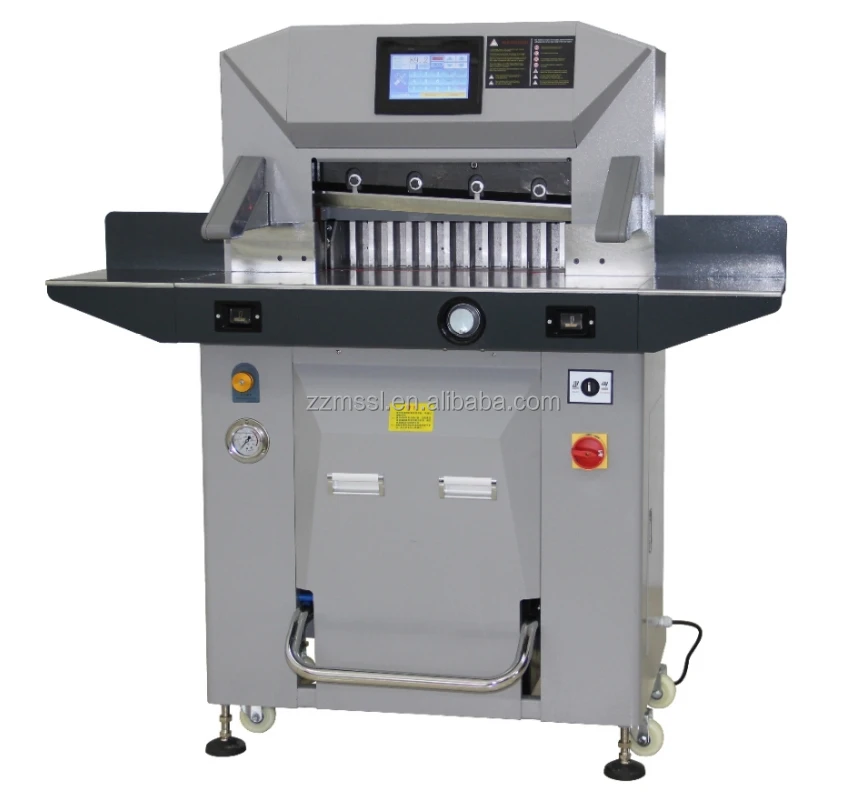

MILES 6710PX High Precision Automatic Programming Hydraulic Paper Cutter For Sale
Technical characteristics
1. High-quality alloy knife, can cut 12000 times at one time
2. Cutting position line illumination, cutting position is more intuitive, convenient and practical
3. Intelligent program control system, set the size, the machine automatically completes the cutting
4. Technical device for fine-tuning the depth of the cutter
5. Three motors, paper cutting, pushing and pressing motors run independently
6. Waste paper collection drawer, convenient and concise
7. With high-power motor, thick text can be cut easily and neatly
8. Infrared photoelectric protection device, safer and more assured
2. Cutting position line illumination, cutting position is more intuitive, convenient and practical
3. Intelligent program control system, set the size, the machine automatically completes the cutting
4. Technical device for fine-tuning the depth of the cutter
5. Three motors, paper cutting, pushing and pressing motors run independently
6. Waste paper collection drawer, convenient and concise
7. With high-power motor, thick text can be cut easily and neatly
8. Infrared photoelectric protection device, safer and more assured
Program-controlled touch screen operation interface Comfortable to cut size Three modes (NC, programming, slitting)
Specification
Model | MT-6710PX | MT-5010PX |
Max cutting width | 670mm | 500mm |
Min cutting width | 30mm | 30mm |
Max cutting thickness | 100mm | 100mm |
Cutting speed | 5-20times/min | 5-20times/min |
Cutting paper | Hydraulic | Hydraulic |
Clamp paper | Hydraulic | Hydraulic |
Push paper | Double Rod&Double Guide | Double Rod&Double Guide |
Protection | Infrared | Infrared |
Voltage | 220/110V,50/60Hz, AC | 220/110V,50/60Hz, AC |
Dimension | 1540*1275*1435mm | 1470*1120*1020mm |
Weight | 550kg | 430kg |
Details Images

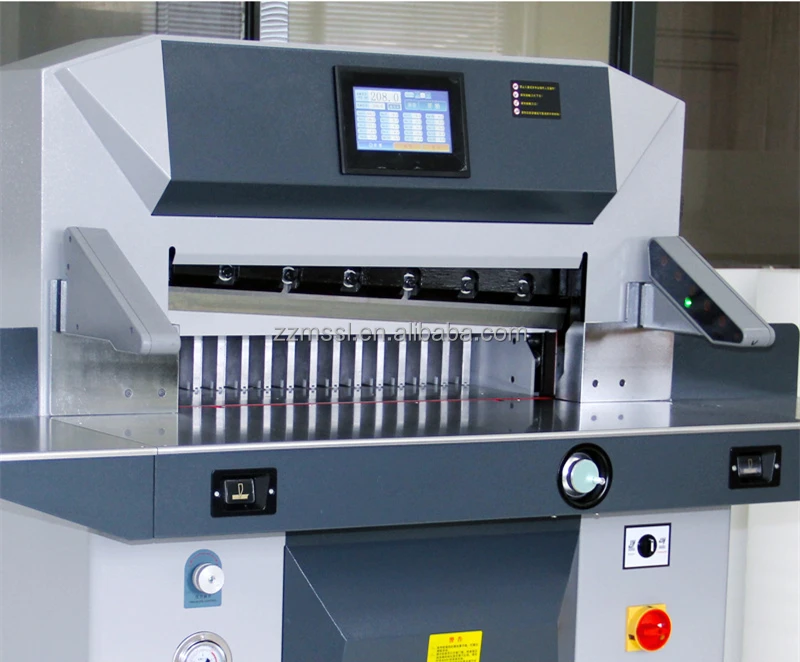

Front photoelectric protection device Large size control panel
High sensitivity Operational safety and reliable performance

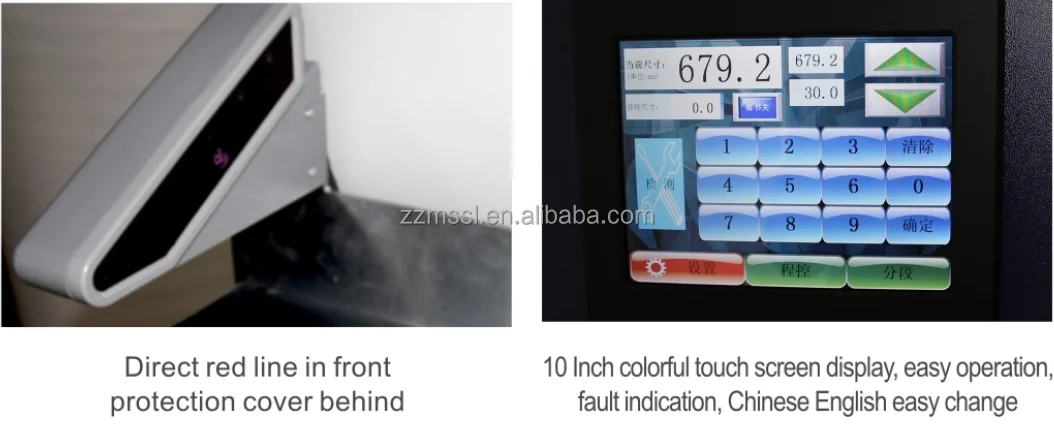

7 inch color LCD screen Faulty computer display
Thickened high-speed steel mixed alloy knife cutting, double hydraulic pressure paper

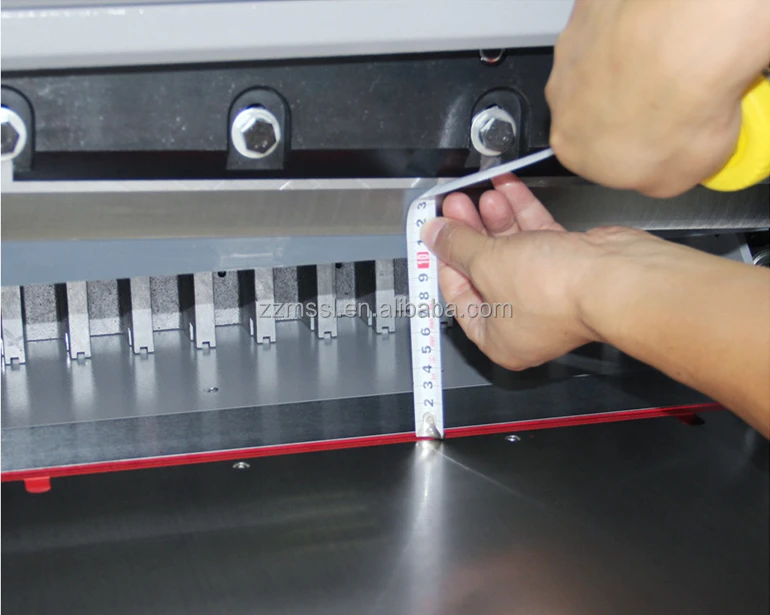

10 cm thickness at a glance
Hanging electro-optical protection device Multiple intensive infrared photoelectric sensor design, conform to CE infrared photoelectric standard module, escort your safety
Added a new pedal to feature in accurate position matching

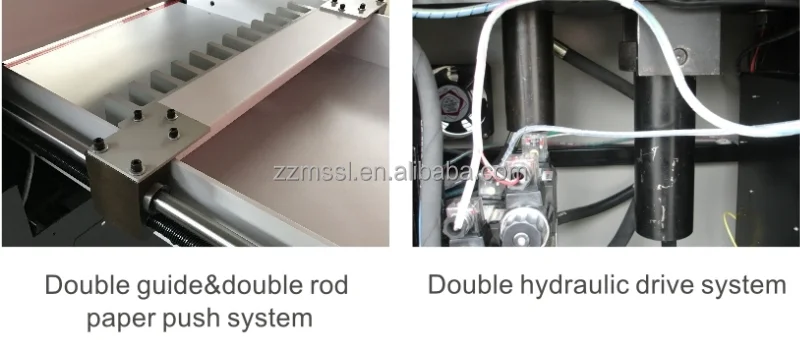

Paper pushing structure with left and right double guide screws The left and right fixed screws push paper, stable and not easy to deflect
Double hydraulic work, hydraulic pressure paper, hydraulic paper cutting. The hydraulic pump provides power to effectively change the shortcomings of the spring or the motor not pressing the paper tightly.
Thick layer oblique knife cutting paper High-speed steel knife, bevel cutting method, greater pressure and stronger, suitable for thick paper cutting
Imported hydraulic system
Blade depth can be adjusted from outside
Heavy duty stand,durable
Precise positioning of cutting infrared indicator line
Platform adopt the stainless steel

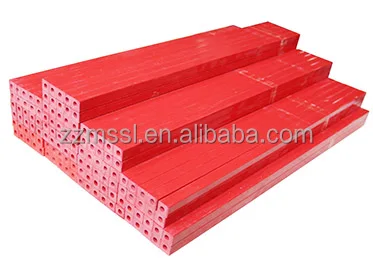

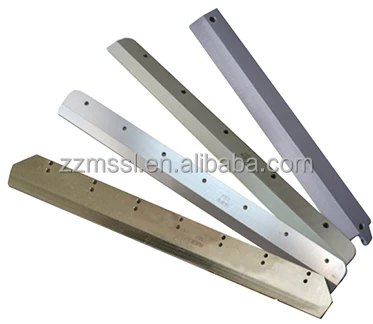

Options： Knife stick and Replacement blades
