China Factory Supply Metal Drywall Profile Roof Ceiling Batten Roll Forming Machine Price
- Category: Tile Making Machinery >>>
- Supplier: Henan,Wadjay,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
DESCRIPTION
China Factory Supply Metal Drywall Profile Roof Ceiling Batten Roll Forming Machine Price
Metal Ceiling Profile Roll Forming Machine:
Metal framings used in concealed grid gypsum ceiling of light weight structure include furring channel, carrying channel, studs,tracks, wall angle, and main frame channel.
Optional: Embossing logos on the frames is a great way that most of our customers choose to impress their customers about their brands.
Optional: Embossing logos on the frames is a great way that most of our customers choose to impress their customers about their brands.
Choose profiles of Metal Ceiling Profile Roll Forming Machine:
Completed ceilling channel production line working flow:
Decoiler —guiding — feeding — hydraulic punch— roll forming — finished product
Decoiler —guiding — feeding — hydraulic punch— roll forming — finished product

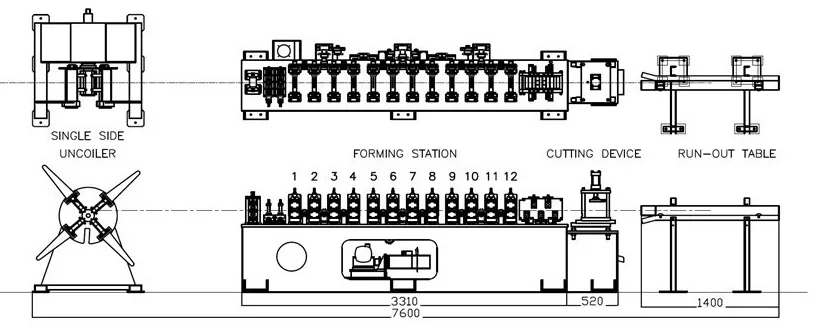

factory production layout for reference.
DETAIL IMAGES

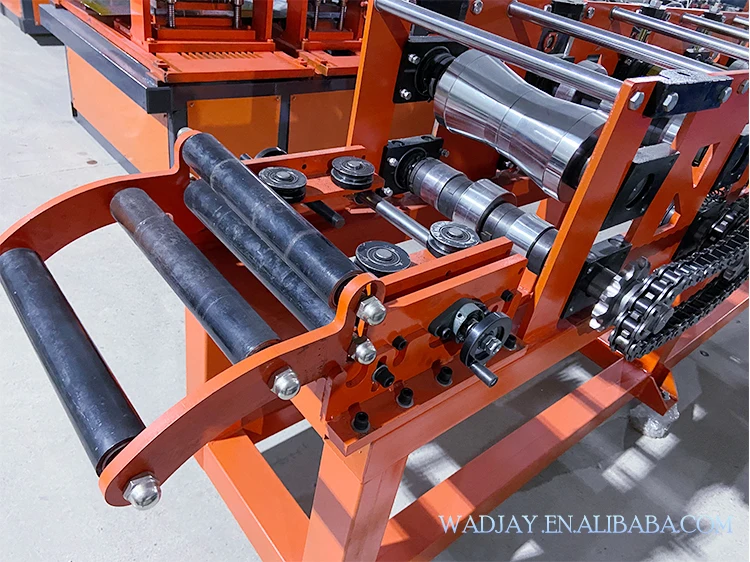

Feding table:
Adopt adjustable round wheel design;
Small error good operation.
Control Panel:
Programmable setting of profile length and quantity, Computed mode has two modes: automatic and manual one.
Language:English, Chinese,Spanish and Russian.
The system is easy to operate and use.
The system is easy to operate and use.

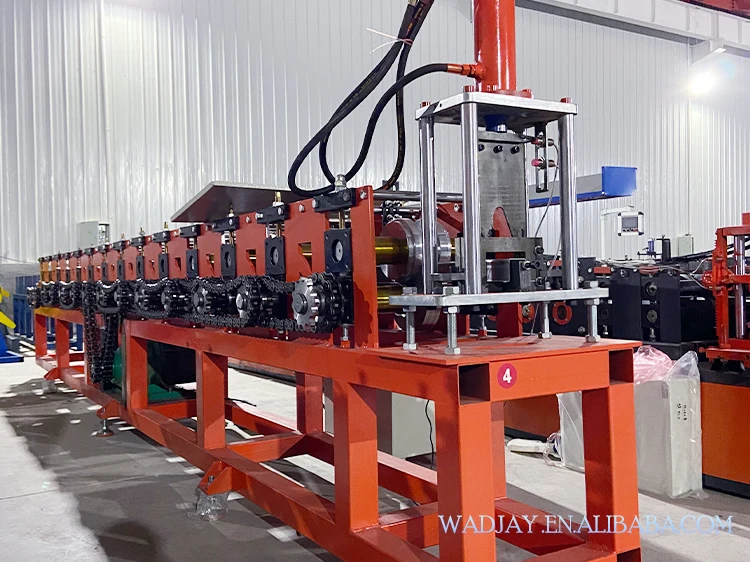

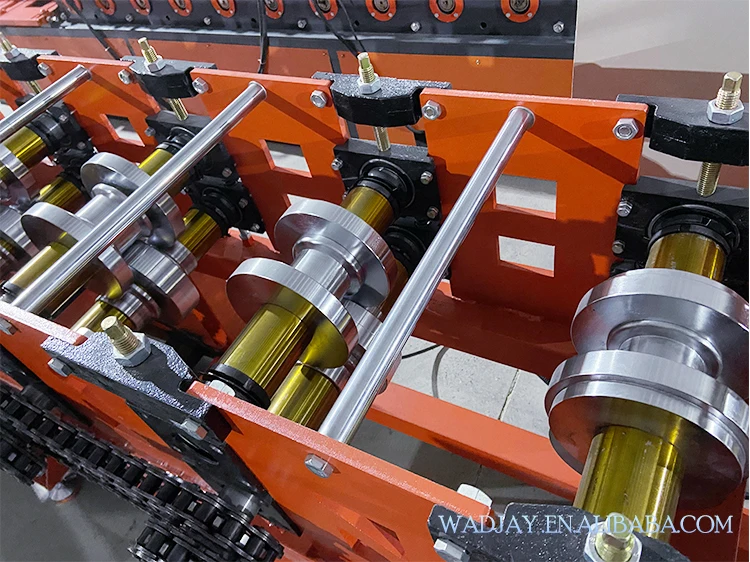

Forming system:
Material of the roller : High grade No.45 forged steel.
Roller station : 12-14 rows.
Thickness of feeding material : 0.3-0.8mm
Roller station : 12-14 rows.
Thickness of feeding material : 0.3-0.8mm
Kind of drive:
Kind of drive: chain drive
1 "Sprocket chain gear drive
Specifications of Metal Ceiling Profile Roll Forming Machine:
We customize the machine according to customer's requirements and can be used for a wide variety of profiles.
Total power | 5.5kw (3 phase, 50hz, 380v) |
Speed | 16 – 18m/min |
Dimension (LxWxH) | 5.0m x 1.2m x 1.6m |
Weight | 2.6 – 3.3 tons |
Roller station | 12 pairs – 14 pairs |
Frame | I beam 200mm |
Material thickness | 0.4mm – 0.6mm |
Material width | 141mm – 155mm |
WHY CHOOSE US
1.Good quality: We have a professional designer and experienced engineer team.And the raw material and accessories we use are good.
2.Good service: we provide the technical support for whole life of our machines.
3.Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
4.Easy operation:All machine cotrolling by PLC computer controlling systerm.
5.Elegant apperance:Protect the machine from rust and the painted colour can be customized
6.Reasonable price:We offer the best price in our industry.
2.Good service: we provide the technical support for whole life of our machines.
3.Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
4.Easy operation:All machine cotrolling by PLC computer controlling systerm.
5.Elegant apperance:Protect the machine from rust and the painted colour can be customized
6.Reasonable price:We offer the best price in our industry.
PACKING & SHIPPING
Shipping and Installation
Reliable packaging in accordance with international shipping standards with the assurance of Shutter Profile Roll Forming Machine.
Reliable packaging in accordance with international shipping standards with the assurance of Shutter Profile Roll Forming Machine.
ABOUT US
FAQ
Q1: How long is the warranty?
A1: We guarantee a 12-month after-sale service .Any problem when using ,call or mail us ,we will advise on technically sound methods .If needed ,we will provide free accessories
Q2: Can I have my own customized product? Yes, your
A2: customized requirements for color, logo, design, package, carton mark, etc. are welcome
A2: customized requirements for color, logo, design, package, carton mark, etc. are welcome
Q3: How can I get sample and how long will it take?
A3: Sample policy is different for different items. Please kindly contact us to get details.
Q4: What's the MOQ?
A4: MOQ is different for different items, please kindly contact us for confirming.
Q5: How do I pay for my purchase order?
A5: T/T, L/C at sight, Western Union, MoneyGram
Q6: What is your terms of payment?
A6: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance
Q7: How about your delivery time?
A7: Generally, It will take about 7~15 days to send goods out. The specific delivery time depends on the items and the quantity of your order
