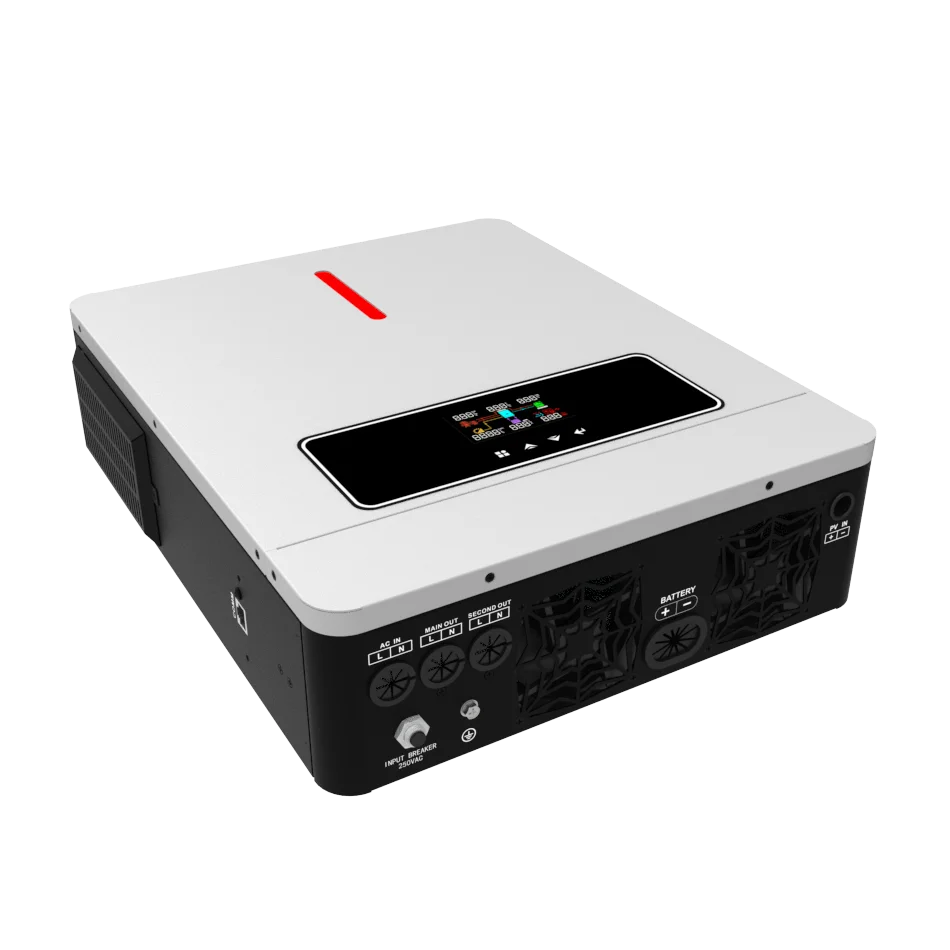

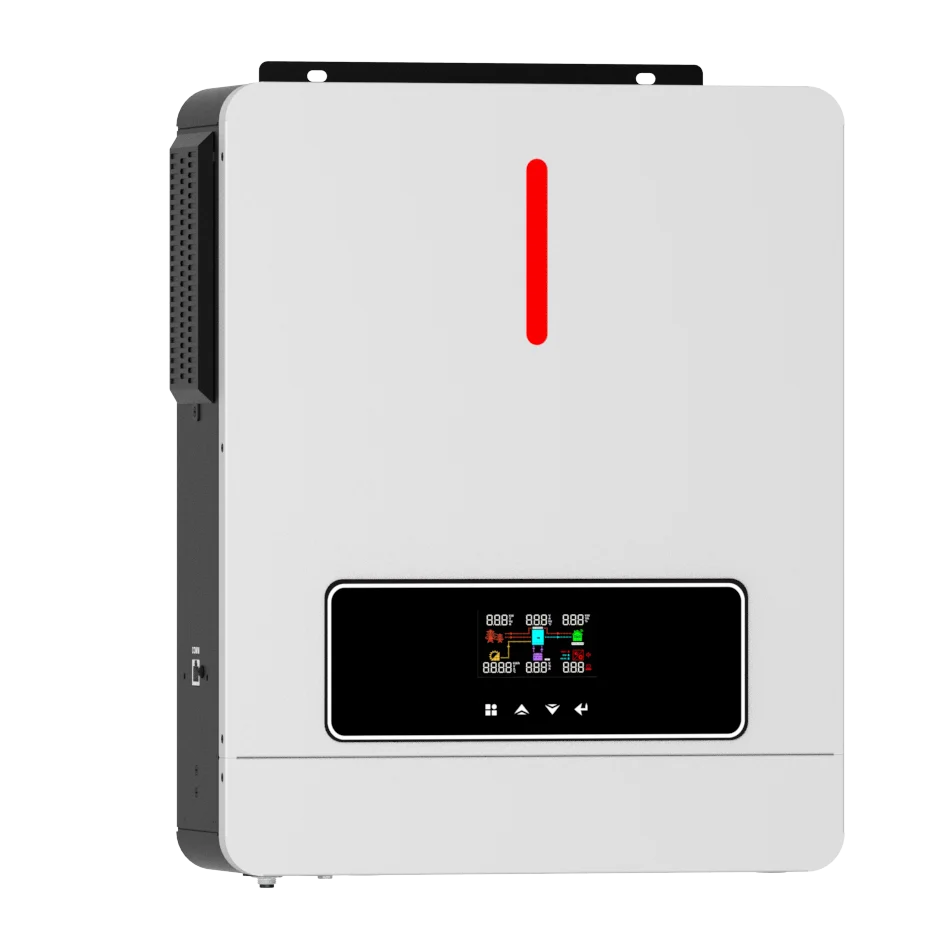

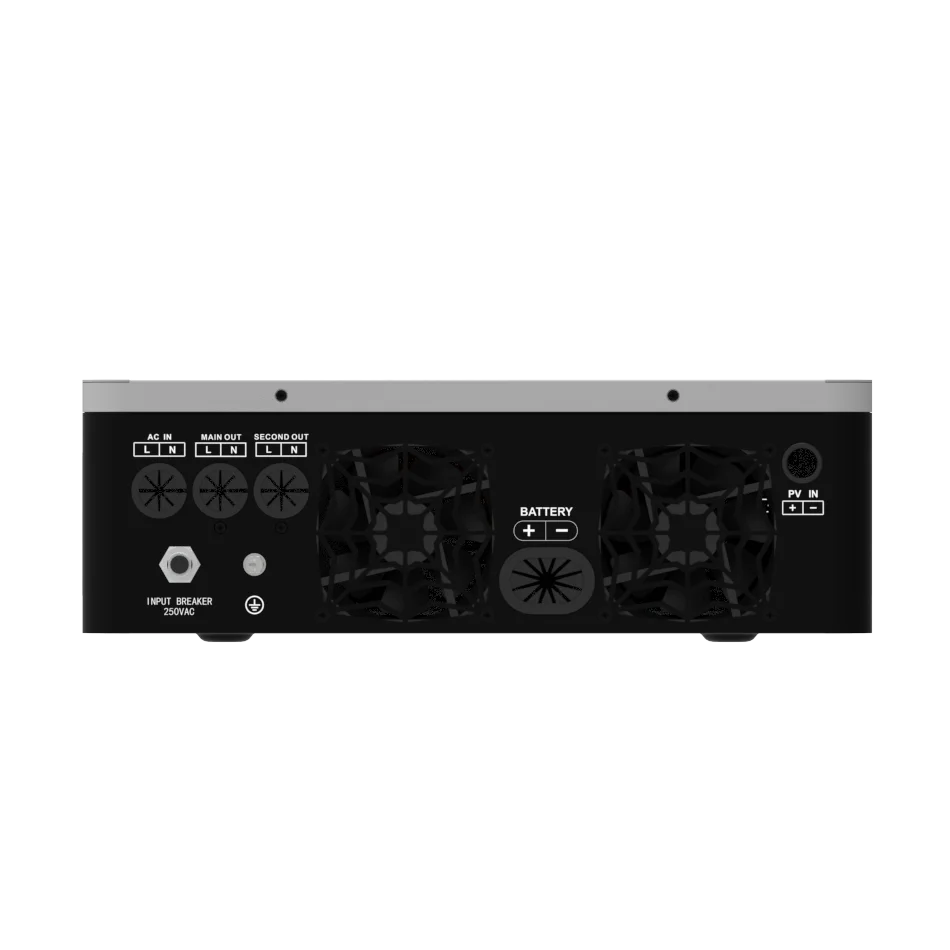

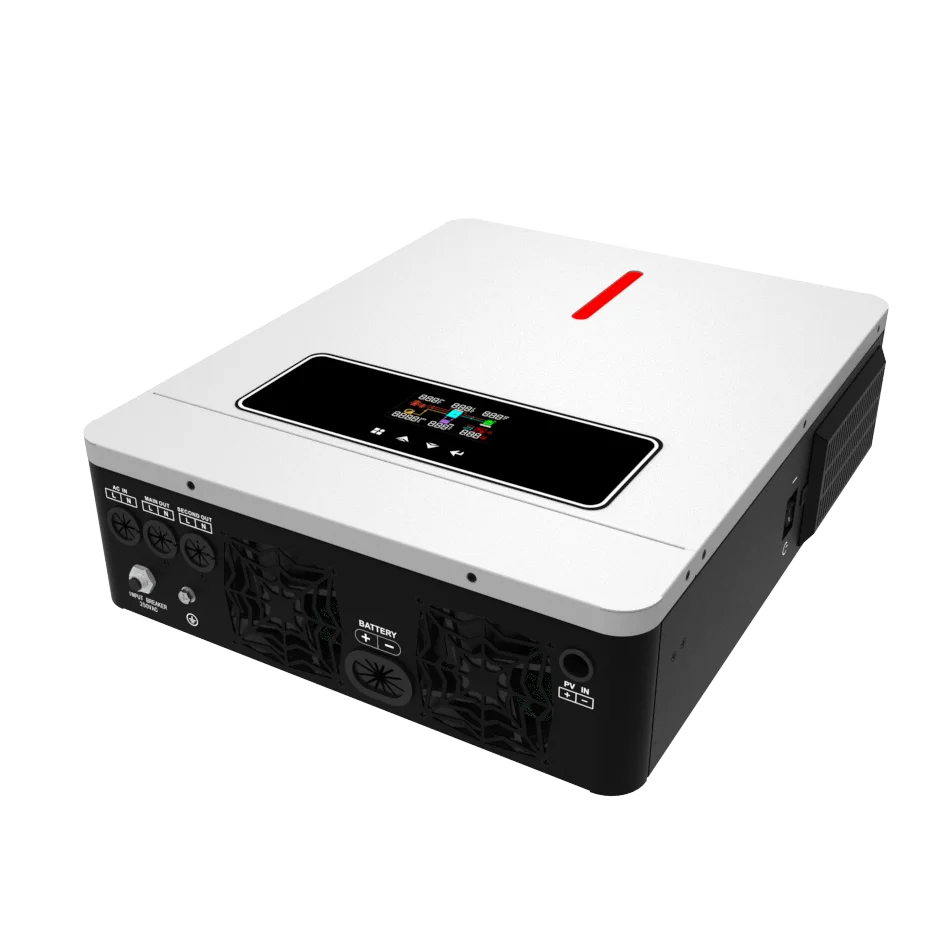

2023 NEW Dual Output RGB Light 60 500VDC 120A MPPT Charger Controller 4.2KW/6.2KW on/off Grid Solar Inverter
- Category: >>>
- Supplier: Shenzhen Next Power Technology Co. Ltd.
Share on (1600716469727):
Product Overview
Description
Key Features:
▲Pure sine wave solar inverter(on/off Grid)
▲WIFI&GPRS available for IOS and Android

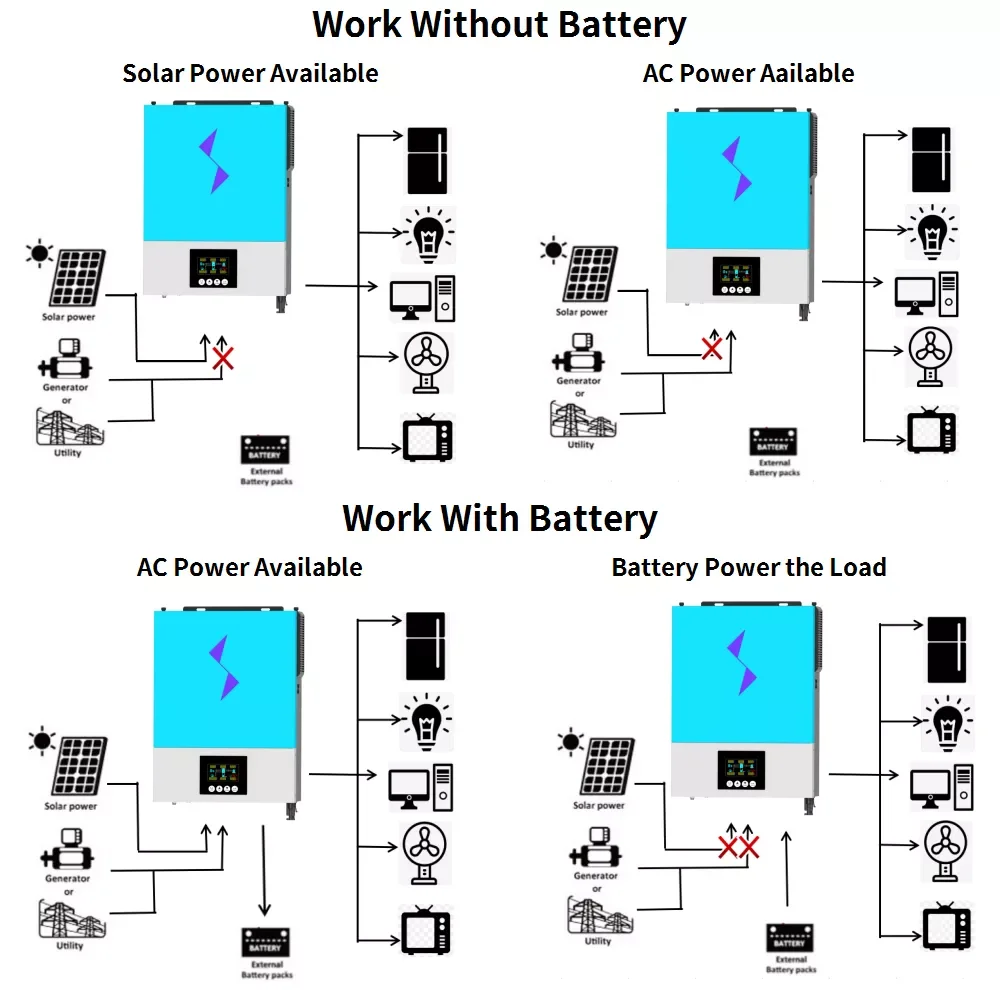

▲Inverter running without battery
▲One-key restoration to factory Settings
▲Built-in Lithium battery automatic activation
▲Built-in 120A(for 3.6KW/6.2KW)140A(for 7.2KW)
▲MPPT:Max 6200W(for 3.6KW),max 6500W(for 6.2KW) max 7500w(for 7.2kw)solar charge
▲High PV input voltage range(90~500VDC)
▲Built-in anti-dusk kit for harsh environment
▲Smart battery charge design to optimize battery life
▲Dual Output
▲Inverter running without battery
▲One-key restoration to factory Settings
▲Built-in Lithium battery automatic activation
▲Built-in 120A(for 3.6KW/6.2KW)140A(for 7.2KW)
▲MPPT:Max 6200W(for 3.6KW),max 6500W(for 6.2KW) max 7500w(for 7.2kw)solar charge
▲High PV input voltage range(90~500VDC)
▲Built-in anti-dusk kit for harsh environment
▲Smart battery charge design to optimize battery life
▲Dual Output
Specification
Model | NM-ECO-3.6KW PLUS | NM-ECO-4.2KW PLUS | NM-ECO-6.2KW PLUS | |||
Phase | 1-Phase | |||||
Maximum PV Input Power | 6200W | 6500W | 7500W | |||
Rated Output Power | 3600W/3600VA | 6200W/6200VA | 7200W7200VA | |||
Maximum Solar Charging Current | 120A | 140A | 120A | |||
GRID-TIE OPERATION | ||||||
PV Input(DC) | ||||||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | |||||
Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | |||||
MPPT Voltage Range | 90VDC~450VDC | |||||
Number of MPPT/Max Input Current | 1/27A | |||||
GRID OUTPUT(AC) | ||||||
Norminal Output Voltage | 220/230/240VAC | |||||
Output Valtage Range | 195.5~253VAC | |||||
Norminal Output Current | 15.7A | 27.0A | 31.3A | |||
Power Factor | >0.99 | |||||
Feed-in Grid Frequency Range | 49~51±1Hz | |||||
EFFICIENCY | ||||||
Max Conversion Efficiency(Solar to AC) | 98% | |||||
TWO LOAD OUTPUT POWER(V2.0) | ||||||
Full Load | 3600W | 6200W | 7200W | |||
Maximum Main Load | 3600W | 6200W | 7200W | |||
Max Second Load(battery mode) | 1200W | 2067W | 2400W | |||
Main Load Cut Off Voltage | 22VDC | 44VDC | 44VDC | |||
Main Load Return Voltage | 26VDC | 52VDC | 52VDC | |||
OFF-GRID OPERATION | ||||||
AC Input | ||||||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | |||||
Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | |||||
Maximum AC Input Current | 30A | 30A | 40A | |||
Nominal operating frequency | 50/60Hz | |||||
Surge power | 7200W | 12400W | 14400W | |||
BATTERY MODE OUTPUT(AC) | ||||||
Nominal Output Voltage | 120-140VAC/180VAC | 24VDC | 48VDC | |||
Output Waveform | Pure sine wave | |||||
Efficiency(DC to AC) | 94% | |||||
BATTERY&CHARGER | ||||||
Nominal DC Voltage | 24VDC | 48VDC | 48VDC | |||
Maximum Solar Charging Current | 120A | 120A | 140A | |||
Maximum AC Charging Current | 100A | 140A | 140A | |||
GENERAL | ||||||
PHYSICAL | ||||||
Dimension,D*W*H(mm) | 110*334*423 | |||||
Net Weight(Kgs) | 9 | 10 | 11 | |||
INTERFACE | ||||||
Communication Port | RS232/WiFi/Remove LCD/GPRS | |||||
ENVIRONMENT | ||||||
Operating Temperature | -10~50℃ | |||||

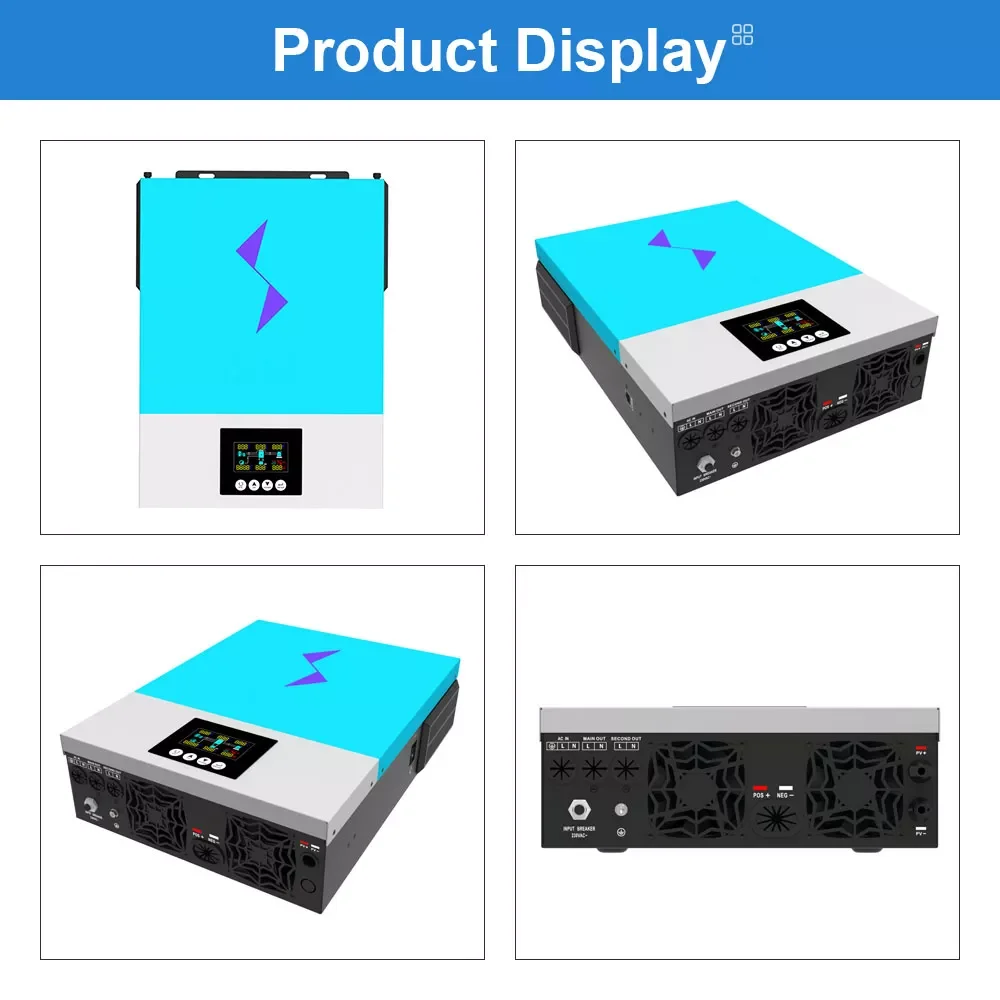

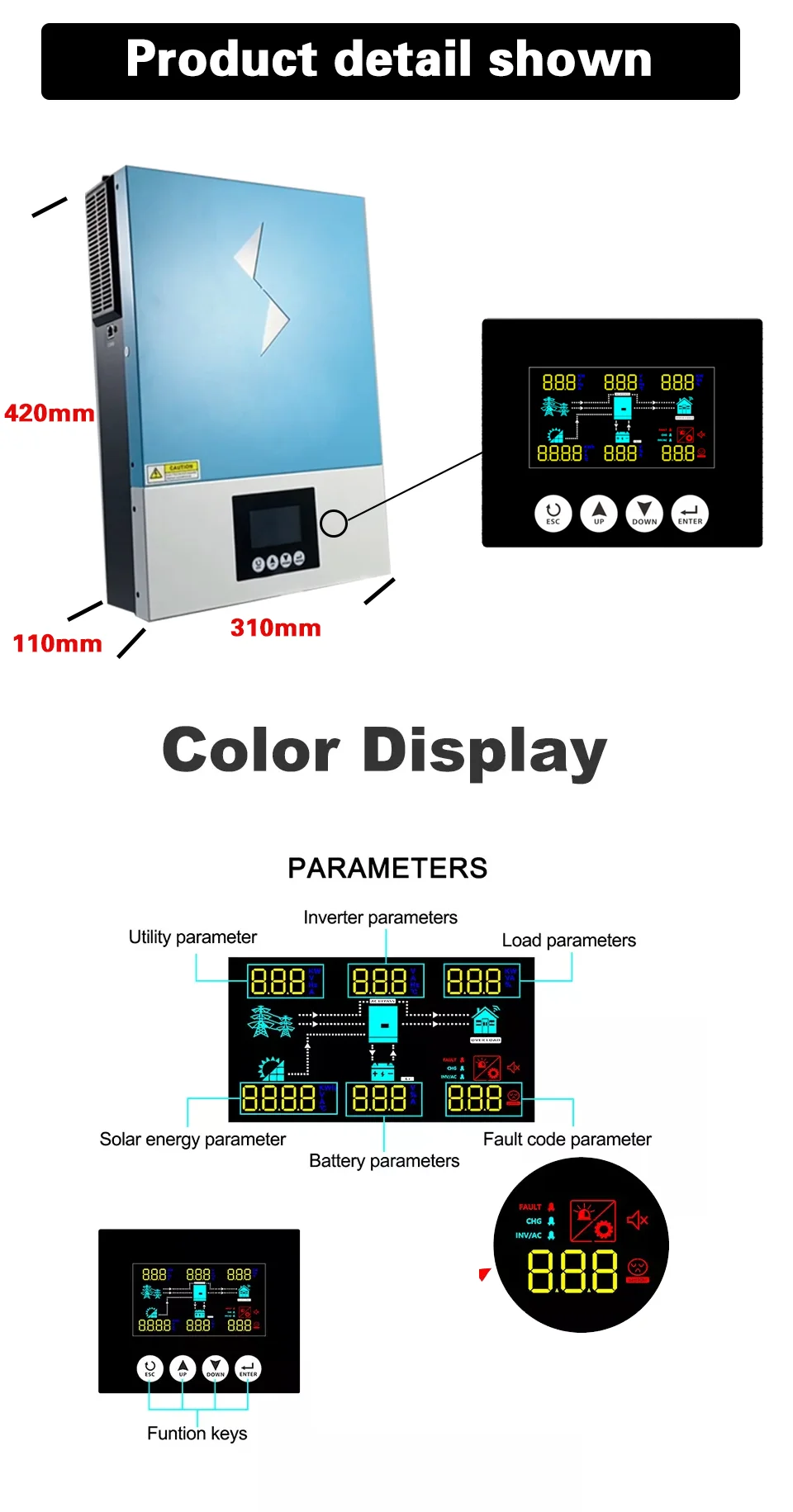

Products Description

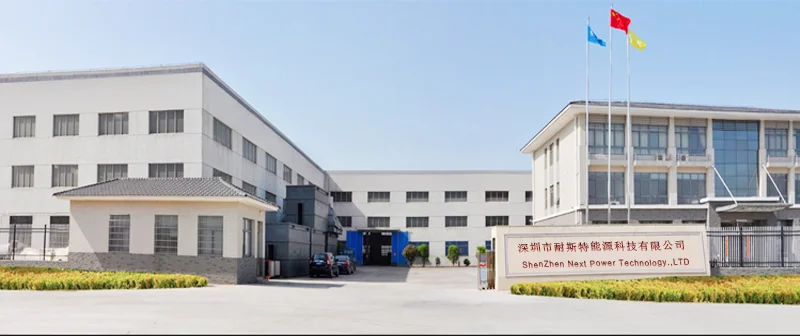

Company Profile
Original Factory
Shenzhen Next Power Technolog Co., Ltd. was established in 2017 with the registered trademark of Next Power. It is a high-tech enter price and specializing in developing and manufacturing inverter. battery and solar power systems.The company covers an area of 10000 square meters, more than 500 employees, the company's headquarters is located in Shenzhen. Next Power has perfect production management system, first-class production equipment and various quality system certification.
Certifications

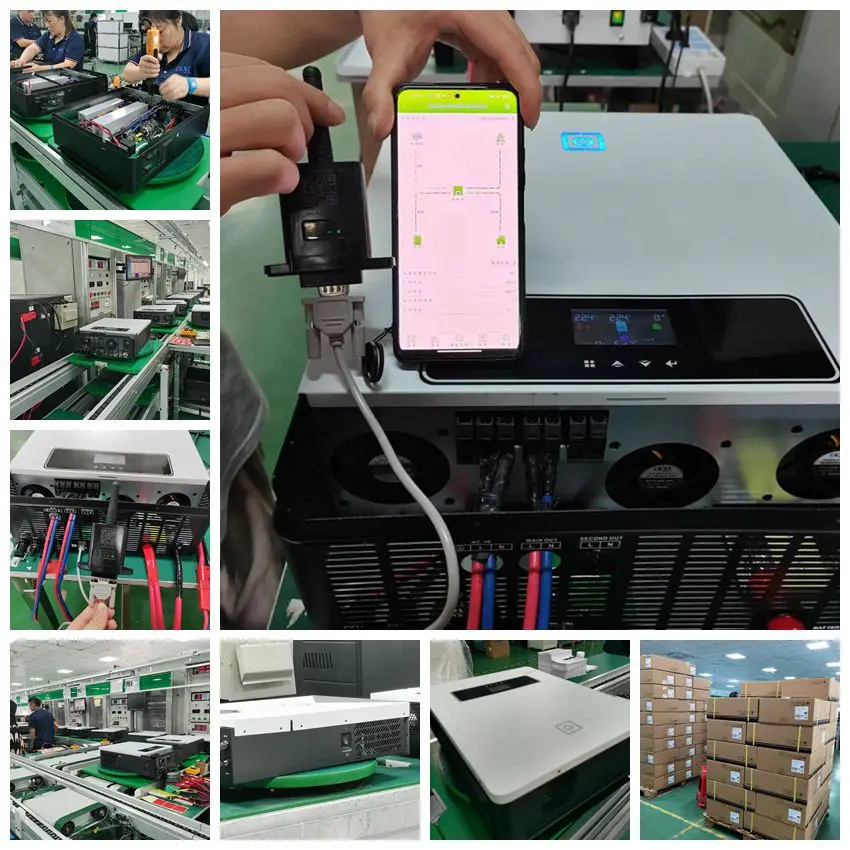

Our production line

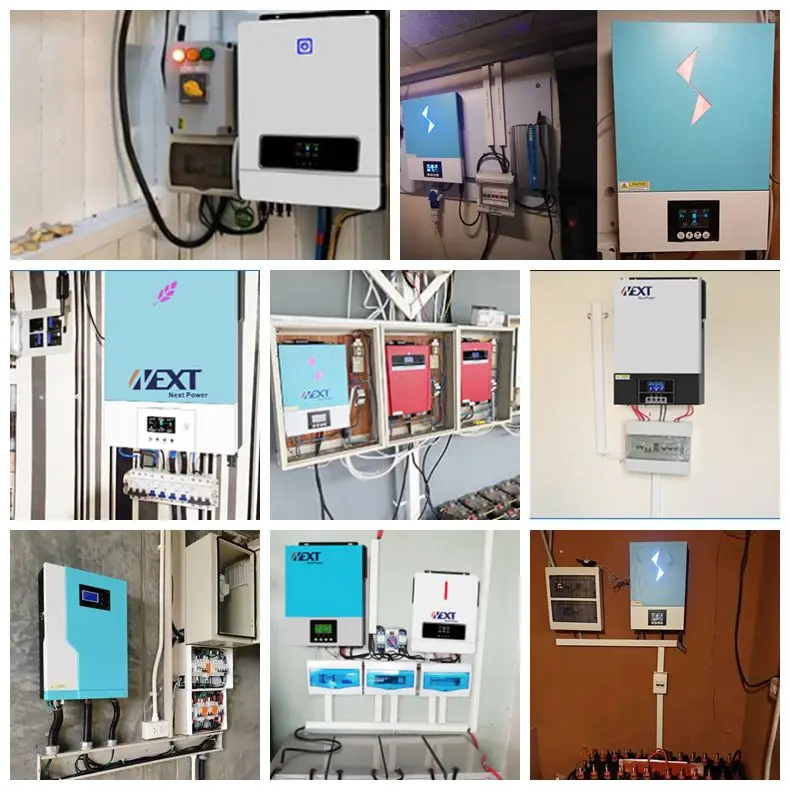

Our Application
Service Provided
FAQ
Q:Are you factory?
A: Yes, our factory and sales department are located in Shenzhen and we would be pleased to welcome you in our factory at any time
when you are in Shenzhen
Q:What is the warranty for this inverter?
A:, All products are at least 1 year warranty.
Q: What is the shipping way?
A: DHL,UPS,TNT,EMS,FedEx, Ship by sea.
Q:What is the payment method?
A:We normally require a T/T advance payment. 30% deposit and 70% before shipping.
Q:Can we design packaing?
A:YES.We can do customer's own packing
Q:Can we customize product?
A:YES.OEM&ODM.
A: Yes, our factory and sales department are located in Shenzhen and we would be pleased to welcome you in our factory at any time
when you are in Shenzhen
Q:What is the warranty for this inverter?
A:, All products are at least 1 year warranty.
Q: What is the shipping way?
A: DHL,UPS,TNT,EMS,FedEx, Ship by sea.
Q:What is the payment method?
A:We normally require a T/T advance payment. 30% deposit and 70% before shipping.
Q:Can we design packaing?
A:YES.We can do customer's own packing
Q:Can we customize product?
A:YES.OEM&ODM.
