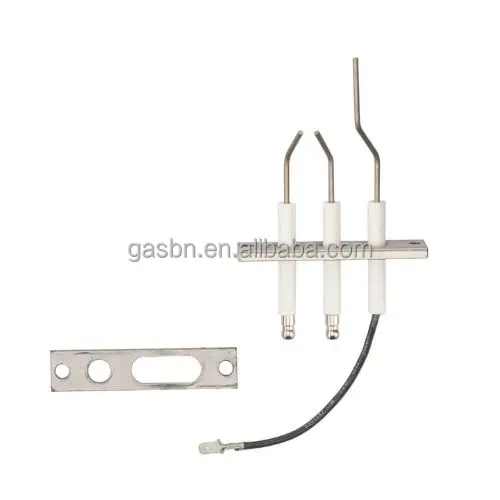

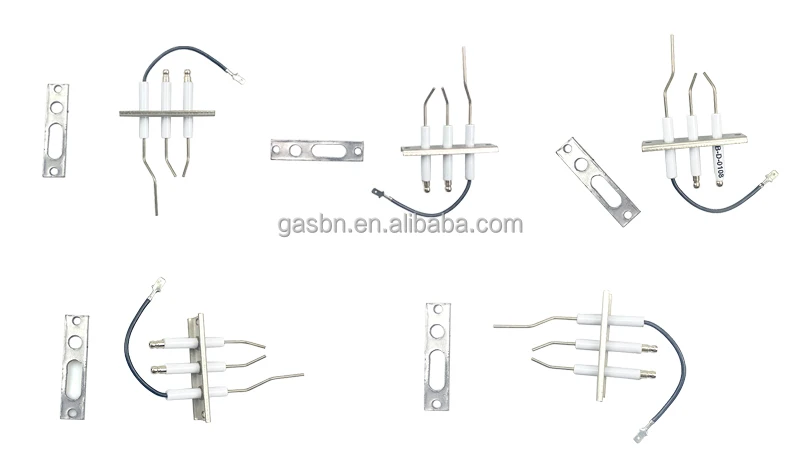

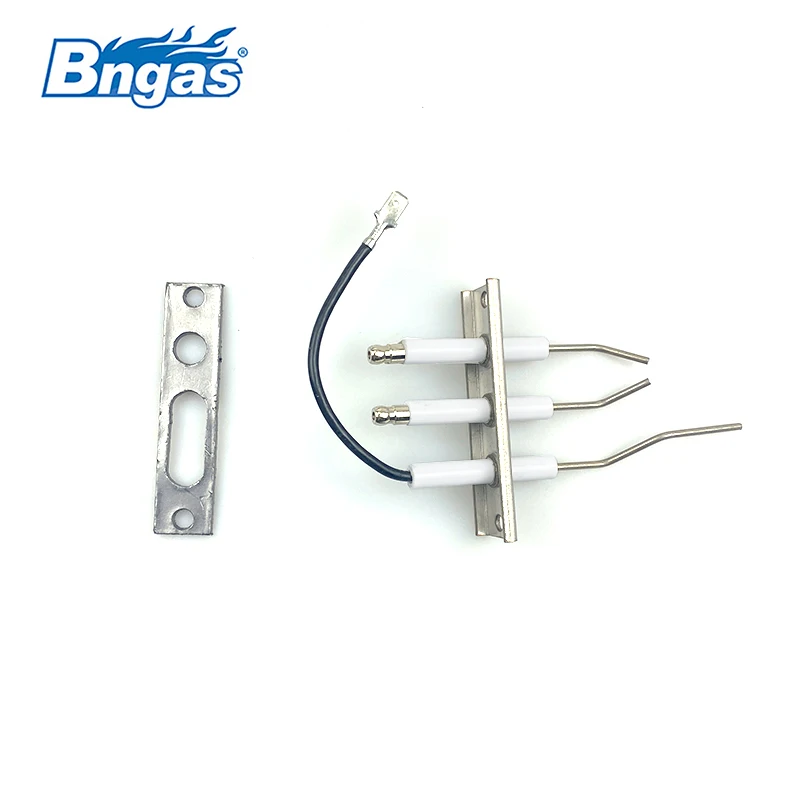

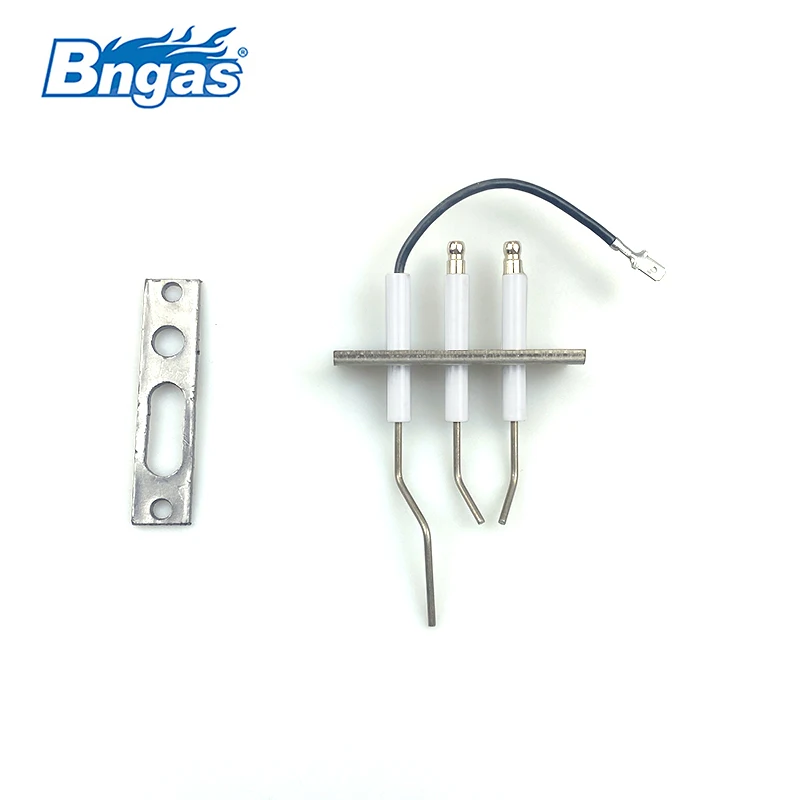

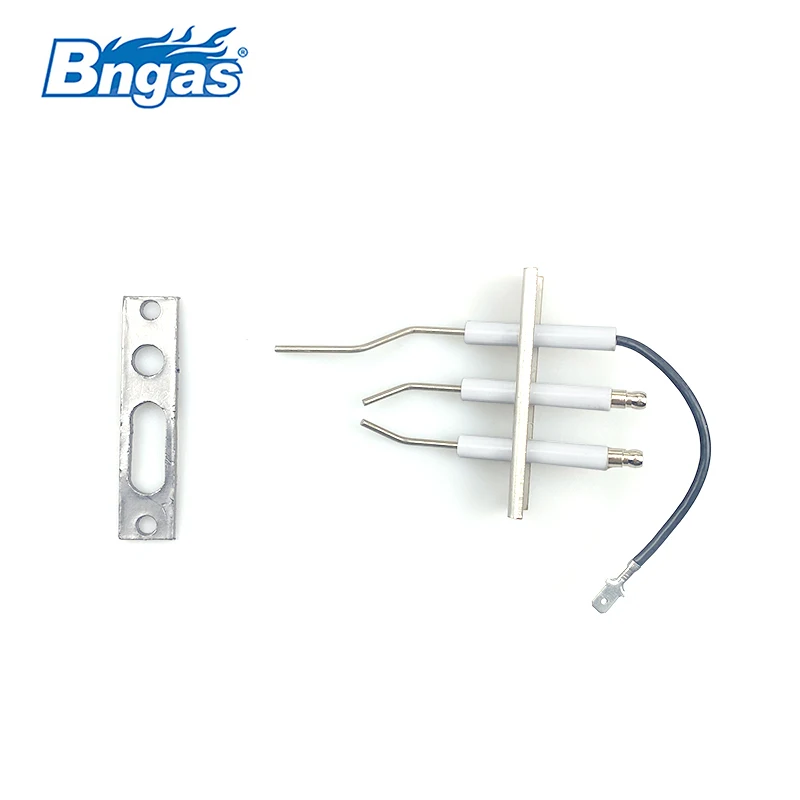

Spark and ionisation electrode kit for gas water heater
- Category: >>>
- Supplier: Changxing Benneng Gas Appliance Co. Ltd.
Share on (1600716469855):
Product Overview
Description
Material | Probe: FeCrAl / Kanthal Ceramic: 95% Al2O3 Cable: UL1332/ UL3573/ UL3304/ UL3257/ UL1911/ UL1659/ UL10362 |
Temperature Resistance | Probe: ≤1050℃ Ceramic: ≤1700℃ Cable: ≤250℃ |
Tip | M1.6/ φ2.35/ 2.8x0.5/ 2.8x0.8/ M4 |
Supply ability | 50000pcs/month |
Application | BBs 2/2 N/3.5 28 kW WGB (N) 2.15 – 2.70 WGB K (N) 2.20 WBS/WBC Potterton 986328 |
Packaging | Customizable with standard export carton |
MOQ | 1000pcs |
Ignition Electrodes For Gas Boiler
We recommend that all parts are installed by a fully qualified Gas Safe certified engineer. If you need to buy parts in bulk for some models, please feel free to contact us. If only a small number of product replacements are required, we can refer you to your local distributor, importer, or retailer and we have a large number of customers abroad to help us with the distribution.
What is the Ignition Electrode?
Ignition electrodes and ionization probes are produced from high-quality materials.
* The central electrode is generally made of a unique fireproof material, resistant to high temperature and electrochemical corrosion (seen more in gas boilers and gas heaters)- Kanthal material.
* The outer insulator is made of alumina ceramic with high mechanical strength, heat resistance, high voltage resistance (usually 18kV), and high Al2O3 content.
* Some electrodes also have mounting brackets on ceramics, and we usually like to be made of 304 stainless steel, which gives the product a longer life.
They ignite gaseous fuels in gas burners and operate on the principle of high voltage flashover. The ignition electrode must be outside the flame. Only the central electrode is in the flame. The ignition electrode and ionization probes are usually used in combination in the combustion chamber of a gas-burning appliance (the ignition electrode can also be used as an ionization probe). However, the space between them needs to be designed by a professional engineer for you.
* Some electrodes also have mounting brackets on ceramics, and we usually like to be made of 304 stainless steel, which gives the product a longer life.
They ignite gaseous fuels in gas burners and operate on the principle of high voltage flashover. The ignition electrode must be outside the flame. Only the central electrode is in the flame. The ignition electrode and ionization probes are usually used in combination in the combustion chamber of a gas-burning appliance (the ignition electrode can also be used as an ionization probe). However, the space between them needs to be designed by a professional engineer for you.
BNGAS Ignition Electrodes Materials
* Inusulator material available: Mullite, Steatite, Heat Resistant Resin, Alumina 90~99.6%
* Electrode material available: Kanthal A, C, D, APM, SUS304/310/316, Inconel, Various Ni-Cr alloy wire
* Wiring and connector available: All type
* Ceramic insulator size available: length 10 to 1800 mm, diameter 3 to 15mm
* Heat resistance range 700 to 1400 °C
* Electrode material available: Kanthal A, C, D, APM, SUS304/310/316, Inconel, Various Ni-Cr alloy wire
* Wiring and connector available: All type
* Ceramic insulator size available: length 10 to 1800 mm, diameter 3 to 15mm
* Heat resistance range 700 to 1400 °C

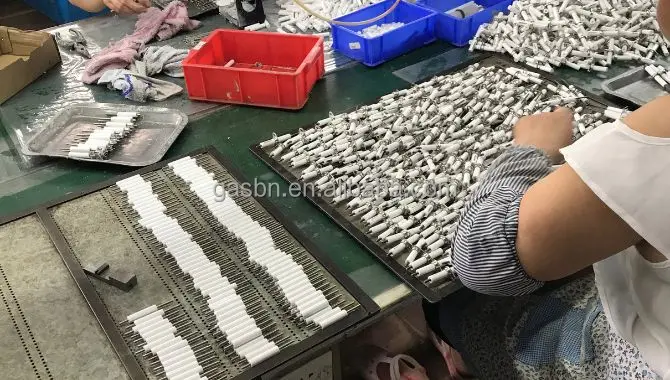

BNGAS Ignition Electrodes Production
We have a wide range of ignition and sensing electrodes for whole applications.
Ignition electrodes are used for ignition and temperature control of natural gas-fired equipment and operate on the principle of
high-pressure flashover. If your application requires an electrode or sensing rod, we can supply one of our models or design and
manufacture it for you.
high-pressure flashover. If your application requires an electrode or sensing rod, we can supply one of our models or design and
manufacture it for you.
BNGAS produce electrode in the automated line for simple design in large quantity.

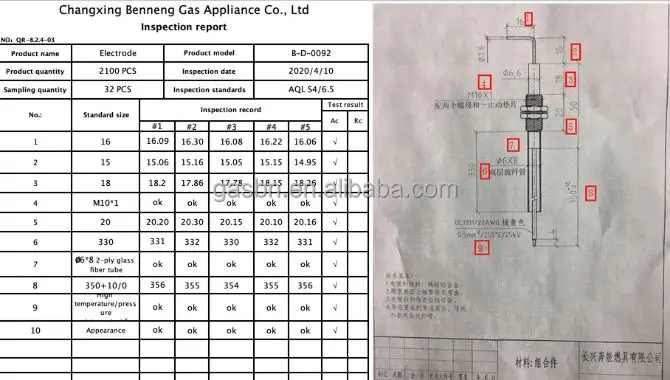

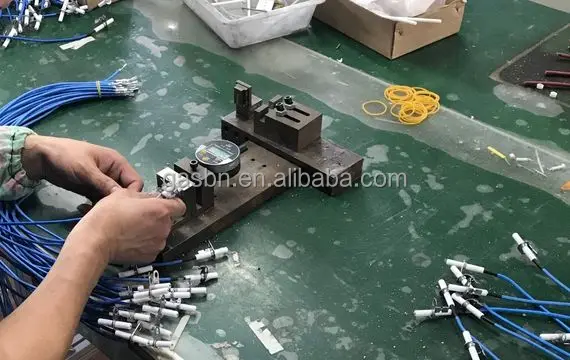

High-voltage Insulation Test For Electrodes
The quality control system is the most critical thing after industrial product production. We know that our customers are concerned about the quality and longevity of our products and whether there are any safety risks.
Therefore, BNGAS has a complete quality management system and SOPs for the production process since its inception, and 100% inspection of important nodes will be carried out during production, and only after passing the full inspection can we pack and ship the products.
Therefore, BNGAS has a complete quality management system and SOPs for the production process since its inception, and 100% inspection of important nodes will be carried out during production, and only after passing the full inspection can we pack and ship the products.
Choose BNGAS to Custom Your Ignition Electrodes
BNGAS has over 16 years of experience in the production of ignition electrodes. Over the years, we have focused on designing and producing high-quality ignition electrodes to meet our customers’ expectations.
Our experience, team of experts, and advanced production equipment on Dimensional Control, Dielectric Control, and Pressure Control. LEAN PRODUCTION enables us to provide quality customization services for ignition electrodes.
Our ignition electrode products are quality tested and conform to many international standards such as ISO, CE, CSA, etc.
Therefore, you can rest assured that our products are of high quality and safe.
We are capable of helping you design, whether it is domestic ignition electrodes or industrial ignition electrodes, through our years of export experience. Besides, the electrodes’ size, design, and other specifications can be customized according to your needs.
If you want to customize ignition electrodes, please feel free to contact BNGAS!
Our experience, team of experts, and advanced production equipment on Dimensional Control, Dielectric Control, and Pressure Control. LEAN PRODUCTION enables us to provide quality customization services for ignition electrodes.
Our ignition electrode products are quality tested and conform to many international standards such as ISO, CE, CSA, etc.
Therefore, you can rest assured that our products are of high quality and safe.
We are capable of helping you design, whether it is domestic ignition electrodes or industrial ignition electrodes, through our years of export experience. Besides, the electrodes’ size, design, and other specifications can be customized according to your needs.
If you want to customize ignition electrodes, please feel free to contact BNGAS!
BNGAS- Ignition Electrode Manufacturers
Quality Ignition Electrode Products
Through our many years of manufacturing experience and the quality standards of our large customers, we can offer a wide range of quality products. They can be customized to meet your requirements for various uses. It’ll be best if you can send us your samples or drawings for check, because most of the electrodes are customized.
Complete Packaging Solution
We will pack these products according to your requirements and can use individual plastic bags to pack them. So you can sell them individually. Since graphite gaskets are very easy to damage, we usually pack the gaskets separately from the electrodes will be safer. Finally, they are placed in carton boxes and fixed on top of a pallet.

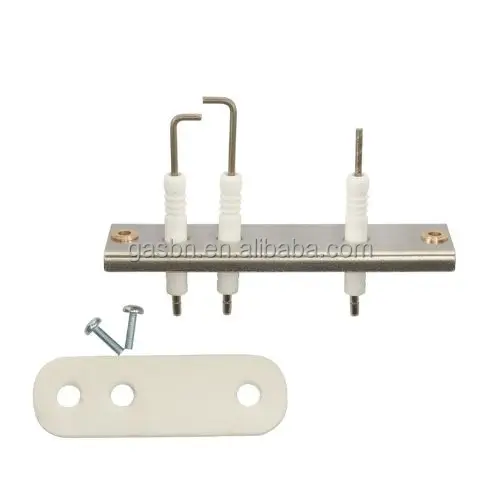

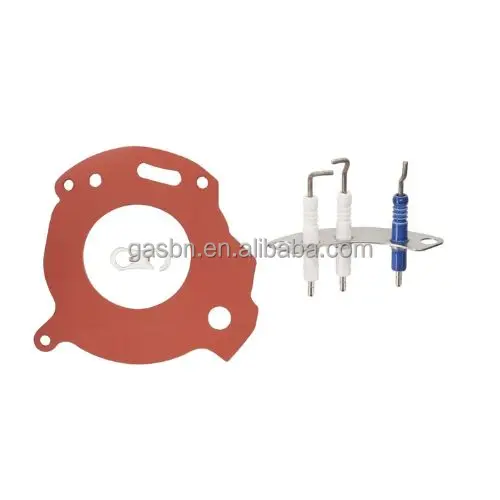

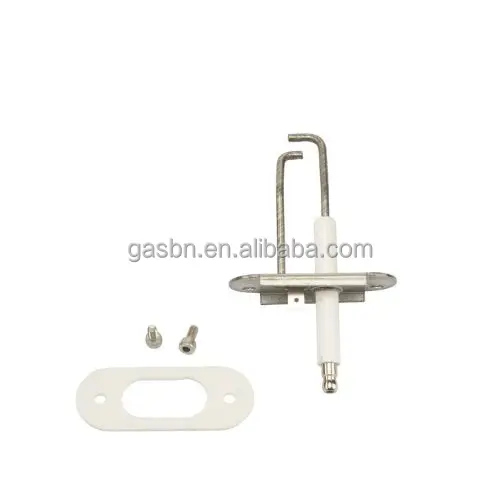

Worcester 87161163810 Set of Electrodes
Product: BN5502
Supplier Part Number: B-D-0109
Worcester 8716121817 Set of Electrodes
Product: BN5503
Supplier Part Number: B-D-0110
Supplier Part Number: B-D-0110

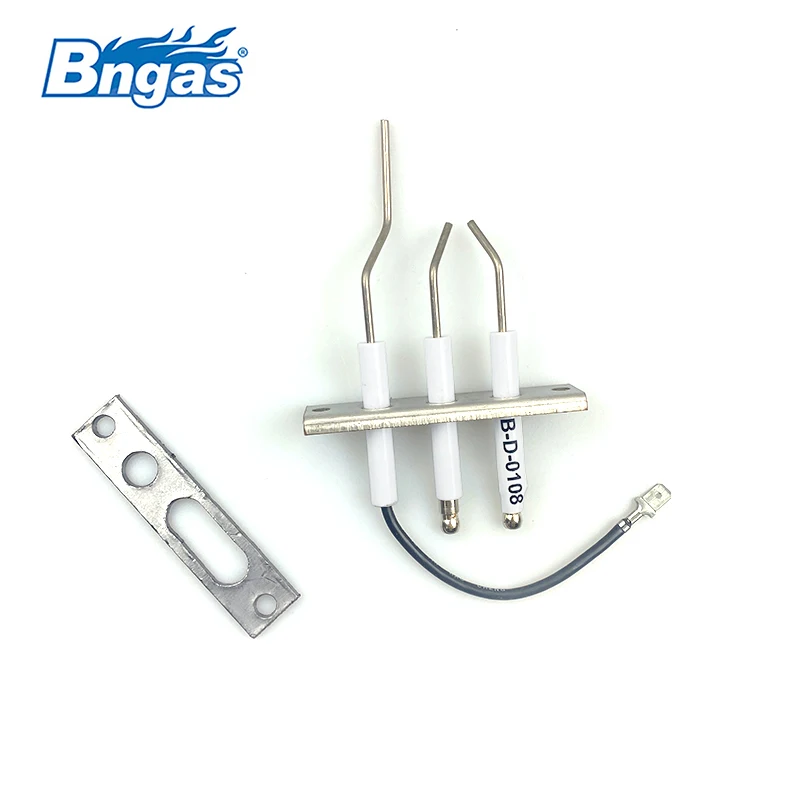

BAXI 5130293 Set of Electrodes
Product: BN5501
Supplier Part Number: B-D-0108
Supplier Part Number: B-D-0108
IDEAL 175592 Set of Electrodes
Product: BN5505
Supplier Part Number: B-D-0112
Supplier Part Number: B-D-0112
GLOWWORM 801637 Set of Electrodes
Product: BN5507
Supplier Part Number: B-D-0114
Supplier Part Number: B-D-0114
IDEAL 173528 Set of Electrodes
Product: BN5511
Supplier Part Number: B-D-0133
Supplier Part Number: B-D-0133

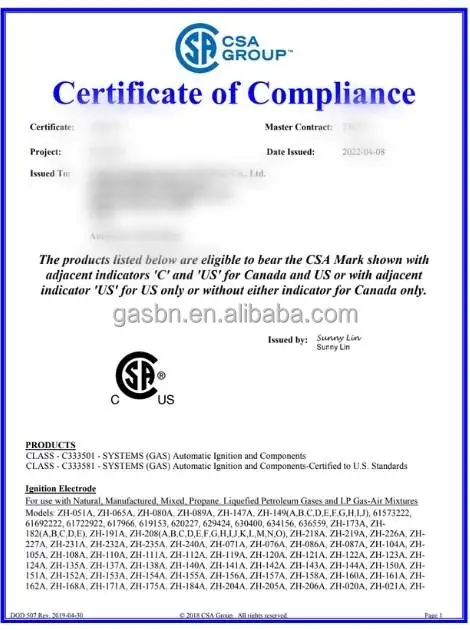

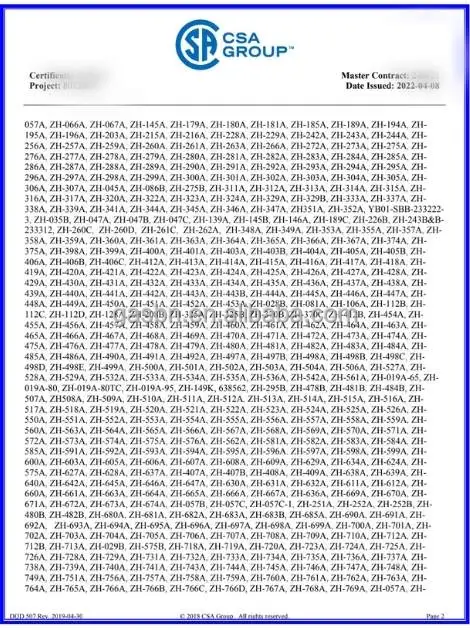

Our Ignition Electrode Certification
FAQ: Ignition Electrode –The Complete Guide
You can find most of the questions you want to know about ignition electrodes here.
Whether you want to learn about specifications or the electrode process – you will find all information right here.
Keep reading to learn more.
BNGAS Ignition Electrode Materials

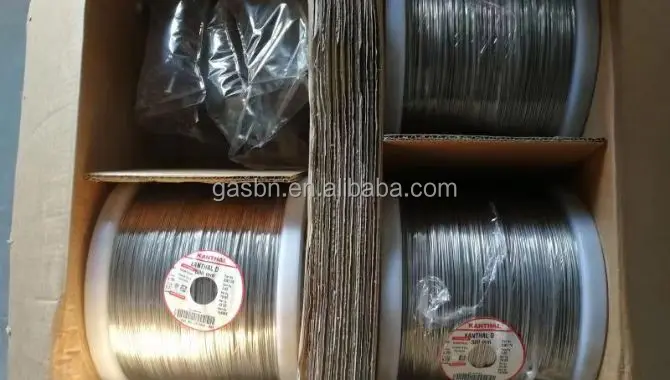

Kanthal A-1 Wire
Kanthal® A-1 is a ferritic iron-chromium-aluminum alloy (FeCrAl alloy) for use at temperatures up to 1400°C (2550°F). The alloy is
characterized by high resistivity and very good oxidation resistance.
characterized by high resistivity and very good oxidation resistance.
Alumina (Al2O3) Ceramic
High purity alumina has a very high melting point of 2,072 °C, is extremely hard, and has good electrical insulation properties, high chemical resistance, and low thermal expansion properties.
Stainless Steel Bracket
The surface of the electrode bracket made of stainless steel can be well protected by passivation and polishing. Different types can meet the installation requirements of different structures.
Wire For Ignition Electrode
* Regular Wire: UL1332, UL1659, UL1911, UL3573, UL3071 etc.
* 200℃ Heat-resistant: UL1332, UL3071, UL3573
* 250℃ Heat-resistant: UL1659, UL1911
* 200℃ Heat-resistant: UL1332, UL3071, UL3573
* 250℃ Heat-resistant: UL1659, UL1911
Ignition Electrode Terminal
* Fermale Terminal：110(0.5*2.8, 0.8*2.8), 87(0.5*4.74, 0.8*4.74), 250 (0.8*6.35), φ2.35mm
* Male Terminal: φ4mm, φ6.35mm
* Flat male: 0.8*4.74mm, 0.8*6.35mm
* Male Terminal: φ4mm, φ6.35mm
* Flat male: 0.8*4.74mm, 0.8*6.35mm
Q1: What is the Ignition Electrode?
Ignition electrodes and ionization probes are produced from high-quality materials.
* The central electrode is generally made of a unique fireproof material, resistant to high temperature and electrochemical
corrosion (seen more in gas boilers and gas heaters)- Kanthal material.
* The outer insulator is made of alumina ceramic with high mechanical strength, heat resistance, high voltage resistance (usually 18kV), and high Al2O3 content.
* Some electrodes also have mounting brackets on ceramics, and we usually like to be made of 304 stainless steel, which gives the product a longer life.

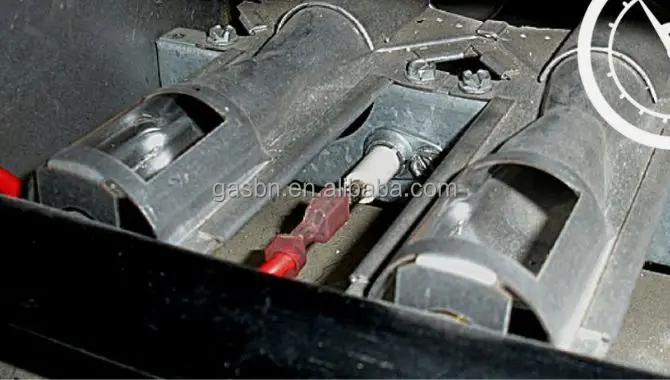

Q2: What is the Flame Sensing
ignition) gas equipment.

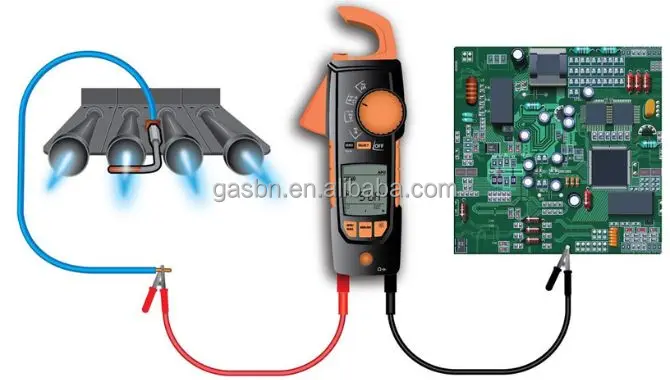

The flame sensing rod is inserted into the flame and connected to the control circuit board. Whenever the circuit board gives the command to open the gas valve, it monitors the current on the flame sensing rod. It generates a potential (voltage) at the terminals of the flame sensing rod connected to the sensor. A small microampere (µA) direct current (DC) is generated by forming a path between the rod and the ions in the flame only when the flame is present. Otherwise, there is only potential at the rod and no current. If the flame goes out and the small DC signal board does not sense this microampere (μA) DC for a few seconds, it will shut off the gas valve and tries again.
The flame sensor fails in the following cases:
1. they are short-circuited due to ceramic body rupture.
2. They do not open because they are broken.
3. They are not properly installed in the flame.
4. They have silica (glass) or carbon attached to their surface.
1. they are short-circuited due to ceramic body rupture.
2. They do not open because they are broken.
3. They are not properly installed in the flame.
4. They have silica (glass) or carbon attached to their surface.
It could be a circuit board problem or a flame sensor problem. Every possible test needs to be done before replacing it. Many technicians advocate replacing the flame sensor if they suspect it is not conducting well. I don’t mind because BNGAS flame rods are cheap with good quality, and you can cover this cost for your customers.
In summary, the flame rod should be:
1. In the flame
2. Clean
3. Not open
4. Not short
In summary, the flame rod should be:
1. In the flame
2. Clean
3. Not open
4. Not short
Q3: Can I Find All The Boiler Electrodes Here?
Please send the inquiry to us, if we don’t have the model you need, we can make a prototype for you based on the sample you send
us.
Q4: What's the Minimum Order Quantity of the Electrode?
Please send the inquiry to us, if we don’t have the model you need, we can make a prototype for you based on the sample you send us.
Q5: What's the Delivery Time?
Q6: Do You Charge A Mold Fee For The New Models?
Q7: Does The Product For Which I Spend Money Belong To Me?
Strictly speaking, only the mould belongs to you. The product does not belong to you. Because we can’t only produce 1,000 or 2,000 pcs products and sell them to one customer.
But we can negotiate whether we need to make this to your exclusive product according to your purchase quantity after one year.
Q8: Can You Provide Gaskets And Screws?
Yes, we can. Please check with our sales.
Q9: How Do You Package My Ignition Electrodes?
We usually put independent products in small cartons, then pack them in large cartons, and eventually make pallets, which will be safer.
