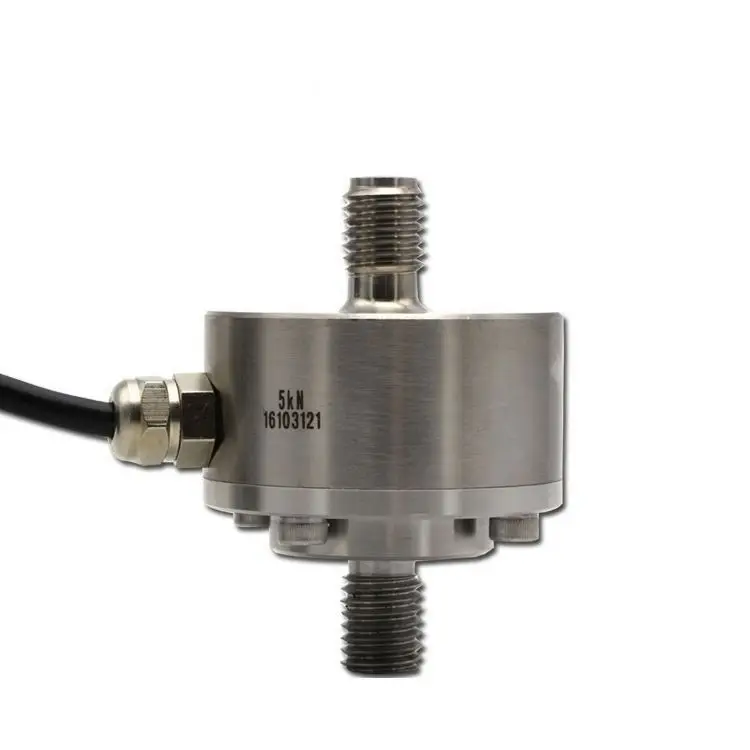

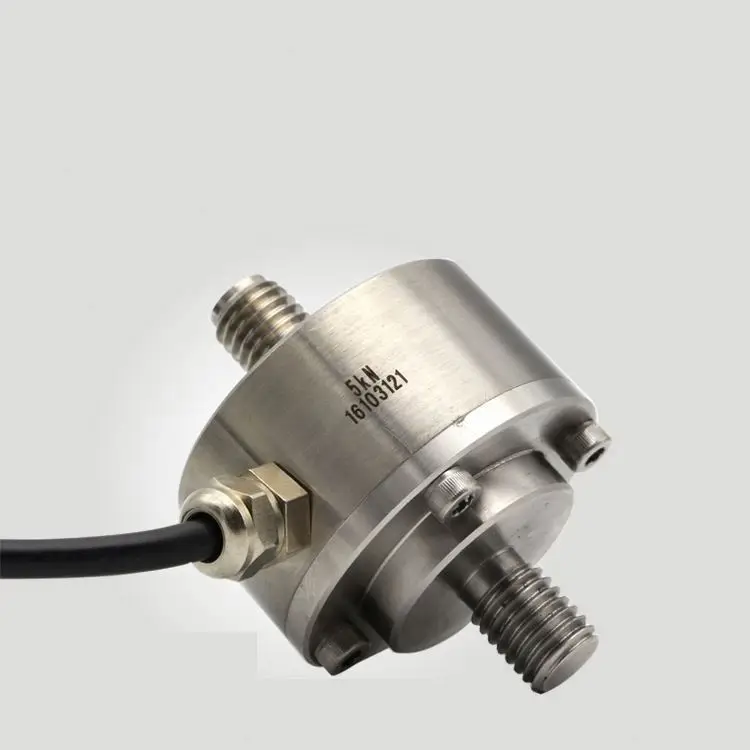

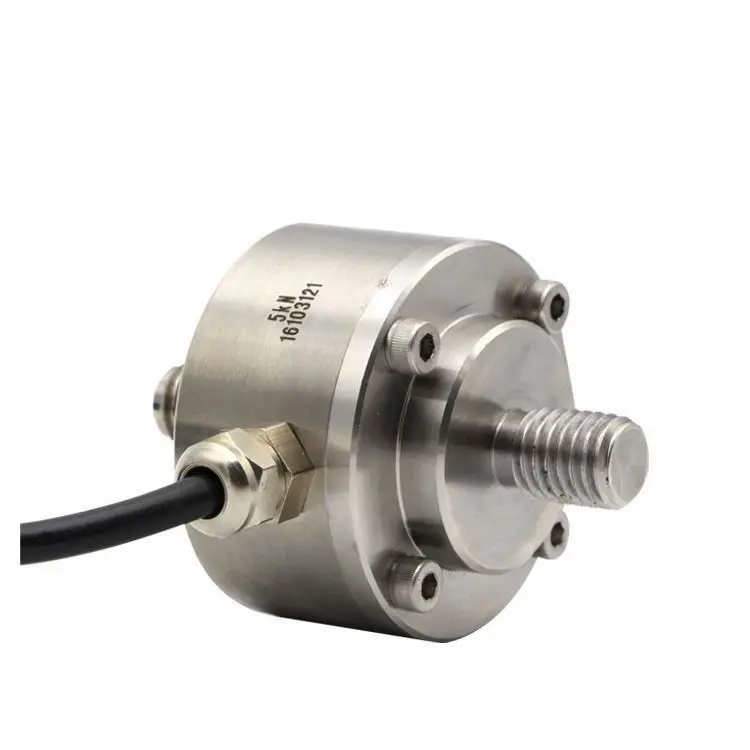

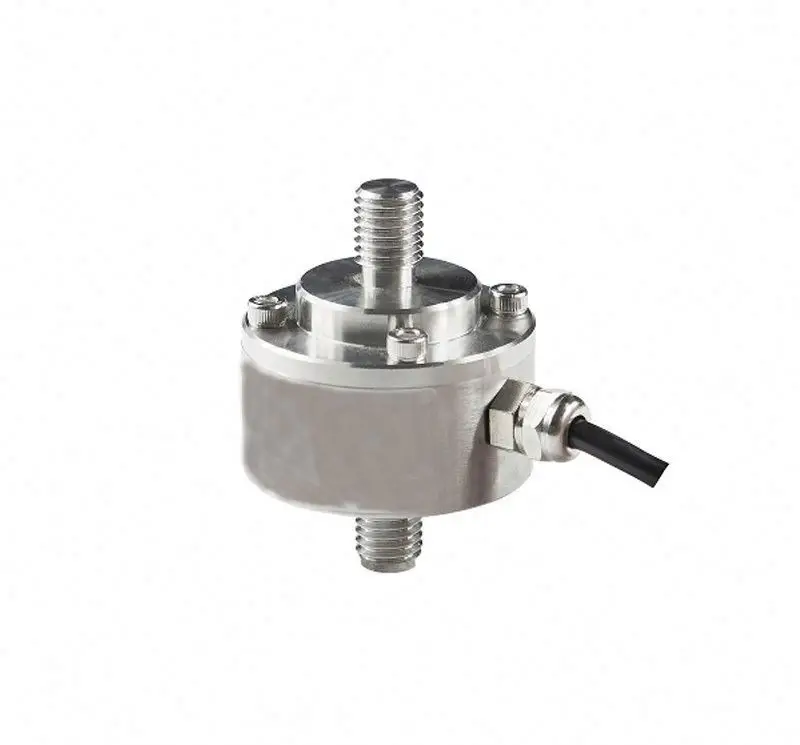

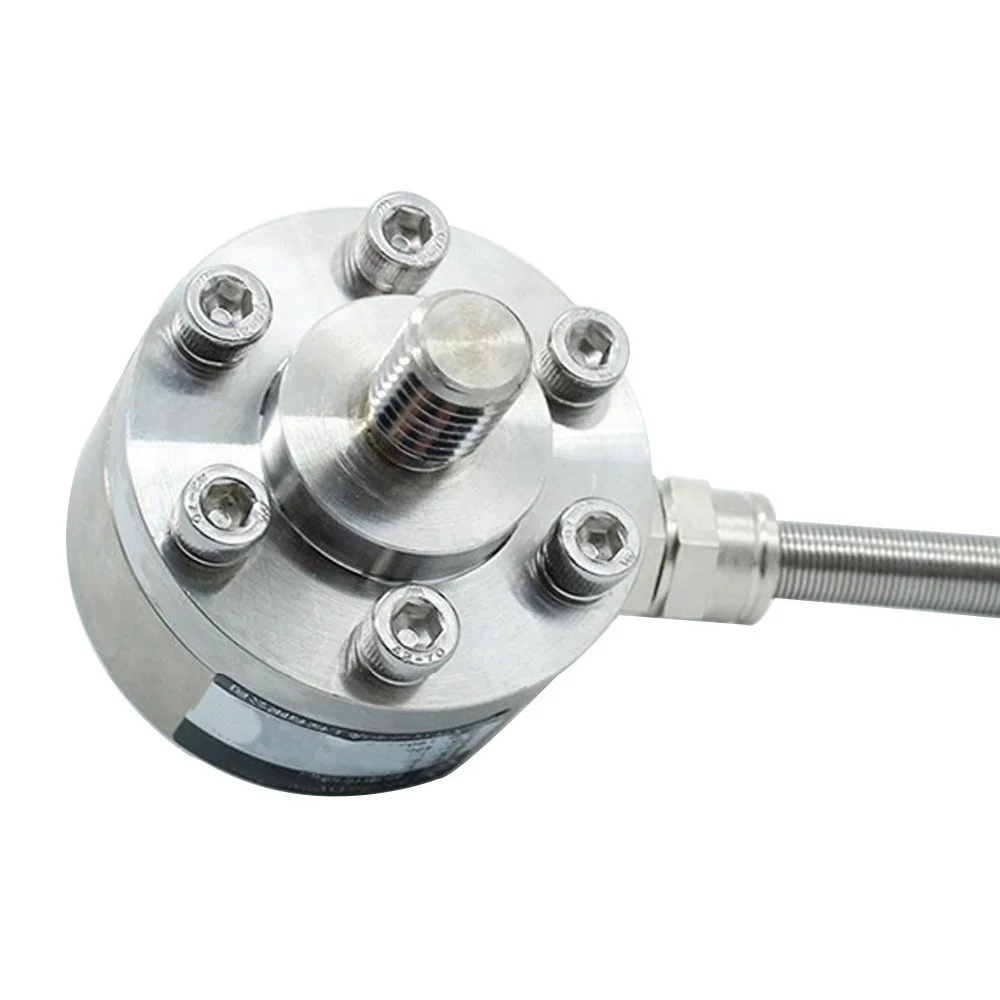

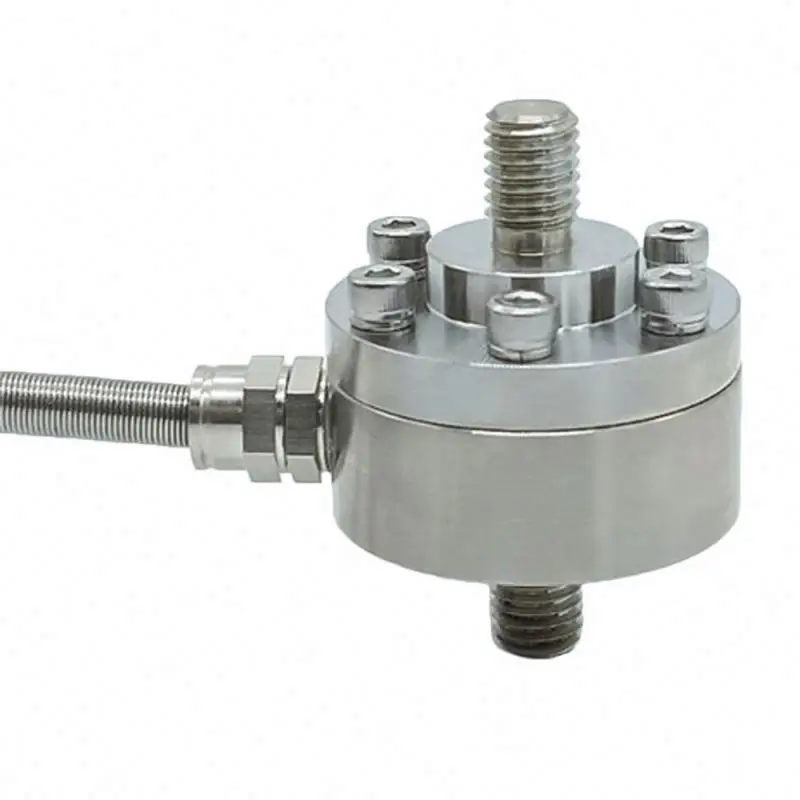

SAINTBOND tension compression load cell force sensor 5KN 10KN 20KN

Product Overview

Description

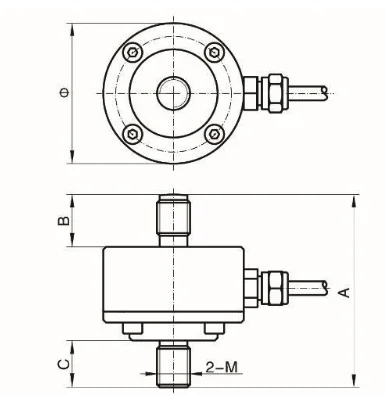

Dimension:

Description:

SAINTBOND Miniature compression load cells are made of SAINTBOND’s advanced strain gauge technology.These load cells are designed for applications in a space limited area.

The capacities of MiNi090 start from 100kg to 1000kg.The measuring accuracy is 0.05%R.O. (R.O.=Rated Output).) Manufactured from high quality stainless steel of aviation standard.

MiNi090 load cells are mainly used for flat mounting weighing systems and force measuring in a narrow space.



Features:

* Tension and Compression load cells

* Capacity:100kg,...,1000kg

* Accuracy:0.05%R.O.

* Super micro structure

* Stainless steel construction

* Environment protection class:IP65

 Applications:

* Flat mounting weighing systems,

* Force measuring in a narrow space.



Technical Data:

Model	LC4012	Excitation,Recommended	≤6VDC
Rated Capacity	100/200/300/500/1000kg	Operating Temp.Range	-10-+40℃
Accuracy Class	X	Safe Overload	120%R.C.
Rated Output	2.0±0.5%mV/V	Insulation Resistance	≥2000MΩ(50VDC)
Zero Balance	±0.1 mV/V	Cable,Length	ø3mm×2m
Input Resistance	350±10Ω	Hysteresis Error	±0.05%R.O.
Output Resistance	350±10Ω	Creep in 2 Min.	±0.05%R.O.
Linearlty Error	±0.05%R.O.	Temp.Effect on Output	±0.05%R.O./10℃
Repeatability Error	±0.05%R.O.	Temp.Effect on Zero	±0.05%R.O./10℃



tension compression load cell force sensor 5KN 10KN 20KN



Product Name	tension compression load cell force sensor 5KN 10KN 20KN
Features	Good quality and low price
Service	OEM&ODM
Custom Design	Welcome
Sample Lead Time	5~40Days
Payment Terms	30% advance payment, the rest payment before delivery
Market	all over the world
Form of sale	Factory supply

Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they will take photos and shoot video for you.



Q2:Why should I choose your company?
A:1,We have own logistics who cooperate different forwarders at the ports of destination.It's good for you to do DDP or DDU.
A2:We have own warehouse at the ningbo port China.
If you want to mix disparate products to different stores,we can help you to finish the work when our workers receive the goods from suppliers. New carton labels will be printed and new pallets with unique IDs will be created.It will save labor cost for you.



Q3: Can you print our brand on the product?
A: Yes, Of course. It can make customer’s brand logo.



Q4: What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.



Q5: What about the Wheel axle scales price?
A: We promise the Wheel axle scales price we offer is lowest if same application, only to enlarge the market share.



Q6:What’s your company payment terms?
A:L/C at sight/ 30days, T/T 30%deposit 70% before shipment.



Q7:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance to the standards.
