SVC-N 2000va 2kva Voltage Stabilizer Servo motor Automatic Voltage Regulator
- Category: Voltage Regulators\/Stabilizers >>>
- Supplier: Zhejiang,TTN,Electric,Co.,Ltd.
Share on:
Product Overview
Description
Model :PC-SBR500VA/PC-SBR1000VA/PC-SBR1500VA/PC-SBR2000VA
Technology:Relay Control System+Micro Computer Programmed Control
Digital Led Display
Langue:English/Russia/Chinese
Input Voltage:AC135-270V(B TYPE);AC105-270V(C TYPE);AC80-270V(D TYPE)
Output Voltage:220±10% adjustable
Frequency:50Hz/60Hz
Phase:Single phase
Efficiency:≥90%
Ambient Temperature:-15℃-45℃
Relative Humidity:<95%
Waveform Distortion:No additional wave from distortion
Insulation Resistance:Insulation Resistance

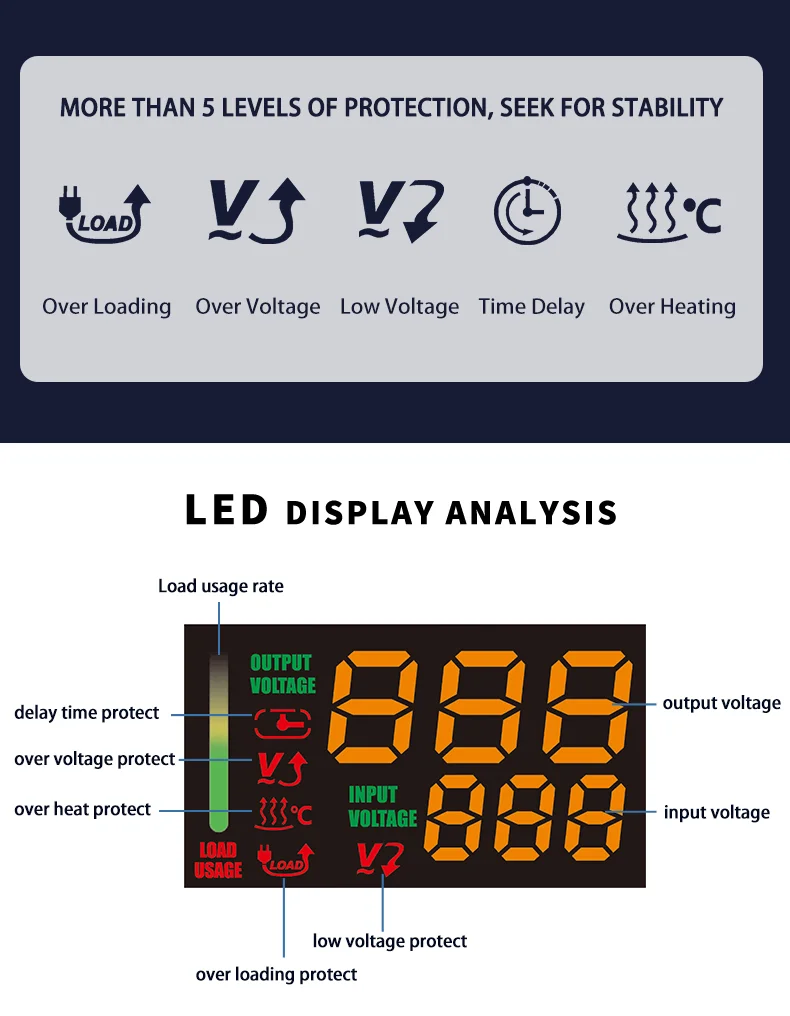

Protection
| Over Voltage: | Output Voltage≥243±4v |
| Low Voltage: | Output Voltage≤188v±4v |
| Over Loading: | More than 120% |
| Over Temperture: | 120℃±10℃ |
| Delay Time: | Long time(255 seconds)/Short time(5 second) |

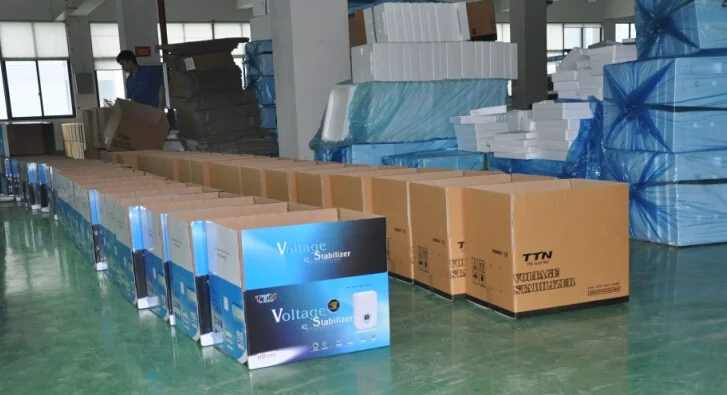

Packing&Delivery
To better ensure the safety of your goods,professional,environmentally friendly,convenient and efficient packaging services will be provided.
Company Information
Founded in 1994 year,ZHEJIANG TTN ELECTRIC CO.,LTD is situated beautiful in Lucheng light industrial Zone,Wenzhou city and with 30,000 square meter building.It is a member unit of the China electrical equipment industry association.And it also is a high new science and technology enterprise.The company grasps "humanist" as the management philosophy and concept.The company has got ISO9001:2000 international quality systens authentication.
The company mainly produces the voltage stabilizer/regulator/AVR,UPS,Power Supply Switch,Power Inverter,Solar System and so on.
