ASME certified high pressure reactor vessels
- Category: >>>
- Supplier: Weihai Huixin Chemical Machinery Co. Ltd.
Share on (1600716570646):
Product Overview
Description
Product Description

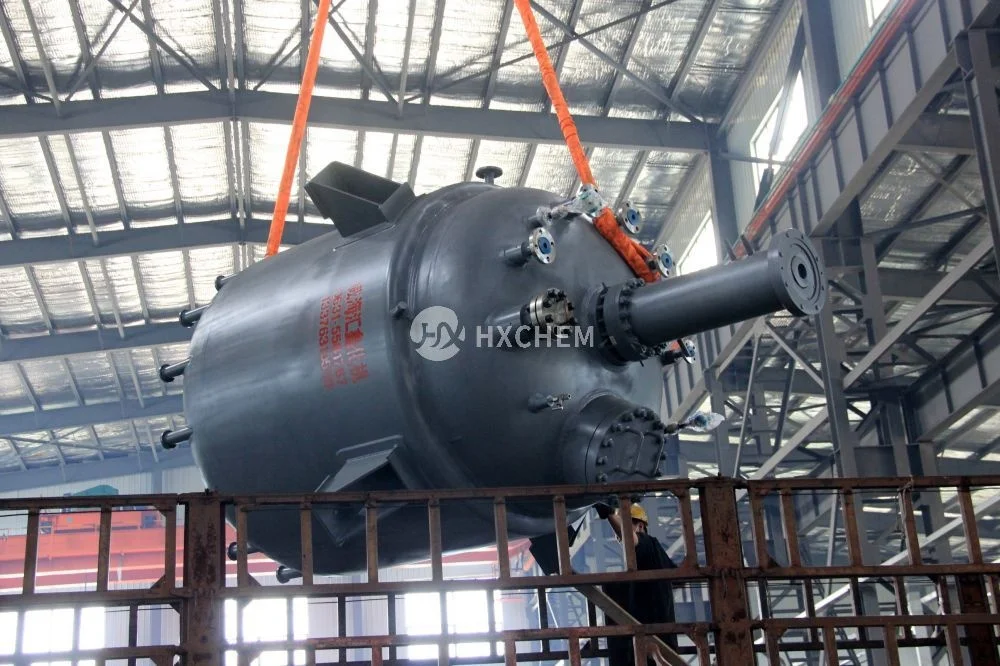

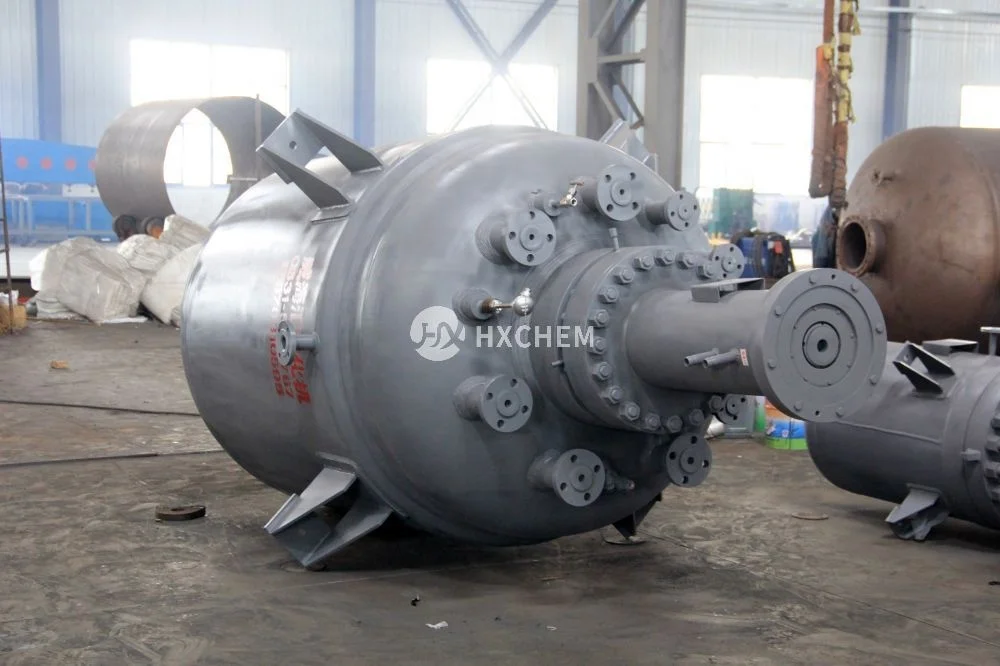

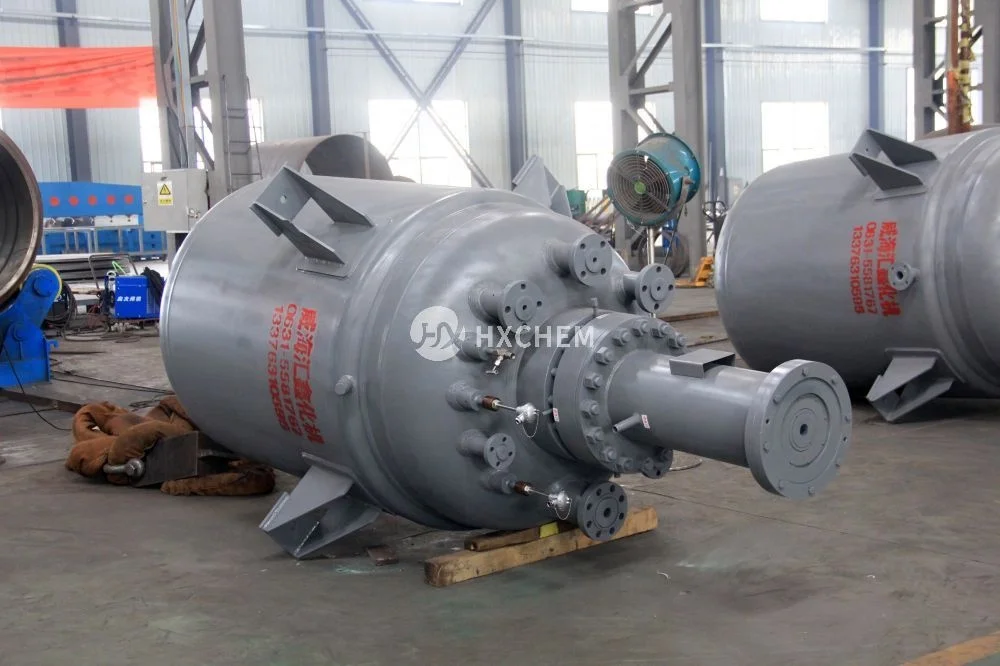

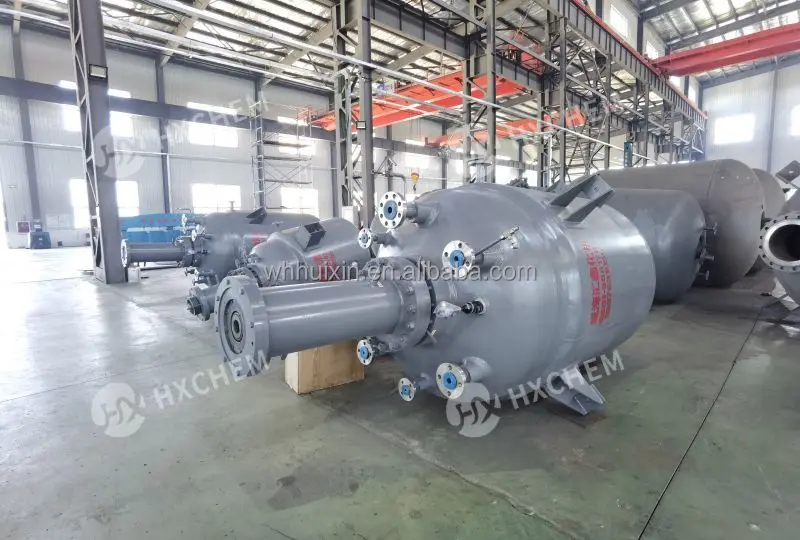

ASME certified high pressure autoclave reactor vessels
Volume：6000L
Design pressure：30bar
Design temperature：250℃
Material：CS+SS316
Equipped with internal cooling coils，conventional jacket，magnetic coupling drive，manhole，
Feeding inlet，Pressure gauge，temperature sensor，customized port
Design certificate:ASME, GB,
Aplications: Petroleum, Chemical, Pharmaceutical, Pesticide, Food, Dye, Hydrometallurgy, etc.
Magnetic seal application: Pressure Chemical Reactions – Reactions with noxious gases – potent pharmaceuticals – zero leakage requirements—Hydrogenation reactions.
MAIN SPECIFICATION | ||
Type | FCH1000~80,000L | |
Volume(L) | 1000~80,000L | |
Working pressure(MPa) | Negative pressure -0.1~20 | |
Working temperature(°C) | -196~350℃ | |
Stirring speed(rpm) | 0~500 | |
Motor power(KW) | 5kw~125kw | |
Heating power(KW) | 3~90 | |
Heating type | Heat oil heating, steam heating, Electric heating, Electromagnetic heating, far-infrared heating, | |
Charging type | Charging from above, discharging from bottom. | |
Stirring type | Customized propeller, turbine, paddle, anchor, frame, screw belt type. ...etc | |
Seal type | Magnetic seal, mechanical seal, | |
Motor | Explosion-proof motor according to customers’ requirements. | |
Construction materials （Wetted parts） | Stainless steel SUS304, SS316L, SS310S, 321, duplex steel 2205, Titanium, Nickel, Zirconium, or PTFE lining, Hastelloy C-276, C22, cladding plate. | |
Other Accessories | Condenser, storage vessel, constant pressure feed tank, receiving tank | |
Certifications
Pressure vessel certificate
ASME "U" Certificate
ISO9001 Certificate
ISO 14001 Certificate
ISO 45001 Certificate
CE Certificate
Product Features
Corrossion Resistance
Metal process scope including:
*Carbon steel
*Stainless steel
*Duplex steel
*Titanium alloy
*Nickel alloy
*Hastelloy C-276
*Zirconium
*Metal clad plate
Internal component design as per customer's requires, including:
*Internal condenser
*Agitator & impeller
*Dip tube
*Temperature measuring tube
*Various functional tube
*Cleaning device
*Bottom support & bearing
*Gas distributor
*Others
Reasonably customize the nozzle port and orientation, including:
*Manhole, liquid inlet, gas inlet, solid inlet, safety device, vent outlet... etc.
* 100% Sealing. Zero leakage.
* Zero emission of hazardous fluids.
* Suitable for pressure fluctuations.
* Various capacities available.
* Compact Design.
* Suitable for pressure fluctuations.
* Various capacities available.
* Compact Design.
Agitator
*Different impeller type available for specific mixing mission.
*Special impeller design according to process condistions
Product Paramenters
Model No. | Vol. (L) | A (mm) | B (mm) | C (mm) | ||||
FCH1000 | 1000 | 1000 | 1100 | 3800 | ||||
FCH2000 | 2000 | 1200 | 1500 | 4200 | ||||
FCH3000 | 3000 | 1400 | 1700 | 4500 | ||||
FCH5000 | 5000 | 1600 | 2150 | 4700 | ||||
FCH6000 | 6000 | 1700 | 2350 | 5300 | ||||
FCH8000 | 8000 | 1900 | 2500 | 5700 | ||||
FCH10000 | 10000 | 2000 | 2800 | 5800 | ||||
FCH15000 | 15000 | 2400 | 2900 | 6100 | ||||
FCH20000 | 20000 | 2600 | 3300 | 7100 | ||||
FCH25000 | 25000 | 2800 | 3550 | 7600 | ||||
FCH30000 | 30000 | 2800 | 4350 | 9100 | ||||
Note: Larger size and specific data will be designed and confrimed according to your requires! | ||||||||
Details Images

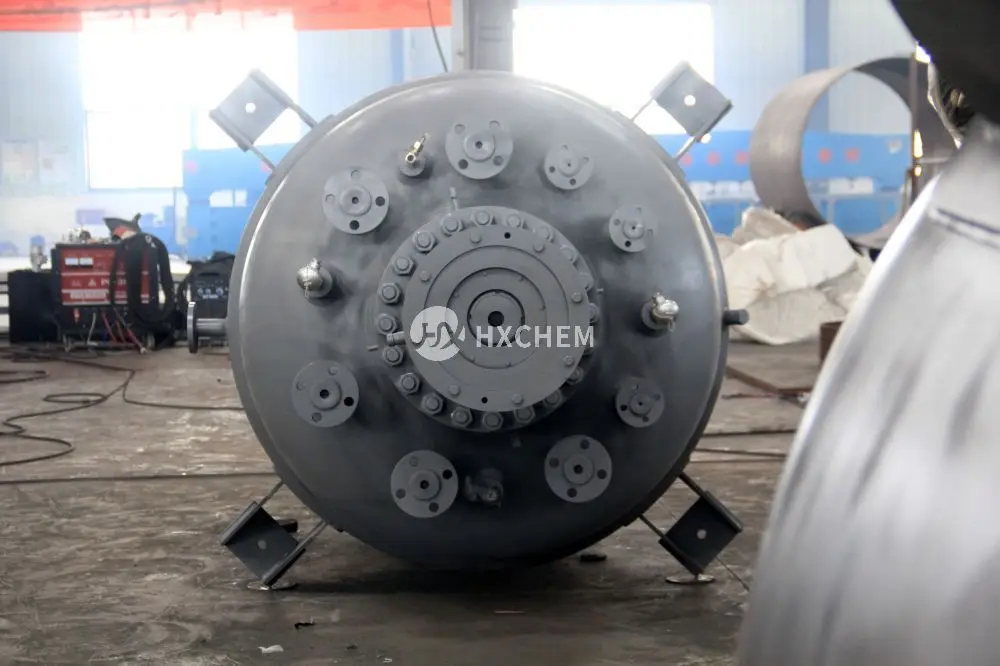

Magnetic Coupling Stirrer
Motor & Reducer
Pressure & Leakage Test
Mechanical Seal agitator
External limpit Coils Jacket
Full Jacket
Pressure Vessel Barrel
Upper Head
Manhole
Agitator & internal cools
Tubular Coils
Serpentine Coils
Customization
Customized Specifications
If there has special process requires, HXHCEM will also customize for you!
Pls list your basis process parameters like follows:
1. Reactor volume
2. Operating Temperature
3. Operating Pressure
4. Reactor Material / contacting components material
5. Agitator type, and the Mixing Speed, motor power request?
6. With heating device or not？ Heating type？
7. Internal cooling coil or not, exchange area?
8. Your other requests
......Contact us！
We like to help you to accomplish your plans.
If there has special process requires, HXHCEM will also customize for you!
Pls list your basis process parameters like follows:
1. Reactor volume
2. Operating Temperature
3. Operating Pressure
4. Reactor Material / contacting components material
5. Agitator type, and the Mixing Speed, motor power request?
6. With heating device or not？ Heating type？
7. Internal cooling coil or not, exchange area?
8. Your other requests
......Contact us！
We like to help you to accomplish your plans.
