Hot Hot Hot CA 1325 Auto tool changer Cnc router Woodworking Machinery
- Category: >>>
- Supplier: Jinan,Camel,CNC,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
MAIN CONFIGURATION
Hot Hot Hot CA-1325 Auto tool changer Cnc router Woodworking Machinery
TECHNHICAL DATA
Name | Specification |
X,Y,Z Working Area | 1300X2500X200mm |
Table Size | 1855X3340mm |
X,Y,Z,Traveling Positioning Accuracy | ±0.03/300mm |
X,Y,Z,Repositioning Positioning Accuracy | ±0.05mm |
Lathe Bed | Strong lathe bed |
Gantry | Steel structure gantry design |
Guide Rail | Taiwan Hiwin Square Rail with X,Y,Z axis |
XY Z Transmission | Gear rack with X and Y axis Imported Ball Screw with Z axis |
Spindle Motor | 9kw HQD Air cooling spindle special for tool changer |
Max. Speed | 0-45000mm/min |
Max. Working Speed | 0-25000mm/min |
Spindle Speed | 0-24000RPM |
Drive Mode | Servo system |
Working Voltage | AC220V/380V, 50/60Hz |
Command | G Code, *uoo, *mmg, *plt |
Inverter | 11KW Fuling inverter |
Control System | Taiwan LNC control system |
Typeset Software | ARTCAM(can support any G-code software) |
Motor | Leadshine Servo Motor |
Driver | Servo Driver |
Tools cooling | OIL sprayer pump |
Lathe Table | Vacuum table with 8 sections +6 vacuum cups |
Vacuum Pump | 5.5KW VACUUM Pump |
Air compressor | 3.0KW |
Tool Magazine | 8pcs ISO30 tool holder |
Dust Collector | 3.0KW |
Electricity cabinet | Independent Cabinet |
Tool sensor | TOOL SENSOR |
Collet | ER32 |
X,Y Working Delicacy | <0.01mm |
Software | Ucancam, Artcam |
Running circumstance | Temperature: 0℃～45℃, Relative humidity: 30%～75% |

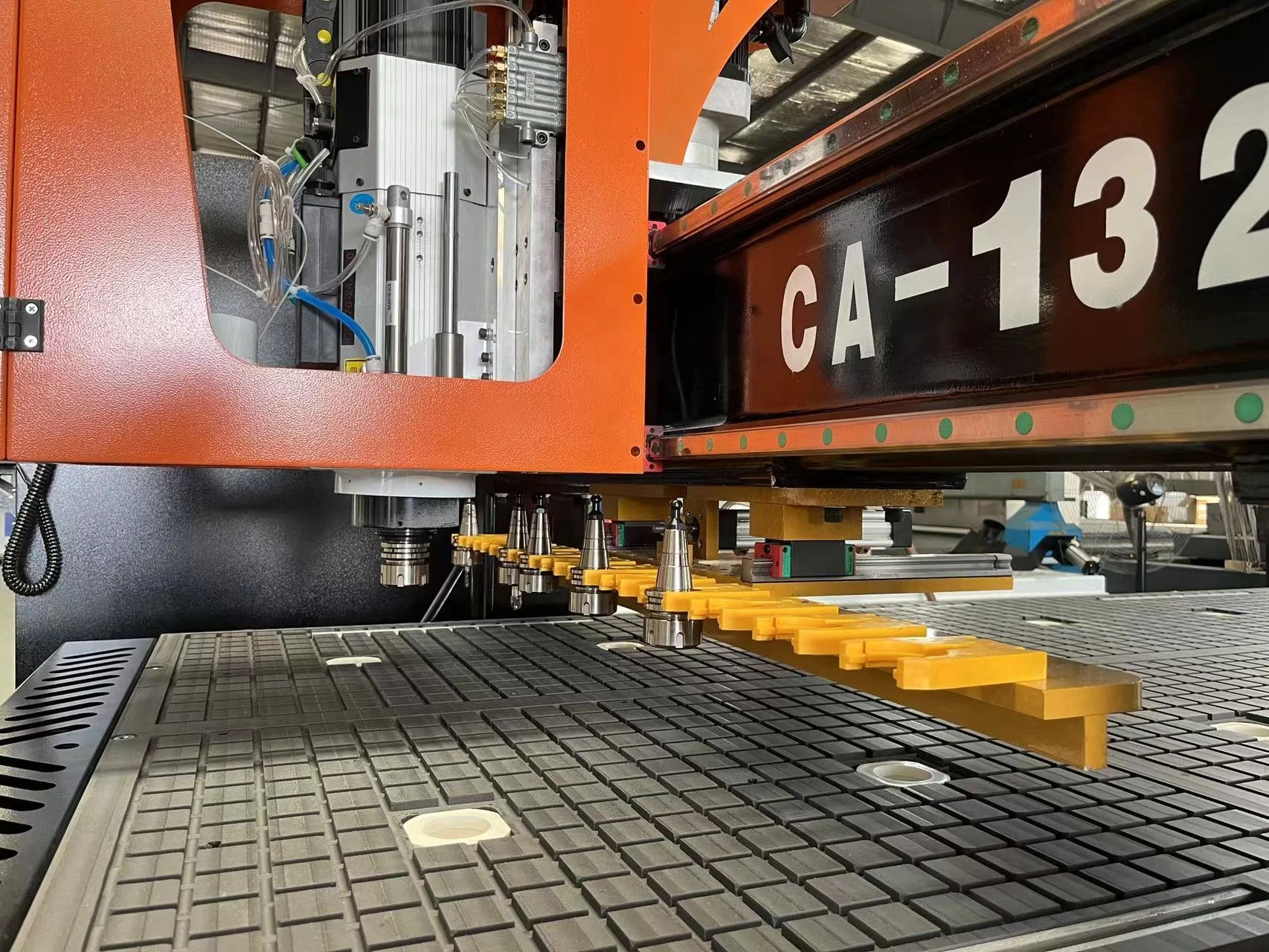

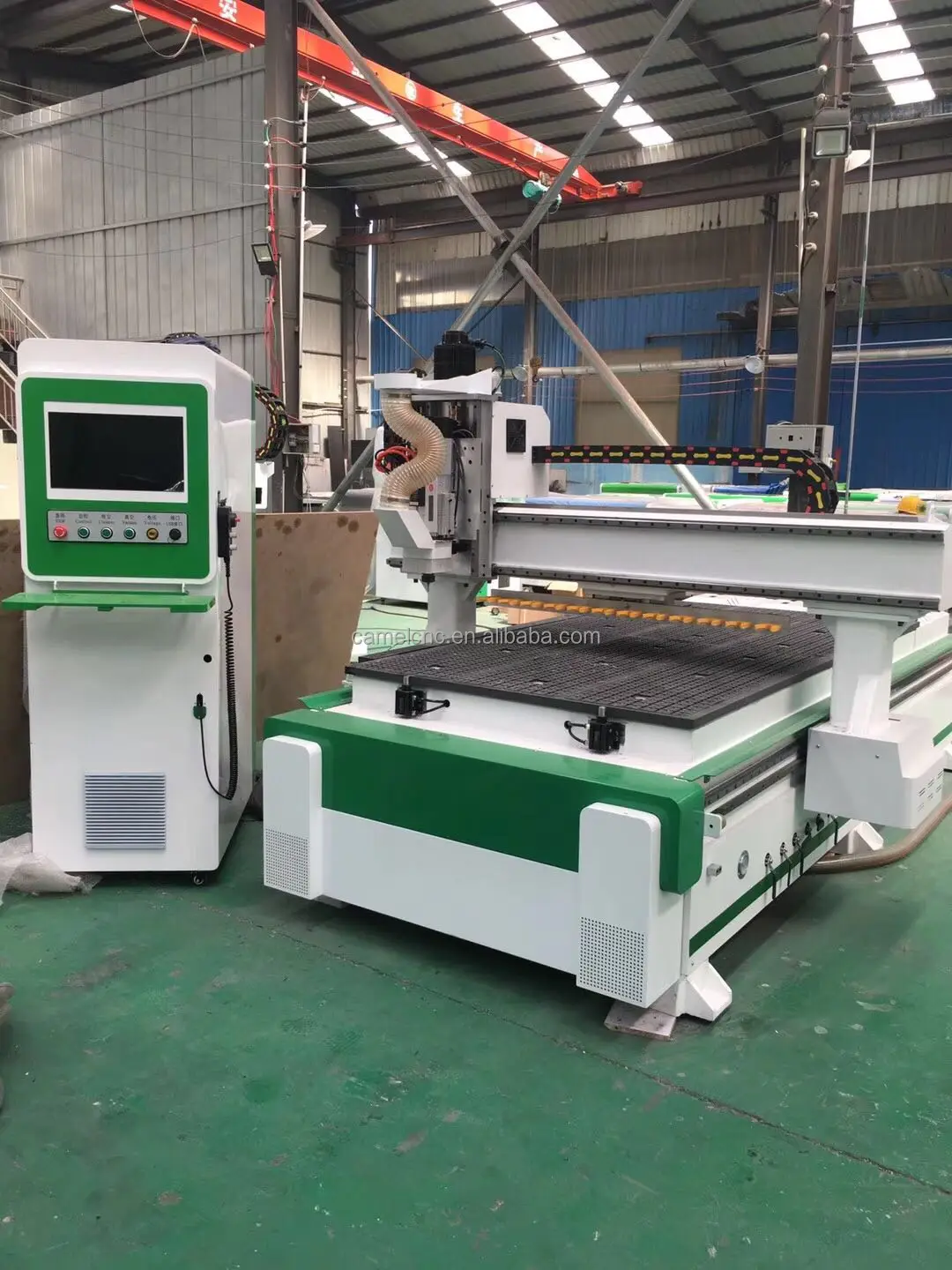

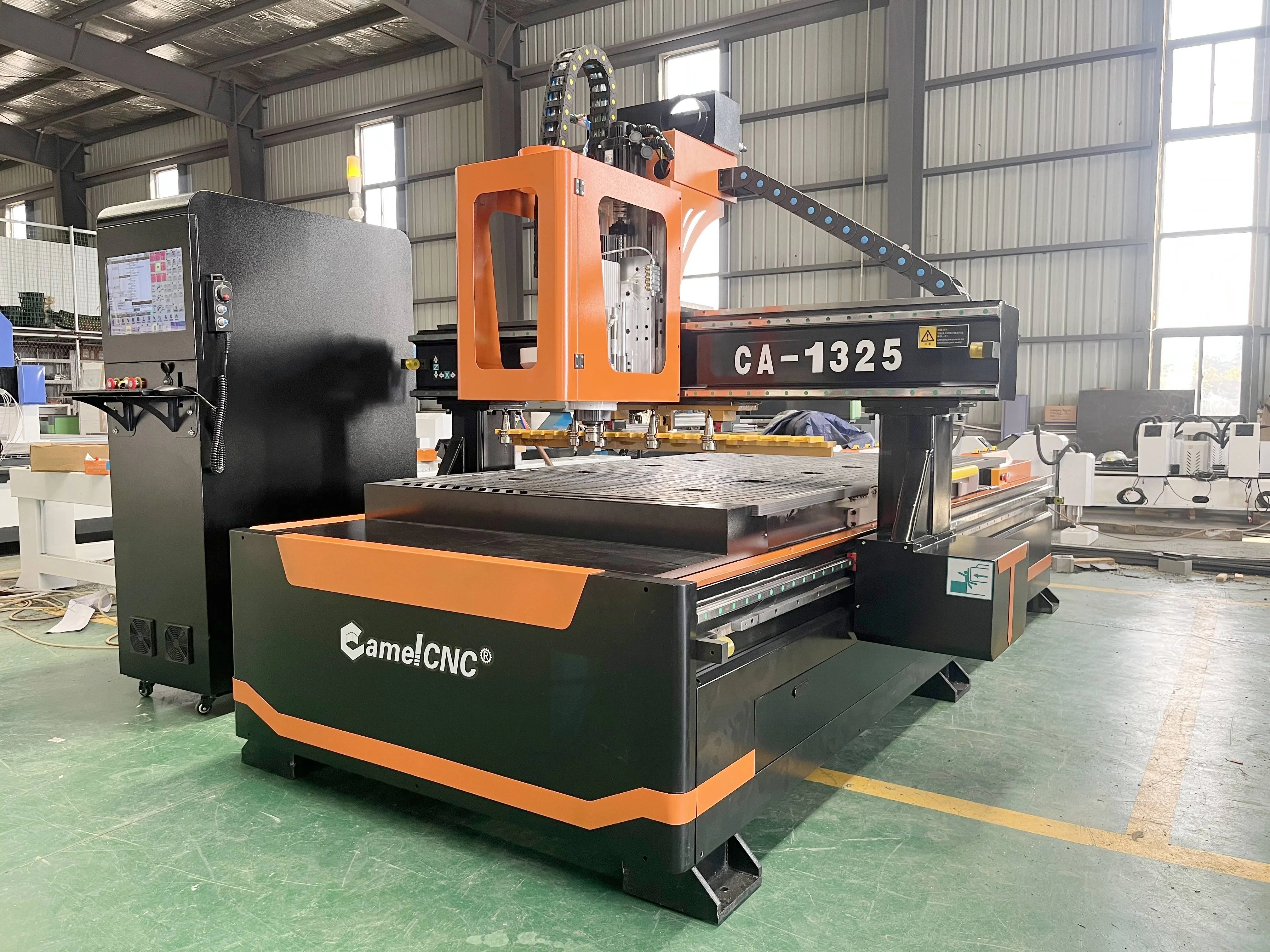

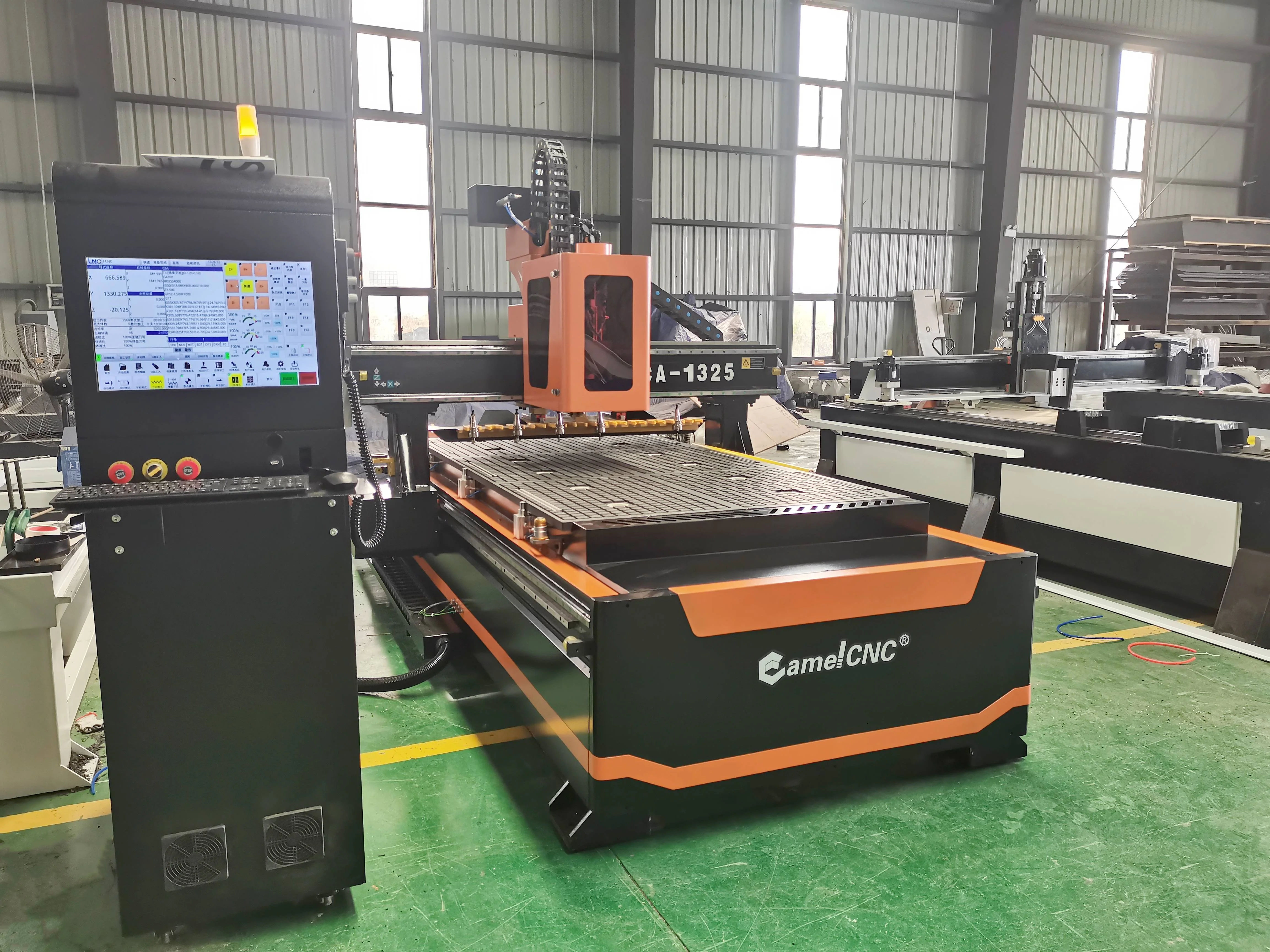

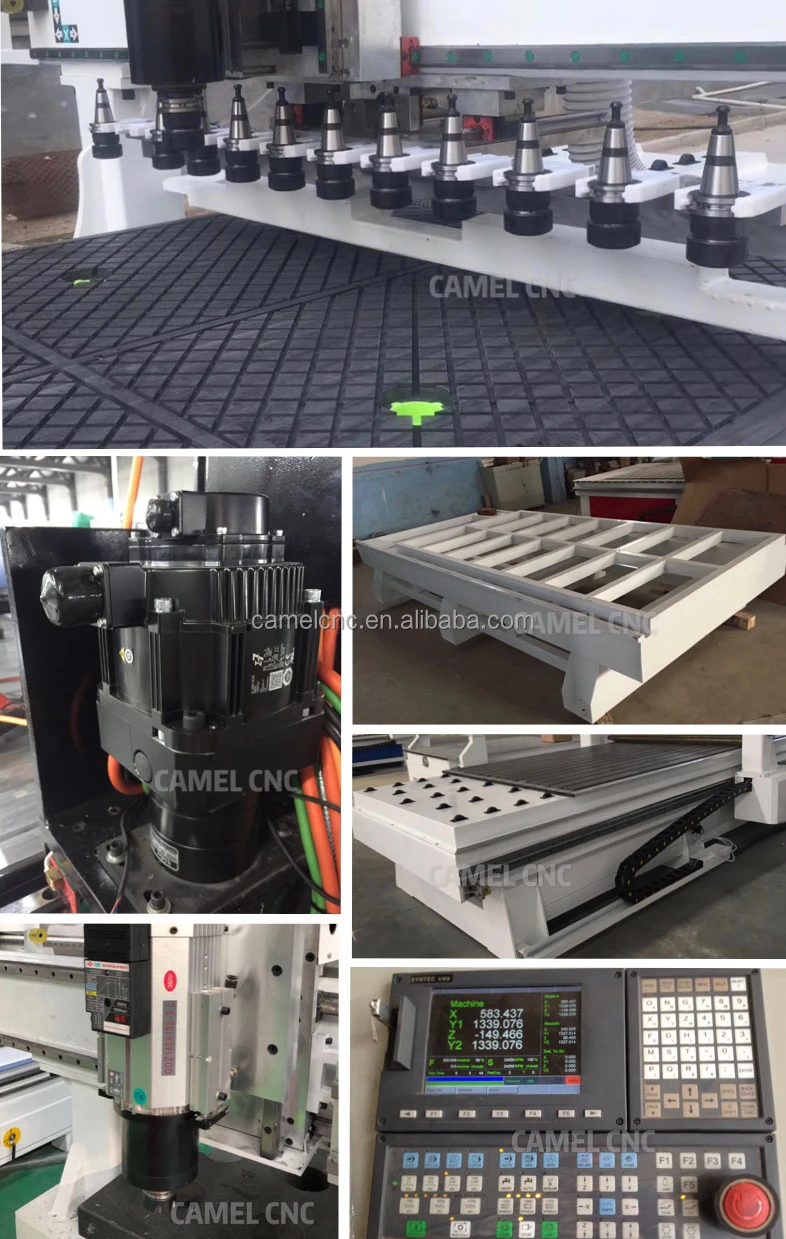

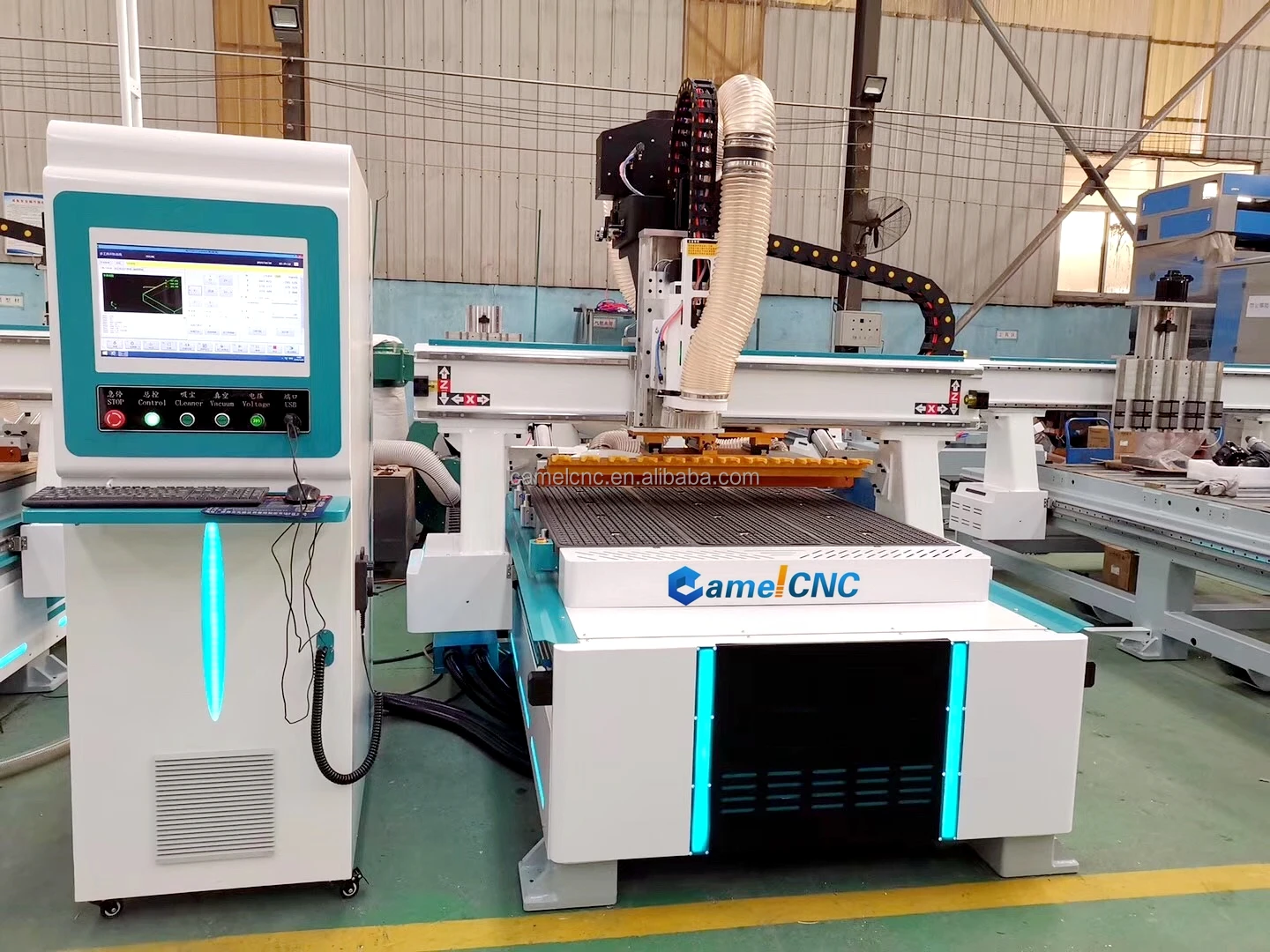

DETAILED IMAGINES
SAMPLES
1.Woodworking Industry: MDF, wood, acrylic, PVC, double-color board, brass, aluminum, marble, crystal.
2.Advertising industry: advertising billboard, sign making, acrylic cutting, graphic mold forming and processing of many kinds of advertising terms.
3.Architectural model industry: metal models of copper, aluminum, iron etc, and non-metal models, such as artificial marble, grave, plastic board, PVC, board etc.
4.Other industry: image engraving, embossing, craft and gift industry
2.Advertising industry: advertising billboard, sign making, acrylic cutting, graphic mold forming and processing of many kinds of advertising terms.
3.Architectural model industry: metal models of copper, aluminum, iron etc, and non-metal models, such as artificial marble, grave, plastic board, PVC, board etc.
4.Other industry: image engraving, embossing, craft and gift industry
ABOUT COMPANY
Jinan Camel CNC Machinery CO.,LTD is the leading enterprise specializing in manufacturing, marketing and R&D of CNC router, Co2 laser cutting machine,fiber laser cutting machine plasma cutting machine, panel furniture production line, CNC wood lathe, CNC spare parts and other related CNC machines.
We are committed to providing customers with high quality products, competitive prices and excellent services.
For over 10 years development, our efforts bring us stable customers from home and abroad. Our machine have exported to Europe, Africa, Mid east, America, Oceania and Southeast Asia, etc.
With superior performance to price ratio, high quality, and perfect post-sales service,now our production facilities occupies
China's forefront in development and expansion and will unceasingly develop and innovate with our full enthusiasm, to carry forward our brand and offer better products for our users.
We are committed to providing customers with high quality products, competitive prices and excellent services.
For over 10 years development, our efforts bring us stable customers from home and abroad. Our machine have exported to Europe, Africa, Mid east, America, Oceania and Southeast Asia, etc.
With superior performance to price ratio, high quality, and perfect post-sales service,now our production facilities occupies
China's forefront in development and expansion and will unceasingly develop and innovate with our full enthusiasm, to carry forward our brand and offer better products for our users.
FAQ
How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to your request.
This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If you do not quite understand, online training can be provided by “Team viewer”, telephone or Skype.
Can you customize the machine for me?
Yes, we provide customized solutions. While considering the cost, we will first recommend the standard configurations to you.
What is the guarantee? In case the machine break down?
We provides 2 years warranty time for Contract equipment except wearing parts and whole life maintains service; Six months for wearing parts(Blades, lens, electrode&nozzles); Six months for main parts (Spindle, laser, tube, controller, Plasma source etc).
In the guarantee period, all non-human reason problems of machine or parts, we will be responsible for free maintenance or replacement of new ones with sending out in 3 working days.
How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial invoice, B/L and other certificates
required by you.
Delivery time?
For standard machine, it would be 7-10 working days. For non-standard machine, it would be 20-30 working days.
How is the payment?
Normally we accept T/T or L/C. If you need other terms, tell us in advance.
Do you arrange the shipment for me?
If we two parties agreed on CIF terms, we will book ship from our agent one week in advance and sent Bill of loading to you to
confirm consignee information. If it is FOB OR EXW terms, clients could send us your freight forwarder information to book ship.
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to your request.
This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If you do not quite understand, online training can be provided by “Team viewer”, telephone or Skype.
Can you customize the machine for me?
Yes, we provide customized solutions. While considering the cost, we will first recommend the standard configurations to you.
What is the guarantee? In case the machine break down?
We provides 2 years warranty time for Contract equipment except wearing parts and whole life maintains service; Six months for wearing parts(Blades, lens, electrode&nozzles); Six months for main parts (Spindle, laser, tube, controller, Plasma source etc).
In the guarantee period, all non-human reason problems of machine or parts, we will be responsible for free maintenance or replacement of new ones with sending out in 3 working days.
How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial invoice, B/L and other certificates
required by you.
Delivery time?
For standard machine, it would be 7-10 working days. For non-standard machine, it would be 20-30 working days.
How is the payment?
Normally we accept T/T or L/C. If you need other terms, tell us in advance.
Do you arrange the shipment for me?
If we two parties agreed on CIF terms, we will book ship from our agent one week in advance and sent Bill of loading to you to
confirm consignee information. If it is FOB OR EXW terms, clients could send us your freight forwarder information to book ship.
Package
How is the packing?
Step 1: Water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
Step 1: Water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
