Product Overview
Description
Products Description
Scope of application

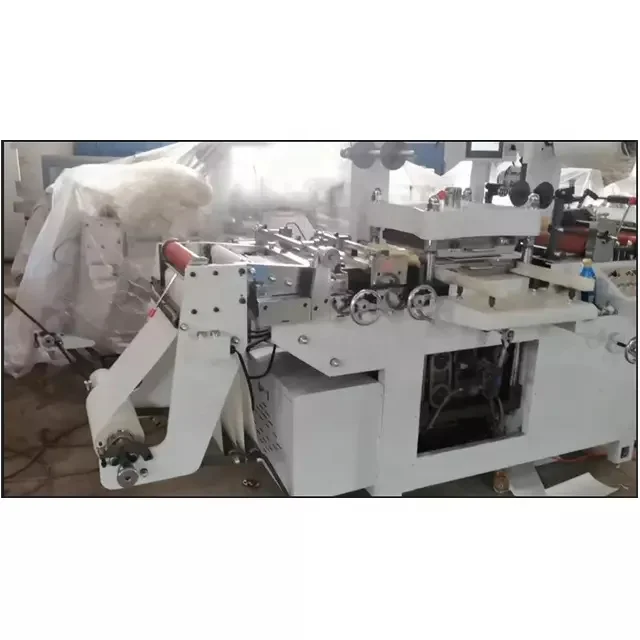

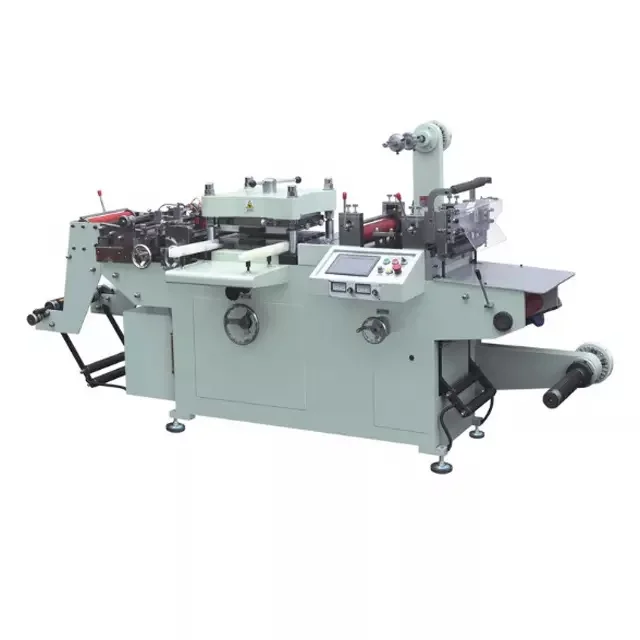

This machine is flatbed construction, and computer servo motor to pulling paper, material two side and vertical side is positioning by web guide. Machine standard process is Unwinding roll- die cutting -wasting discharge- cutting into piece/rewinding roll, this is controlling finished by computer. This machine has servo motor transmission, man-interface operating.
Technical Parameter
Model | HF-MQ350A | HF-MQ450A | |
Die cutting speed | 30-200times/min | 30-200times/min | |
Maximum web width | 350mm | 450mm | |
Maximum unwinding diameter | 600mm | 600mm | |
Maximum rewinding diameter | 600mm | 600mm | |
Maximum die cutting width | 340mm | 440mm | |
Maximum die cutting length | 350mm | 450mm | |
Positioning precision | ±0.10mm | ||
Main motor power | 2.2KW | ||
Total power | 3.7kw | 4.7KW | |
power supply | 220V+10% | ||
overall dimension | 2800*1250*1400mm | 2900*1350*1400mm | |
Machine weight | about 1700kg | about 2000kg | |

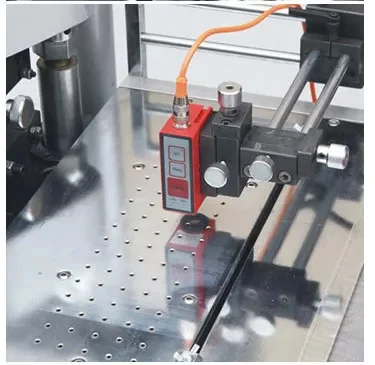

color mark tracking sensor
(used for pre-printed material to track color mark position to avoid cutting wrong)
die cutting device

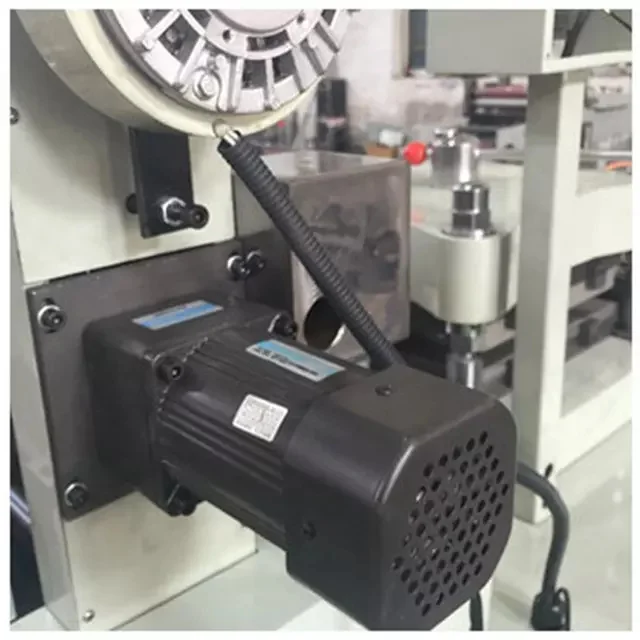

(need cooperate with wooden die, and this wooden die will display material shape whose required by client)waste rewinding device
（with magnetic clutch to control waste rewinding tension and independent motor)
Touch screen
（power supply, data setting and display will be on touch screen)

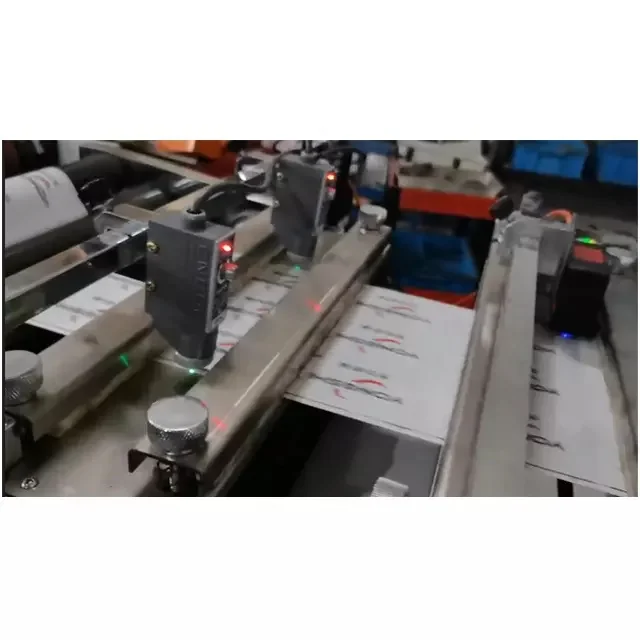

web guide
（control material move straightly) rewinding device

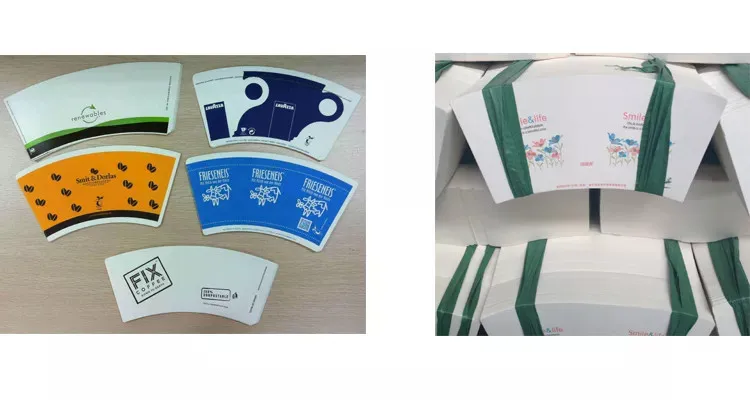

(with 3 inch air shaft and magnetic cluth to control rewinding tension)Punching Sample
