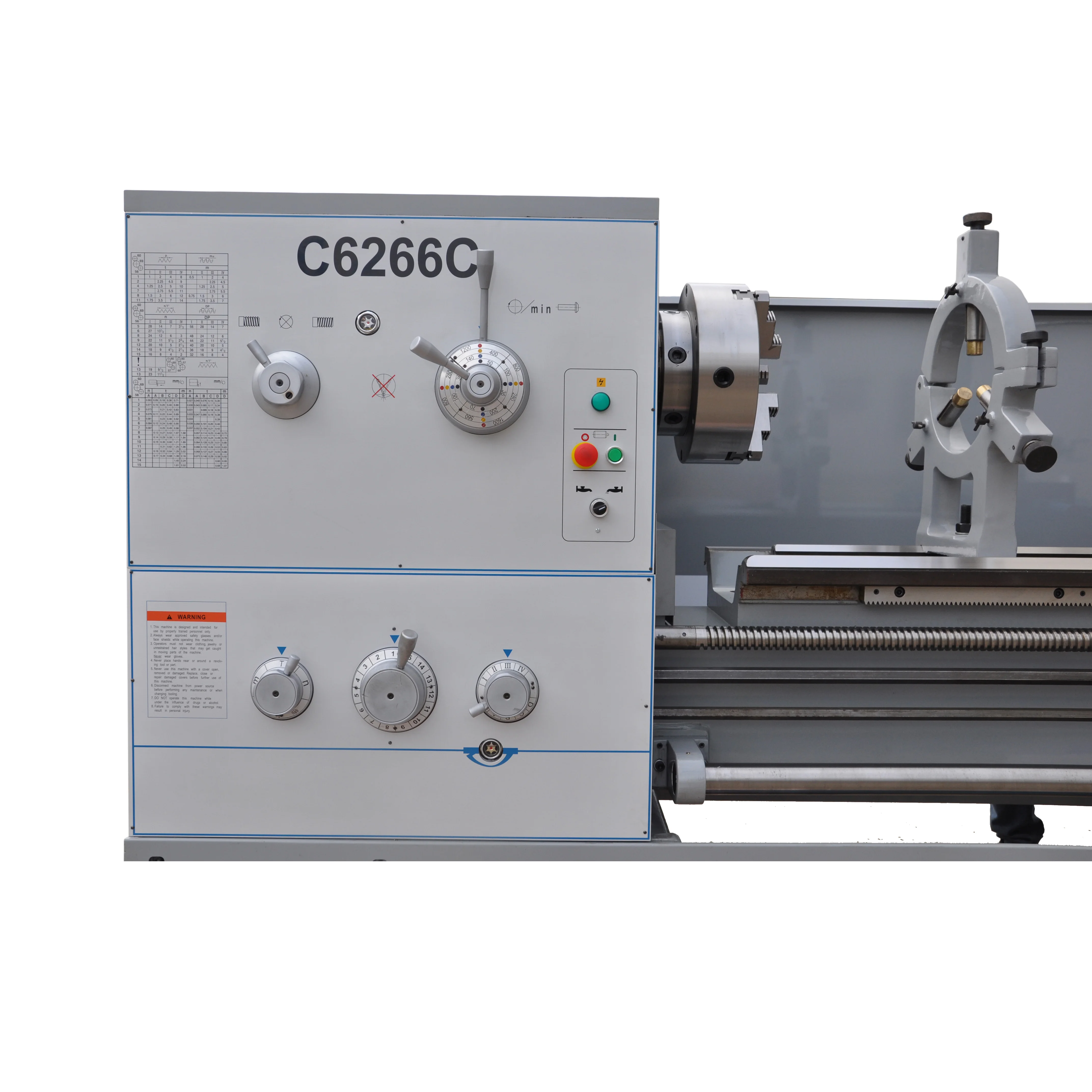

KD C6266C torno industrial brake disc and drum lathe machine desktop lathe
- Category: >>>
- Supplier: Zhejiang Kaida Machine Tool Co. Ltd.
Share on (1600716670912):
Product Overview
Description
FEATURES AT A GLANCE
Product Features
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings. The spindle system is high in rigidity and accuracy.
4.An automatic stopping device is used to realized automatic stop for the machining of a work piece of a certain length.
4. Easy operating speed change levers.
5. Removable gap is provided for larger diameter work.
PRODUCT SPECIFICATIONS
MODELS | C6256C | C6266C | C6277C | ||
CAPACITY | |||||
Max. swing over bed | Ф560mm | Ф660mm | Ф770mm | ||
Max. swing over carriage | Ф360mm | Ф420mm | Ф575mm | ||
Max. swing over gap | Ф770mm | Ф870mm | Ф1050mm | ||
Bed width | 405mm | ||||
Effective length of gap | 230mm | ||||
Distance between centers | 1000/1500/2000/3000mm | ||||
Max turning length | 830/1330/1830/2830mm | ||||
SPINDLE | |||||
Spindle nose | D8 | ||||
Spindle bore | Ф105mm | ||||
Taper bore of spindle | Ф113mm 1:20 | ||||
Steps of spindle speed | 12 | ||||
Range of spindle speed | 36~1600rpm | ||||
FEED | |||||
Range of longitudinal feeds | 0.063~2.52 (0.023″~0.937″)mm | ||||
Range of cross feeds | 0.027~1.07(0.010″~0.404″)mm | ||||
RAPID TRAVEL | |||||
Longitudinal | 4500mm/min | ||||
Cross | 1900mm/min | ||||
THREAD RANGE/ NUMBER | |||||
Metric pitch threads | 1~14mm/ 22 | ||||
Whit-worth threads | 28~2TPI/ 26 | ||||
Module threads | 0.5~7MP/ 18 | ||||
D.P. Threads | 56~4DP/ 24 | ||||
TAILSTOCK SLEEVE | |||||
Taper bore | M.T.NO.5 | ||||
Max.travel | 150(5~29/32″)mm | ||||
External diameter | Ф75(2~61/64″)mm | ||||
OTHERS | |||||
Size of tool shank | 25×25mm | ||||
Max travel of cross slide | 310mm | 360mm | 430mm | ||
Max.travel of top slide | 145mm | ||||
Main motor power | 7.5kw | ||||
Overall dimension (LxWxH) | 2500/3000/3500/4500x1100x1350mm | 2500/3000/3500/4500x1100x1450mm | 2500/3000/3500/4500x1100x1540mm | ||
Net weight | 2400/2650/2900/3250g | 3000/3200/3400/3900kg | 3600/3800/4000/4500kg | ||
PRODUCT CONFIGURATION

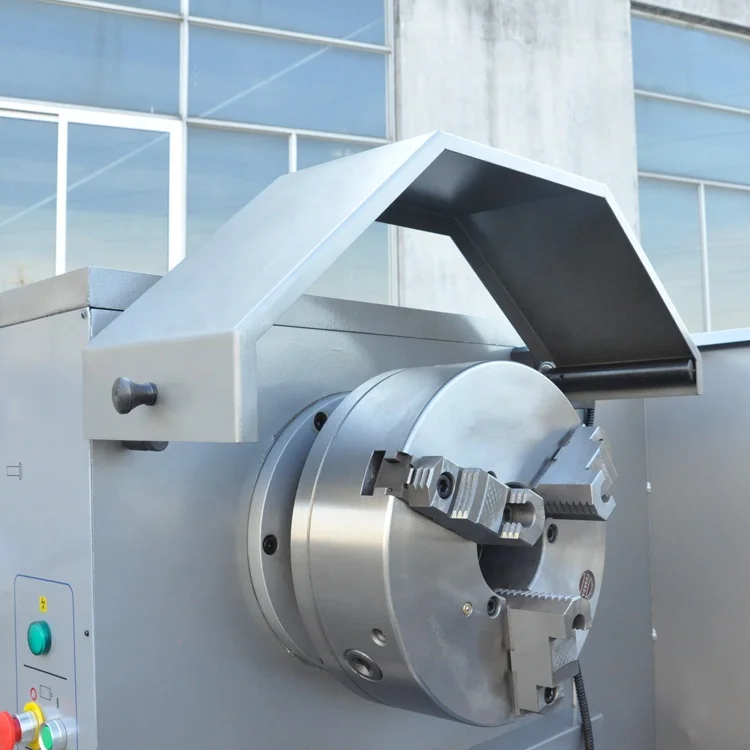

Chuck cover, tool post cover and leadscrew cover are optional.

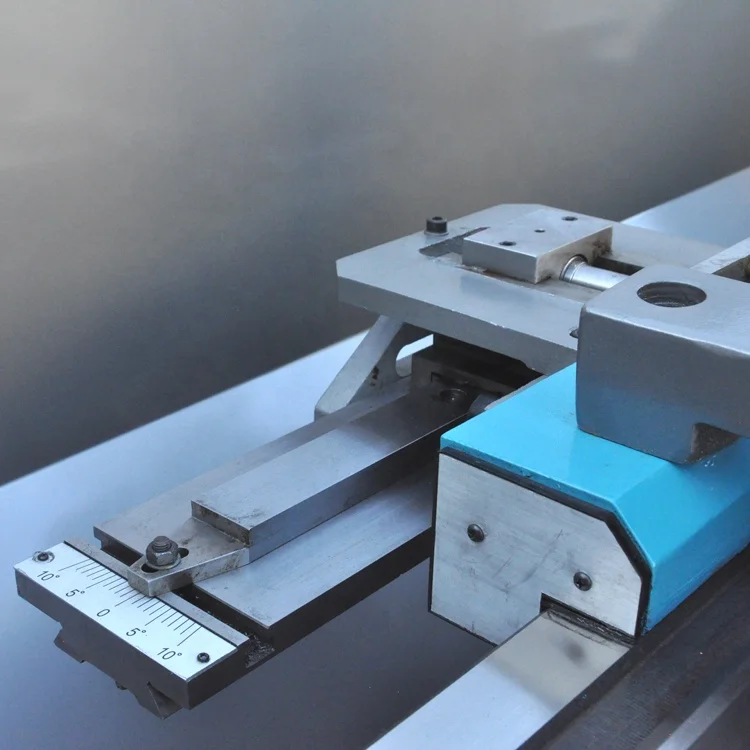

Standard 4-way tool post.
Left or right side handwheel.
European or American type quick change tool post.

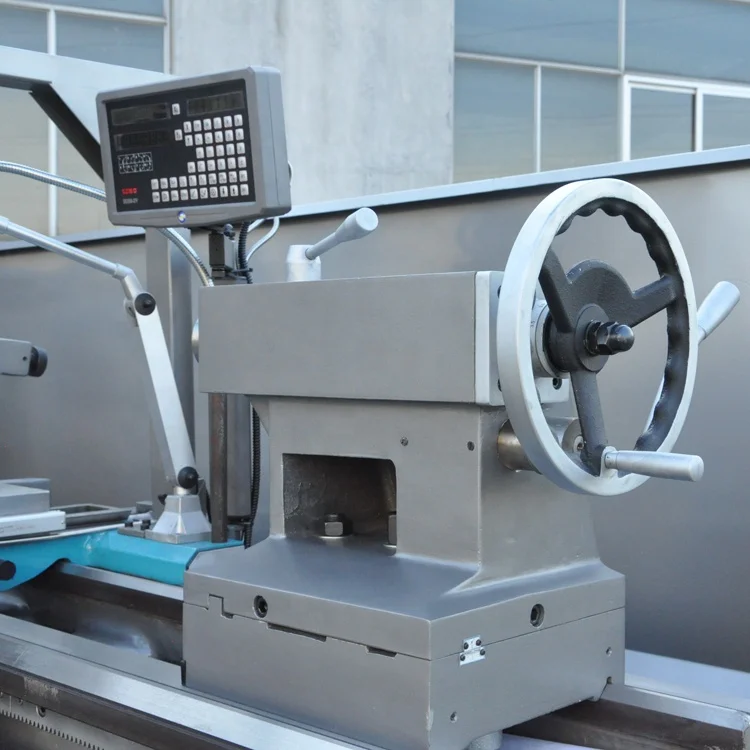

Manual tailstock
Tool box with accessoires.
