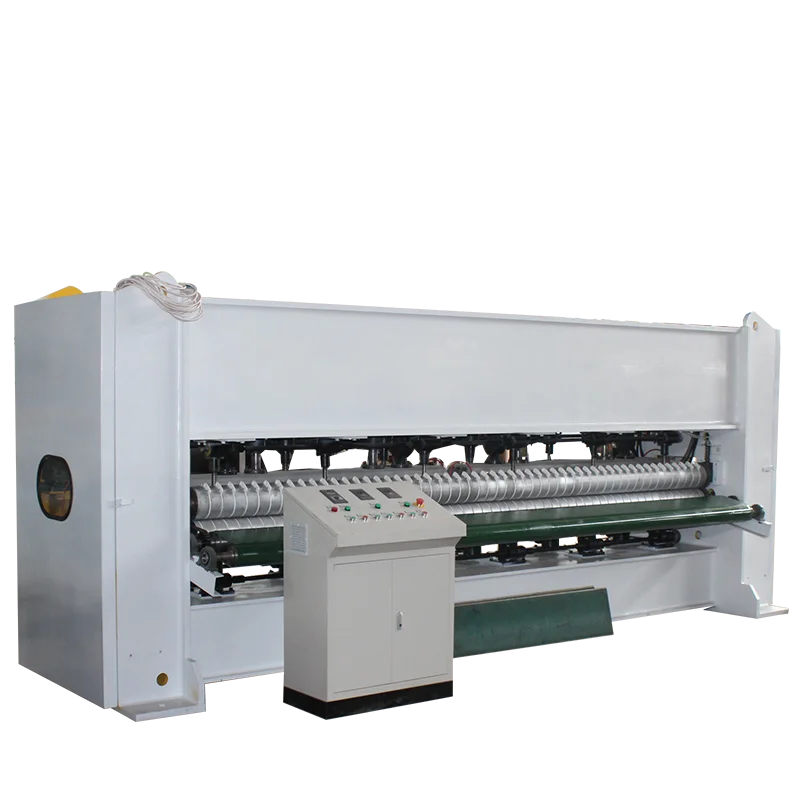

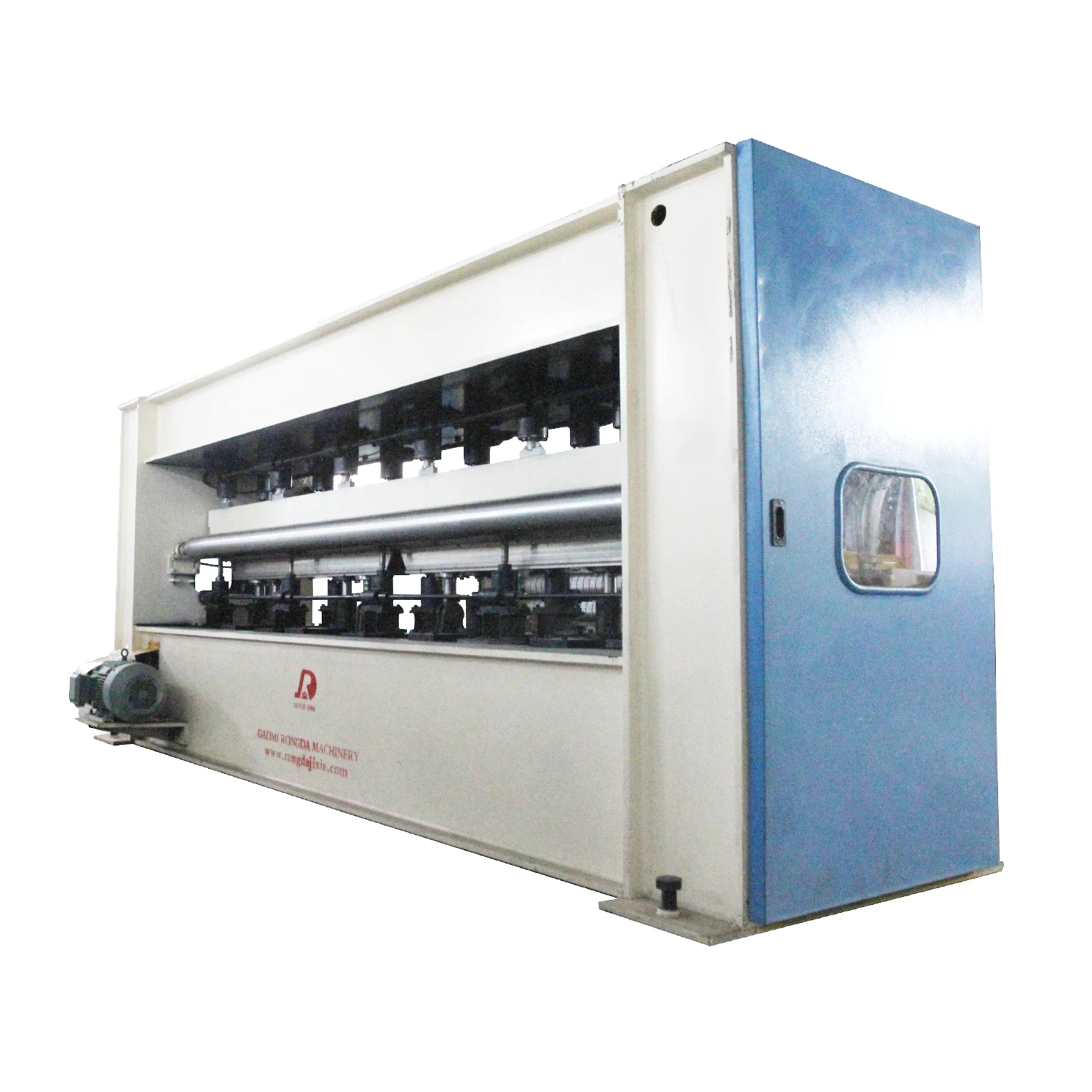

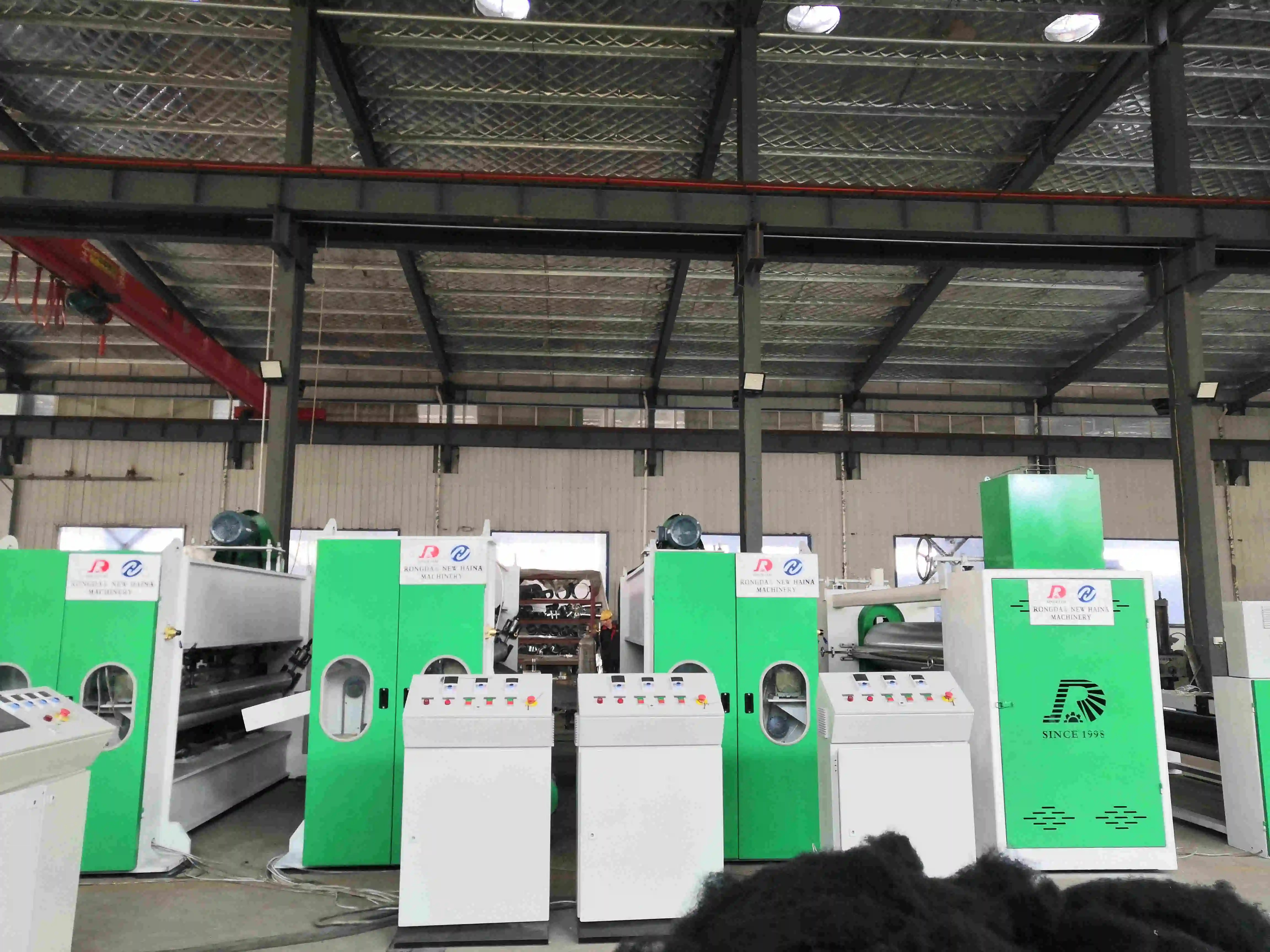

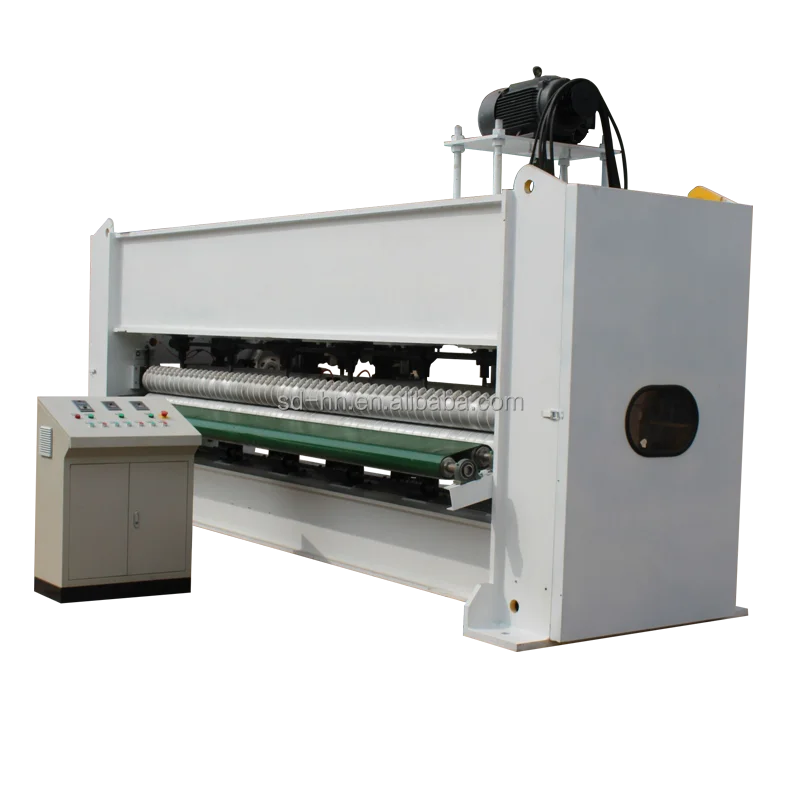

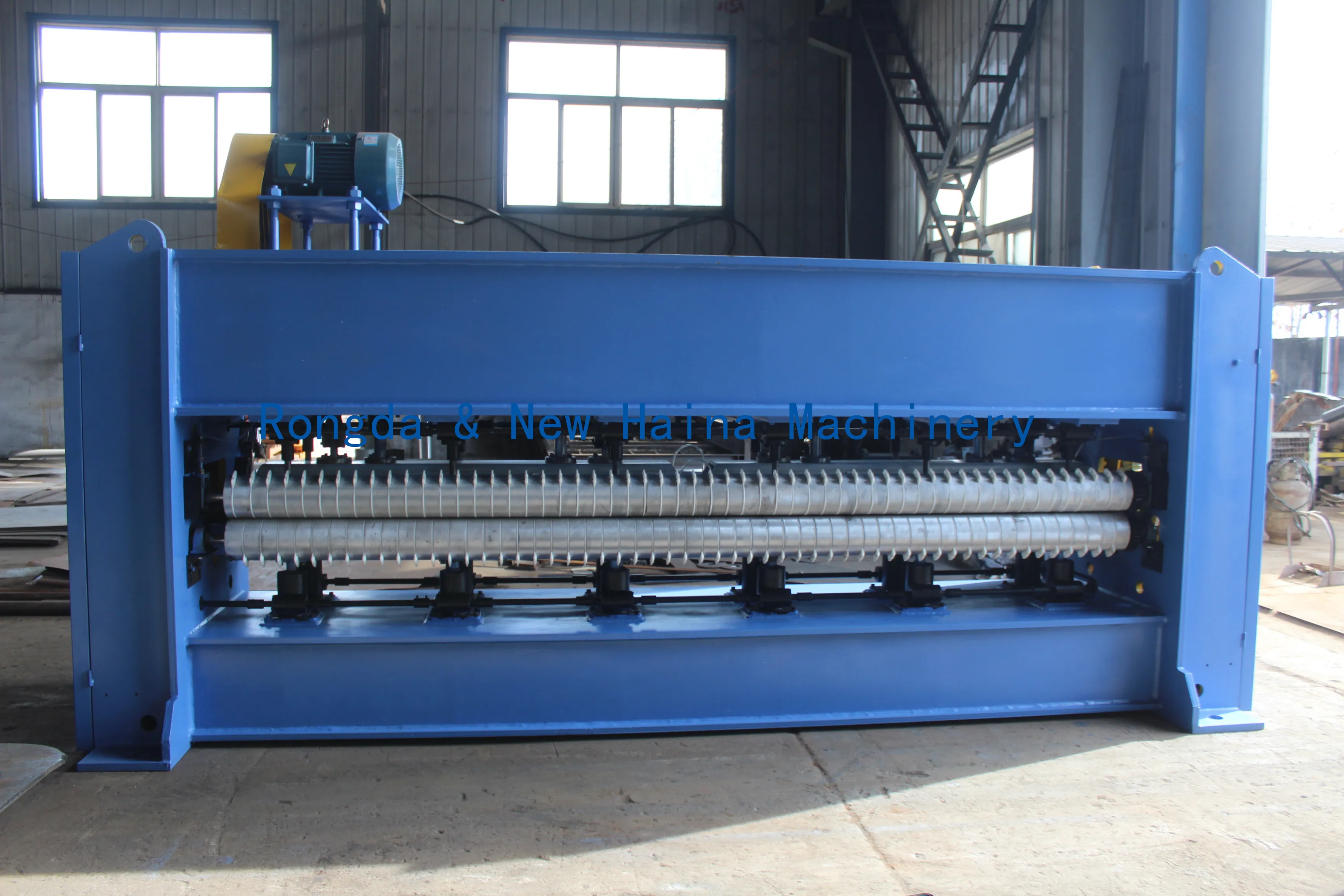

factory price high speed needle punching loom machine for textile nonwoven non woven fabric carpet felt making

NO

ITEM

DESCRIPTION

1

Model

GMZ-200M

2

Dimension of M/C

L3100W1400H2025(mm)

3

Weight

6100kg

4

Total power

12.35kw

5

Main motor

7.5KW; 3 phase AC power 50Hz/

6

Product density

50g/m-850g/m(depend on the raw material type also product requirements and No of units)

7

The average output

 300kg/hour(Working at width 2000mm&300g/munder running normal)

8

Protection

Main motor overload protection

9

The control mode

Constant power & Inverter control

10

Working width

2000mm/adjustable/cut at mid/product width less than 2000mm

11

 Needle plate

Galvanized-faced ; with 6500holes/m

12

Bearing

KOYO/Or according to the customer's requirements

13

Type of holes

Diameter1.83mm/An inverted cone

14

Electrical components

SIEMENS

15

Inverter

ZhengTai

16

Fabric speed

Recycled material or man-made fiber material or mixing material

17

Fabric speed

0.5-11m/min(depend on the raw material type also product requirements)

18

Trip of needle

40 mm

19

Transfer roller

Diameter:168mm/ Chromium plating process/high quality 50# steel

20

Needle plate

High strength alloys and shock shape /totally 18 mm thickness

21

The main shaft & other work shaft

Diameter: 80mm/ Dynamic balance and strength strengthening heat treatment/high quality steel

22

Print Color

Grey

23

The control cabinet and panel

Digital display instrument, and equipped with knob regulator, professional electric schematic diagram

24

Note

Direction:first then /The round-trip distance of the needle can be adaptive adjustment according to the thickness of the raw materials.
