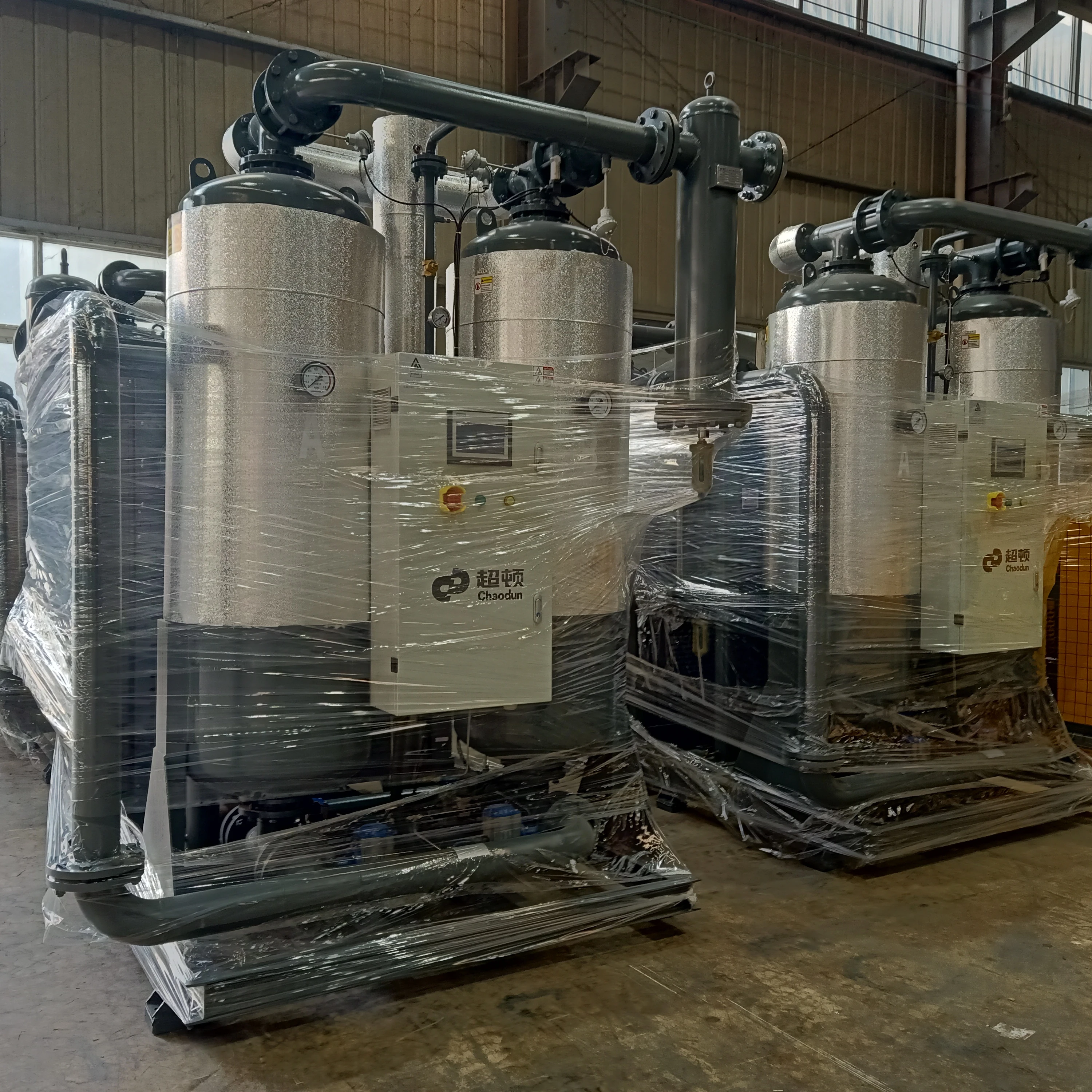

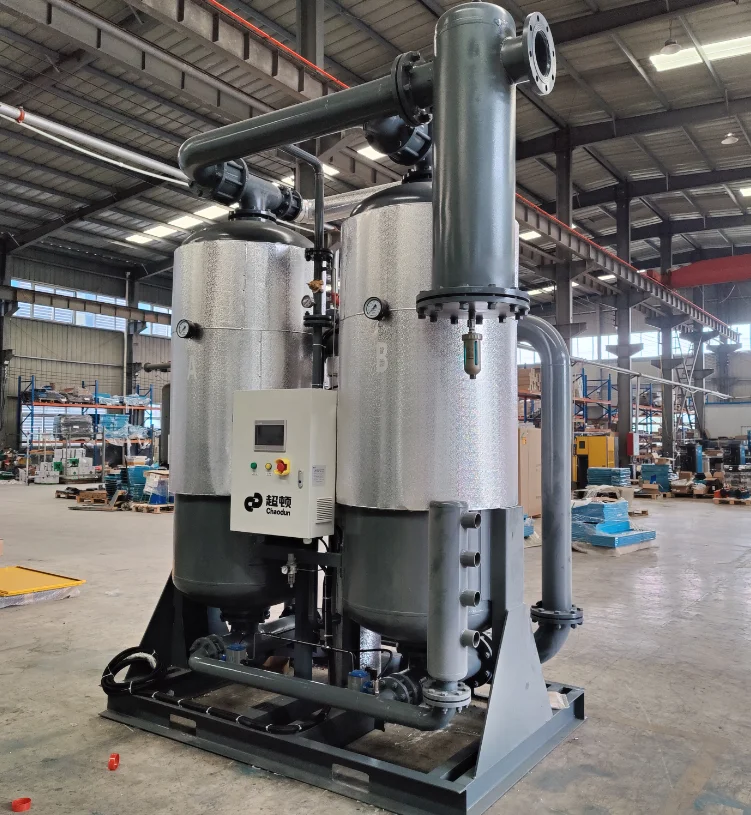

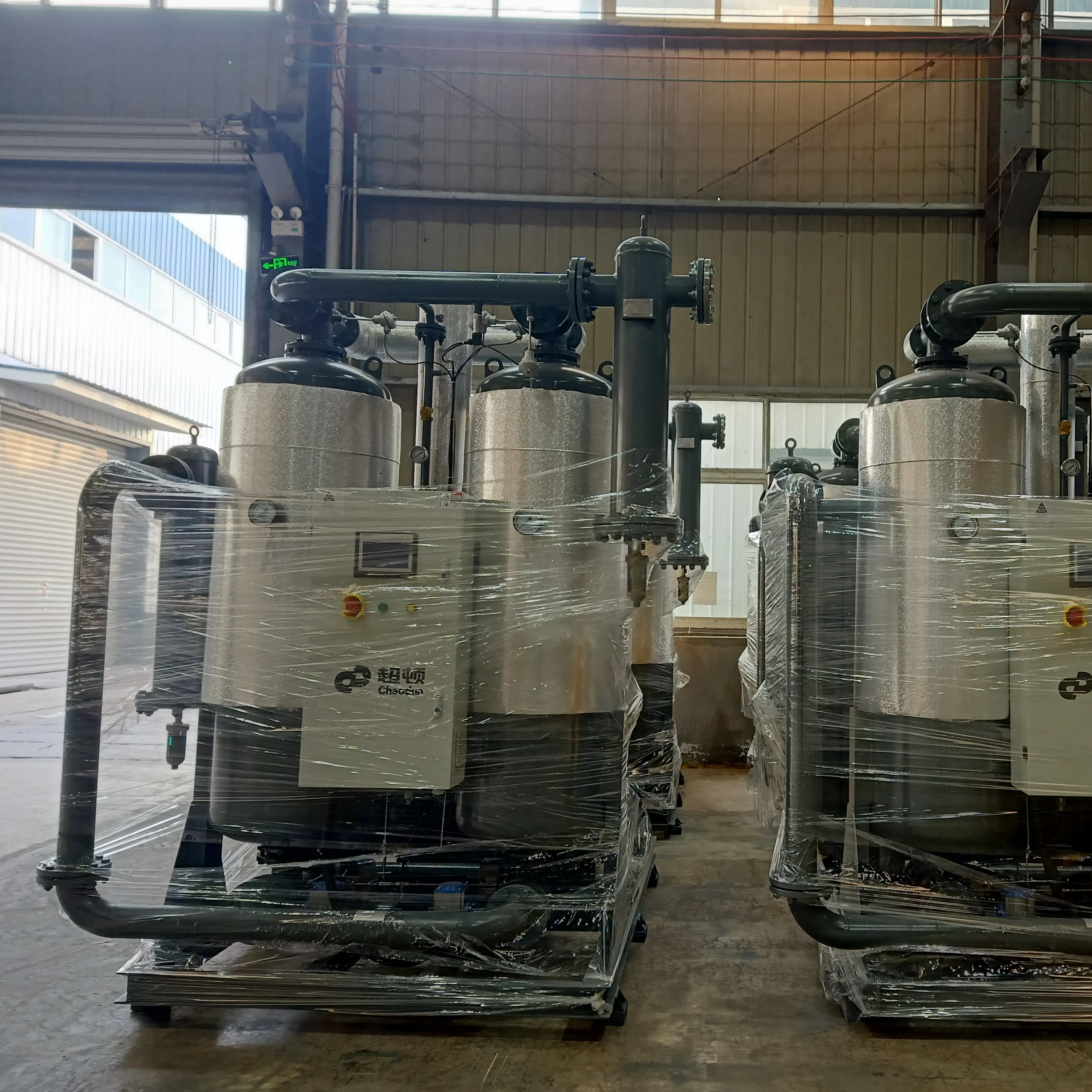

Wholesale Micro heated Regenerative Adsorption Air Dryer Adsorption General Industrial Equipment Cold Dryer
- Category: Industrial Compressors & Parts >>>
- Supplier: Henan Chaodun Industry Co. Ltd.
Share on (1600716897923):
Product Overview
Description
Product Description

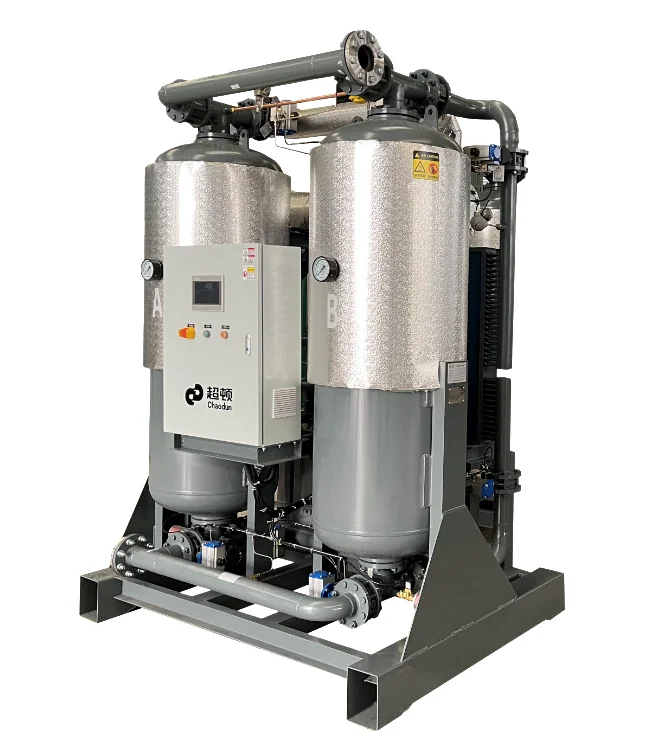

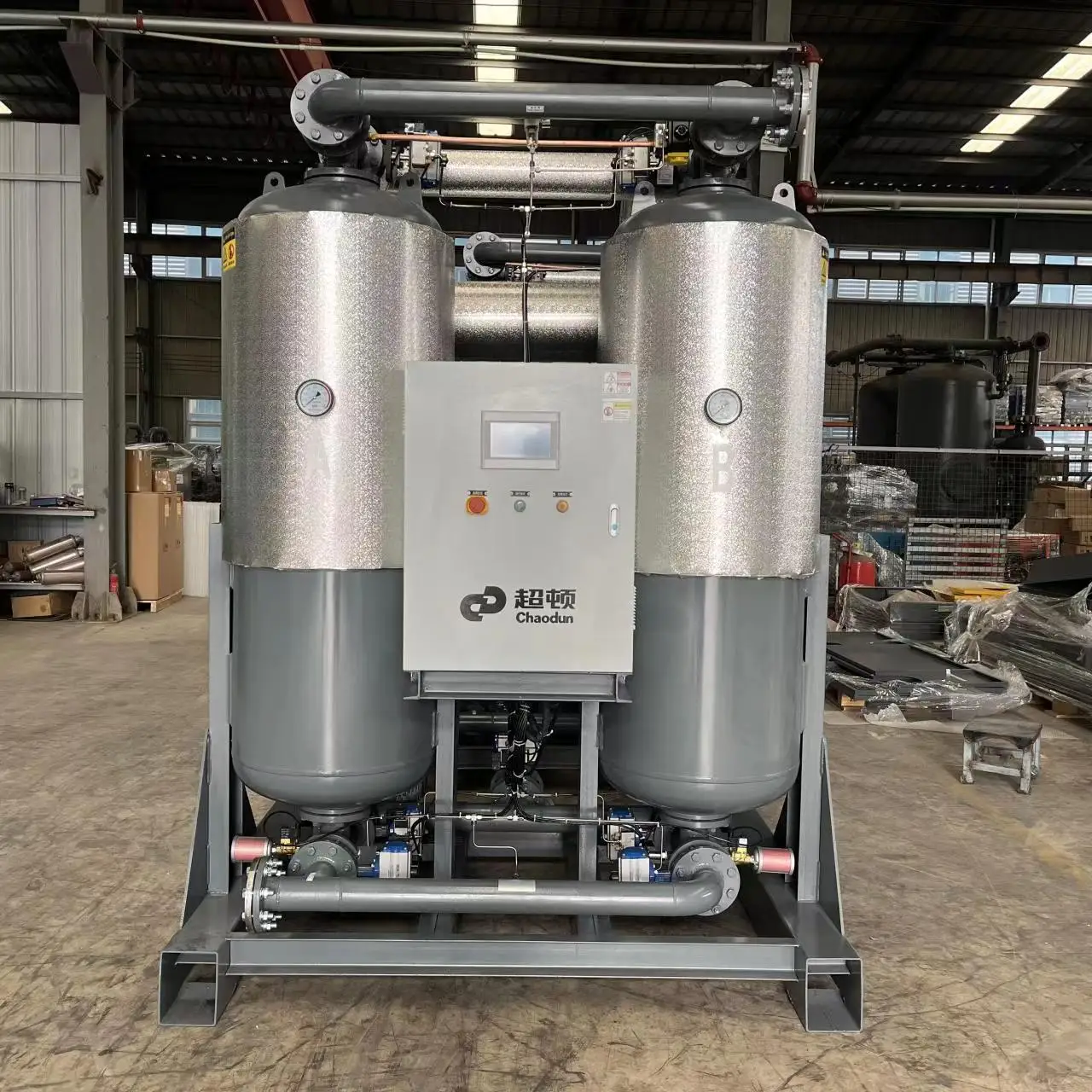

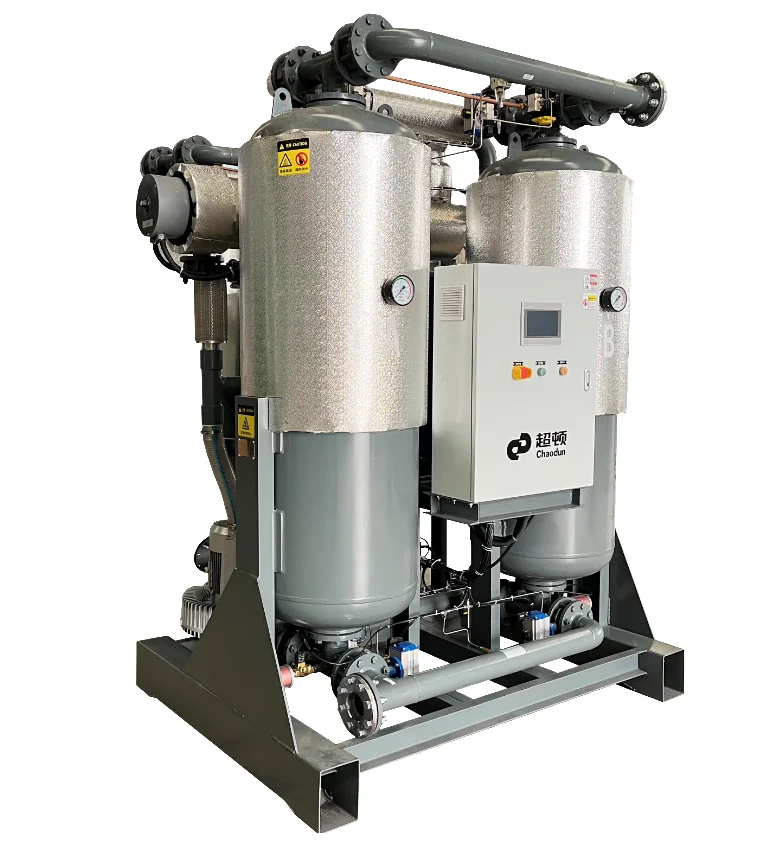

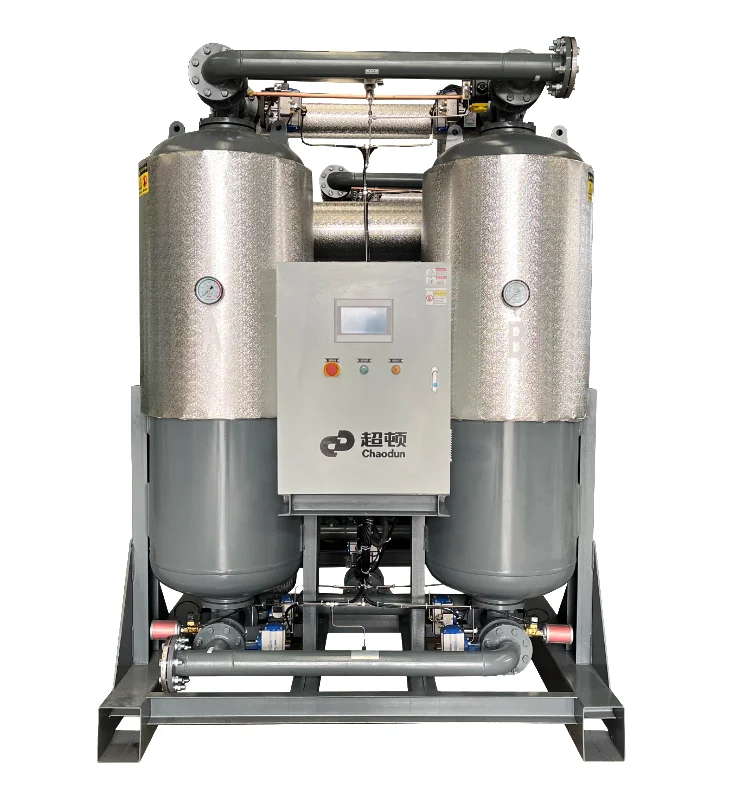

Side views
Working Principle
The heated regeneration adsorption dryer makes full use of the characteristics of adsorbent (adsorption under high pressure and low temperature, desorption under low pressure and high temperature) and improves the adsorption capacity of adsorbent within unit mass,so as to achieve the purpose of deep drying of compressed air, It has the advantages of simple structure, high degree of automation, less gas consumption and deep desorption of PSA adsorption dryer, It can avoid the weakness of large gas consumption and frequent switching of the heatless regeneration dryer. Its comprehensive index has obvious advantages and more energy consumption saving,thus effectively reducing the user's use cost.
Technical Parameters
Product Name | Adsorption Air Dryer |
Intake Air Temperature | ≤38℃ |
Air consumption | ≤13% |
Pressure Dew Point | -20--40℃ (could be customized to-70℃ ) |
Working Pressure | 0.6-1.0Mpa(could be customized to 40MPa) |
Model | Capacity | Voltage | Power | Outlet Pipe Diameter | Dimension (L*W*H)mm | |||||
m3/min | kw | |||||||||
CD-015WL | 1.5 | 220V/50HZ | 1 | G1" | 640*500*1340 | |||||
CD-026WL | 2.6 | 220V/50HZ | 2 | G1" | 750*500*1530 | |||||
CD-038WL | 3.8 | 220V/50HZ | 2 | G1" | 740*550*1570 | |||||
CD-072WL | 7.2 | 220V/50HZ | 3 | G1 1/2" | 930*600*1850 | |||||
CD-110WL | 11 | 380V/50HZ | 4 | G2" | 1020*750*1980 | |||||
CD-140WL | 14 | 380V/50HZ | 5 | G2" | 1120*750*1980 | |||||
CD-180WL | 18 | 380V/50HZ | 6 | DN65 | 1260*800*2090 | |||||
CD-230WL | 23 | 380V/50HZ | 8 | DN65 | 1350*800*2090 | |||||
CD-280WL | 28 | 380V/50HZ | 9 | DN80 | 1455*800*2360 | |||||
CD-330WL | 33 | 380V/50HZ | 10 | DN80 | 1450*800*2400 | |||||
CD-380WL | 38 | 380V/50HZ | 12 | DN100 | 1450*800*2400 | |||||
CD-450WL | 45 | 380V/50HZ | 12 | DN100 | 1600*1050*2500 | |||||
CD-550WL | 55 | 380V/50HZ | 15 | DN125 | 1660*1050*2590 | |||||
... | ||||||||||
We are manufacturer, we support OEM & ODM, WELCOME to consult and visit! | ||||||||||
Product Feature
A. High quality spare parts
2.NASS coil reversing solenoid valve has long life;
3.high torque aluminum alloy starting actuator, large torque, stable action.
1.high-performance pneumatic valve, reliable performance and sensitive action;
2.NASS coil reversing solenoid valve has long life;
3.high torque aluminum alloy starting actuator, large torque, stable action.
B. Performance improvement
1.Low operating noise, using silent check valve and high-performance muffler to ensure the lowest noise during operation and
exhaust;
2.Low voltage automatic protection function;
3.Automatic punching function.
1.Low operating noise, using silent check valve and high-performance muffler to ensure the lowest noise during operation and
exhaust;
2.Low voltage automatic protection function;
3.Automatic punching function.
Application Field
Customers' site
Blast heat regeneration adsorption dryer
Micro heat adsorption dryer works with Jaguar compressor.
Micro heat adsorption dryer For Laser cutting machine.
Micro heat adsorption dryers work with Quincy Compressor.
Micro heat adsorption dryers work with Ingersoll Rand Compressor.
Company Introduction
"Quality decides everything, service creates value". Since its establishment, Henan Chaodun Industry Co., Ltd. has been committed to the R & D and manufacturing of compressed air after-treatment purification equipment, and gradually upgraded to a high-tech enterprise integrating R & D, creation, marketing and after-sales service. The company continues to strengthen the investment in scientific research, strive to improve the manufacturing capacity, and strive to promote the continuous innovation and upgrading of compressed air after-treatment purification equipment. The company has a professional research team, advanced manufacturing equipment and perfect detection means. It can be customized for customers with air cooling, water cooling, high temperature, explosion-proof, high pressure, stainless steel and other multi-function, wide range, adapt to a variety of complex working conditions of compressed air dryer. Our products are suitable for electronic, chemical fiber, petroleum, chemical, paper, petrochemical, automobile, electric power, food, environmental protection, pharmaceutical and other industries. Through the joint efforts of all colleagues, our products have been recognized and praised by customers.
Our goal is to provide customers with high quality products, and to achieve the mission of "the most innovative company". We sincerely welcome you to visit our company for investigation and guidance. Let's make new contributions to the development of air purification!
Our Team
Certifications
Exhibition
Packing&Shipping
FAQ
Q1. Are you factory or trade company?
A1. We are factory. And we have our own international trade department.
A1. We are factory. And we have our own international trade department.
Q2. What is the MOQ?
A2. The MOQ is 1set.
A2. The MOQ is 1set.
Q3. What is the scope of supply in your factory?
A3. Purification treatment equipment after air compression: refrigerated air dryer, adsorption air dryer, combined air dryer, air filter, etc.
A3. Purification treatment equipment after air compression: refrigerated air dryer, adsorption air dryer, combined air dryer, air filter, etc.
Q4. How long is your delivery lead time?
A4. If there is stock, the goods will be arranged at once when we receive the payment.
If there is no stock, the delivery lead time should be negotiated.
A4. If there is stock, the goods will be arranged at once when we receive the payment.
If there is no stock, the delivery lead time should be negotiated.
Q5. Can you accept customized orders?
A5. Yes, of course. OEM and ODM are acceptable.
A5. Yes, of course. OEM and ODM are acceptable.
Q6. How long is the warranty service for your products?
A6. 1 year warranty service and lifelong technical support will be provided.
A6. 1 year warranty service and lifelong technical support will be provided.
Q7. Will you provide after-sales services?
A7. Yes, of course. For small parts, such as capacitors and pressure switches, we shall send directly for your replacement. If the compressor is out of work, we shall replace your machine with a new one.
A7. Yes, of course. For small parts, such as capacitors and pressure switches, we shall send directly for your replacement. If the compressor is out of work, we shall replace your machine with a new one.
