15.6 Inch 1920*1080 eDP Interface LCD Panel NE156FHM N51 TFT LCD Display for Samsung NE156FHM A44/A41
- Category: >>>
- Supplier: Shenzhen Roof Electronics Co. Ltd.
Share on (1600716909259):
Product Overview
Description
Product Description
NE156FHM-A41/A44 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 15.6 inch diagonally measured active
area with Full-HD resolutions (1920 horizontal by 1080 vertical pixel array). Each pixel is divided into
RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display
1074M(8bit+2bit FRC) colors and color gamut 72%. The panel used for this module is a low reflection
and higher color type. Therefore, this module is suitable for Notebook PC. The LED driver for back
light driving is built in this model.
All input signals are eDP1.4b interface compatible.
LCD name | 15.6 inch Lcd Module |
Size | 15.6 inch |
Resolution | 1920*1080 |
Pixel pitch | 179.25(H) × 179.25(V) um |
Luminance | 500 cd/m2 |
Contrast Ratio | 1000:1 |
Active Area | 344.16(H) × 193.59(V) mm |

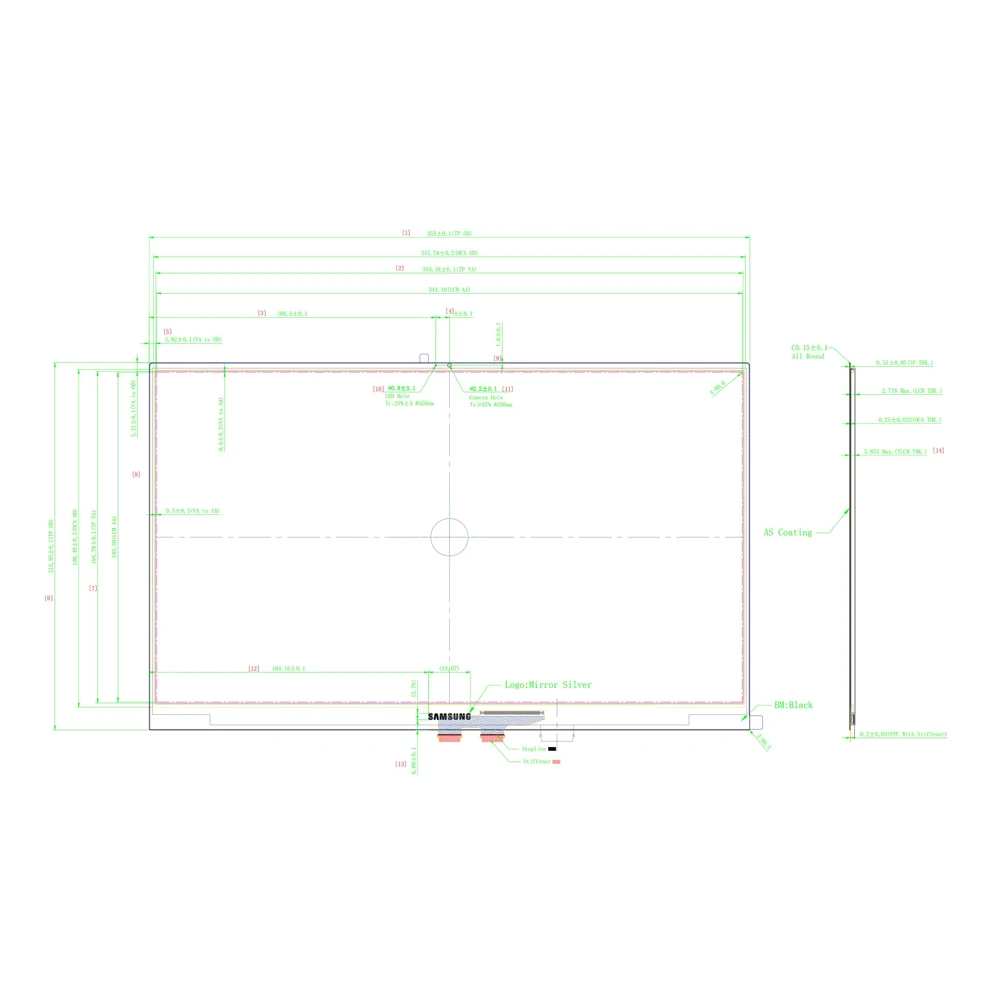

Outline Dimension | 349.16± 0.3 (H)*203.48± 0.3(V) (W/O PCB)*2.69(Max) 349.16± 0.3(H)*209.59± 0.5(V) (W/PCB)*2.69(Max) |
Display mode | Normally black |
Viewing direction | 178° |

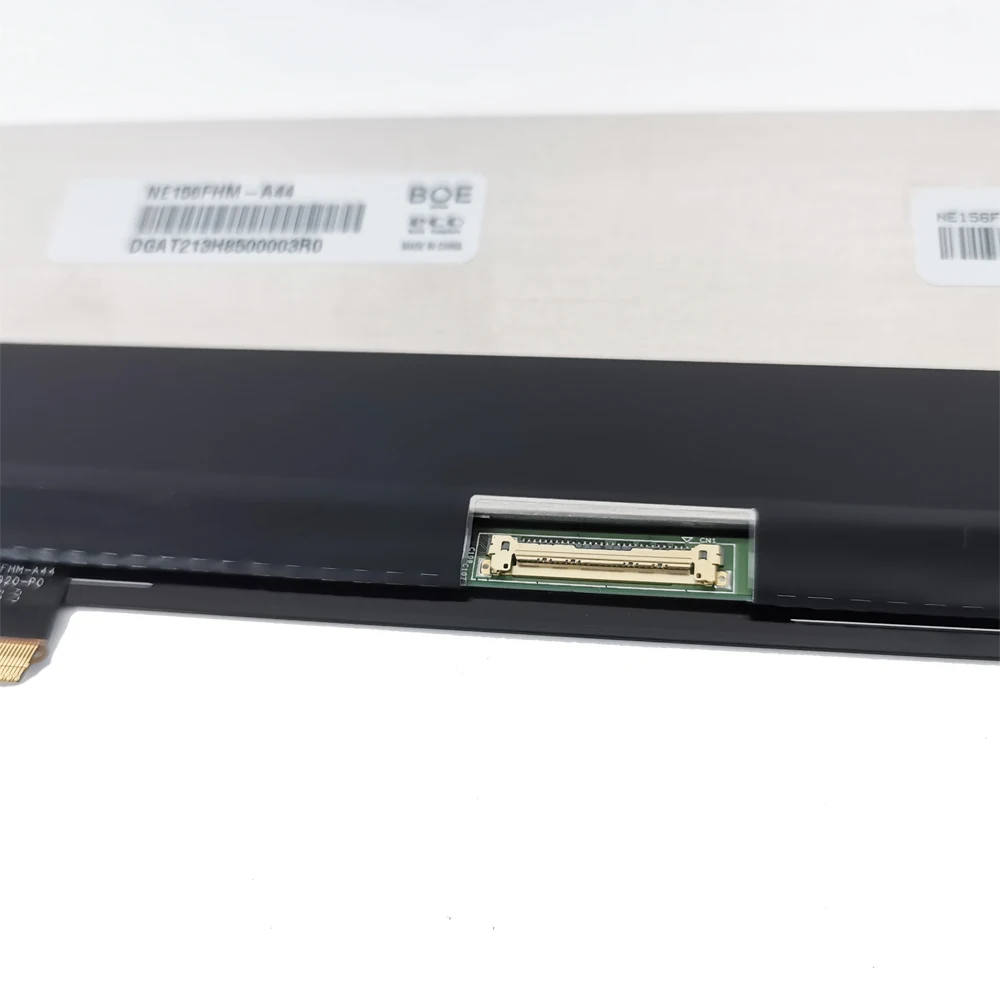

Interface | EDP, 30pins |
Touch panel | support customization |
Warranty | 1 year |
Customizable
We can provide customized service according to your requirements.
Such as customized the enclosure, backlight brightness, backlight shape, FPC shape and interface definition, silk-printing your Logo and so on.
| Custom Process | |
| process | detail |
| 1> Customer requirements: | Size, resolution, brightness, interface,CTP specification and other requirements, or to drawing, sample for evaluation. |
| 2> Supplier evaluation and offer solutions | Evaluate and propose solutions according to customer requirements. |
| 3> Communicate and confirm solutions | The customer confirm the solution |
| 4> Provide quotation and confirm payment | Provide reasonable and advantageous tooling cost quotation and confirm product unit price. Customer pays sample fee |
| 5> Confirm the drawing | Confirm the final version drawing according to the customer's request or the drawings provided. and sign back |
| 6> Production samples | Producing samples according to the drawings confirmed by both parties |
| 7> Sample confirmed | Deliver samples to customers for confirmation |
| 8> Sample debugging and modification | If necessary, technical support will be provided for debugging or modification of samples |
| 9> Production | Confirm the final order quantity and unit price of the customer, and then arrange production according to the confirmed samples within the agreed time. |
| 10> Deliver | Product delivery according to customer requirements or industry standards |
