good quality flow control valve with electric actuator 24vac 0 10vdc modulating
- Category: >>>
- Supplier: Shaoxing Honglin Controls Co. Ltd
Share on (1600716914897):
Product Overview
Description
Product Overview

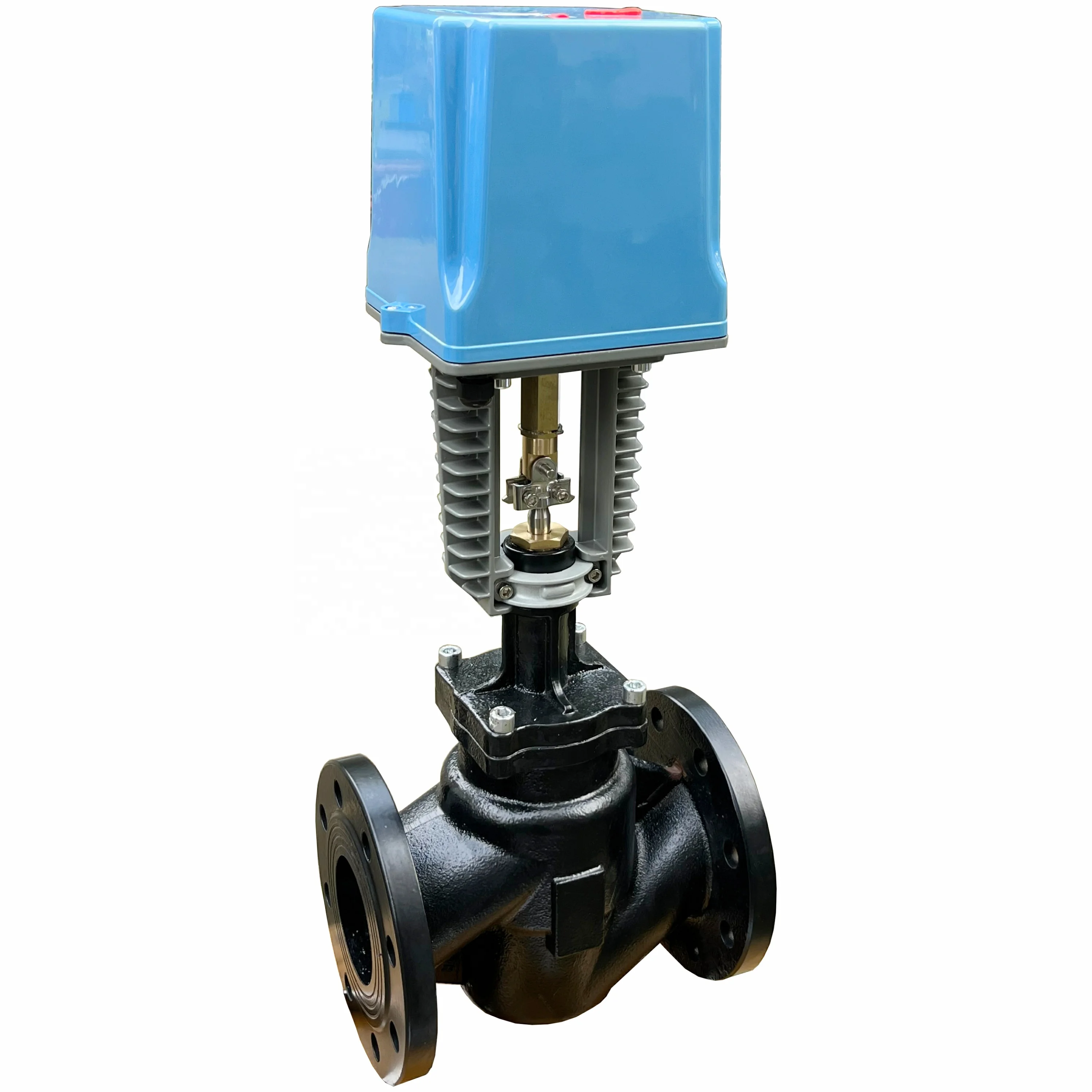

YH7X3 Electric Control Valve
YH7X3 series Electric Control Valve assemble with 1500N, 2500N,4000N, 5000N force electric actuator and valve body size from DN40 to DN250, which widely used in air conditioning, refrigeration, heating and building automation system, can adjust the medium flow precision, achieved goal to control temperature, humidity, pressure and energy saving.
FEATURES AT A GLANCE
Die-casting aluminum bracket and ABS actuator cover
steel gears, to keep the valve acting stable and safety.
AC synchronous motor, built-in two floating auxiliary switch, equip with shut power function while in position to protect motor.
High control precision, quick response speed, low power consumption, low noise.
Configuration travel self-adaption, easy to install and test.
High quality AC synchronous motor, long life usage
With Manual Lever easy to operate valve while power off
steel gears, to keep the valve acting stable and safety.
AC synchronous motor, built-in two floating auxiliary switch, equip with shut power function while in position to protect motor.
High control precision, quick response speed, low power consumption, low noise.
Configuration travel self-adaption, easy to install and test.
High quality AC synchronous motor, long life usage
With Manual Lever easy to operate valve while power off
On-Off, floating or modulating(0-10VDC/4-20mA)
2way and 3way
DN40 to DN250
2way and 3way
DN40 to DN250
2-way
3-way

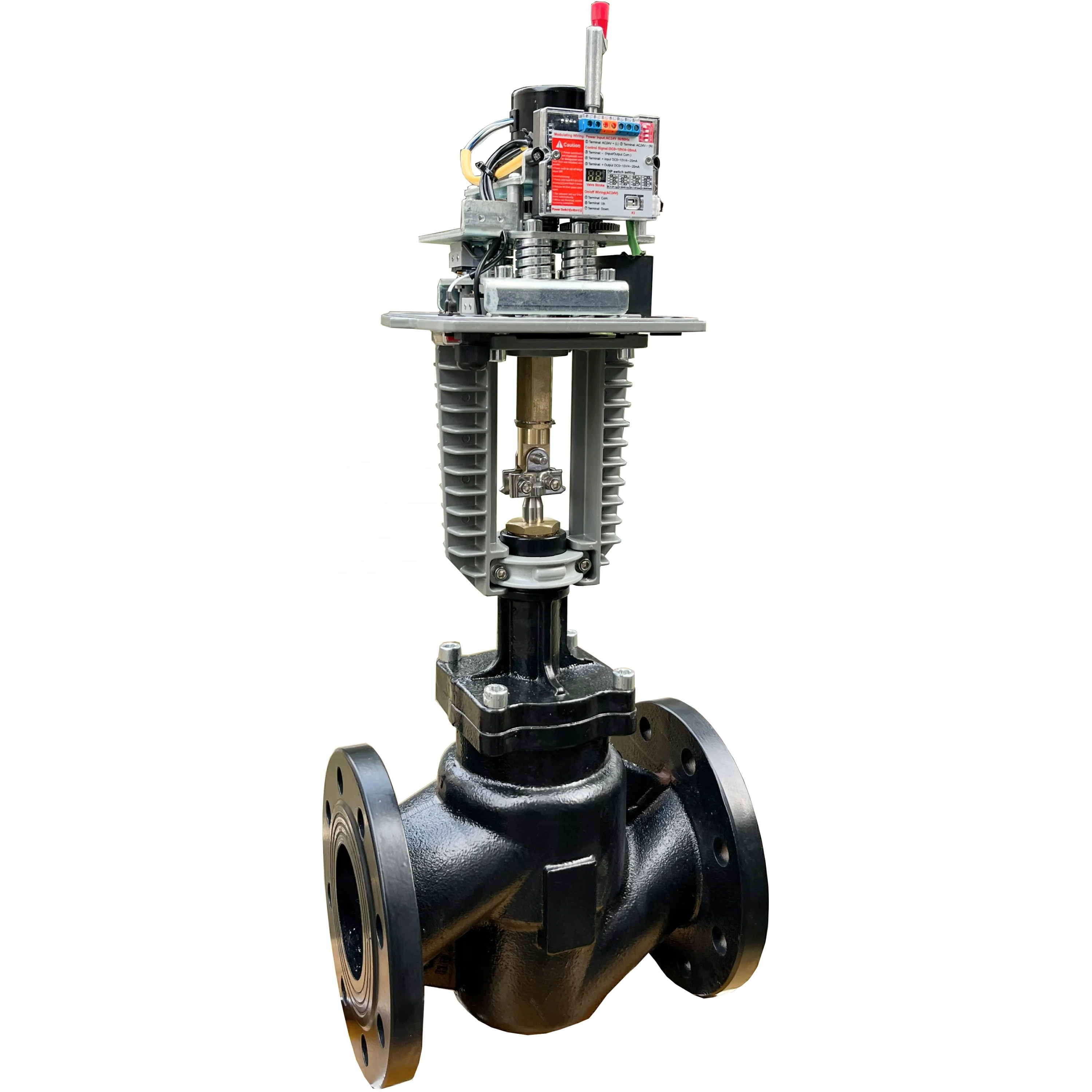

inside modulating
PRODUCT SPECIFICATIONS
Size | YH7X3CKB25 | YH7X3AK25 | YH7X3AM25 | ||
Action Control | On/Off | Floating | Modulating | ||
Voltage | AC220V 50/60Hz | AC24V 50/60Hz | AC24 50/60Hz | ||
Motor | AC Synchronous Motor | ||||
Force | 2500N | ||||
Control Signal | On/Off | 3-point | 0-10VDC or 4-20MA | ||
Feedback Signal | ------ | ----- | 0-10VDC or 4-20MA | ||
Power | 16VA | ||||
Max. Stroke | 44mm | ||||
Act Speed(mm/s) | 0.40mm/s at 50Hz | ||||
Working Temp. | -5—55℃ | ||||
High(mm) | 327 | ||||
Weight(Kg) | 4.7 | ||||
Working Humidity | 10%--90% RH Non Condensation | ||||
On/OFF(220VAC/24VAC)
Modulating(24VAC)
1. Read these instructions carefully. Failure to follow them could damage the product or cause a hazardous condition.
2. Check the ratings given in the instructions and on the product to make sure the product is suitable for your application.
3. Installer must be a trained, experienced service technician.
4. The valve should be installed somewhere easy to install and maintain.
5. Horizontal installation, that means the motor should be in the above of valve body to avoid humidity.
6. 2 way and 3 way connection as flowing.
2. Check the ratings given in the instructions and on the product to make sure the product is suitable for your application.
3. Installer must be a trained, experienced service technician.
4. The valve should be installed somewhere easy to install and maintain.
5. Horizontal installation, that means the motor should be in the above of valve body to avoid humidity.
6. 2 way and 3 way connection as flowing.
