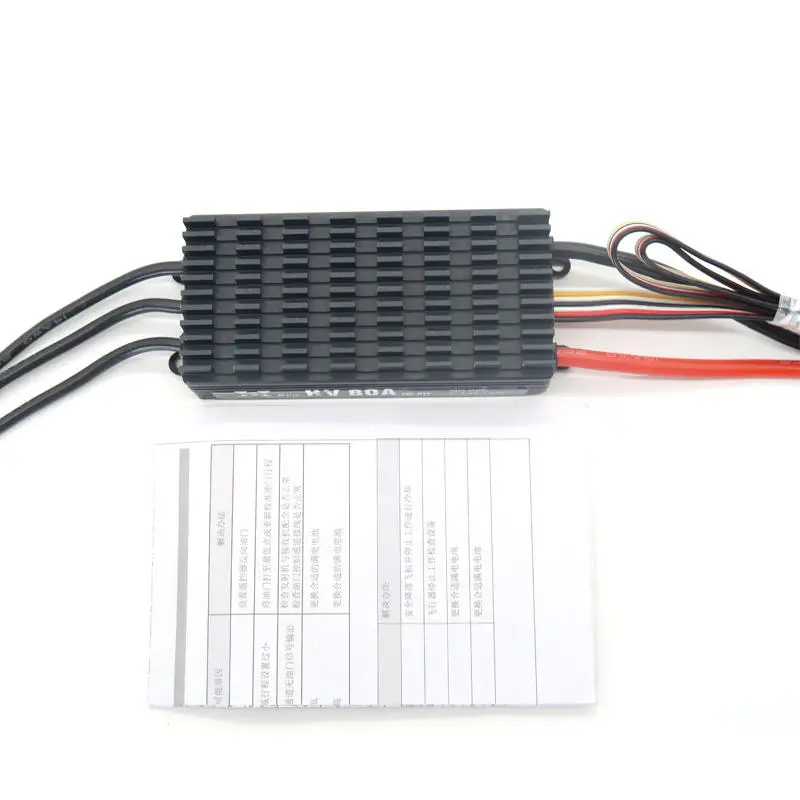

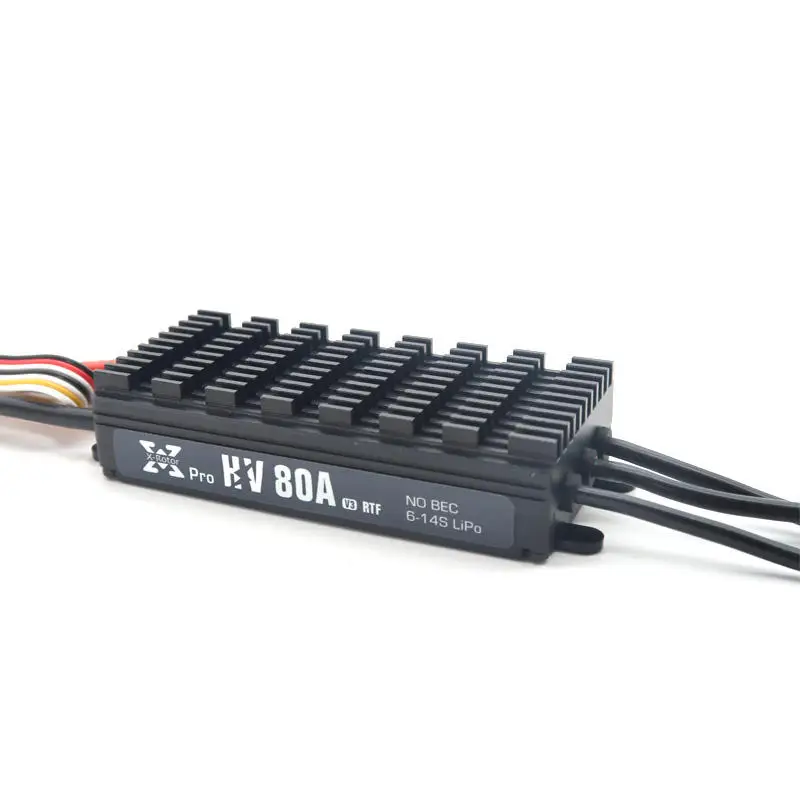

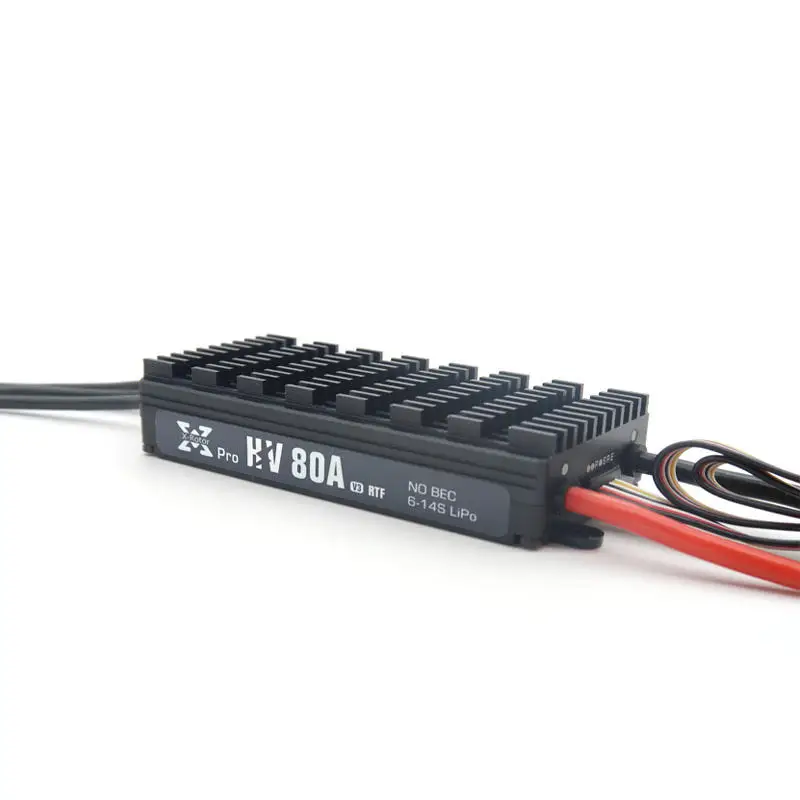

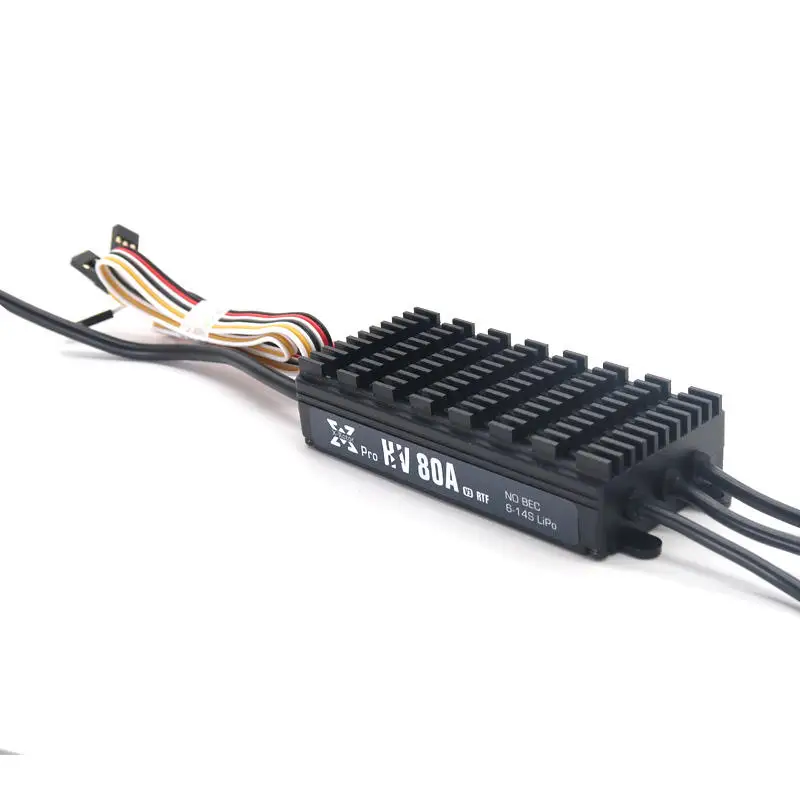

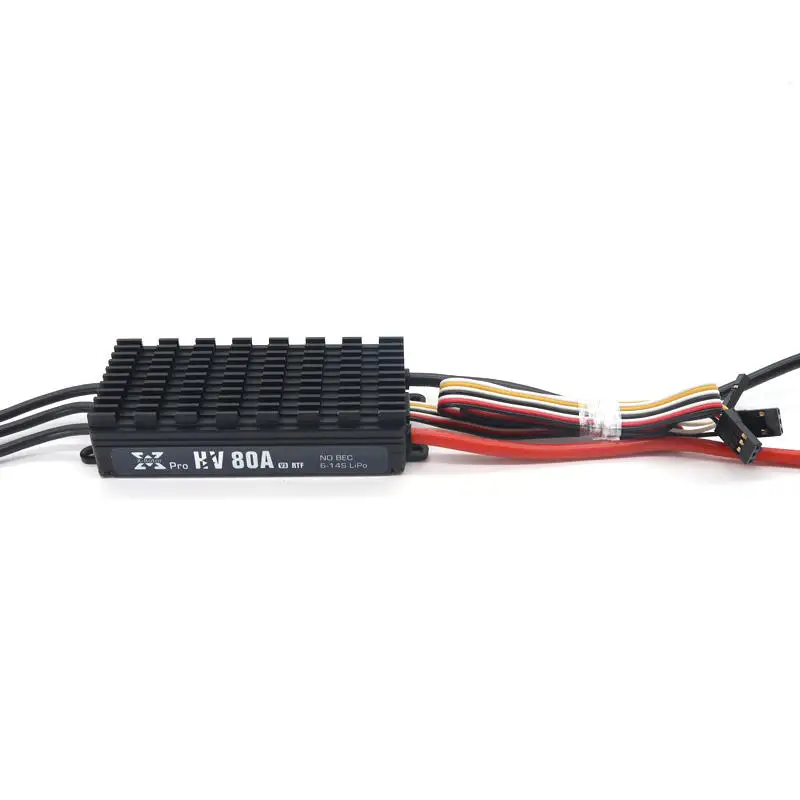

HOBBYWING X Rotor Pro V3 80A 6 14S HV Speed Controller / ESC for Multicopter XRotor Pro 80A V3
- Category: >>>
- Supplier: Shenzhen Jiuhang Electronic Technology Co. Ltd.
Share on (1600716916207):
Product Overview
Description
Products Description
Model | XRotor 80A |
Structure | metal shell + plastic bottom shell |
Continuous current | 80A |
Instantaneous current (10 seconds) | 100A |
BEC output | none |
Lithium battery section number | 6-14S |
Parameter programming function | DEO (on/off) |
Weight | 118g |
Size | 86.1x42x20.5mm (without ear length) |
Model | Persistent current | Instantaneous current (10s) | BEC | Cell | Weight | Size |
10A | 10A | 15A | No | 2-3S | 6.5g | 36.5x16.4x4.1 |
20A | 20A | 30A | No | 3-4S | 14g | 52.4x21.5x7 |
40A | 40A | 60A | No | 2-6S | 26g | 68x25x8.7 |
50A | 50A | 70A | No | 2-6S | 46g | 48x30x15.5 |
• Special core program for multi-rotor controllers greatly improves throttle response.
• All settings except the timing are preset, making the usage really simple, highly intelligent and adaptive.• The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes
flight more stable.
• Compatible with various flight-controllers and supports a signal frequency of up to 621Hz. (Notes: all throttle signals over
500Hz are non-standard signals.)
1.1 multi rotor special program, the throttle response speed is extremely fast, surpassing all kinds of open source software;
1.2 the firmware specially optimized for disc motor has excellent motor compatibility;
1.3 it is highly intelligent and has strong adaptive ability. It only keeps the setting item of the angle of approach (high angle
of approach / middle angle of approach), which is very simple to use;
1.4 the throttle signal line is twisted pair, which can effectively reduce the crosstalk caused by signal transmission in copper wire and make the flight more stable;
1.5 it can support the throttle signal with the highest refresh rate of 621hz, and is compatible with all kinds of flight control
(Note: the throttle signals over 500Hz are non-standard throttle signals);
1.6 the performance and stability of the special drive chip for MOSFET are much better than that of the drive circuit built with discrete components;
1.7 ultra low internal resistance MOSFET, strong current resistance.
1.2 the firmware specially optimized for disc motor has excellent motor compatibility;
1.3 it is highly intelligent and has strong adaptive ability. It only keeps the setting item of the angle of approach (high angle
of approach / middle angle of approach), which is very simple to use;
1.4 the throttle signal line is twisted pair, which can effectively reduce the crosstalk caused by signal transmission in copper wire and make the flight more stable;
1.5 it can support the throttle signal with the highest refresh rate of 621hz, and is compatible with all kinds of flight control
(Note: the throttle signals over 500Hz are non-standard throttle signals);
1.6 the performance and stability of the special drive chip for MOSFET are much better than that of the drive circuit built with discrete components;
1.7 ultra low internal resistance MOSFET, strong current resistance.
This product can't directly supply power to flight control or receiver without BEC. This product needs to use UBEC to supply power
