China Price wood pellet fired boiler manufacturer industrial thermal oil heater boiler biomass thermal oil boiler price
- Category: >>>
- Supplier: Xinxiang Xinda Boiler Co. ltd.
Share on (1600716934280):
Product Overview
Description
Products Description

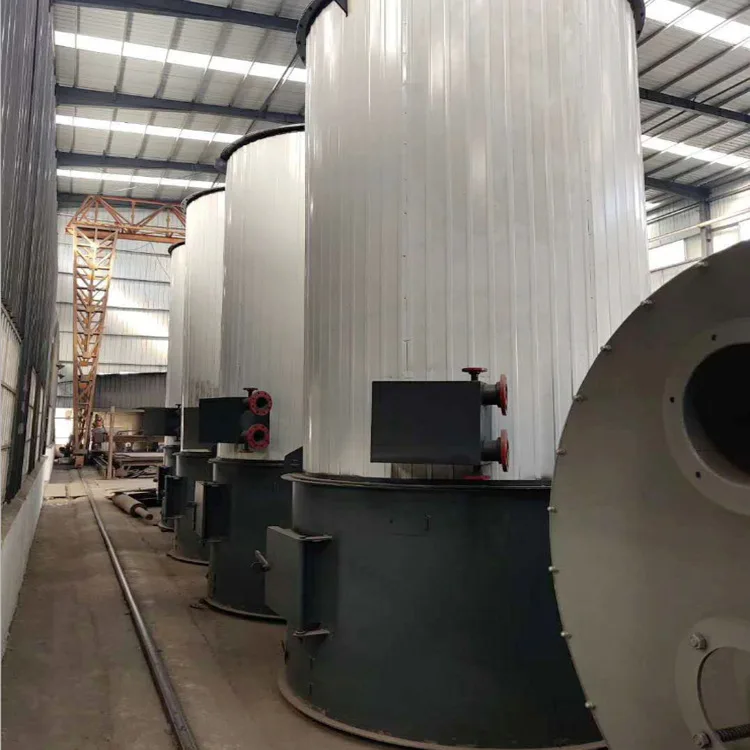

China Price wood pellet fired boiler manufacturer industrial thermal oil heater boiler biomass thermal oil boiler price

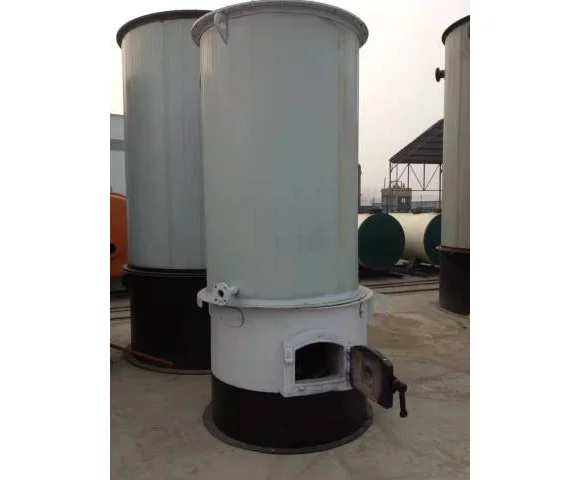

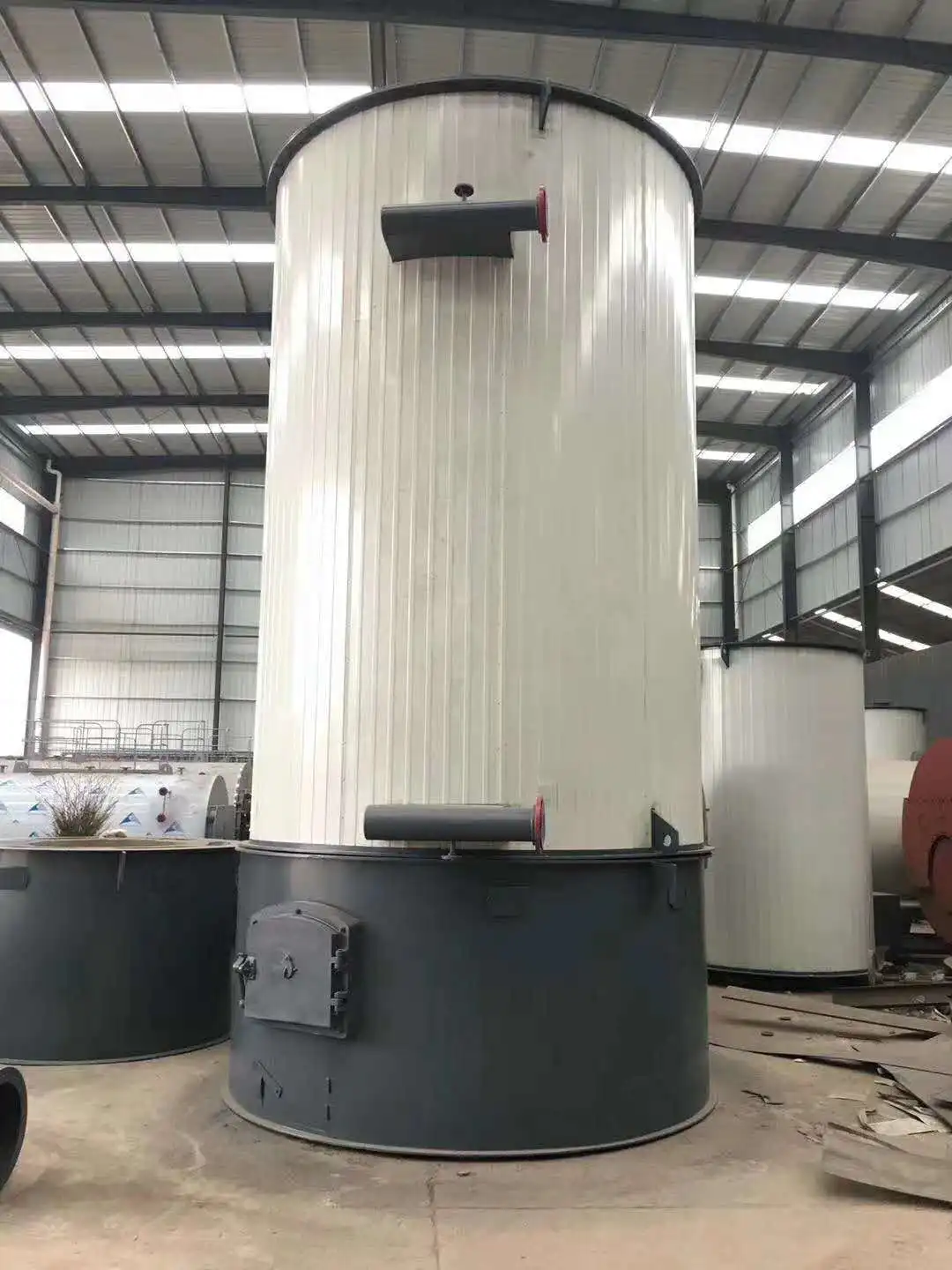

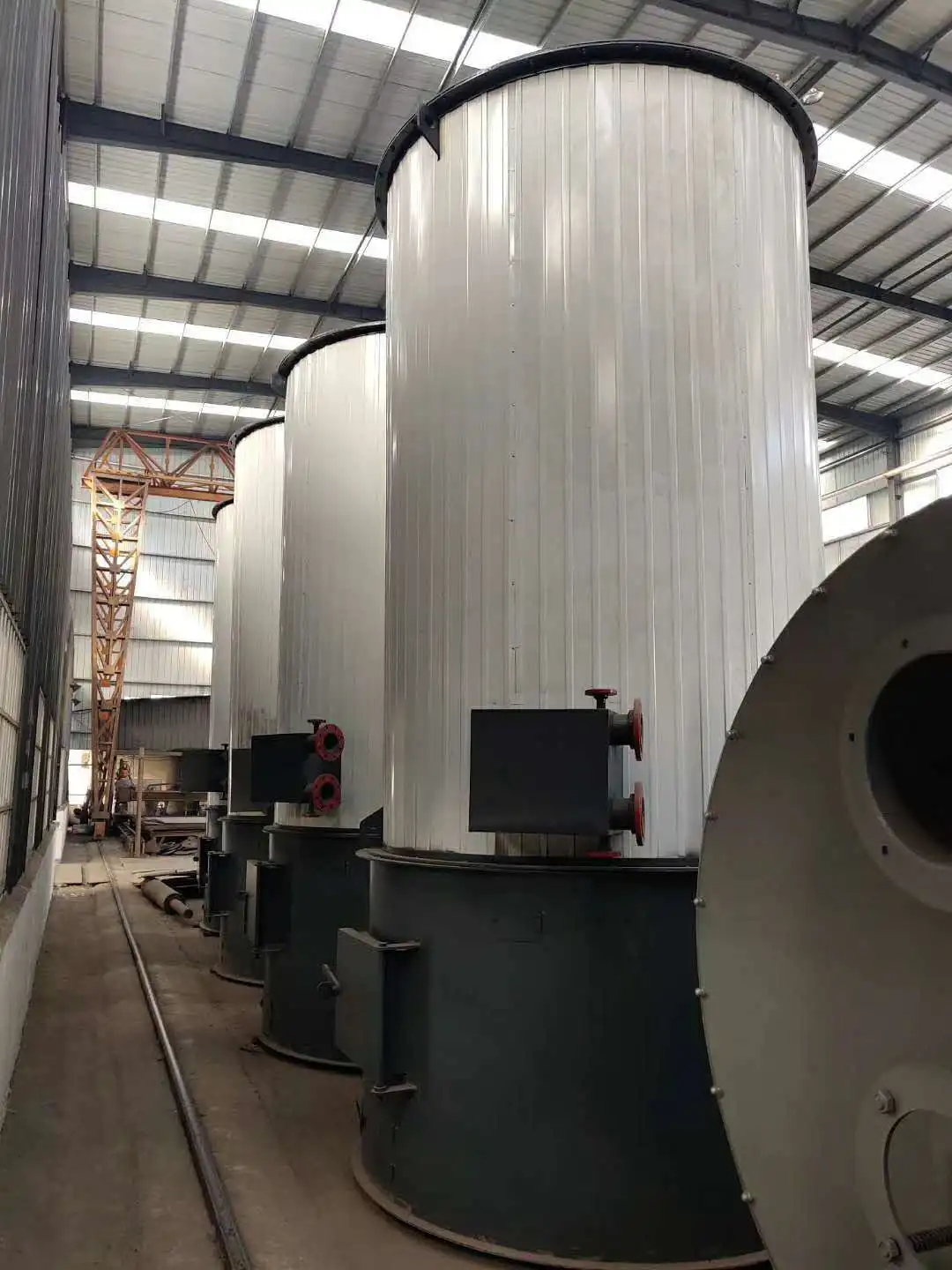

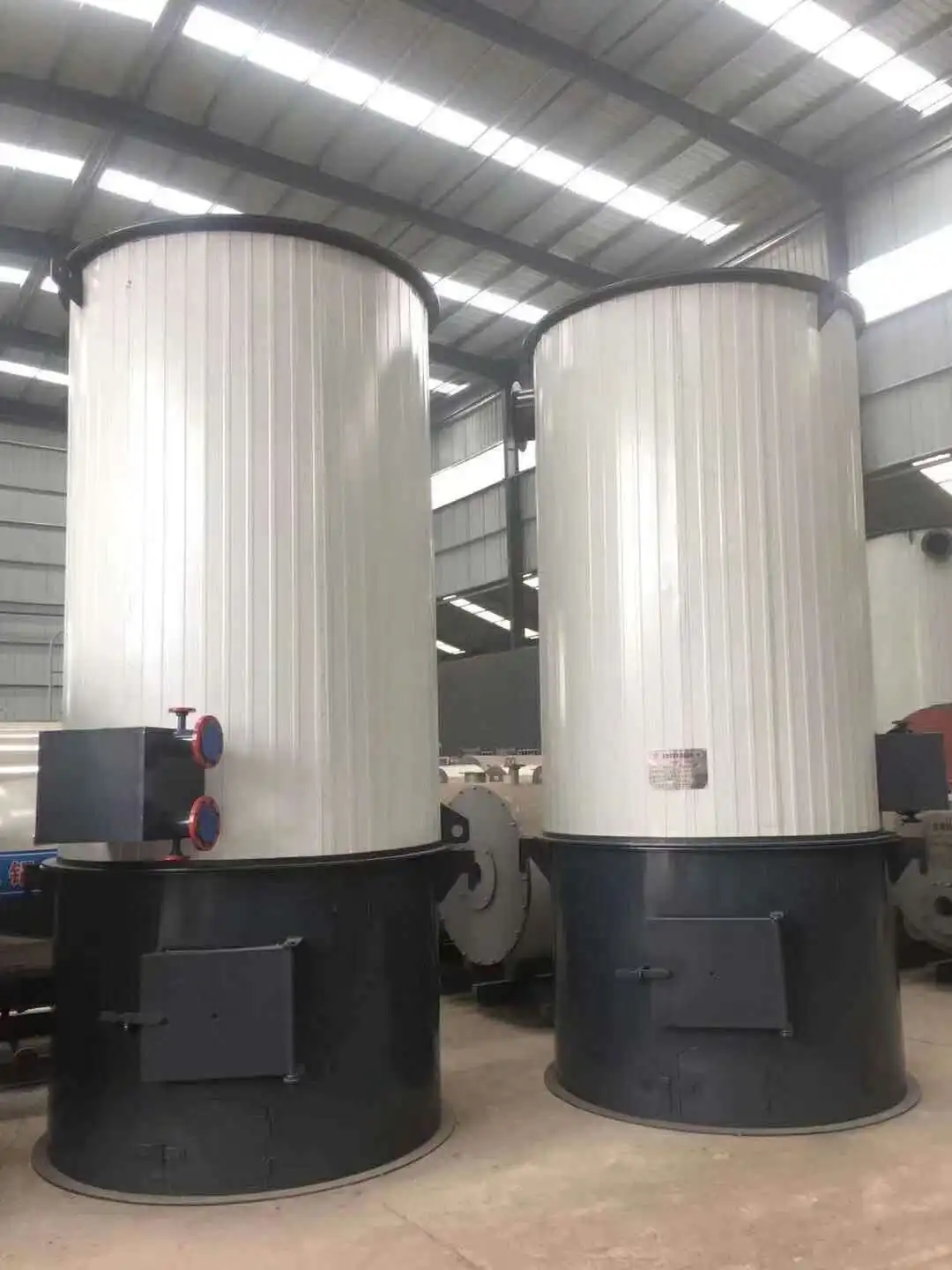

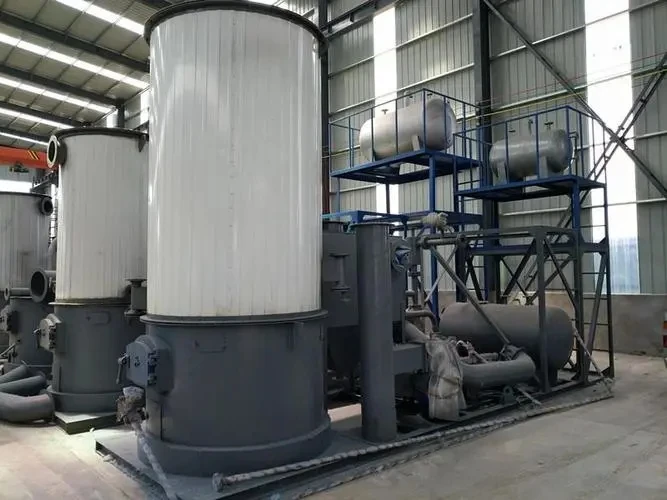

YGL vertical coal biomass fired thermal oil boiler uses coal/biomass as fuel and heat-conducting oil as the medium. The circulating oil pump is used to force the medium to circulate in the liquid phase. The heat energy is transferred to the heating equipment and then returned to the heating furnace for reheating. It can obtain high working temperature under low pressure, and can carry out high-precision control of the operation of the medium. The system has high thermal efficiency and convenient operation and maintenance. It is a safe, efficient and energy-saving ideal heating equipment.
Rated capacity: 120kw-14000kw
Max working temperature: 280℃;320℃
Design fuel: coal,biomass, wood, firewood, solid fuel,etc
Application: plywood factory,asphalt plant, textile factory,plastic factory,refinery industry, etc.
Technical advantages:
2. Liquid phase circulation heating, no heat loss from condensation and discharge, and the thermal efficiency of the heating system can be improved.
3. There are measures to strictly control the air, moisture and other low volatile content in the working medium before circulating heating.
1. The quick-installation structure is used to leave the factory, which is convenient for transportation, simple in installation and saves installation costs.
2. Liquid phase circulation heating, no heat loss from condensation and discharge, and the thermal efficiency of the heating system can be improved.
3. There are measures to strictly control the air, moisture and other low volatile content in the working medium before circulating heating.
4, the main body paint packaging process, bright and generous color, resistant to a lot of corrosion.
4, the main body paint packaging process, bright and generous color, resistant to a lot of corrosion.
5. Using biomass pellets as fuel, the fuel cost is lower than that of gas-fired heat-conducting oil furnace.
5. Using biomass pellets as fuel, the fuel cost is lower than that of gas-fired heat-conducting oil furnace.

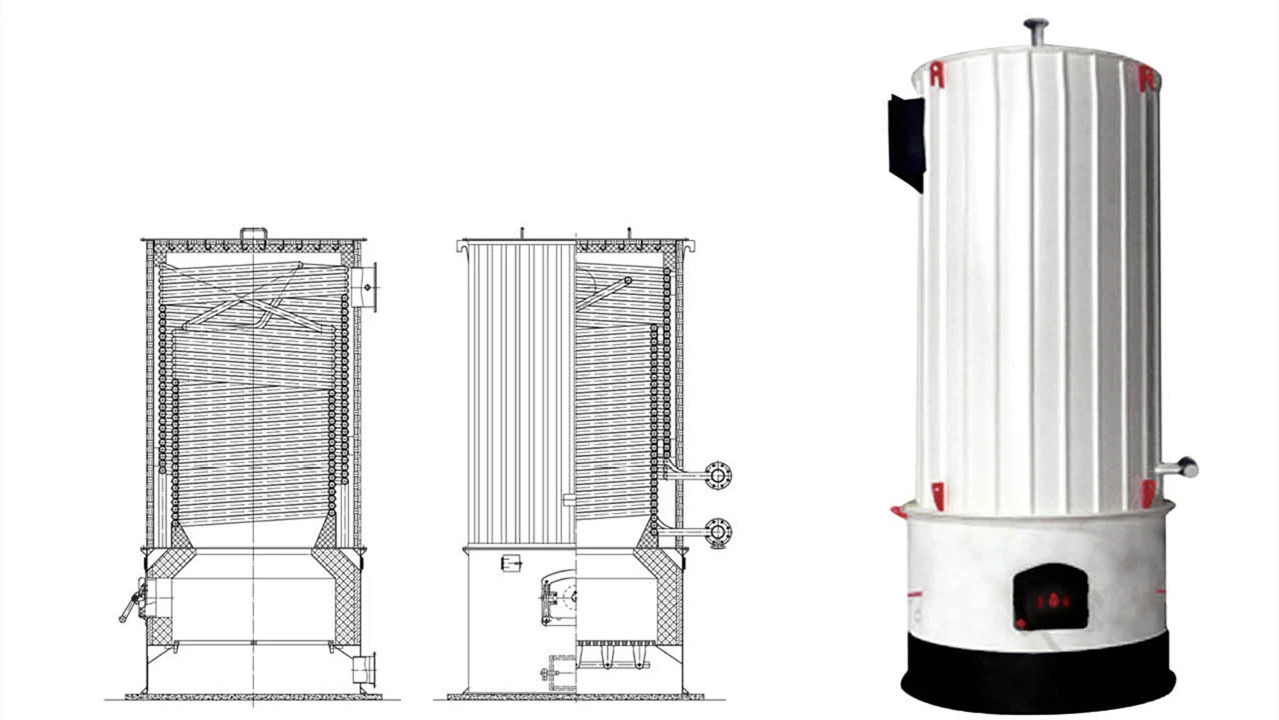

Design Parameters
Type | YGL-120T | YGL-240T | YGL-350T | YGL-500T | YGL-700T | YGL-1000T | YGL-1200T | ||||||
Rated thermal power | 120kw | 240kw | 350kw | 500kw | 700kw | 1000kw | 1200kw | ||||||
Thermal efficiency | 73% | ||||||||||||
Rated steam pressure | 0.8MPa | ||||||||||||
Maximum working temperature | 320℃ | ||||||||||||
Capacity | 0.07m³ | 0.22m³ | 0.28m³ | 0.38m³ | 0.55m³ | 0.75m³ | 0.86m³ | ||||||
Circulating oil volume | 12.5m³/h | 20m³/h | 40m³/h | 60m³/h | 80m³/h | 100m³/h | 100m³/h | ||||||
Piping connection diameter | DN50 | DN80 | DN80 | DN100 | DN100 | DN125 | DN125 | ||||||
Diameter | 1215mm | 1500mm | 1650mm | 1700mm | 2030mm | 2160mm | 2160mm | ||||||
Height | 2310mm | 2750mm | 2850mm | 3300mm | 3450mm | 4250mm | 4250mm | ||||||
Weight | 2500kg | 3200kg | 4800kg | 5300kg | 5800kg | 6200kg | 6700kg | ||||||
Accessories

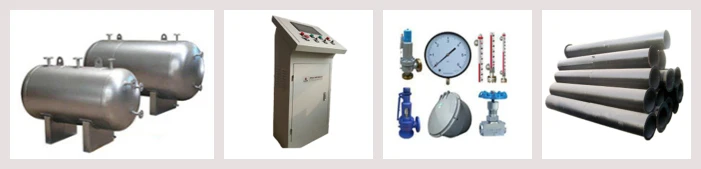

Oil tank Control cabinet Instrument valve Chimney
Application
YGL series thermal oil boiler can be widely used in a variety of industrial heating process. Such as petroleum chemical industry, synthetic fiber industry, textile printing and dyeing, plastic and rubber, paper industry, wood industry, building material, machinery industry, food industry, electrical equipment, coking industry, metal and casting industry, detergent industry, fat and paint industry, carbon industry.

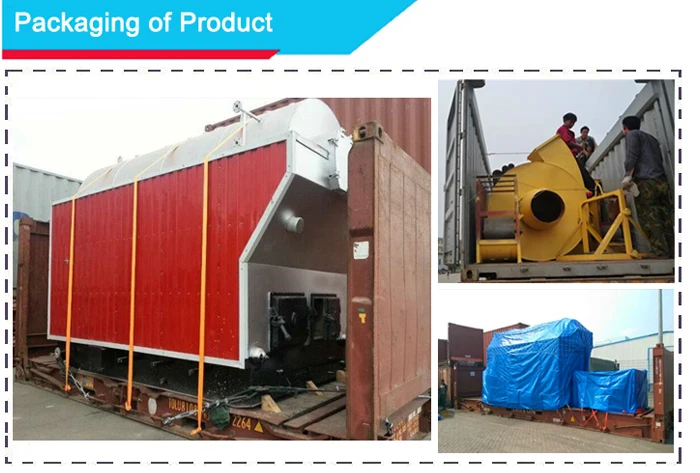

Packing&Shipping
1.When transport, the boiler body and large auxiliary equipments (platform, chimney, economizer, etc ) are nude packed or tied up.
2.the smaller auxiliary equipments are encased by using the strong intensity wooden or plywood box.
3.The products could be transported by ship and train, customers could designate the ports.
4.If necessary, the small auxiliaries could be transported by airplane.
2.the smaller auxiliary equipments are encased by using the strong intensity wooden or plywood box.
3.The products could be transported by ship and train, customers could designate the ports.
4.If necessary, the small auxiliaries could be transported by airplane.
Company Profile
Customer Visiting
Our Services
FAQ
Q: Are you a factory or a trading company?
A: We are a factory, you are welcome to come to our factory to check the quality of our machines.
Q: How long does it take for the machine to be shipped after ordering?
A: All machines can be ready and shipped within 7-15 days after placing the order!
A: All machines can be ready and shipped within 7-15 days after placing the order!
Q: Which payment method do you prefer?
A: Our standard payment method is T/T and 40% deposit and balance before shipment.
A: Our standard payment method is T/T and 40% deposit and balance before shipment.
Q: What are our strengths?
A: 1. Competitive price 2. Excellent technical support 3. Best service
A: 1. Competitive price 2. Excellent technical support 3. Best service
