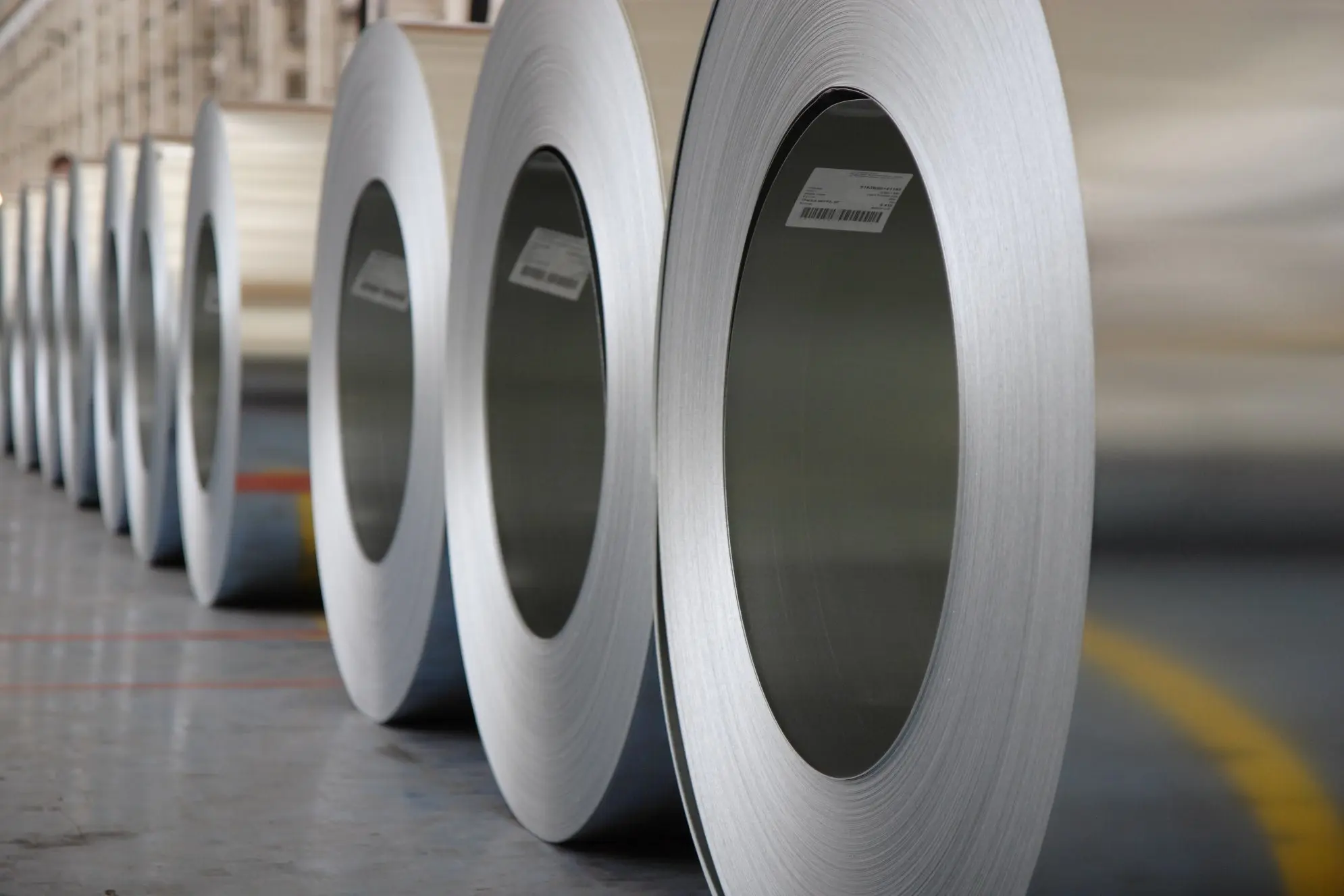

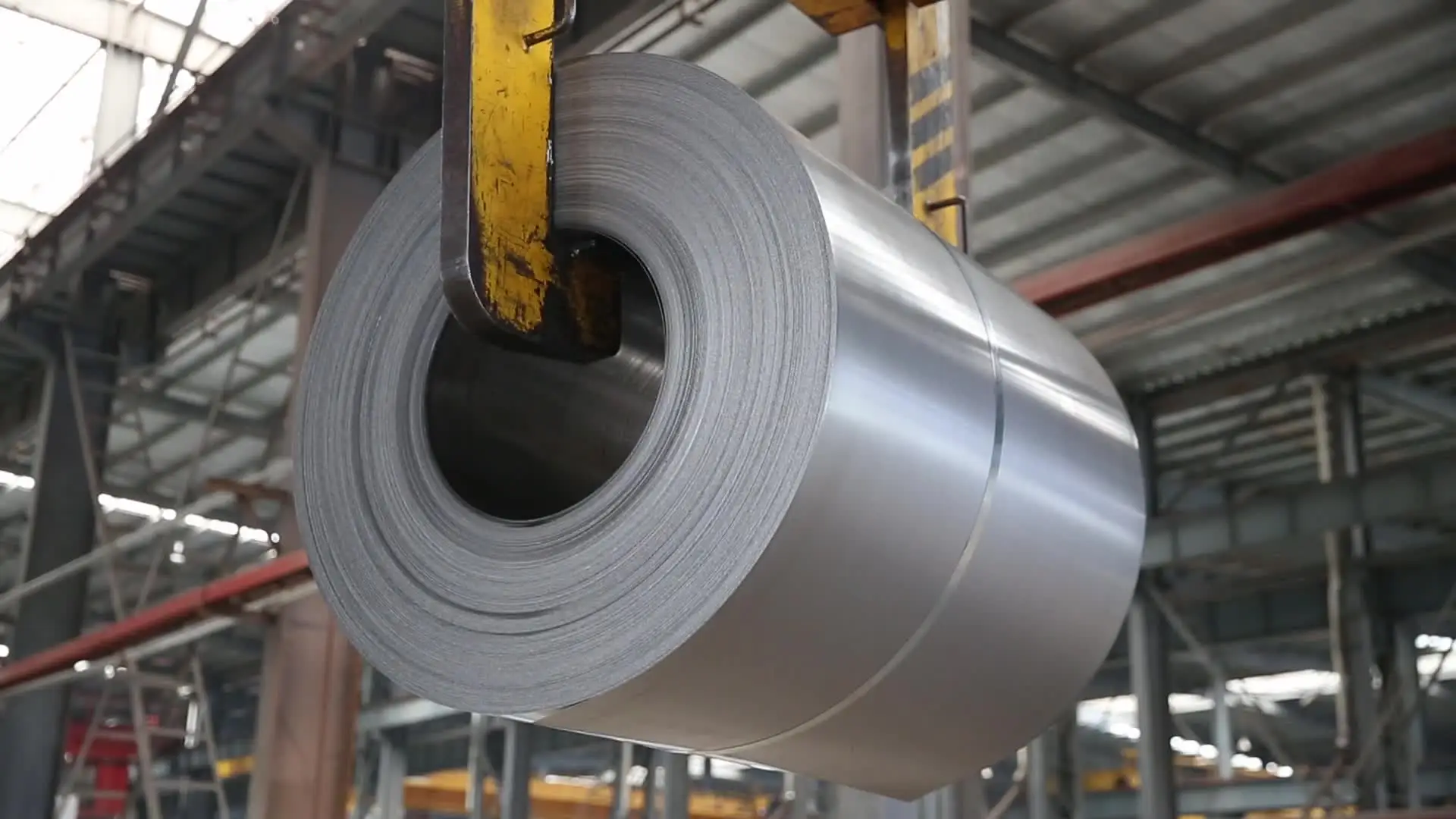

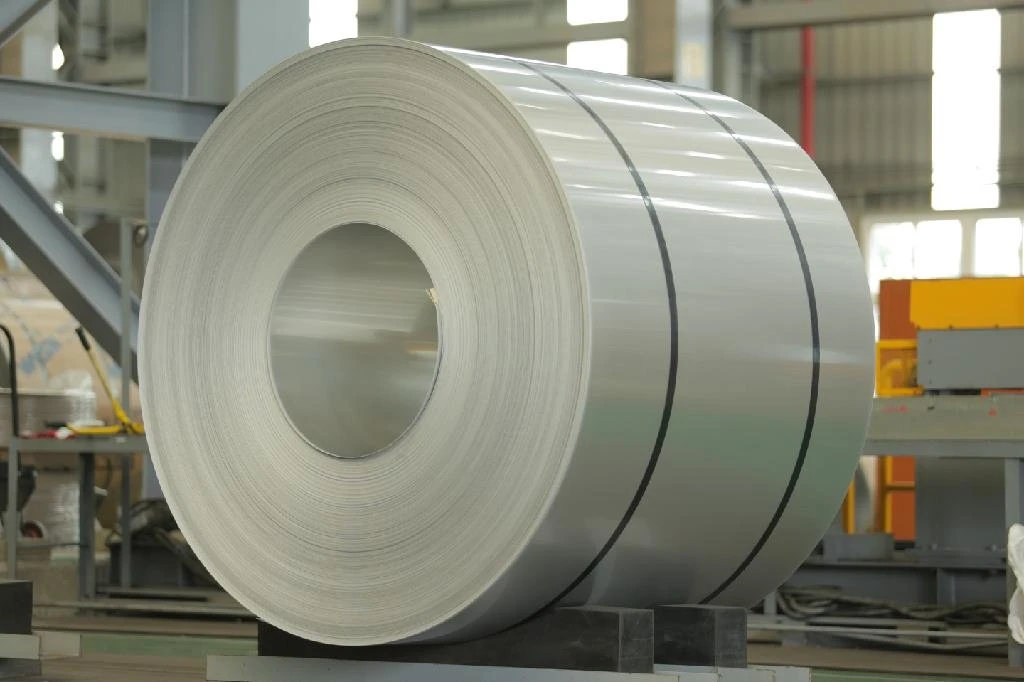

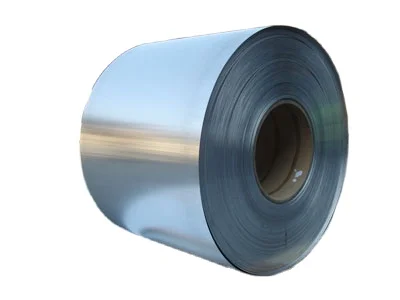

SG50W1300 Iron Sheet Hot Rolled Carbon Steel Plate Price silicon steel
- Category: >>>
- Supplier: Hefei Rongda Environment Technology Co. Ltd.
Share on (1600716935754):
Product Overview
Description
Specification
item | value |
Type | Non-oriented Silicon Steel |
Technique | Cold Rolled |
Thickness | 0.3mm - 1.7mm |
Surface Treatment | Coated |
Shape | Steel Coil |
Standard | GB |
Place of Origin | China |
Model Number | silicon steel |
Tolerance | ±1% |
Processing Service | Bending, Welding, Cutting, Punching |
Grade | silicon steel |
Delivery Time | 15-21 days |
Application | Transformer Core |
Material | Cold Rold Silicon Steel Coil |
Key words | Silicon Steel Ei Lamination Transformer Core |
Grade | SG50W1300 |
Product Paramenters
Sector | Grade | Thickness (mm) | Assumed Density (50Hz 1.5T) | Core Loss (50Hz 1.5T) watts per kilogram | Min Magnetic Flux Density at 5000 A/m T | Min Lamination Factor% | Application |
silicon steel | 50AW800 | 0.5 | 7.80 | 4.92 | 1.73 | 96.00 | Small and medium motors, small transformers |
50AW1300 | 7.85 | 5.64 | 1.76 | 96.00 | Small and medium motors, small transformers | ||
B50A800 | 2.19 | 4.73 | 1.73 | 98.80 | Small and medium motors, small transformers | ||
B50A1300 | 7.85 | 3.24 | 1.76 | 98.80 | Small and medium motors, small transformers | ||
50WW600 | 7.75 | 3.91 | 1.70 | 98.70 | Compressor, small and medium motor, small transformer | ||
50WW800 | 7.80 | 5.02 | 1.73 | 98.70 | Compressor, small and medium motor, small transformer | ||
SG50W800 | 7.80 | 4.41 | 1.73 | 99.00 | Small and medium motors, small transformers | ||
SG50W1300 | 7.80 | 5.30 | 1.76 | 98.50 | Small and medium motors, small transformers | ||
B35A270 | 0.35 | 7.65 | 2.34 | 1.68 | 97.70 | Home appliance motor, compressor motor, EI transformer, automobile drive motor, etc | |
35AW300 | 7.65 | 2.38 | 1.68 | 97.70 | Home appliance motor, compressor motor, EI transformer, etc | ||
35SW300 | 7.65 | 2.25 | 1.69 | 97.70 | Home appliance motor, compressor motor, EI transformer, automobile drive motor, etc | ||
35AW360 | 7.65 | 2.83 | 1.68 | 97.70 | Home appliance motor, compressor motor, EI transformer, etc | ||
35AW310 | 7.65 | 2.61 | 1.69 | 97.70 | Home appliance motor, compressor motor, EI transformer, etc | ||
30SW1500 | 7.6 | 2.08 | 1.66 | 97 | Home appliance motor, compressor motor, EI transformer, automobile drive motor, etc |
No oriented electrical steel | Application scenarios | The main use of brand |
Large mechanical and electrical | Water, fire, nuclear power units, more than 30-50 w290 | |
Wind turbines: 30-35 w360 above | ||
Household appliances | Efficient frequency conversion air conditioning compressor: 30-50 w360 above | |
Efficient frequency conversion refrigerator compressor: 30-50 w360 above | ||
Small and medium-sized mechanical and electrical | Y1 / Y2, Y3 series and derived series products: low grades | |
High efficiency, super efficient: 30-35 w470 | ||
New energy vehicles | Drive motor: 20-35 w1200 - more than 1900 | |
New energy automobile micromotor: 20-35 w360 | ||
Oriented electrical steel | transformer | High-end transformer: 750 kv, 1000 kv |
Mid-range transformer: 220-500 kv, 110-200 kv, less than 110 kv | ||
All kinds of power saving transformer: 0.18-30 mm |
Packaging & Delivery
In order to ensure the safety of your cargo, the most efficient, safe, quality and convenient transportation services will be provided.
Due to the difference of temperature and humidity in the South and North in winter, it is recommended to open the package after 36 hours to prevent condensation and rust.
Under the normal packaging, transportation, loading and unloading and storage conditions, it should be used within 12 months from the date of completion of self-made manufacture to prevent surface corrosion.
Under the normal packaging, transportation, loading and unloading and storage conditions, it should be used within 12 months from the date of completion of self-made manufacture to prevent surface corrosion.

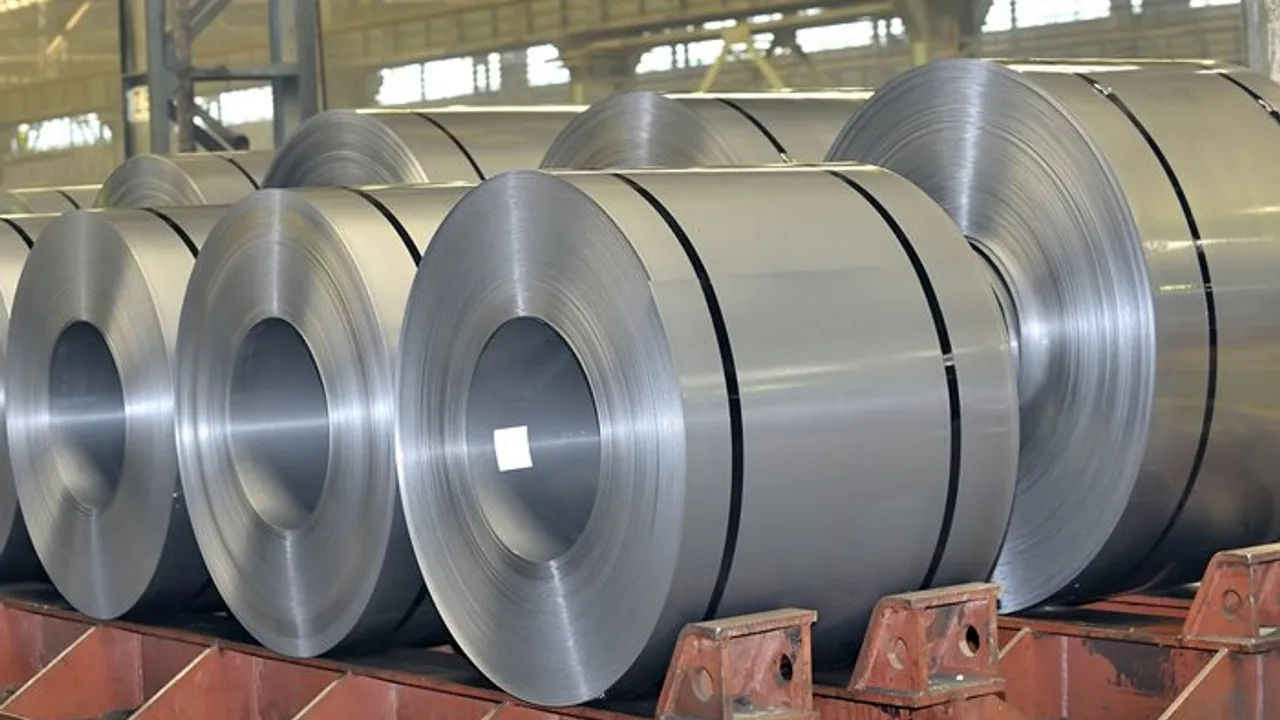

Customer Photos
The above are the photos of our exported products.
We have rich experience in bulk commodity export and look forward to cooperating with you!
Application
Silicon steel, a ferromagnetic alloy, is widely used in the industry to manufacture magnets, transformers, relays, generators, magnetic amplifiers, etc., mainly used in power, electrical, communication, machinery and other industries.
Company Profile
FAQ
1.Samples leading time : 1-2 weeks after passed our test;
2.Bulk order leading time : 2-4 weeks;
3.Samples are delivered by FEDEX DHL ,TNT , UPS;
4.Payment Term: T/T or L/C at sight;
5.Minimum Order Quantity: 1 MT;
6.Delivery Time: Lead-time is around 7-14 working days after we receive the advance payment. It varies according to different products and quantity;
7.About quality issues we provide free tech-support；
8.Advantages：Hefei Rongda Environmental Technology Co., LTD has operation centers, logistics warehousing and technical service centers in Singapore, Thailand, Vietnam and Malaysia. Our products are widely used in home appliances, automobiles, electrical and other field.
