Factory Customized Bulk Material Concrete Vertical Bucket Elevator
- Category: >>>
- Supplier: Xinxiang,Zhongnuo,Mechanical,Equipment,Company
Share on:
Product Overview
Description
Factory Customized Bulk Material Concrete Vertical Bucket Elevator
Product Description

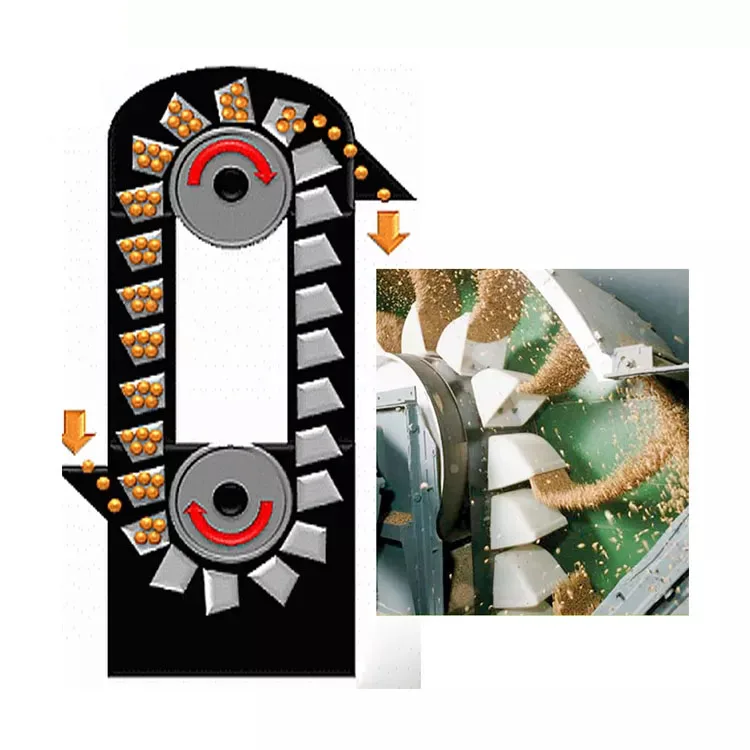

Factory Customized Bulk Material Concrete Vertical Bucket Elevator is mainly be used for the vertical continuous conveying of powdery materials or granular materials.The equipment is of straightforward structure, compact design, good sealing performance, easy installation and maintenance, allowing positive and reverse material feeding, as well as flexible process configuration and layout.
Specification
Type | Capacity(m3/h) | Max Material Size (mm) | ||||||||
Allow percentage % | ||||||||||
10 | 25 | 50 | 75 | 100 | ||||||
NE15 | 16 | 65 | 50 | 40 | 30 | 25 | ||||
NE30 | 31 | 90 | 75 | 58 | 47 | 40 | ||||
NE50 | 60 | 90 | 75 | 58 | 47 | 40 | ||||
NE100 | 110 | 130 | 105 | 80 | 65 | 55 | ||||
NE150 | 165 | 130 | 105 | 80 | 65 | 65 | ||||
NE200 | 220 | 170 | 135 | 100 | 85 | 70 | ||||
NE300 | 320 | 170 | 135 | 100 | 85 | 70 | ||||
NE400 | 441 | 205 | 165 | 125 | 105 | 90 | ||||
NE500 | 470 | 240 | 190 | 145 | 120 | 100 | ||||
NE600 | 600 | 240 | 190 | 145 | 120 | 100 | ||||
NE800 | 800 | 275 | 220 | 165 | 135 | 110 | ||||

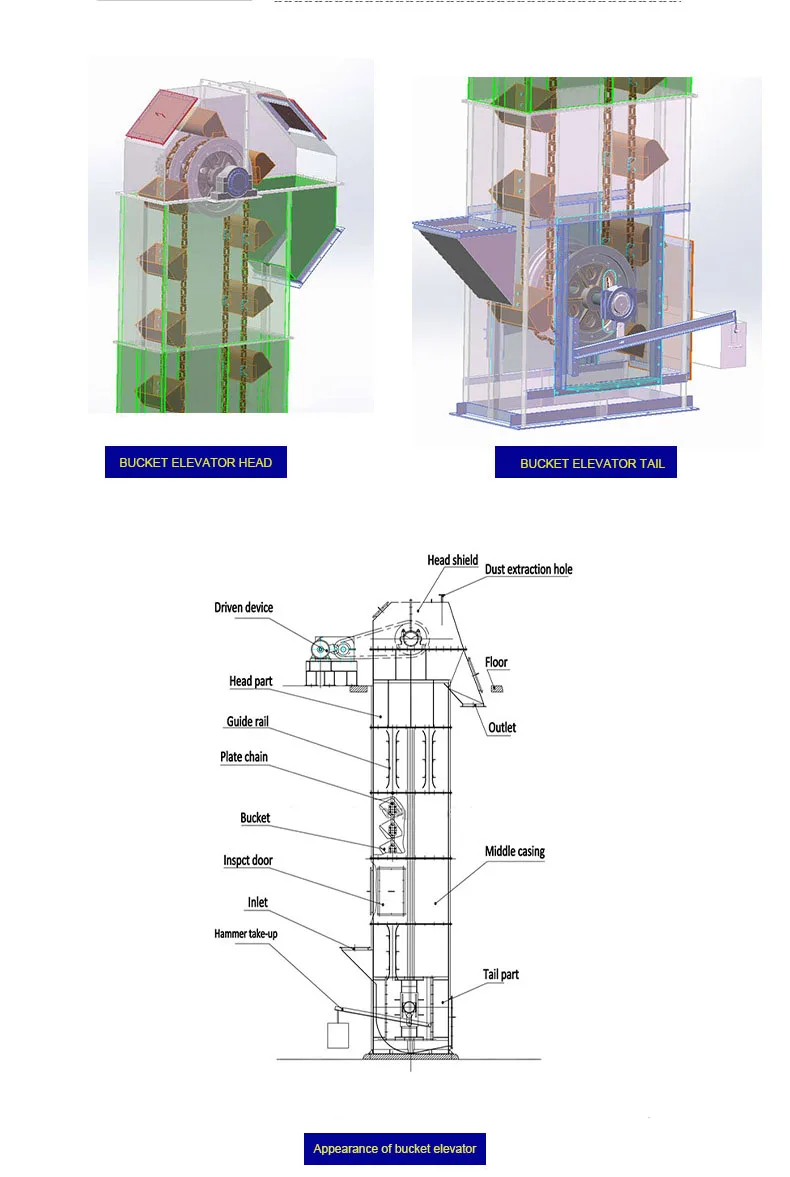

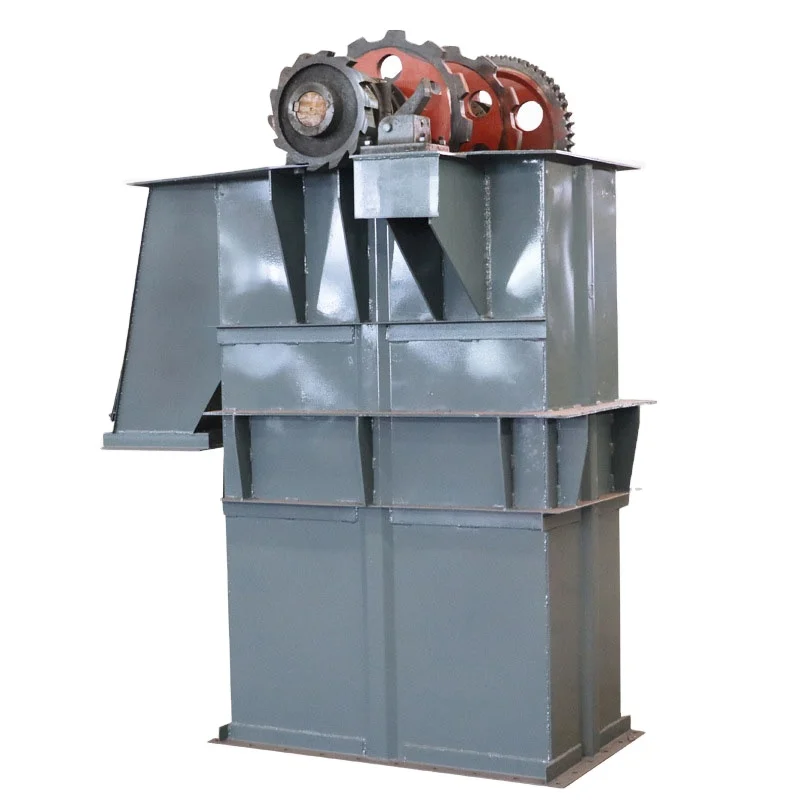

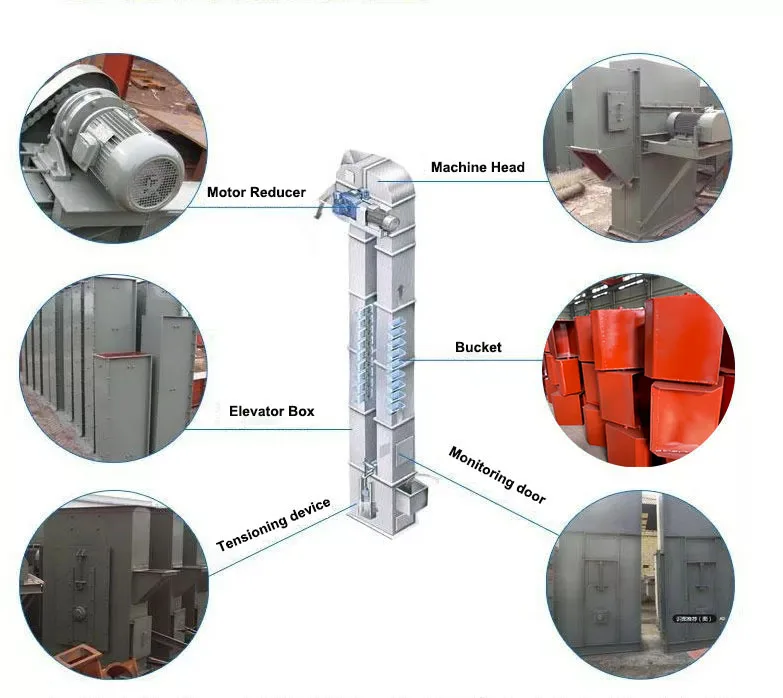

Details Images
Product Application
Factory Customized Bulk Material Concrete Vertical Bucket Elevator can handle a variety of materials, and therefore are used in many different industries and applications, though generally, they are not suited for wet, sticky materials, or materials that are stringy or tend to mat or agglomerate. They are frequently found in power plants, fertilizer plants, pulp & paper mills, and steel production facilities.
Factory Customized Bulk Material Concrete Vertical Bucket Elevator can handle a variety of materials, and therefore are used in many different industries and applications, though generally, they are not suited for wet, sticky materials, or materials that are stringy or tend to mat or agglomerate. They are frequently found in power plants, fertilizer plants, pulp & paper mills, and steel production facilities.

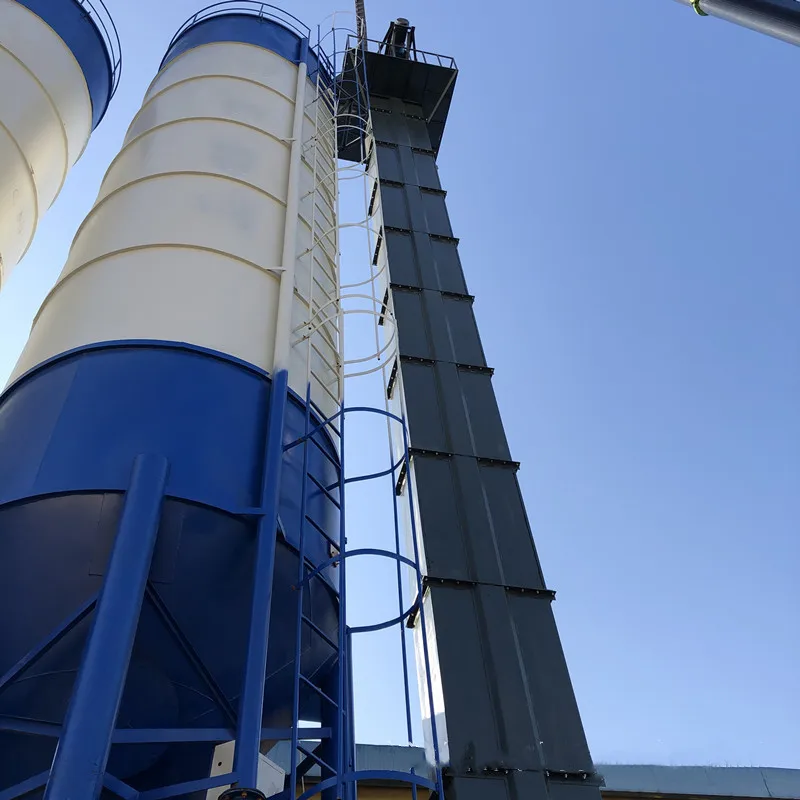

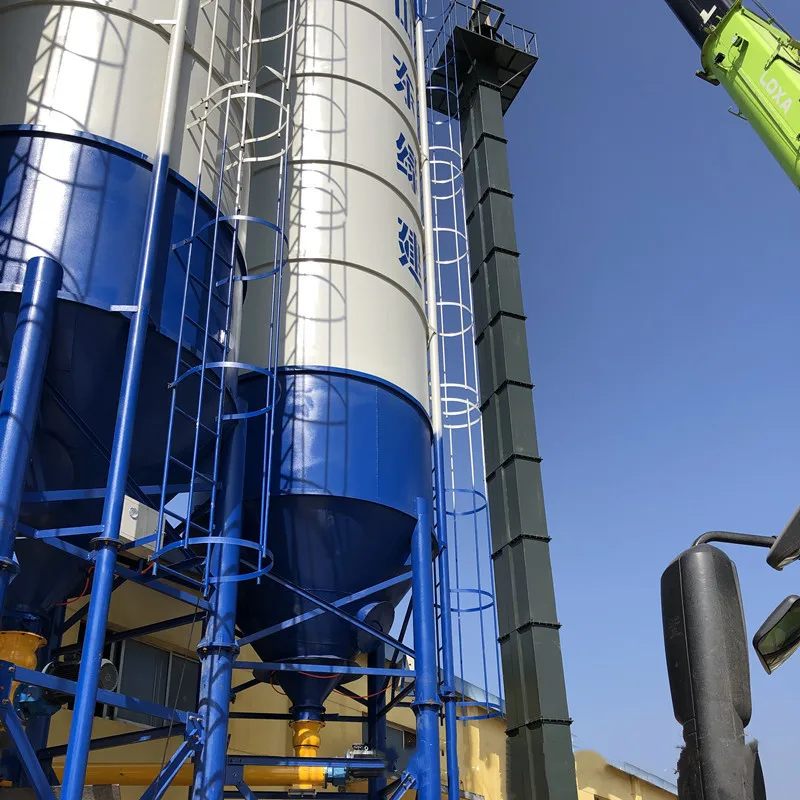

Conveyor on Site
Company Profile
Customer Photos
FAQ
The proper selection of the industrial bucket elevator depends on the material, conveying distance, output required, so please confirm the below information:
1. Conveying product : _____
1. Conveying product : _____
2. Viscosity:_____%
3. Capacity:________kg/ hour
4. Conveying length:_______
5. Conveying height:______
6. Intermittent or continuous feeding?
