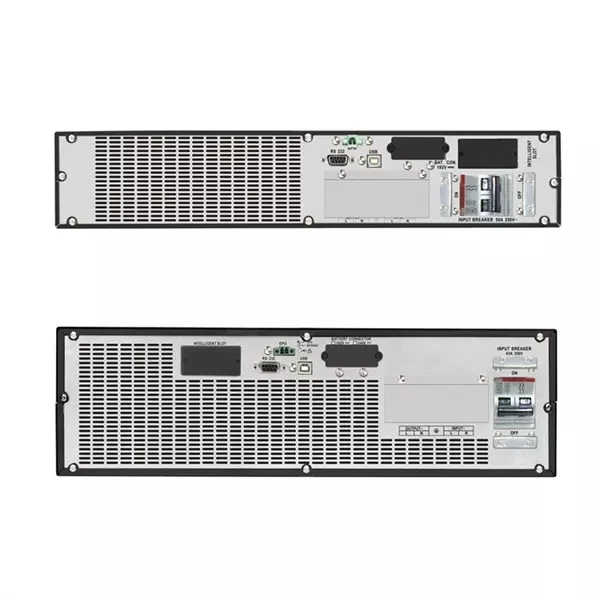

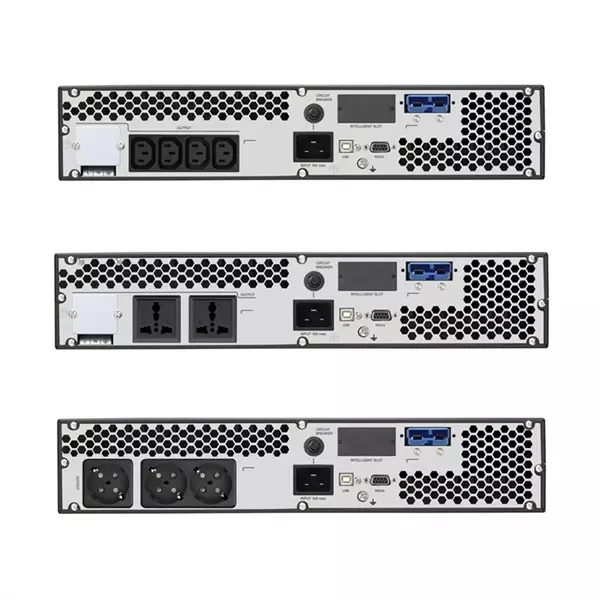

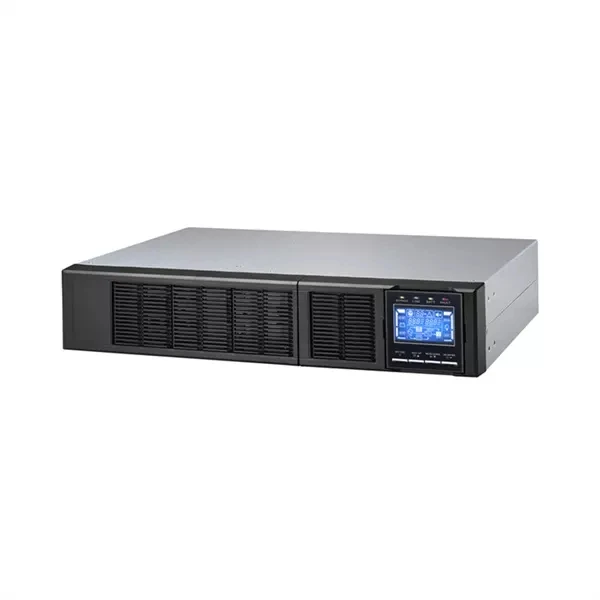

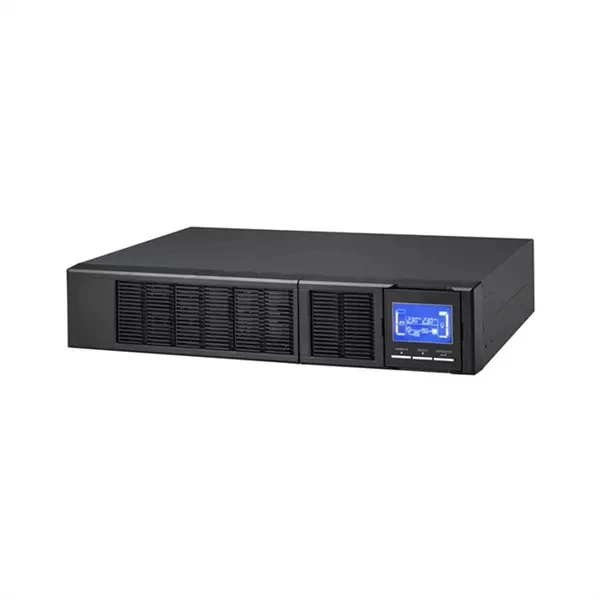

YIT 1K Rackmount Online UPS
YIT 1K Rackmount Online UPS
YIT 1K Rackmount Online UPS
YIT 1K Rackmount Online UPS
YIT 1K Rackmount Online UPS
YIT 1K Rackmount Online UPS
YIT 1K Rackmount Online UPS

YIT 1K Rackmount Online UPS

Share on (1600716946909):


Price:

Quantity:


Product Overview

Description



Overview
• True double-conversion
• Input power factor correction
• Output power factor 0.8
• Wide input voltage range (110-300 VAC)
• Converter mode available
• ECO mode for energy saving only available for 1-3KVA models
• Generator compatible
• Adjustable charging current via LCD or software (1A~6A) only available for 6K/10K models
• Emergency power off function (EPO) only available for 6K/10K models
• Optional output factor 0.9 (Please check sales directly)
• Rack-Tower 2-in-1 for 6Kva and below models
• Hot-swappable battery design for 6Kva and below models


MODEL
R11-1K (L)
R11-2K (L)
R11-3K (L)
R11-6K (L)
R11-10K (L)
PHASE
Single phase with ground
CAPACITY
1000VA / 800W
2000VA / 1600W
3000VA / 2400W
6000VA / 4800W
10000VA / 8000W
INPUT
Nominal Voltage
100/110/115/120/127VAC or 200/208/220/230/240VAC
208/220/230/240VAC
Input Voltage Range
55-145 VAC or 110-300 VAC at 50% load
110-300 VAC ± 3% at 50% Load
85-140 VAC or 160-280 VAC at 100% load
176-300 VAC ± 3% at 100% Load
Frequency Range
40Hz ~ 70 Hz
46Hz ~ 54 Hz or 56Hz ~ 64 Hz
Power Factor
≥ 0.99 @ Nominal Voltage (100% load )
OUTPUT
Output Voltage
100/110/115/120/127VAC or 200/208/220/230/240VAC
208/220/230/240VAC
Voltage Regulation
± 1%
± 1%
Frequency Range
47~ 53 Hz or 57 ~ 63 Hz
46Hz ~ 54 Hz or 56Hz ~ 64 Hz
(Synchronized Range)
Frequency Range
50 Hz ± 0.25 Hz or 60Hz ± 0.3 Hz
50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
(Battery Mode)
Current Crest Ratio
3:01
Harmonic Distortion
≤ 3 % THD (Linear Load),
≤ 3 % THD (Linear Load),
≤ 6 % THD (Non-linear Load)
≤ 5 % THD (Non-linear Load)
Transfer
AC Mode to
Zero
0 ms
Time
Battery Mode
Inverter to Bypass
4 ms (Typical)
0 ms
Waveform (Battery Mode)
Pure Sine Wave
EFFICIENCY
AC Mode
88%
89%
90%
92%
93%
Battery Mode
83%
87%
88%
90%
91%
BATTERY
Standard
Battery Type
12 V / 9 AH
12 V / 9 AH
12 V / 9 AH
N/A
Model
Numbers
2
4
6
Typical
4 hours recover to 90% capacity
Recharge Time
Charging Current
1.0 A
Charging Voltage
27.4VDC ± 1%
54.7 VDC ±1%
82.1 VDC ±1%
Long-run
Battery Type
Depending on the capacity of external batteries
Depending on applications
Model
Numbers
2
4
6
16
Charging Current
1.0A/2.0A/4.0A/6.0 A
1A/2A/4A/6A (Adjustable)
(max.)
Charging Voltage
27.4VDC
54.7 VDC
82.1 VDC
218.4 VDC ± 1%
± 1%
±1%
±1%
INDICATORS
LCD Panel
UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
ALARM
Battery Mode
Sounding every 4 seconds
Low Battery
Sounding every second
Overload
Sounding twice every second
Fault
Continuously sounding
PHYSICAL
Standard
Dimension,
310 x 438 x 88
N/A
Model
D x W x H (mm)
[2U]
Net Weight (kgs)
12
Long-run
Dimension,
310 x 438 x 88
530x438x88
580x438x133
Model*
D x W x H (mm)
[2U]
[2U]
[3U]
Net Weight (kgs)
9
15
18
ENVIRONMENT
Humidity
20-90 % RH @ 0- 40°C (non-condensing)
0-95 % RH @ 0- 40°C
(non-condensing)
Noise Level
Less than 50dB @ 1 Meter
Less than 55dB
Less than 58dB
@ 1 Meter
@ 1 Meter
MANAGEMENT
Smart RS-232 / USB
Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8/10, Linux and MAC
Optional SNMP
Power management from SNMP manager and web browser
STANDARD
EMC/Safety
CE, IEC 61000-4-5 Protection surge, IEC 62040-2 EMC/EMI, IEC62040-1 Safety
