High Speed Wirecut Edm Dk7732 Cnc Wire Cutting Machine
US $5555-$8888
DK7750 High speed wire cut edm dk77 machines cnc with CE certified
- Category: Machine Tool Equipment >>>
- Supplier: Taizhou,Hitech,Nc,Machine,Tool,Co.,Ltd.
Share on:
Product Overview
Description
Model | Worktable size (mm) | Worktable travel (mm) | Max. cutting thickness (mm) | Processing taper | Max. load weight (kg) | Main machine weight(kg) |
DK7720 | 250x320 | 200x250 | 200 | 6°/80mm | 100 | 800 |
DK7725 | 270x420 | 250x320 | 400 | 6°/80mm | 200 | 1200 |
DK7732 | 380x600 | 320x400 | 400 | 6°/80mm | 300 | 1400 |
DK7740 | 410x710 | 400x500 | 400 | 6°/80mm | 450 | 1600 |
DK7745 | 500x750 | 450x550 | 400 | 6°/80mm | 450 | 1650 |
DK7755 | 596x880 | 550x650 | 500 | 6°/80mm | 800 | 2500 |
DK7763 | 790x1260 | 630x1000 | 600 | 6°/80mm | 1000 | 3500 |
DK7780 | 900x1500 | 800x1200 | 600 | 6°/80mm | 1500 | 5500 |
DK77120 | 1300x1900 | 1200x1600 | 600 | 6°/80mm | 4000 | 10000 |
DK77 series wire EDM machines, models are complete, structure is reasonable, rigidity is good, and precision is high. High-grade machine adopts precision linear guide rail, and high column optionally equips electric lifting roller span adjustment. Swinging big taper series machine tools are equipped with wire electrode wire agencies, and produce semi-hermetic environmental protection machine tools. Machine specifications can be customized according to customer needs. The company also produces ±30°, ±45° swing large taper machines and CNC high-precision middle speed edm wire cutting machines(Precision≤±0.005mm,roughness≤1.0μm). The following are the main parameters of DK77 series machines:
1.Standard maximum cutting taper:±6°/80mm;(±15°,±30°,±45° are optional)
2.Precision ≤ 0.02mm,according to GB7926-2005 standard;(If linear guide equipped, the precision can reach 0.01mm)
3.Best surface roughness ≤ Ra2.5μm(single-cut),Ra1.5μm(multi-cut);
4.Molybdenum wire diameter:0.1-0.2mm;
5.Max. cutting speed≥120mm^2/min;
6.Voltage:3 phase 380V(single phase 220V,3 phase 220V or other voltage can be customized),Power:1.5KW;
7.Working fluid:Water-based emulsion.
8.Control System (HL, HF, AUTO-CUT),Desk or vertical control cabinet Industrial computer with keyboard and mouse Software installed.
1.Standard maximum cutting taper:±6°/80mm;(±15°,±30°,±45° are optional)
2.Precision ≤ 0.02mm,according to GB7926-2005 standard;(If linear guide equipped, the precision can reach 0.01mm)
3.Best surface roughness ≤ Ra2.5μm(single-cut),Ra1.5μm(multi-cut);
4.Molybdenum wire diameter:0.1-0.2mm;
5.Max. cutting speed≥120mm^2/min;
6.Voltage:3 phase 380V(single phase 220V,3 phase 220V or other voltage can be customized),Power:1.5KW;
7.Working fluid:Water-based emulsion.
8.Control System (HL, HF, AUTO-CUT),Desk or vertical control cabinet Industrial computer with keyboard and mouse Software installed.

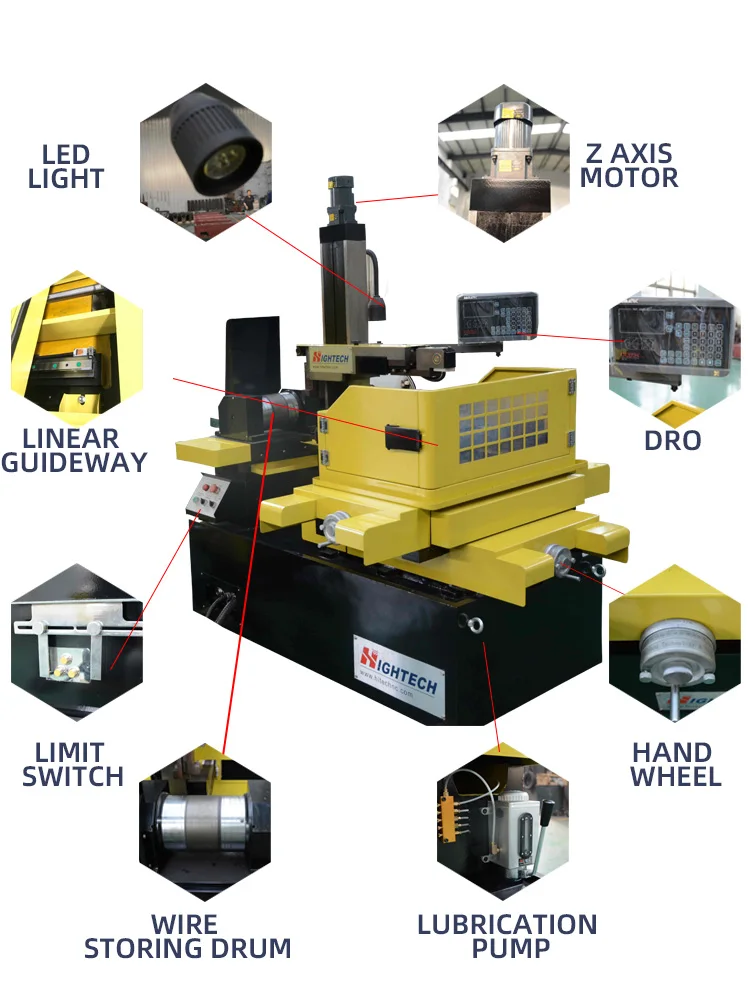

DOUBLE GUIDE WHEEL
With double-sided large guide wheel, the cutting is more stable,and the molybdenum wire is put into the guide
wheel.No hook is needed to wear molybdenum wire, whitch is conwenient for operation.
WIRE BARREL
The chromium plating process is adopted to reduce the runout of the barrel and increase its smoothness.
DRO-Digital Readouts(Optical ruler)
Real-time monitoring of X-axis and Y-axis displacement.accurate acquisition of the cutting process.5 μm high precision.
Stepper motor
X,Y,U,V axis are driven by stepper motors (servo motor is optional)
50L Small water tank
60L Large High-pressure water tank
X8 System
* Simplified CAD
* Very low failure rate
* Both drawing and processing functions
* Intelligent,concise and intuitive
* Files in DXF,DAT ,DFT,3B code,G code and other formats importable
AutoCut System with AutoCAD
* Multi-language switching
* Switchable between English, RUssian, CHinese etc
* The software can be directly embedded in AutoCAD CAXA and other versions of software
* Support 3B code,G code and other processing codes generated by various wire cutting software.
HL System
SBC control unit
Fully enclosed intelligent controller (single-pass single-cut)
* Standard system:X8(Support multiple language switching)
* Optional system:AutoCut,HL,HF
* Optional system:AutoCut,HL,HF
OPTIONAL CONTROLLER
Vertical high-speed intelligent controller (single-pass single-cut)
Vertical high-speed intelligent controller (single-pass single-cut)
* Standard system:AutoCut with AutoCAD
* Optional system: X8,HF
* Optional system: X8,HF
CE certificate
ISO certificate
Patent certificate
Alibaba Gold Verified Supplier
Alibaba Outstanding E-commerce Award

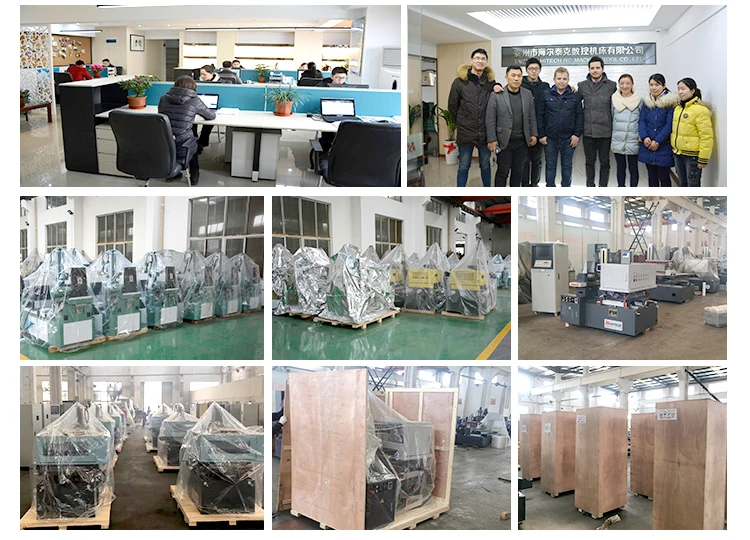

Taizhou HITECH NC Machine Tool Co., Ltd. is located in Hi-tech Science and Technology Industry Zone of Taizhou City, Jiangsu Province, China, with a number of research and development and manufacturing bases.
Our company specializes in researching, manufacturing and selling precision machines.
Our products include EDM wire cutting machines, edm die sinking machines, and edm drilling machines and other special edm equipments.
Taizhou Hitech NC Machine Tool Co., Ltd. has built long term and close cooperation relationships with many foreign friends, covering more than 20 countries, and we are looking forward to more cooperations with friends from all over the world, and hope our products could help more friends in their local industry and business market development.
Our company established in 2004, has 96 employs, and sold about 200sets about the deep hole machines all of the world.
We always keep our enterprise mission---“Quality changes the world” in mind. We start our work from each trivial matter, and do our best to complete each detail well, and offer solid technical service and good service to our machine customers.
Quality guarantee, high efficiency, valuing friendship, observing credibility and sincerity-oriented” is our enterprise principle, which all staff should abide by.
Quality and honesty are the keys of the enterprise future.
Our company specializes in researching, manufacturing and selling precision machines.
Our products include EDM wire cutting machines, edm die sinking machines, and edm drilling machines and other special edm equipments.
Taizhou Hitech NC Machine Tool Co., Ltd. has built long term and close cooperation relationships with many foreign friends, covering more than 20 countries, and we are looking forward to more cooperations with friends from all over the world, and hope our products could help more friends in their local industry and business market development.
Our company established in 2004, has 96 employs, and sold about 200sets about the deep hole machines all of the world.
We always keep our enterprise mission---“Quality changes the world” in mind. We start our work from each trivial matter, and do our best to complete each detail well, and offer solid technical service and good service to our machine customers.
Quality guarantee, high efficiency, valuing friendship, observing credibility and sincerity-oriented” is our enterprise principle, which all staff should abide by.
Quality and honesty are the keys of the enterprise future.
Q:Are you manufacturer?
A:Yes,we are manufacturer of wire EDM cutting machine.Welcome to visit us!
Q:What payment terms do you accept?
A:We are flexible on payment terms,please contact us for details!
Q:What information do you need before making quotation?
A:Worktable size or table travel you need.Surface roughness and cutting speed requirements.
Q:What should I do to start a new business in EDM wire cutting machine area?
A:Please contact us immediately,we provide free pre-sales consultant service of wire cutting machine EDM cutting machine.
Q:Why choose you?What is the difference between you and other Chinese supplier?
A:We have specialized in this area for over 20 years.Our EDM wire cutting machines are exported to Russia,India,UAE,South Korea,Canada,Vietnam,Thailand,Mexico,Turkey and etc.
You can get higher quality product & better professional service from Hitech with same price.
Q:I`m worried about after-sales service!
A:Warranty is one year.
Any parts damaged during warranty will be replaced for free!
We provide spare parts for life time at cost price.
Electrical parts such as boards and servo drives,we`ll provide them for life time as well at cost price.
Our engineers are available to service overseas!
Q:How do I get in contact with you?
Wechat/Whatsapp:+8615996019602
Skype:sophie_hitech
Telephone:+86-523-86892269
Fax:+86-523-86892368
A:Yes,we are manufacturer of wire EDM cutting machine.Welcome to visit us!
Q:What payment terms do you accept?
A:We are flexible on payment terms,please contact us for details!
Q:What information do you need before making quotation?
A:Worktable size or table travel you need.Surface roughness and cutting speed requirements.
Q:What should I do to start a new business in EDM wire cutting machine area?
A:Please contact us immediately,we provide free pre-sales consultant service of wire cutting machine EDM cutting machine.
Q:Why choose you?What is the difference between you and other Chinese supplier?
A:We have specialized in this area for over 20 years.Our EDM wire cutting machines are exported to Russia,India,UAE,South Korea,Canada,Vietnam,Thailand,Mexico,Turkey and etc.
You can get higher quality product & better professional service from Hitech with same price.
Q:I`m worried about after-sales service!
A:Warranty is one year.
Any parts damaged during warranty will be replaced for free!
We provide spare parts for life time at cost price.
Electrical parts such as boards and servo drives,we`ll provide them for life time as well at cost price.
Our engineers are available to service overseas!
Q:How do I get in contact with you?
Wechat/Whatsapp:+8615996019602
Skype:sophie_hitech
Telephone:+86-523-86892269
Fax:+86-523-86892368
