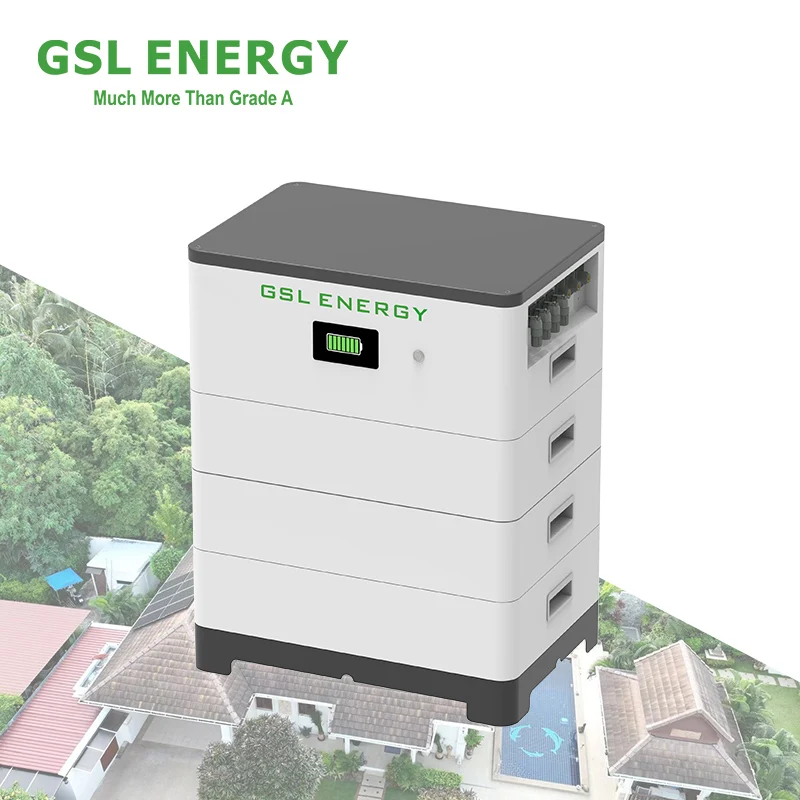

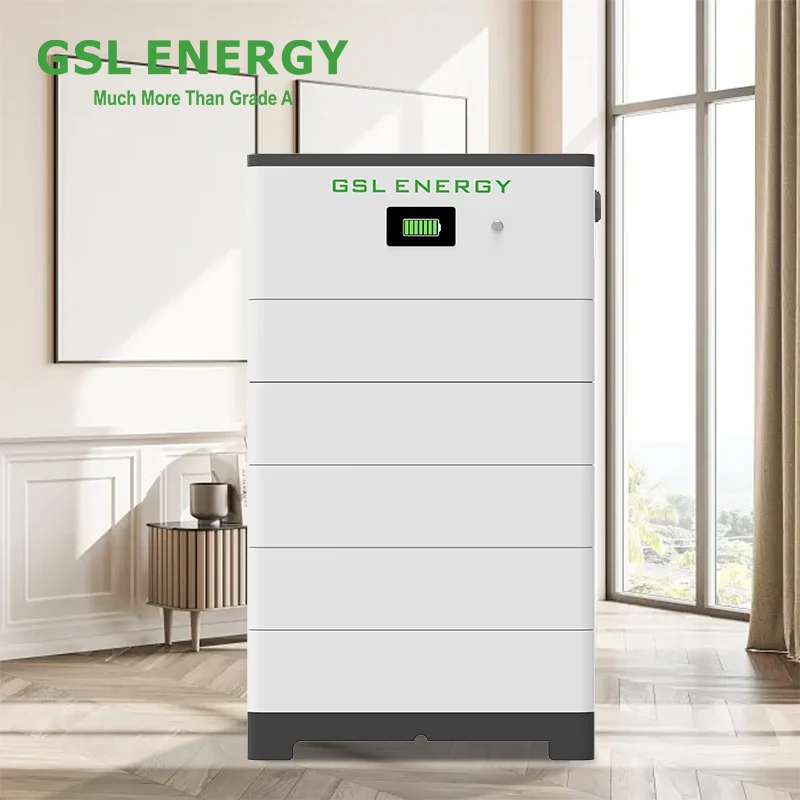

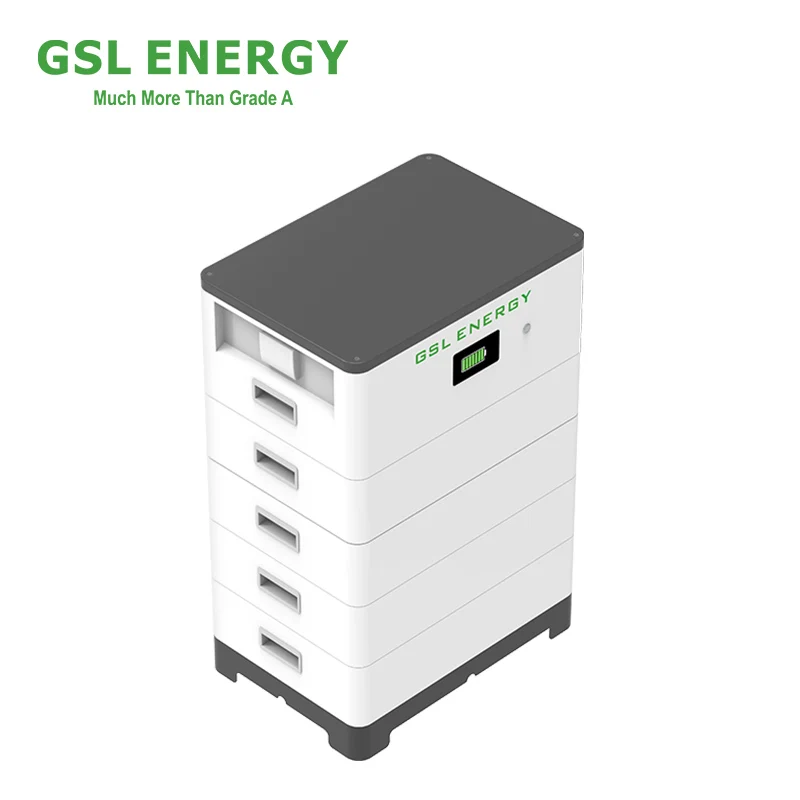

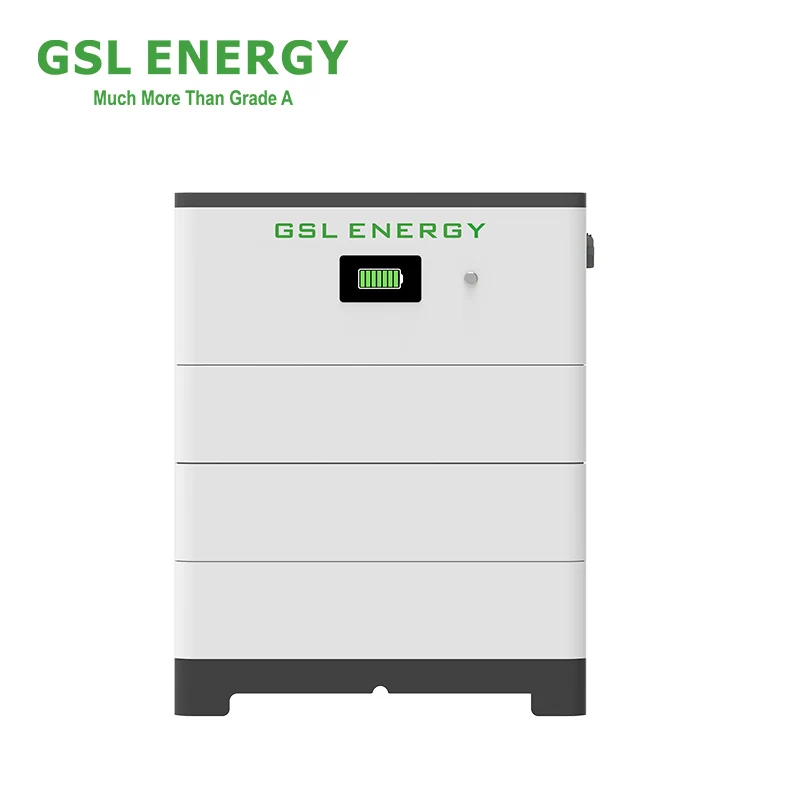

GSL ENERGY High Voltage 50ah Lithium Solar Battery 153.6V 204.8V 256V 307.2V 358.4V 409.6V Lithium Ion Battery Rack Lifepo4 Batt

Share on (1600716994898):


Price:$747.27 - $828.00

Quantity:


Product Overview

Description



Product Description

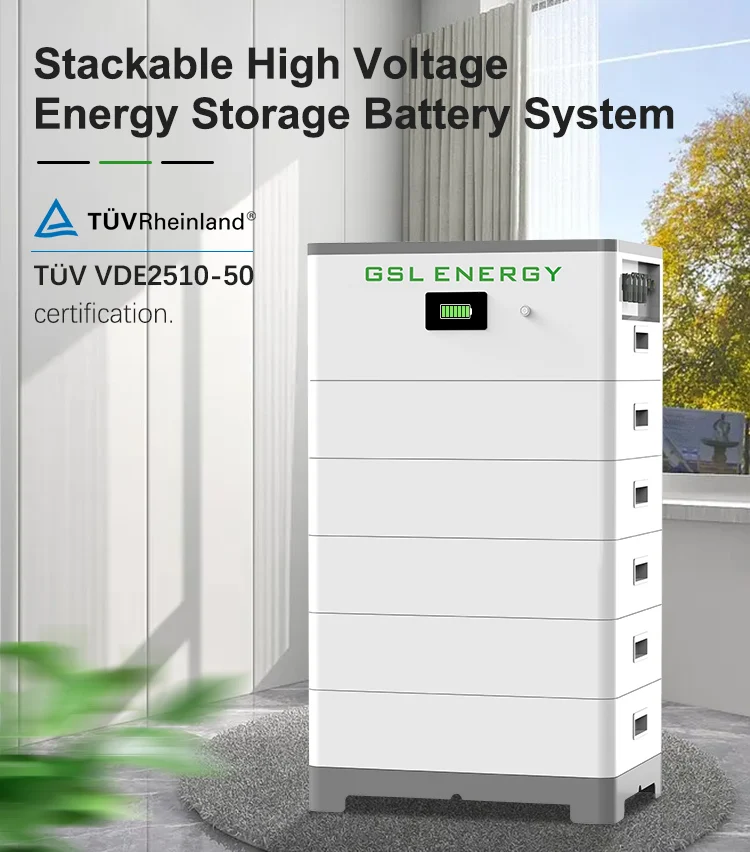

GSL ENERGY High Voltage 10Kw 15Kw 20kw Lithium Solar Battery For Solar Energy Storage System




















































































































































Basic Parameters


G3


G4


G5


G6


G7


G8

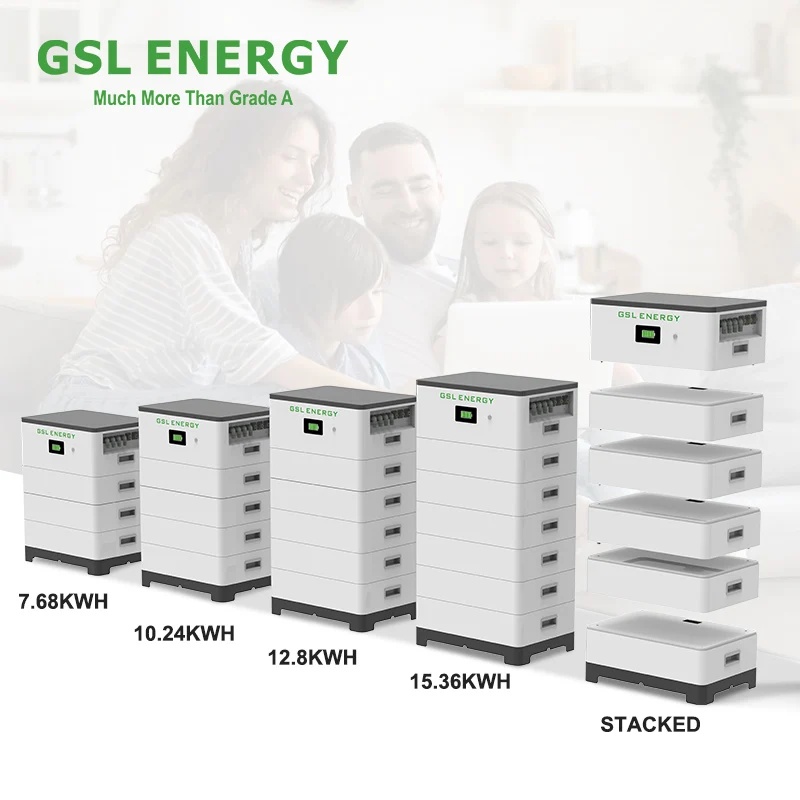

Nominal Energy (KWh)


7.68


10.24


12.8


15.36


17.92


20.48


Cell Matching


48S1P


64S1P


80S1P


96S1P


112S1P


128S1P


Working Voltage Range (V)


136.8-172.81


182.4-230.4


228-288


273.6-345.6


319.2-403.2


364.8-460.8


Weight (kg)


115


145


175


205


235


265


Nominal Voltage (V)


153.6


204.8


256.0


307.2


358.4


409.6


Dimension
(WxDxH mm)



550x430
x697.5



550x430
x826.5



550x430
x955.5



550x430
x1084.5



550x430
x1213.5



550x430
x1342.5



Battery Type



LFP(LiFePO4)



Nominal Working Capacity



50Ah



Communication Port



CAN/RS485



Working Temperature Range



Charge:O-45°℃/Discharge:-10-50°C



Waterproof



IP55



Ilnstallation Method



Floor-standing



Cycle Life



6500 times



Design Life



10 years



Peak Charge/Discharge Current (@25℃,5S)



63A



Discharge Rate of Module



≤3.5%/month/@25℃

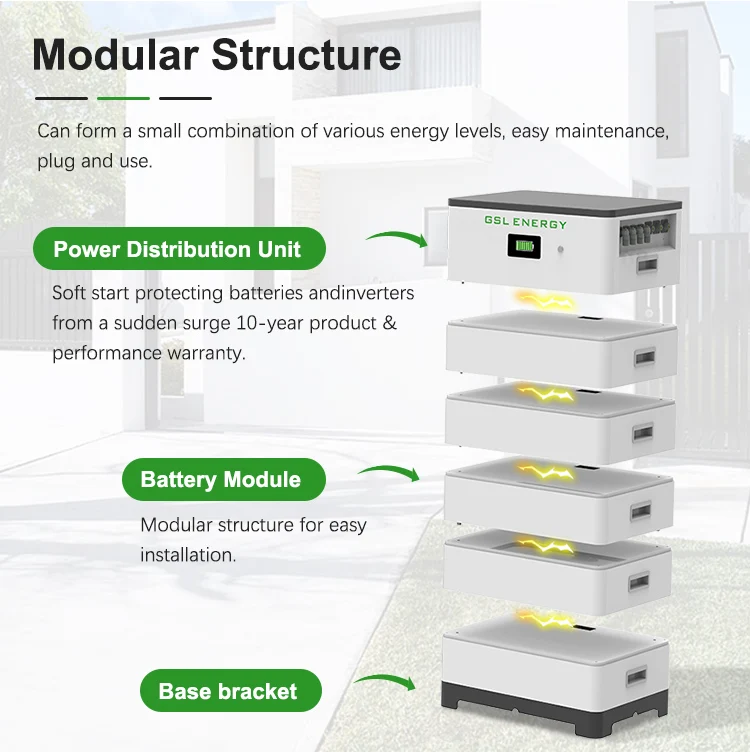

Module Series Connection/Module



3S~8S

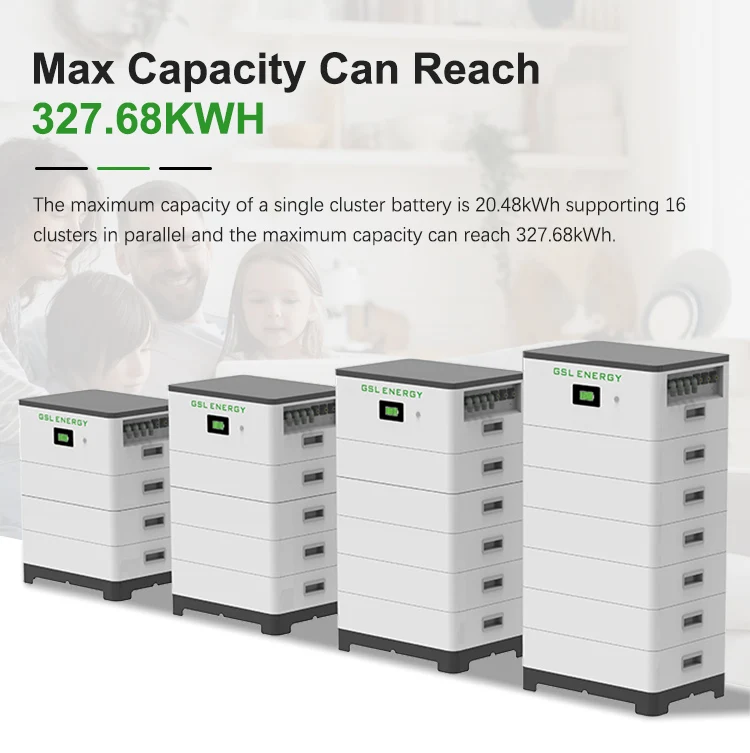

Parallel Connection



16 units in parallel

















20kwh battery  (9).jpg





Solar system app 4.29.jpg





20kwh battery  (6).jpg


powerwall .jpg

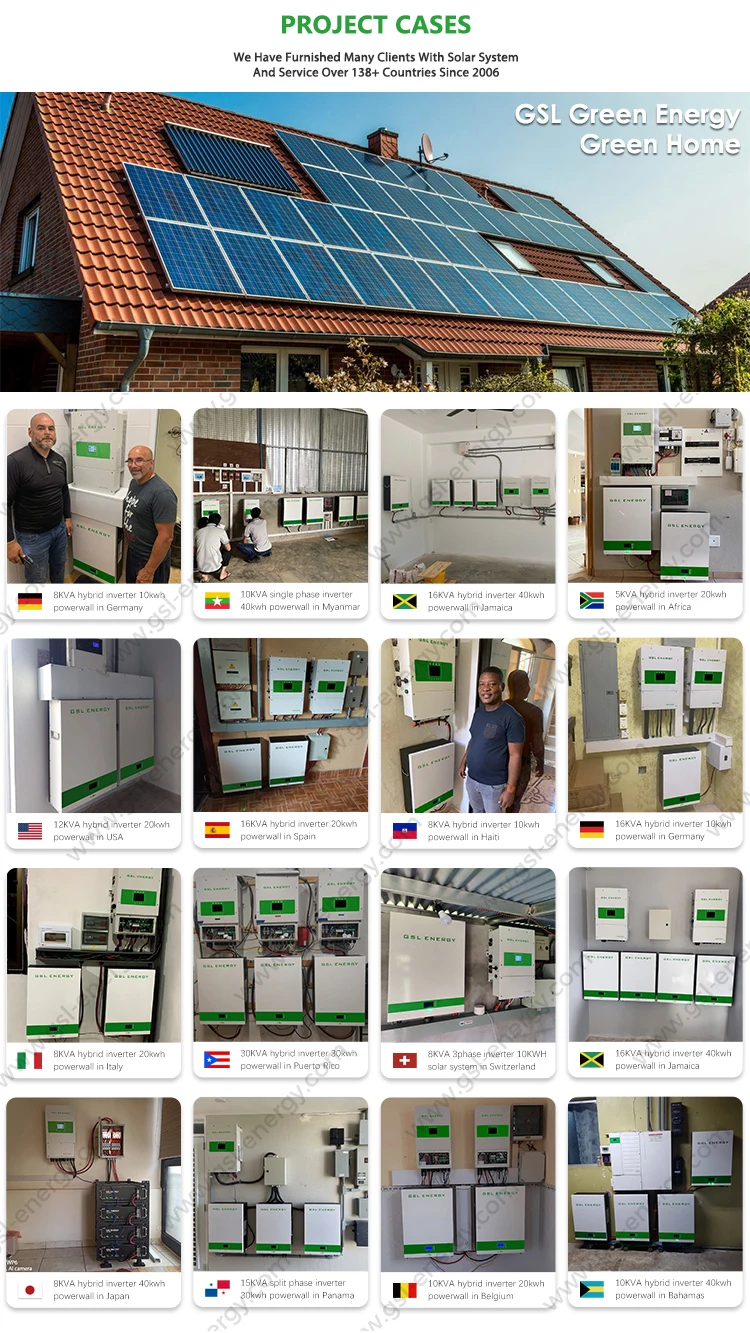

Project












Factory Introduction


GSL ENERGY is focused on manufacturing, R&D and sales for safe Lithium battery and solutions. With the registration and certification of CE, SGS, ROHS.  Striving to grow into a global leading lithium battery supplier, GSL ENERGY has been working hard on researching and developing new process technology to make our lithium battery more affordable and able to meet the rapidly growing market demands.


lifepo4 battery (33).jpg





 Over 500 workers in 12000 sqm2 battery cell production and pack manufacturing base.










 Passing all certificates IEC62133, IEC62219, CE, UN38.3, MSDS, etc.













Exhibition


Through years development and experienced international sales team in Shenzhen, GSL ENERGY green solar and lithium battery products have been sold to clients all over the world.





lifepo4 battery cell 17





GSL High Voltage 50ah Lithium Solar Battery 153.6V 204.8V 256V 307.2V 358.4V 409.6V Lithium Ion Battery Rack Lifepo4 Battery


For more details and price, please send us an enquiry below  ⇓⇓⇓
