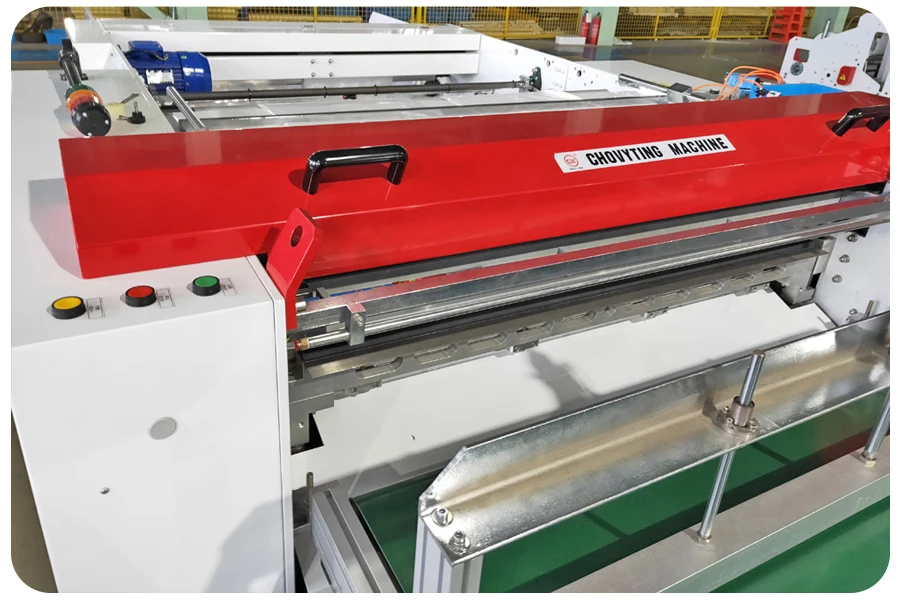

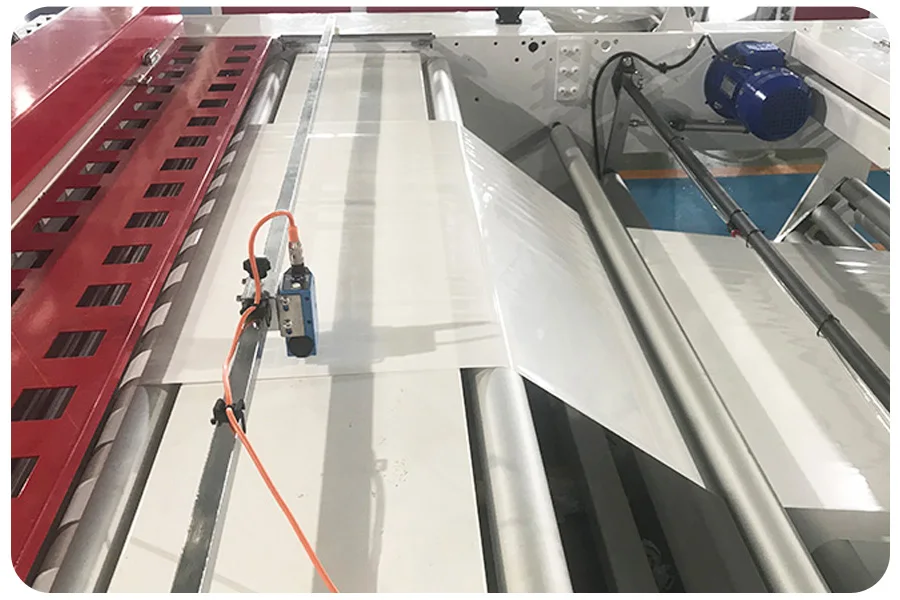

Full Automatic Sealing & Cutting Strong Rice Bag Making Machine With Flying Knife System

Product Overview

Description

Product Name:  Full Automatic Sealing & Cutting Strong Rice Bag Making Machine With Flying Knife System

Feature:



1. Newly design flying knife cutting system, easy to exchange the blade



2. Double electric hot heating sealing design, sealing firmly



3. The entire stack, the entire output



4) Can make multi-lane non-print bag.



Optional device:



1.Hanger hole puncher device



2.V type sealing device



3.Surface friction unwinding device



4.Double servo feeding for producing double lane print bag



Technical parameter:

Type	CW-1000FB	CW-1200FB	CW-1400FB	CW-1600FB
Bag making length	200-3000mm	200-3000mm	200-3000mm	200-3000mm
Bag making width	900mm	1100mm	1300mm	1500mm
Mechanical  speed	80pcs/min	80pcs/min	80pcs/min	70pcs/min
Film thickness (mm)	0.04×2-0.25×2	0.04×2-0.25×2	0.04×2-0.25×2	0.04×2-0.25×2
Total power	7.5KW	8KW	9KW	10KW
Machine weight	1800kg	2000kg	2100kg	2200kg
Machine dimension	6000X1800X1300mm	6000X2000X1300mm	6000X2200X1300mm	6000X2400X1300mm
Air compressor	6HP	6HP	6HP	6HP

























Our CE Certification:

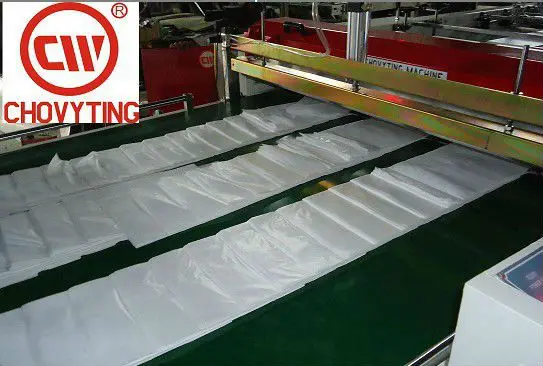

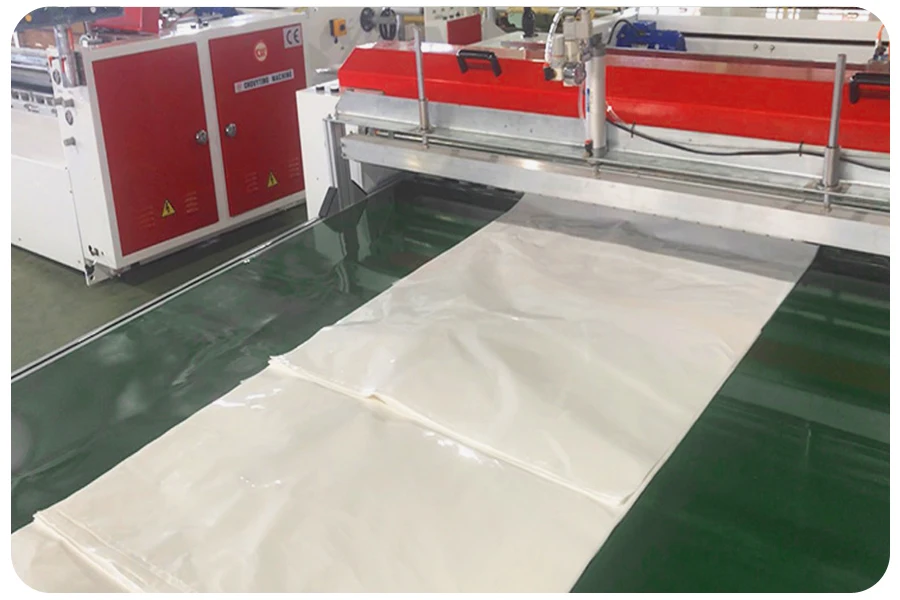

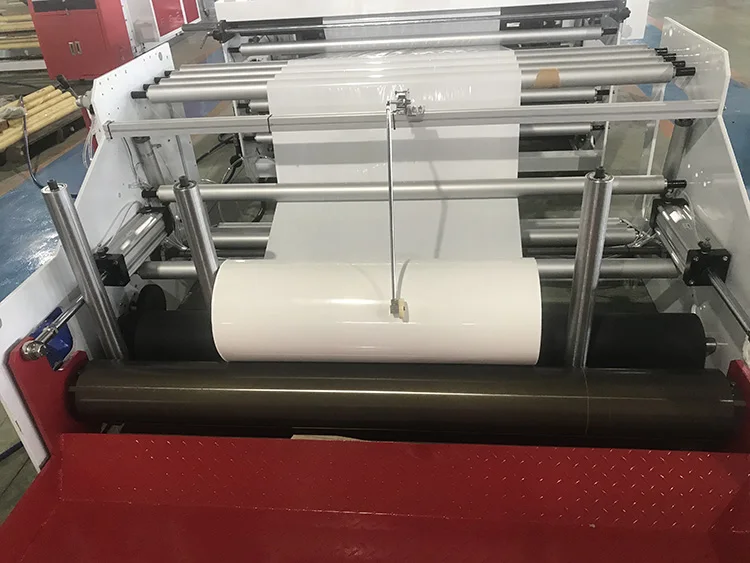

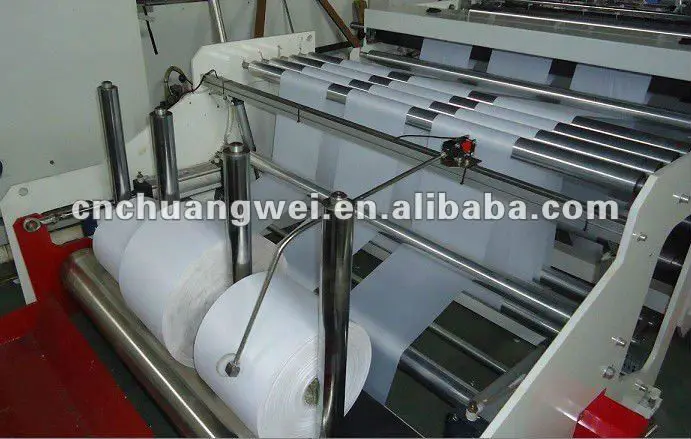

Our Machine Photos:

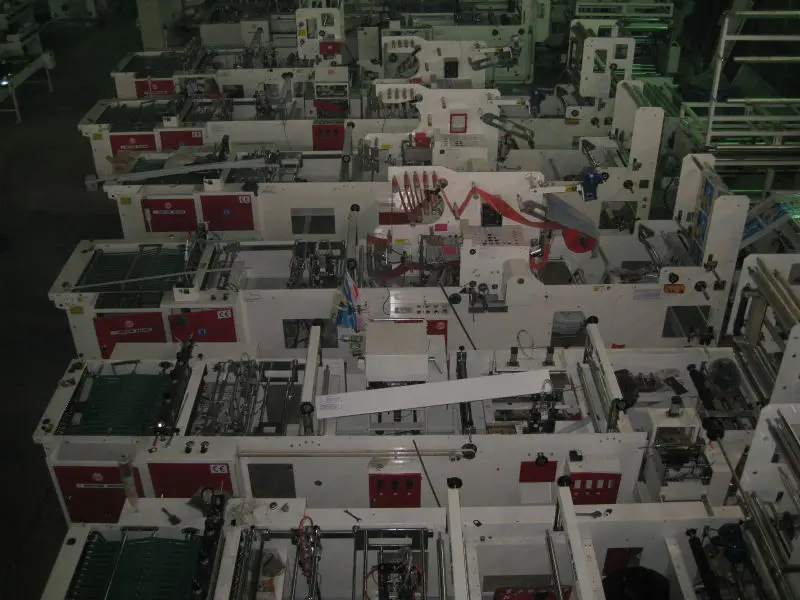

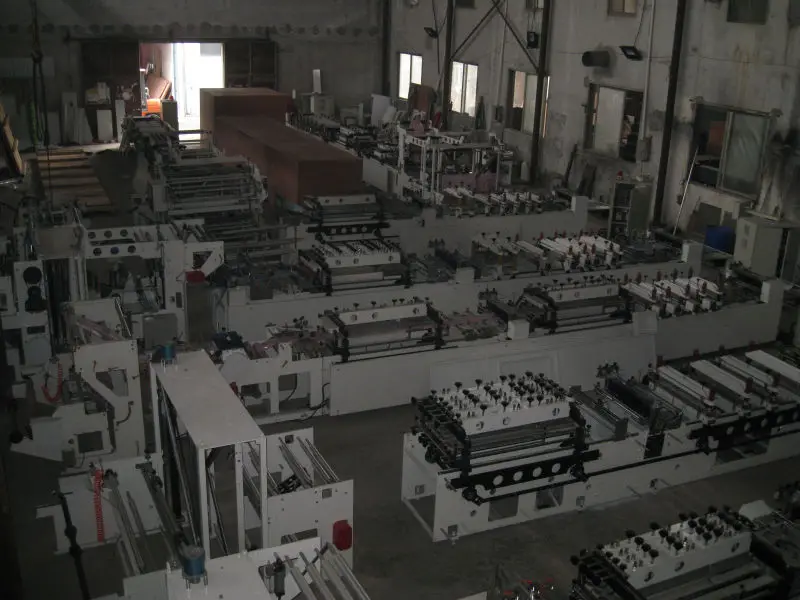

Our Workshop:







Package Steps:





Our Main Products:
