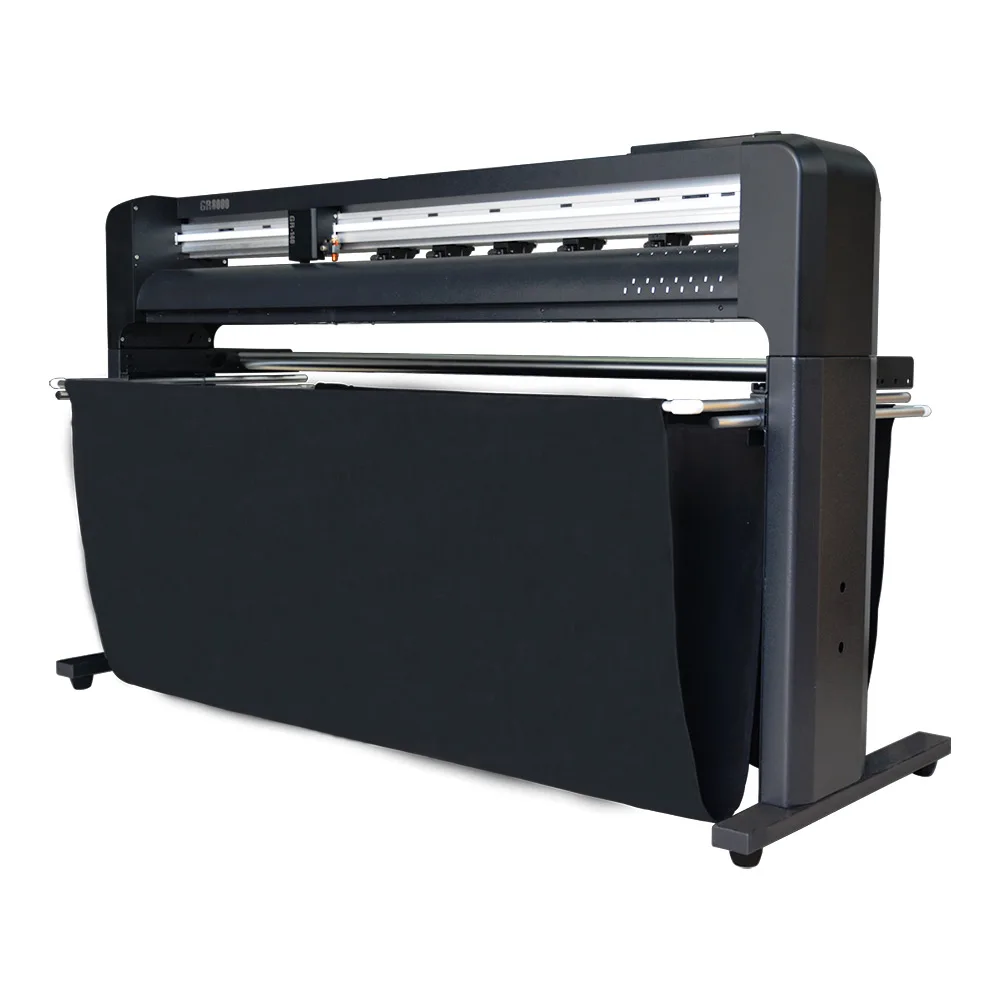

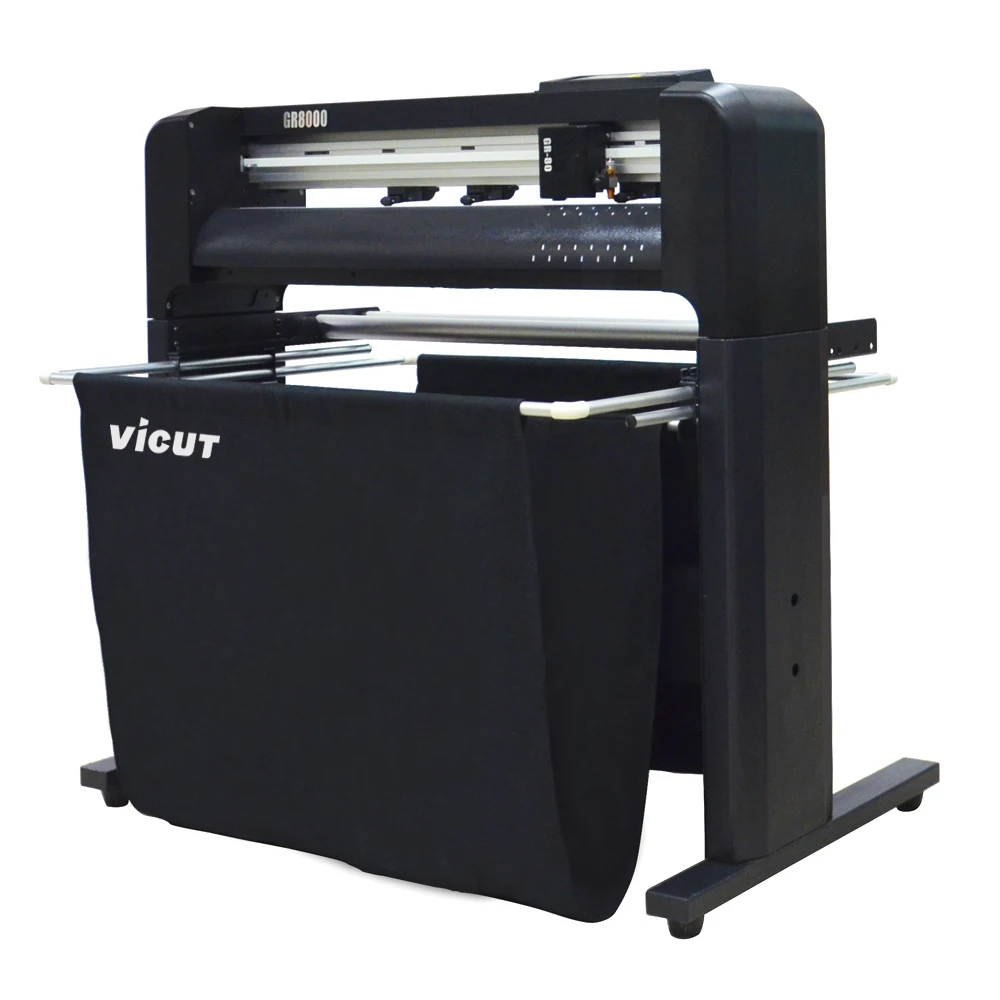

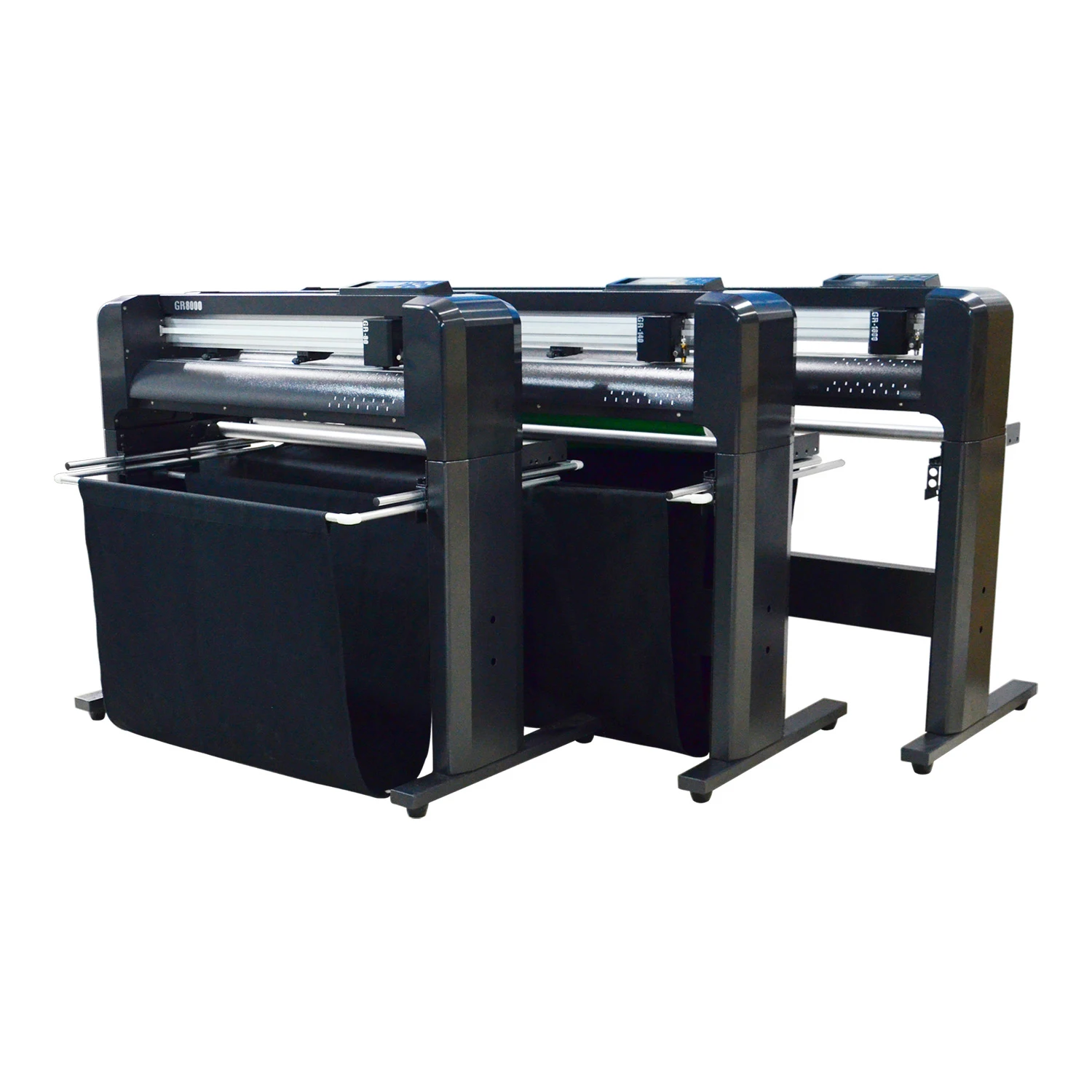

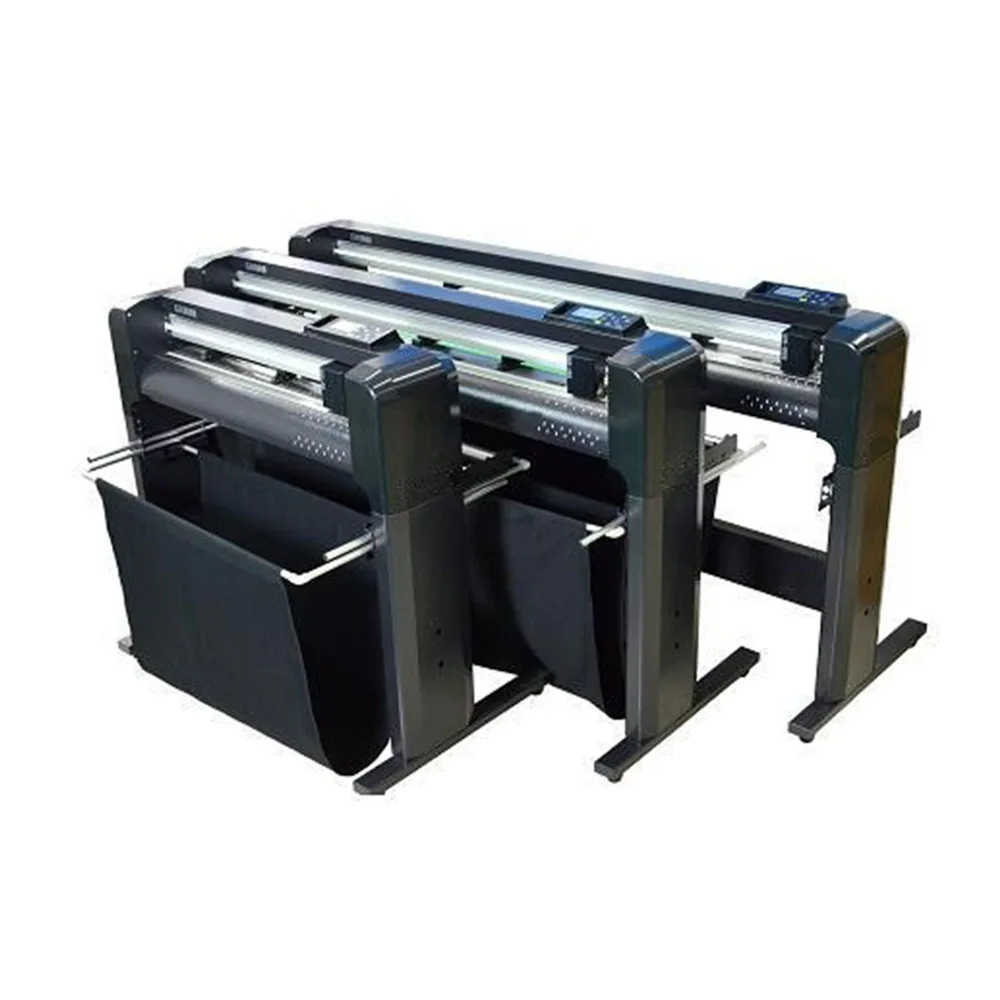

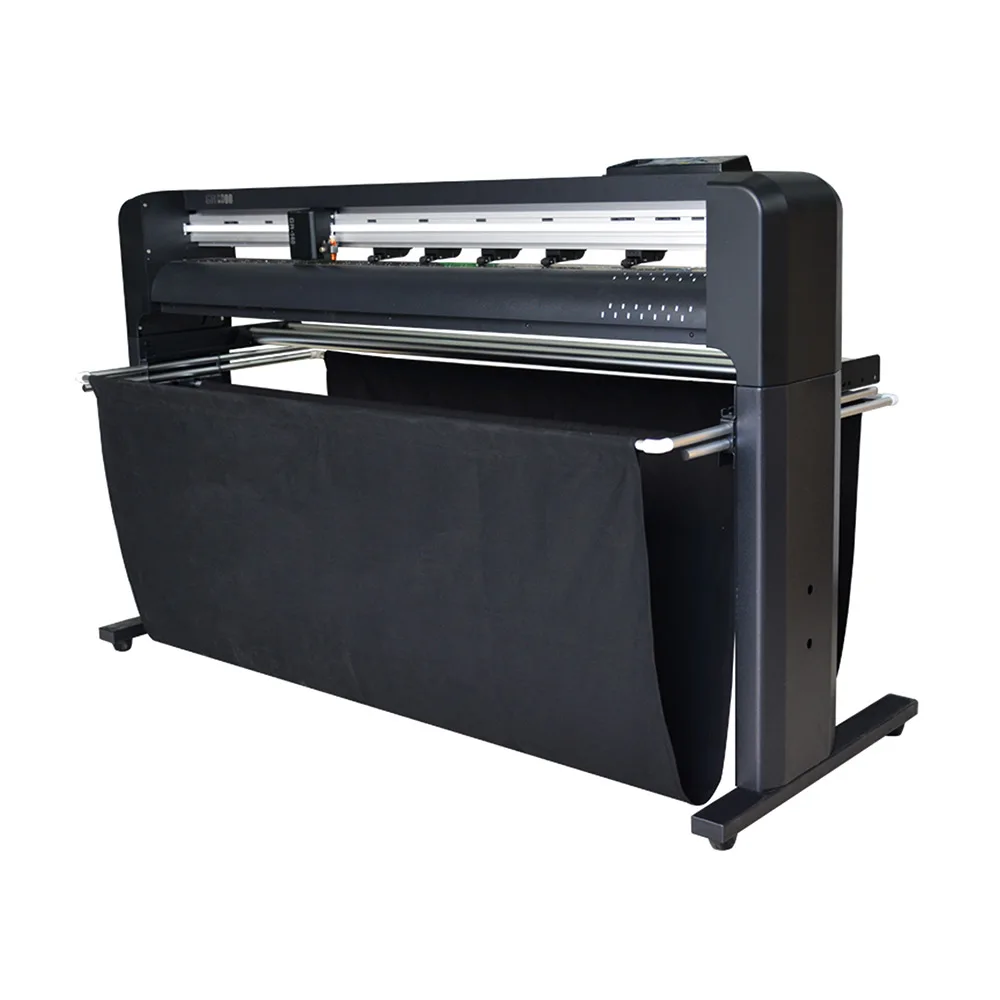

High Precision Vicut 1440mm Reflective Film Vinyl Cutting Plotter Machine Gr8000 140 with Servo Motor
- Category: >>>
- Supplier: Anhui William CNC Technology Co. Ltd.
Share on (1600717063565):
Product Overview
Description
Product Description
Product Application
VICUT GC8000 Series of high performance cutting plotter offers advanced solution for users from automotive aftermarket,road safety,sign,graphic and counter-top installation. It is capable of processing paint protection film(PPF),window tinting,diamond grade reflective film,sandblast resist rubber,card paper,self-adhesive vinyl, Amberlith and Rubylith,etc.
Technical Parameters | ||||||
Model | VCT-GC80 | VCT-GC140 | VCT-GC180 | |||
Max.Cutting Width (Non-contour Cutting） | 690mm | 1290mm | 1630mm | |||
(Non-contour Cutting） | 690mm | 1290mm | 1630mm | |||
Max.Cutting Width （Contour Cutting） | 600mm | 1220mm | 1520mm | |||
600mm | 1220mm | 1520mm | ||||
Max.mountable media width | 840mm | 1440mm | 1780mm | |||
Min.mountable media width | 70mm | |||||
Max.cutting speed | 800mm/s | |||||
Max.cutting force | 600gf/5.8N in 8 steps | |||||
Cutting force setup | Adjustable in every 1gf | |||||
Drive | Servo | |||||
Mechanical resolution | 0.0125mm | |||||
Min. circle diameter | 0.8mm | |||||
Min. character size | 1x1mm | |||||
Min. number size | 3x3mm | |||||
IOS | Win10/8/7/XP | |||||
Memory buffer | 2MB | |||||
Software | Windows Driver,SignWorkPro,CADtoPlotpro | |||||
LCD | English | |||||
File format | HP-GL,PLT | |||||
Port in standard | USB,RS-232 | |||||
Registration marks sensing | GARMS | |||||
Power input | 90V-240V AC,50-60Hz | |||||
Power consumption | 60w | |||||
Cutter holder/pen holder | 1 for each | |||||
Cutter blade diameters | 0.9mm,1.5mm,2.0mm | |||||
Cutter blade angles | 30°,45°,60° | |||||
Types of pen | Water based fiber-tip pen & Oil based ball pen | |||||
Method to fix material | Push rollers | |||||
Media stock roller plates | Included | |||||
Basket | For option | |||||
Package size L-W-H | 1180x400x570mm | 1710x400x570mm | 2200x400x570mm | |||
Gross/Net weight | 42/27kg | 96/62kg | 105/72kg | |||
Main Features
1. Reliable long-length tracking.
2. Cutting small text strings accurately.
3. Static electricity free.
4. Compatibility with Adobe Illustrator(AI),CorelDRAW,AutoCAD.
