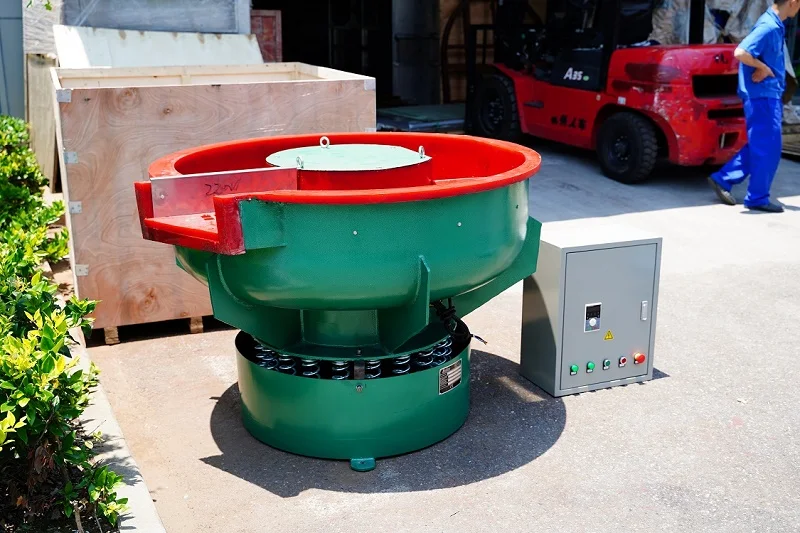

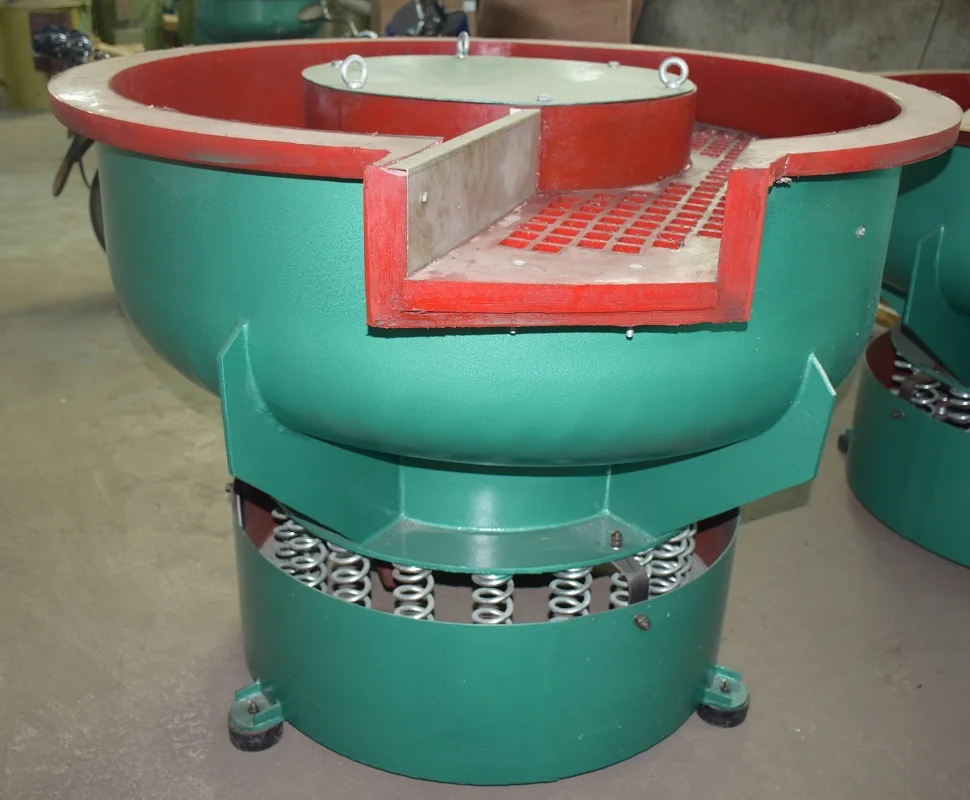

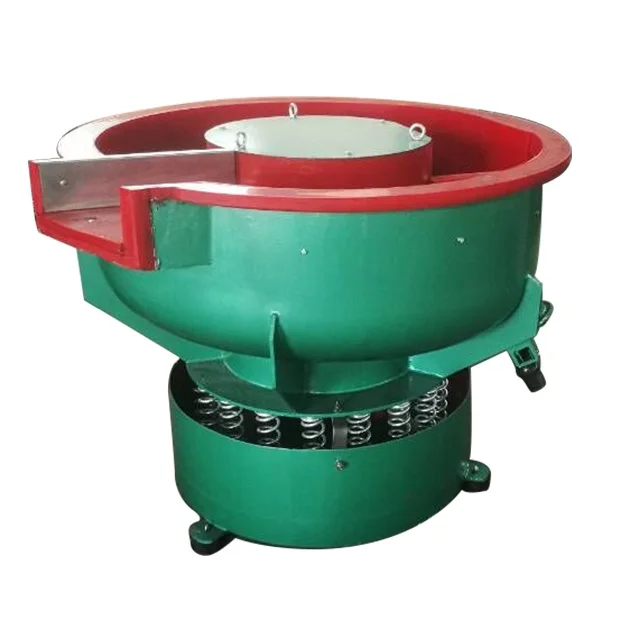

350L Vibratory Tumbling Polishing Machine

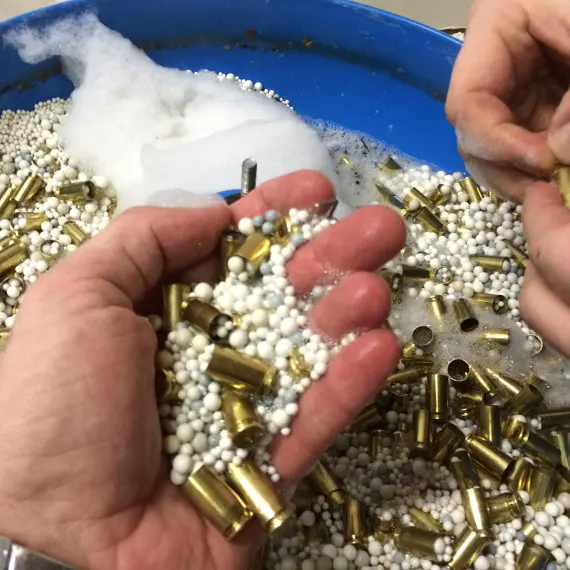

CL-350AB vibratory tumbling polishing machine provides an ideal solution for polishing metal workpiece, results a smooth and bright processing effect. This machine is applied for large quantity of small to big sized metal parts in surface cleaning, finishing, chamfering, removing of burrs, glossy lighting treatment.

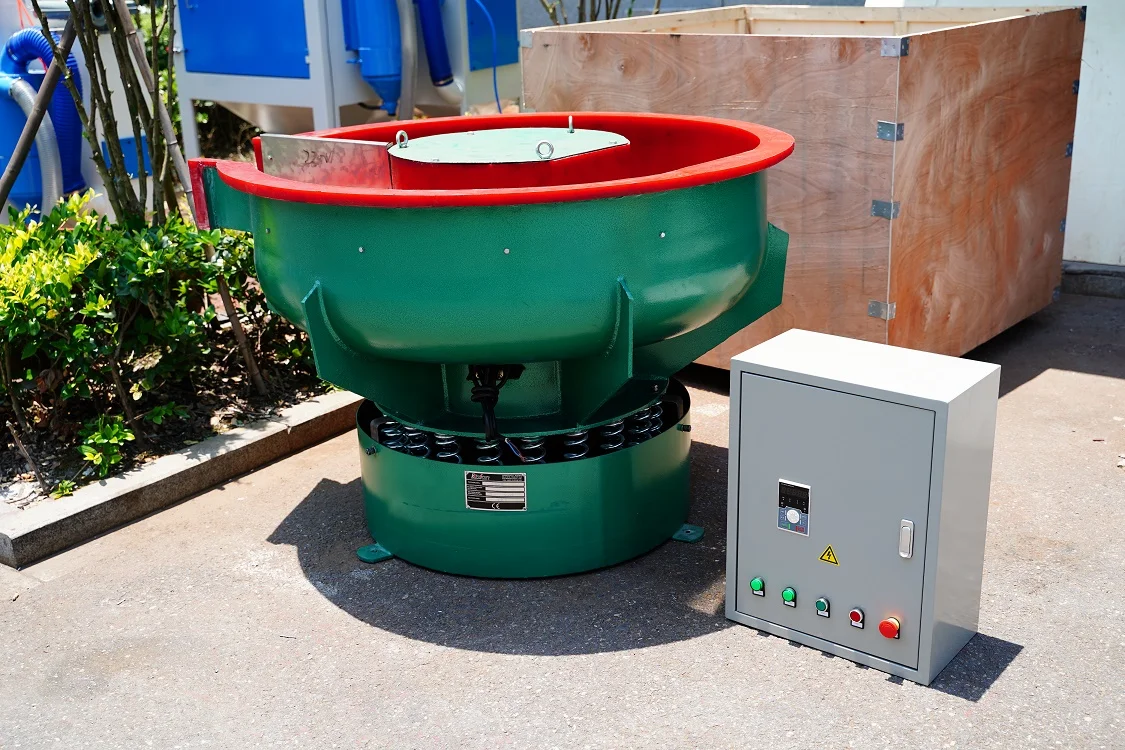

Vibratory Tumbling Polishing Machine Electric Controller

Customized electric controller realizes to adjust speed and amplitube of the vibratory motor, in order to set more precise parameters for various finishing and polishing purposes, thus different kinds of workparts will get an optimal polishing effect.

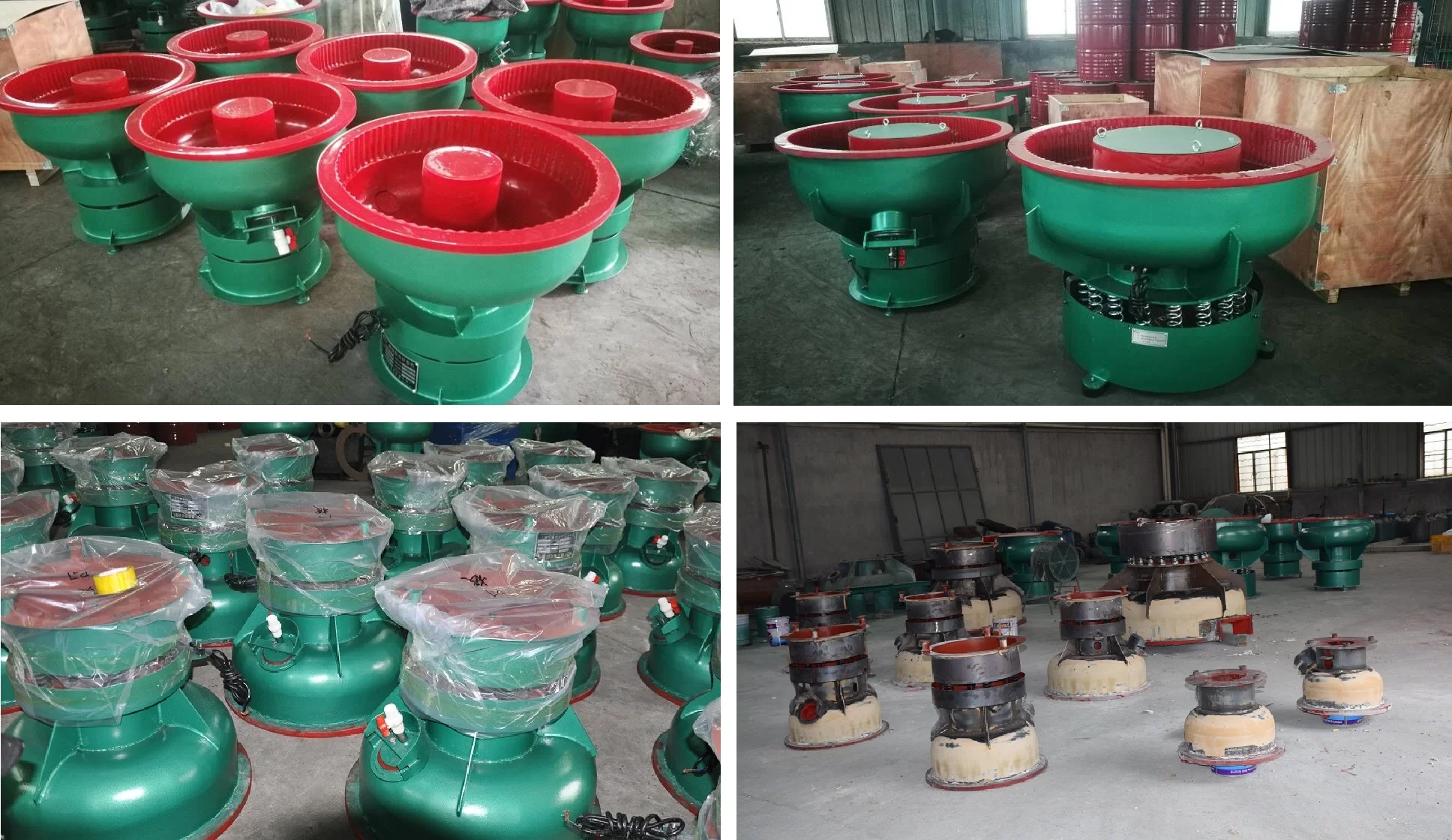

Details Images


Features of CL-350AB Vibratory Tumbling Polishing Machine

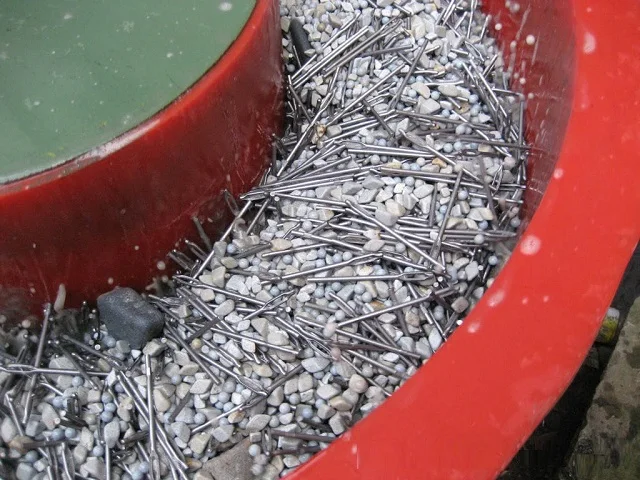

1.The heavy-duty round bowl could contain 350L of workpieces, medias, compounds to achieve high production.
2. Installed with high-performance vibration three-phase motor, amplitude adjustable and speed control variable.
3. The open vibrating bowl allows inspection at any time, PLC control system is optional for unmanned operation.

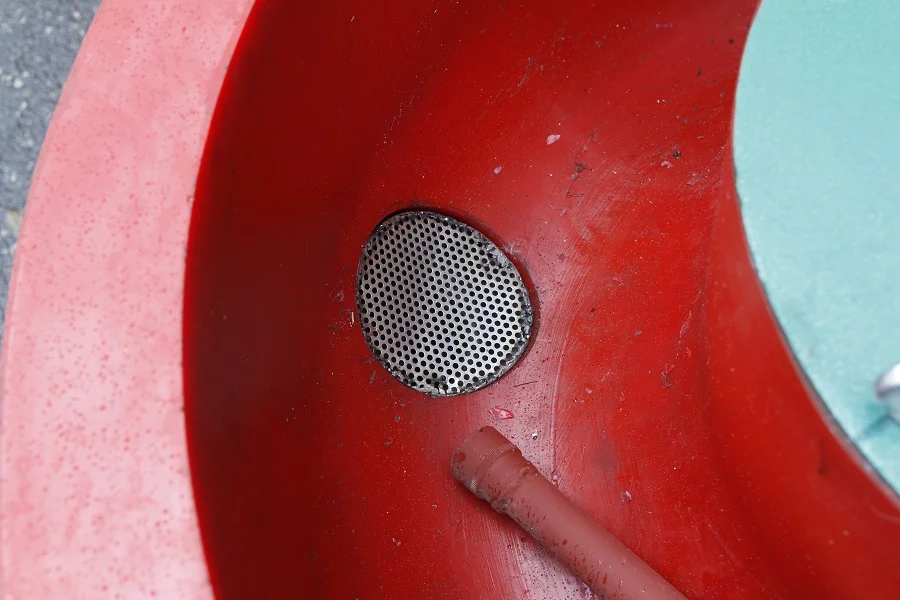

4. Bowl lining is made of wear-resistant polyurethane material, reduces frictions between parts and inner wall.

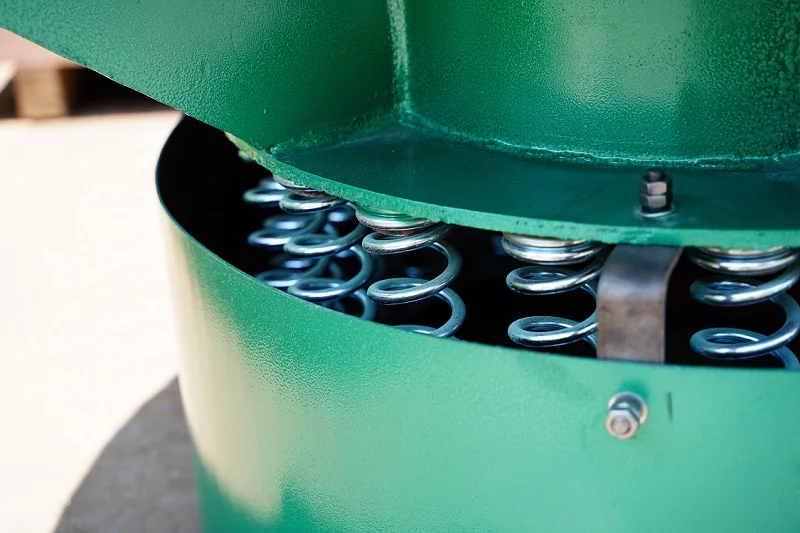

5. Sturdy bowl base and heavy-loaded spring, iron casting body with coated surface, features durable and longer life.

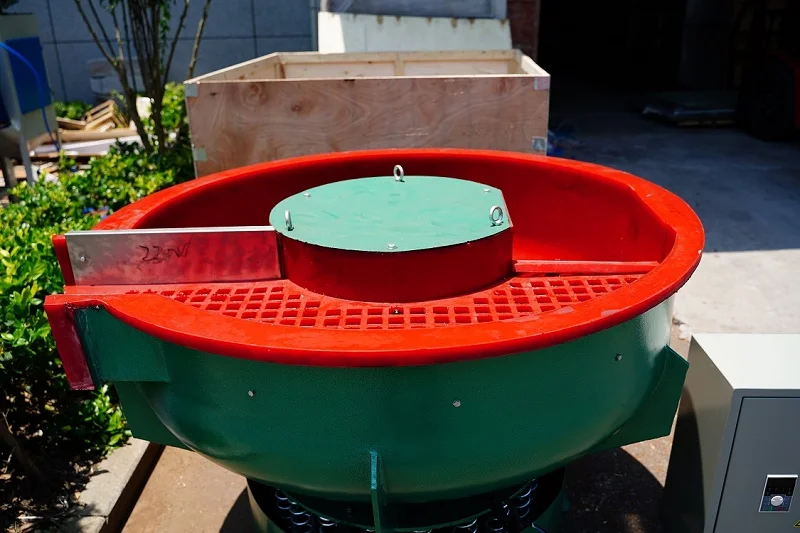

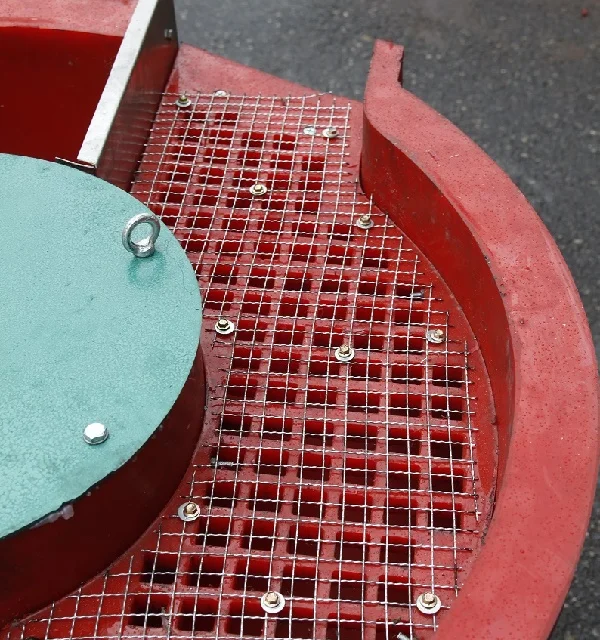

Separating Section of Vibratory Tumbling Polishing Machine

Screening section allows 100% separating of media and parts. After the final round finishing, processed parts and media will clamp on the screen, tumbling media drop back to the tumbler through holes, leaving only parts discharged. The big capacity vibratory polishing machine equipped with separation system could increase working efficiency greatly.




Technical Data


Model
Capacity
(L)
Motor Power
(kw)
Speed
(r/min)
Amplitude
(mm)
Rubber
(mm)
Weight (kg)
Size L*W*H
(mm)
CL-40A
40
0.55
1450
0.8-3
6-12
50
600*500*600
CL-60A
60
0.75-1.1
1450
0.8-3
6-12
100
700*640*700
CL-80A
80
1.1
1450
0.8-3
6-12
110
840*640*740
CL-95A
95
1.1
1450
0.8-3
6-12
120
860*800*750
CL-150A
150
2.2-3.0
1450
0.8-4
6-15
240
1150*1050*900
CL-250A
250
3.0
1450
0.8-6
6-20
280
1150*1100*900
CL-350A
350
5.5
1450
0.8-6
6-20
450
1450*1350*1050
CL-450A
450
5.5
1450
0.8-6
6-20
530
1550*1430*1050
CL-650A
650
7.5
1450
0.8-8
6-20
1250
1900*1850*1300
Round Vibratory Bowl with Separator
CL-150AB
150
2.2-3.0
1450
0.8-4
6-15
290
1150*1100*900
CL-250AB
250
3.0
1450
0.8-6
6-20
350
1150*1100*900
CL-350AB
350
5.5
1450
0.8-7
6-20
480
1450*1350*1050
CL-450AB
450
5.5
1450
0.8-7
6-20
580
1600*1430*1050
CL-650AB
650
7.5
1450
0.8-8
6-20
1250
2000*1850*1300
Curved Vibratory Bowl with Separator
CL-150B
150
2.2-3.0
1450
0.8-4
6-15
320
1150*1100*900
CL-350B
350
5.5
1450
0.8-6
6-20
520
1500*1350*1050
CL-650B
650
7.5
1450
0.8-8
6-20
1250
1850*1800*1400


Applications

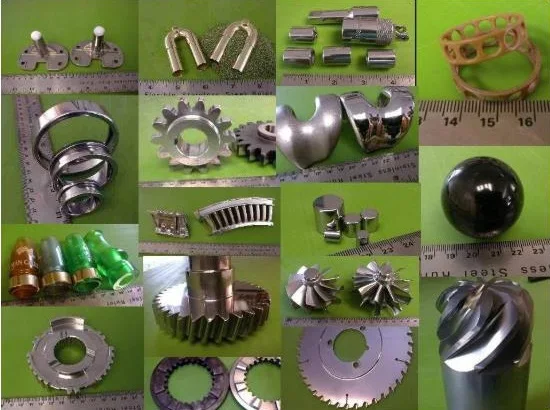

Vibratory Tumbling Polishing Machine Applications

Deburring of metal, plastic, ceramic, glass parts.
Chamferring to remove sharp edges of parts to create safe surfaces.
Surface cleaning, rust removing and descaling of old parts.
Polishing to obtain a flat, shiny surface or restore a natural color of metals.






Package & Delivery

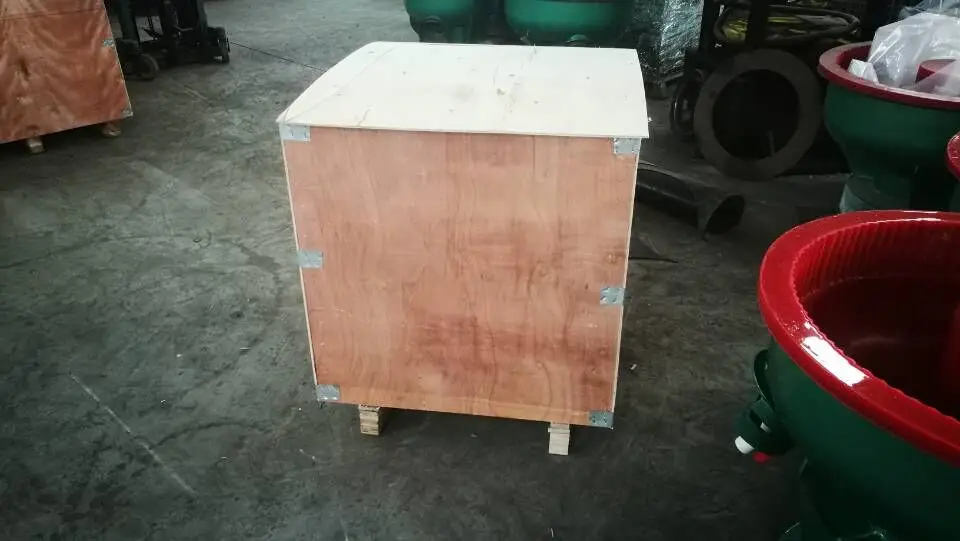

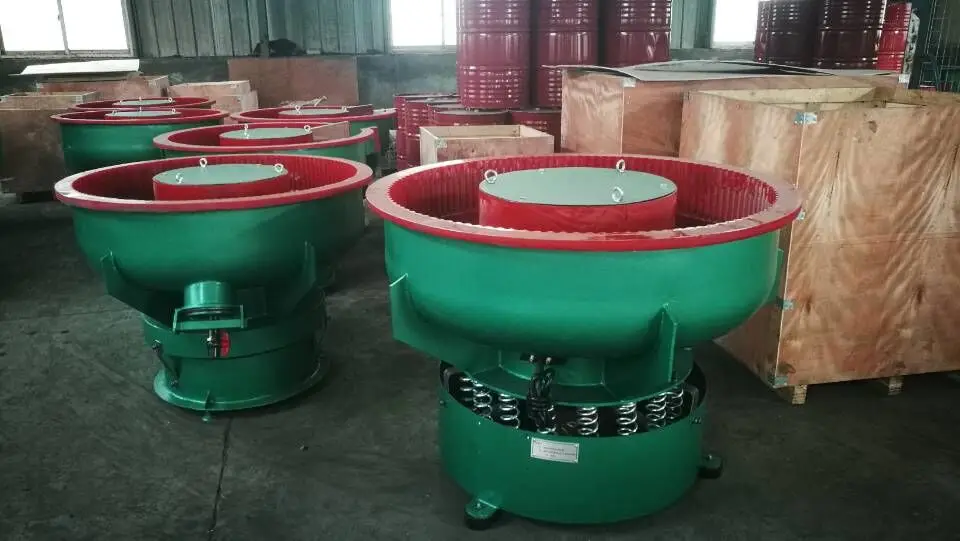

Wooden Boxes Package
