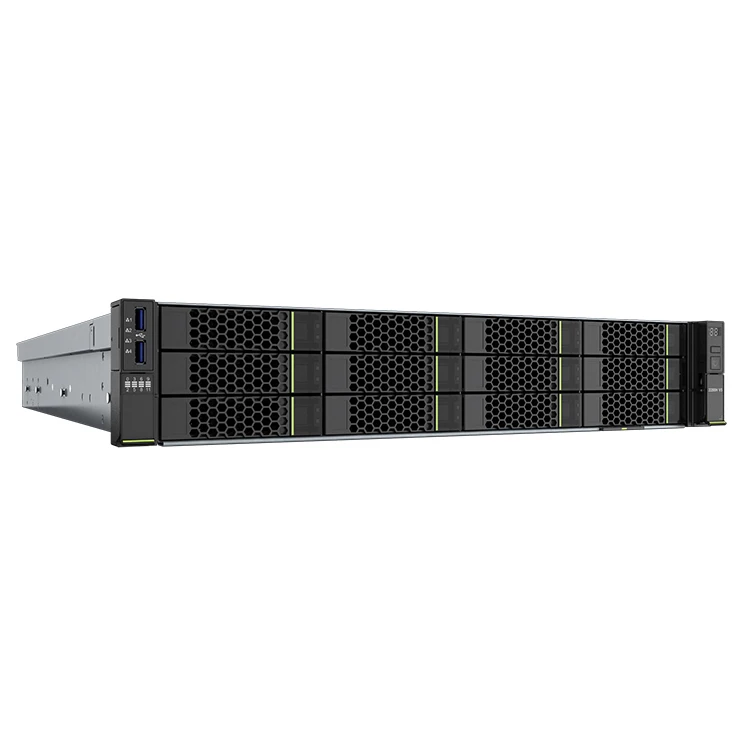

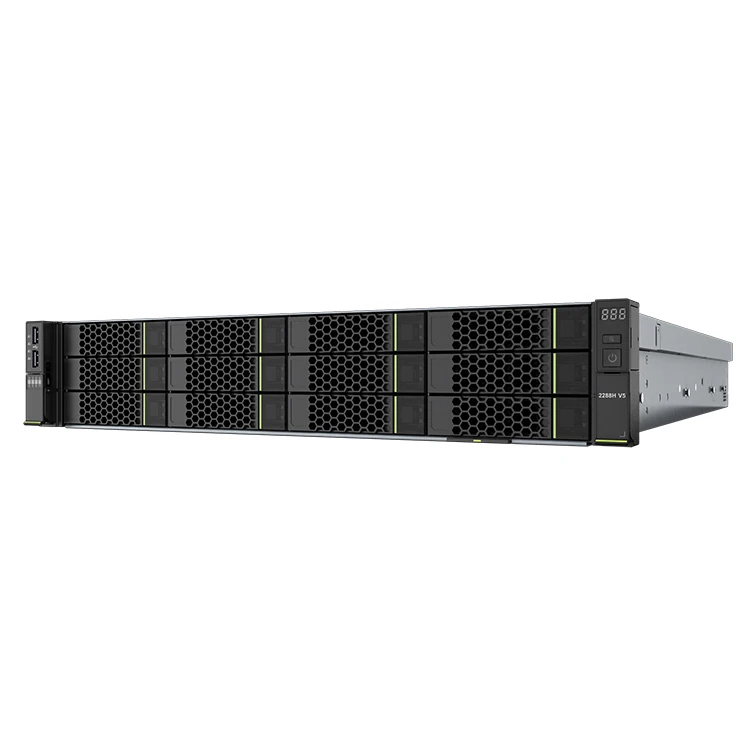

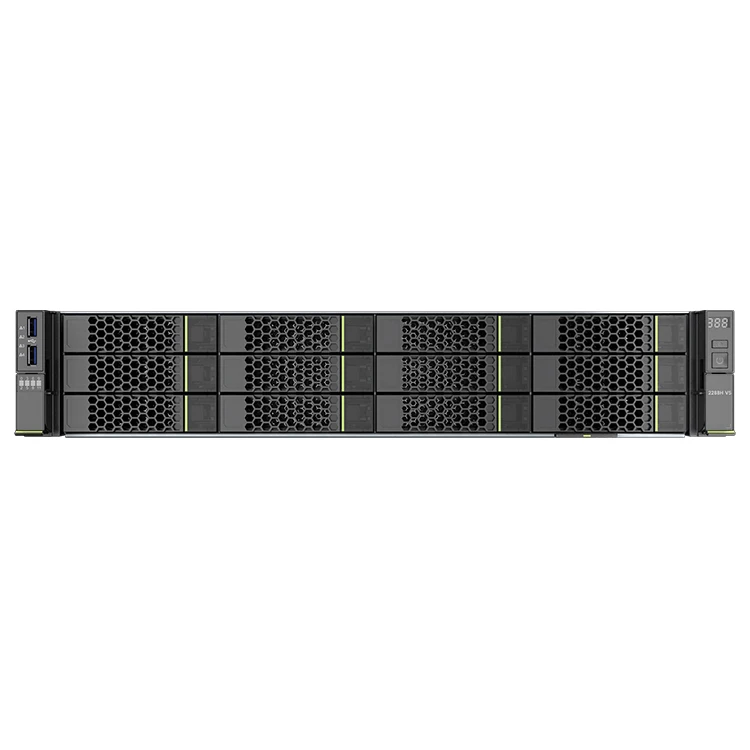

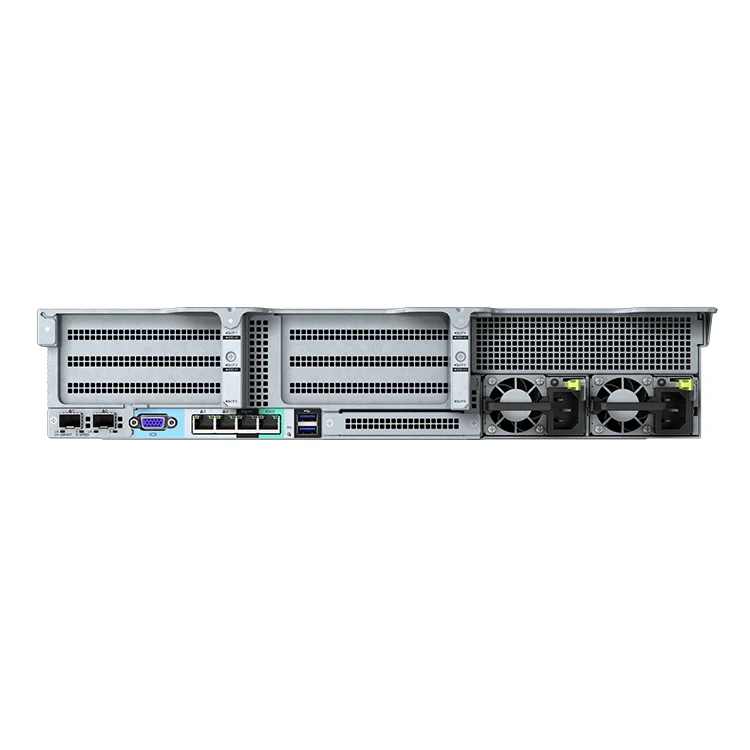

Factory Direct Price 6*32GB Memory 2*600G SAS 2*550W 2288HV5 2U Rack Server
- Category: >>>
- Supplier: Beijing Haitian Hutong Technology Co. Ltd.
Share on (1600717097092):
Product Overview
Description
Product Description
Specification
Form factor | 2U rack server |
Processors | 2*5120,Intel Xeon Gold 2.2GHz 14 Cores 28 Threads |
Memory | 24 DDR4 DIMM slots, 2933 MT/s; up to 12 Intel® Optane™ PMem modules (100 series), 2666 MT/s |
This Memory | 6*32G |
Internal storage | Supports hot-swappable hard drives with the following configuration options: • 8/20/24/25/31 x 2.5-inch SAS/SATA/SSD hard drives • 12/16/20 x 3.5-inch SAS/SATA hard drives • 4/8/12/24/28 NVMe SSDs Flash storage: • 2 M.2 SSDs |
RAID support | RAID 0, 1, 1E, 5, 50, 6, or 60; optional supercapacitor for cache power-off protection; RAID-level migration, drive roaming, self-diagnosis, and web-based remote configuration |
RAID Controller | SR130，supports：RAID 0/1/10 |
Network ports | LOM: 2 x 10GE + 2 x GE ports Flexible NIC: 2 x GE, 4 x GE, 2 x 10GE, 2 x 25GE, or 1/2 x 56G FDR IB ports |
PCIe expansion | Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC. |
Heterogeneous accelerator cards | 2 dual-slot FHFL GPU heterogeneous accelerator cards For details, visit https://www.xfusion.com/en/ |
Fan modules | 4 hot-swappable counter-rotating fan modules with support for N+1 redundancy |
Power supply units | 2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options: • 550 W AC Platinum PSUs (input:100 V to 240 VAC, or 192 V to 288 V DC) • 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 1500 W AC Platinum PSUs • 1000 W (input: 100 V to 127 V AC) • 1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC) • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC) • 1200 W -48 V to -60 V DC PSUs (input: -38.4 V to -72 V DC) • 2000W（input：220V to 240V AC,or200V to 288V DC） |
Management | iBMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening. • iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management. • (Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management. |
Operating Systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Citrix XenServer, VMware ESXi For details, visit https://www.xfusion.com/en/ |
Security | Power-on password, Administrator password, Trusted Platform Module (TPM), Security front panel |
Operating temperature | 5ºC to 45ºC (41ºF to 113ºF), compliant with ASHRAE A3 and A4 |
Certification | CE, UL, FCC, CCC, and RoHS |
Installation suite | L-shaped guide rails, adjustable guide rails, and holding rails |
Dimensions (H x W x D) | Chassis with 3.5-inch hard drives: 86.1 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.) Chassis with 2.5-inch hard drives: 86.1 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.) |
