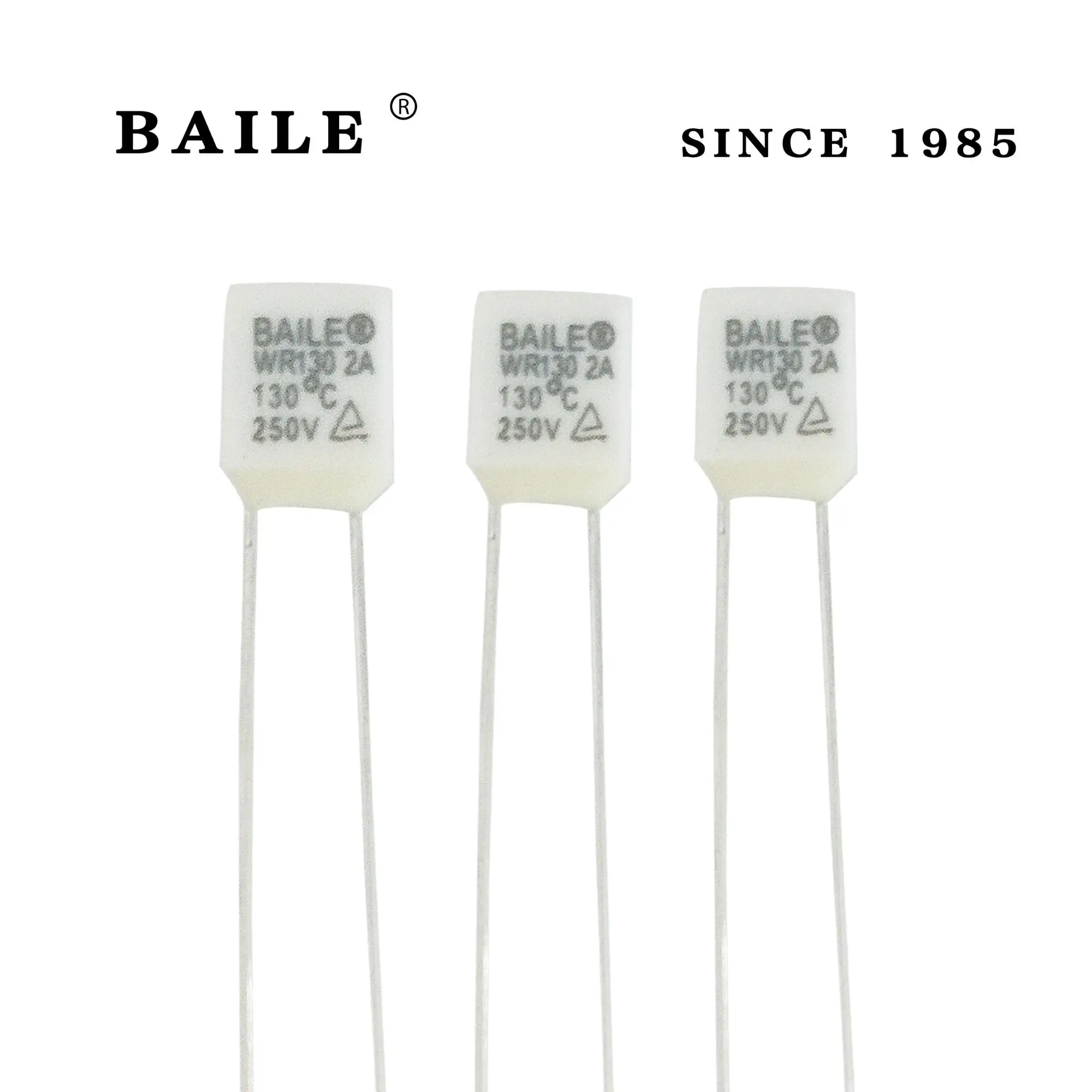

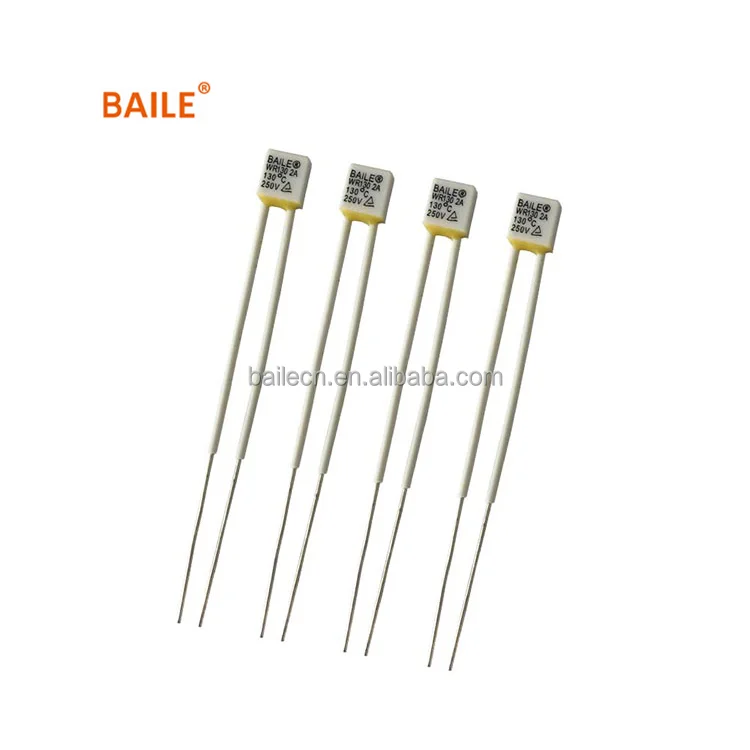

BAILE YSTP Series high quality lightning protect thermal fuse link for switch 130c 2a 250v
- Category: >>>
- Supplier: Jiangsu Baile Electric Co. Ltd.
Share on (1600717206243):
Product Overview
Description
Product Description
Product Description:
1.Rating Voltage: 110V/250 V
2.Color : Any color is ok
3. custom-design
4. High quality and competitive price
5. The open temperature tolerance is ±10 °C,
6. Maximum Contact Rating: 2A;250 V.
7.Lead wire:WR130 # silver; custom-designed calble is also avaiable
Dimension&Principle

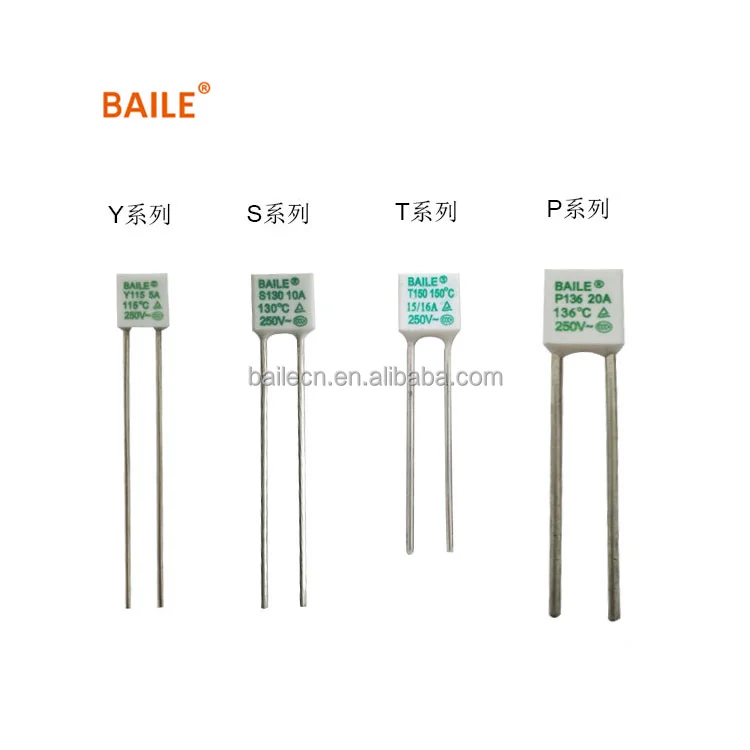

WR** Y** S** T** P** Products size.
WR** Y** S** T** P** Products working principle.
WR series parameters
WR series technical parameter list | ||||||||||||||
Model No. | Tf | Fusing. | Th | Tm | Ir | Ur | Safely Approval | |||||||
WR106 | 106℃ | 103±2℃ | 86℃ | 180℃ | 2A | 110V/250V | TUV、PSE、CCC、CB、RoHS | |||||||

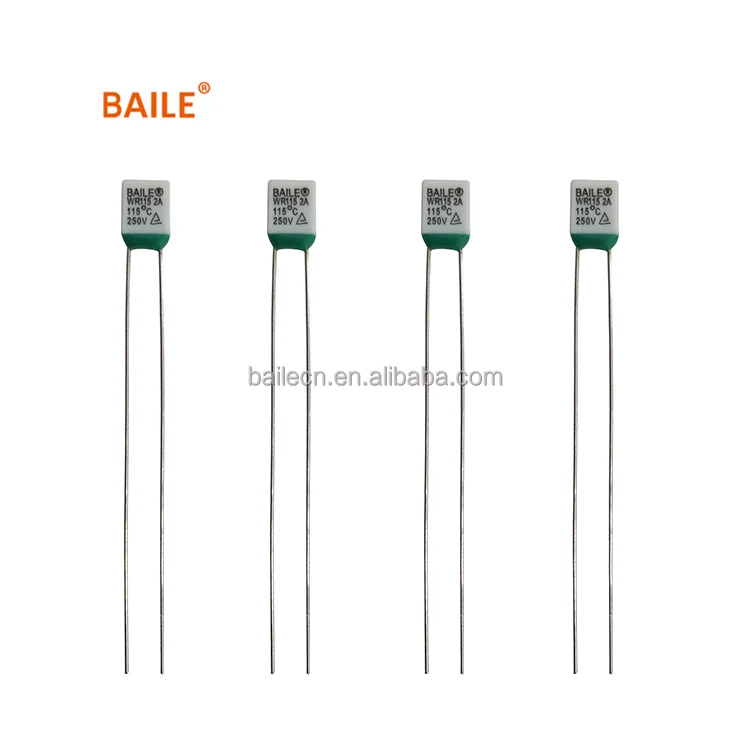

WR115 | 115℃ | 112±2℃ | 95℃ | 180℃ | 2A | |||||||||
WR126 | 126℃ | 123±2℃ | 106℃ | 180℃ | 2A | |||||||||
WR130 | 130℃ | 127±2℃ | 110℃ | 180℃ | 2A | |||||||||
WR136 | 136℃ | 133±2℃ | 116℃ | 180℃ | 2A | |||||||||
WR146 | 146℃ | 143±2℃ | 126℃ | 180℃ | 2A | |||||||||
WR185 | 185℃ | 182±2℃ | 165℃ | 250℃ | 2A | |||||||||
lr | a(mm) | b(mm) | c(mm) | d(mm) | e(mm) |
2A | 5.5±0.2 | 5.8±0.2 | 2.3±0.2 | Φ0.5±0.1 | 50±10 |
5A | 6.2±1 | 7±1 | 2.5±0.5 | Φ0.8±0.01 | 50±10 |
10A | 8.2±1 | 7.5±1 | 3.3±0.5 | Φ1.0±0.01 | 50±10 |
15/16A | 8.2±1 | 7.5±1 | 3.3±0.5 | Φ1.1±0.01 | 50±10 |
20A | 10.6±1 | 11.4±1 | 5.0±0.5 | Φ1.6±0.01 | 50±10 |
Application Range
Features.
★Extremely sensitive to ambient temperature.
★Turn off the power at once.
★Precise and stable functioning characteristic.
★Compact, epoxy-sealed construction.

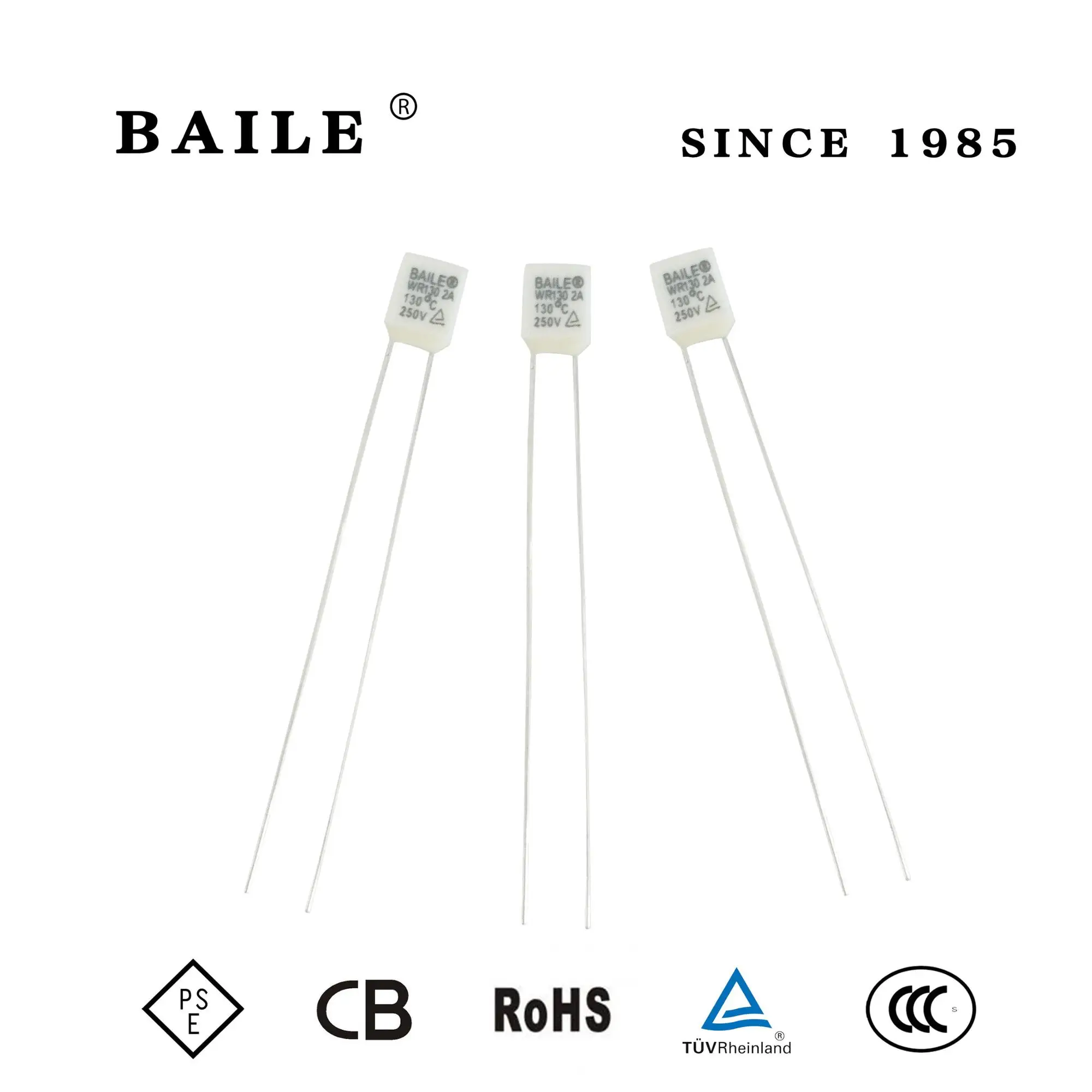

★Reliable. Approved by various international safety standards.(ISO90012008/UL/CUL/TUV/PSE/CCC/CB)
★Make the whole process of strict quality management.
★Manufacturing process using the most advanced automation equipment.
★Painted with the most advanced automated test equipment, 100% after the inspection.
★It meets the environmental requirements of ROHS/REACH.
Applicatuin.
★Appliance: Electronicion, Hair dryer, Heater, Coffeemaker, Water dispenser, Baker, Electric cooker Electric pressure cooker. Electric kettle, Microwave oven, Air-Conditioner, Refrigerators,Washing machine, Water heater, Range hood, Disinfection cabinet, and so on.
★Office Appliances: Photocopier Fax machine, Scanner, Printer, Paper shreader.
★Appliances Accessories: Voltage transformer, Adaptor, Electricmotors, PC boards, Connector, and so on.
★Electronics Components: Capacitor, Resistor, Batteries and so on.
★Others: Massage appliances, Pharmaceuticale equipments, Electronic toys, and so on.
