Low Temperature Thermoplastic Splint Sheet for Occupation therapy
- Category: >>>
- Supplier: Guangzhou Maidfirm Medical Equipment Co. Ltd.
Share on (1600717213015):
Product Overview
Description
Product Description

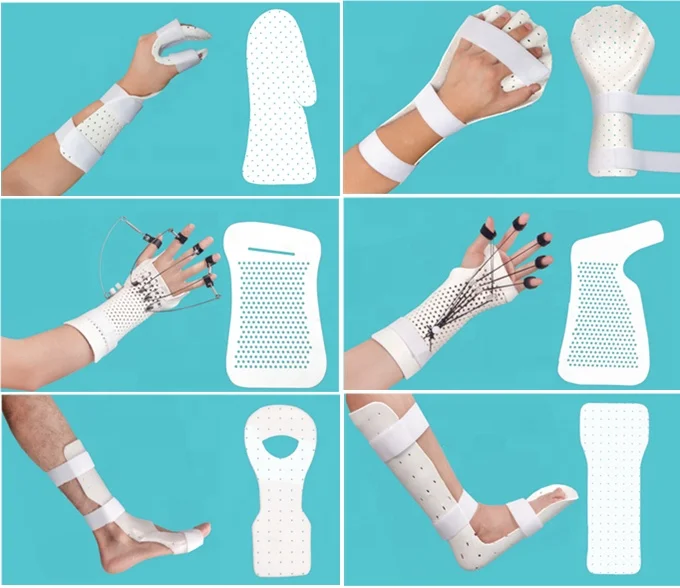

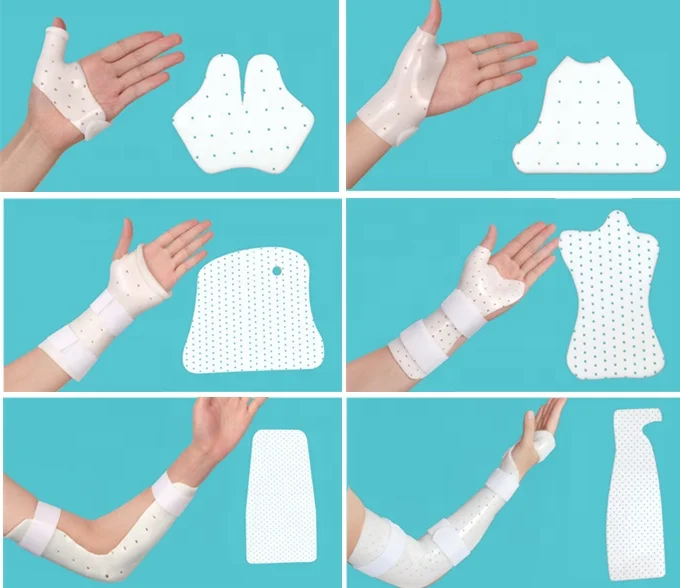

Low-temperature thermoplastic can be heated to 65°C to activate their mouldable qualities. Maidfirm low-temperature thermoplastsic sheets features allow for reheating, reshaping and remoulding. Due to its rigidity, there's no need for additional reinforcement, Low temperature Thermoplastic sheets can be used to mould dynamic or static hand and wrist splints, cervical collar neck splints, body jacket and back support inserts, and various other custom-made splints.
Lightweight, good plasticity, x-ray translucent, latex-free, non-toxic, non-irritating to skin, antimicrobial and environment friendly with self-degradation.
Specification:

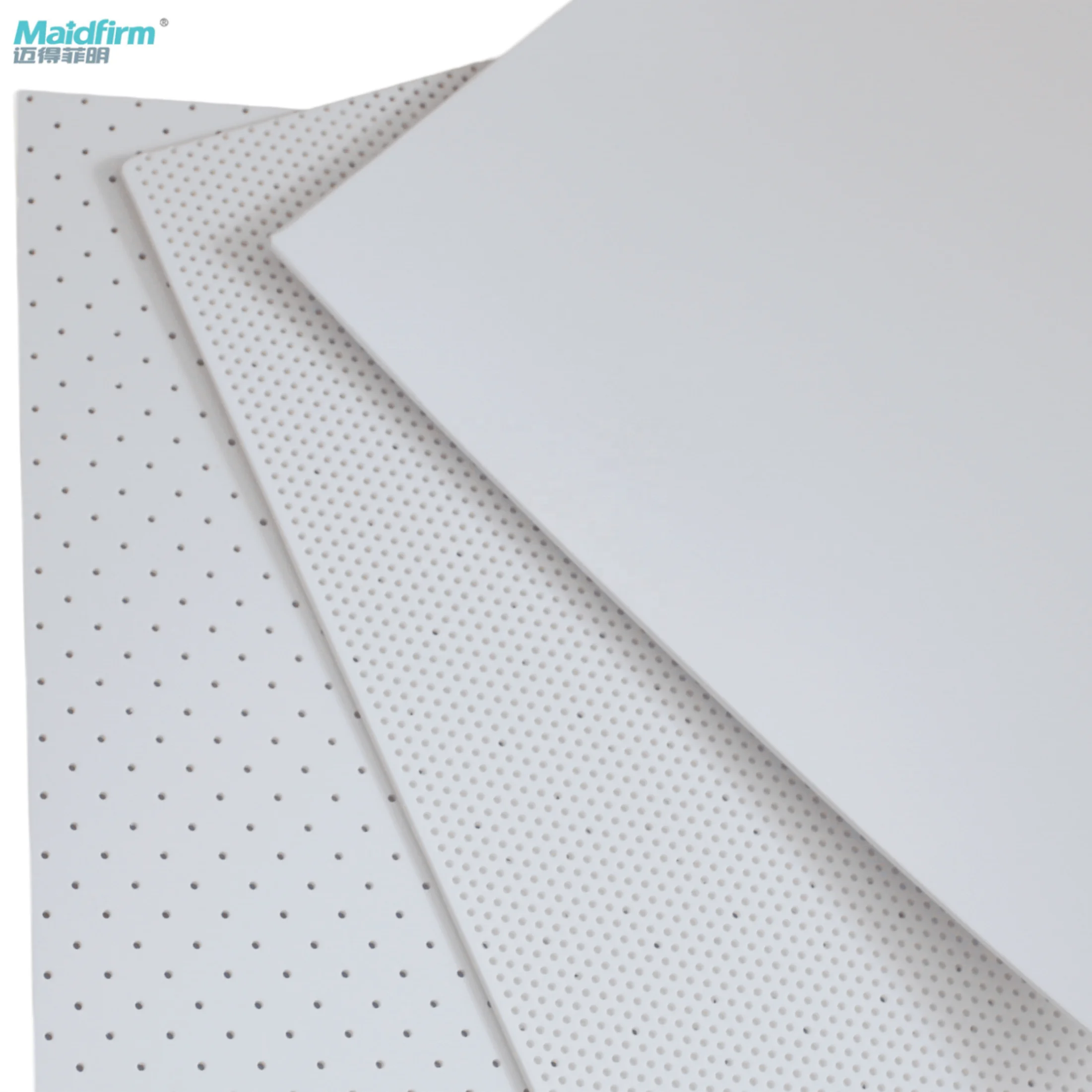

460 x 610 x 2.4mm (Smooth/ 1%,5% 12% perf.) / White
460 x 610 x 3.2mm (Smooth/ 1%,5% 12% perf.) / White
920 x 610 x 2.4 mm (Smooth/ 1%,5% 12% perf.) / White
920 x 610 x 3.2 mm (Smooth/ 1%,5% 12% perf.) / White
Operation:
Heat it in hot water at temperature 65℃-70 ℃ about 2 minutes ( different thickness in different heating time), when it softens, take it out from the water and use a clean cloth to dry it. Meanwhile, the material temperature drops and feels it not too hot, they can directly mold on the patient. After mold well and hold it in the same position until material getting cool and rigidity, take out the molded material to cut well by scissors and smooth the edge to avoid hurt patients. Or using a padding strip to wrap the edge. After that, put it back to the patient and immobilize it by hook and loop. In case you need to adjust,
it can be partially adjusted by heat gun.
Maidfirm Thermoplastic precut splints & thermoplastic sheets details:
| M Thermoplastic sheet: | E Thermoplastic sheet (ER,EQ,ES ) | |||||||||
| Thickness | 1.6mm | 2.0mm | 2.4mm | 3.2mm | 4.0mm | 2.4mm, 3.2mm | ||||
| Perforation | 1% | 5% | 12% | 1% | 5% | 12% | 22% | |||
| Feature | Transparent, 100% memory, good tensile, lightweight | high strength,good tensile,lightweight | ||||||||

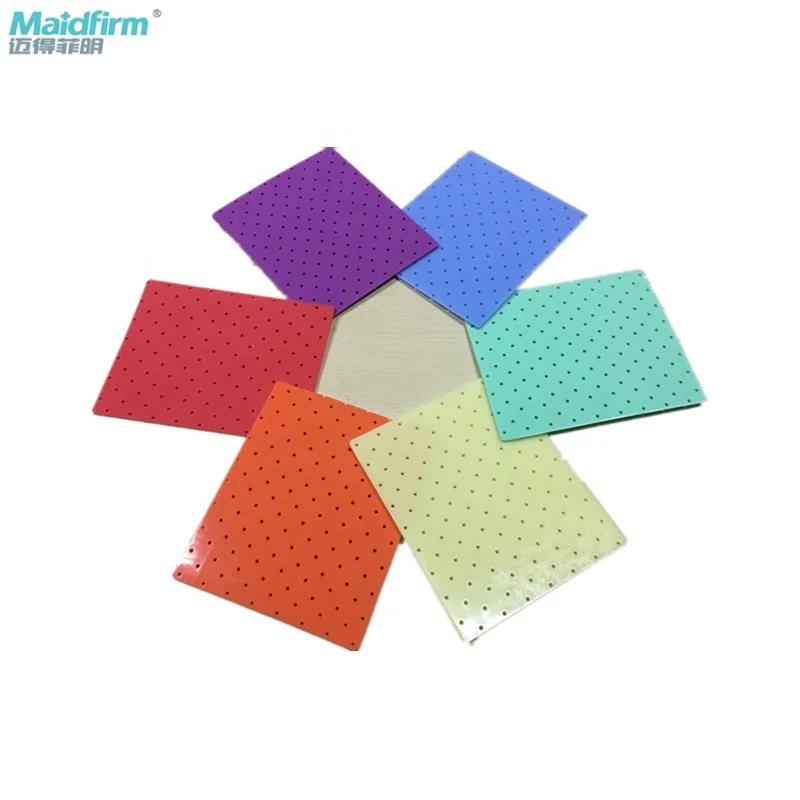

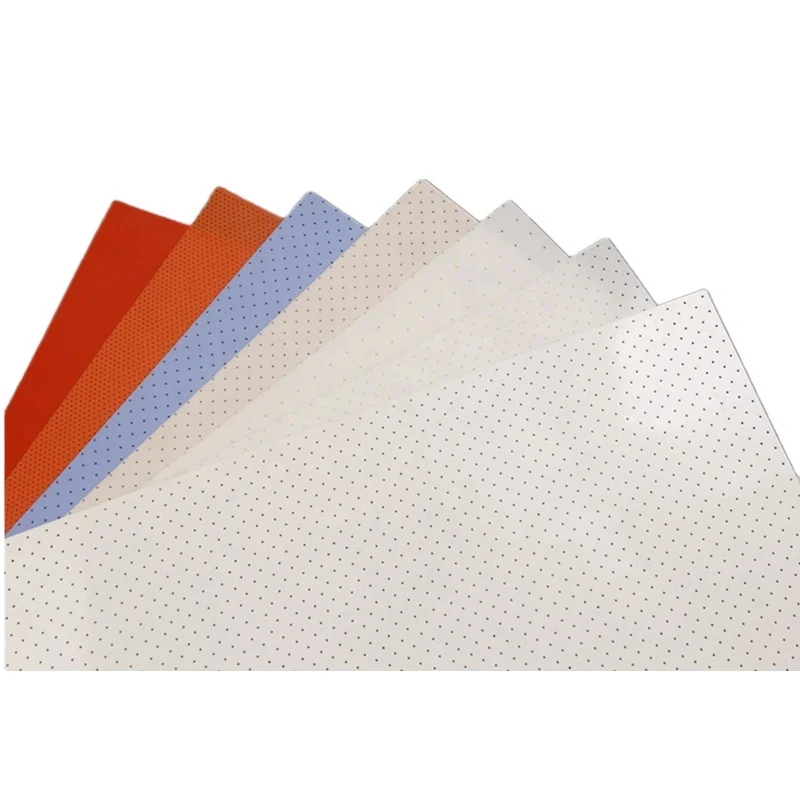

| Color | White, Beige, Blue, Red, available color custom | White, Beige, available color custom | ||||||||
(Re: Available Non-perforated or perforated for splints or sheets)
Detailed Images
Certifications
Company Information
Guangzhou Maidfirm Medical Equipment Co., Ltd is one of the leading manufacturers specializing in R&D, production, marketing and service of low-temperature thermoplastic sheets, medical splints and other radiotherapeutic location & orthopedics external fixation materials.
Our products had passed CE and ISO 13485 international quality management system detection.
We have an excellent team, consisting of professionals in the area of medical techniques, marketing and management, setting with brand spreading as the same goal of supplying with technical support and overall customer services.
With unremitting efforts, we have established a good relationship with customers from many countries and regions, including Asia, Europe, North America and Latin America, the Middle East, etc.
Exhibition Images
Training
FAQ:
1.Q:Are you a factory or trading company?
A: We are a manufacturer, we produce radiotherapy immobilization mask, rehabilitation splints, thermoplastic splinting materials... For more, please visit our website.
2. What kind of thermoplastic you can offer?
A. We have 2 general types of thermoplastic material for your choice. Maidfirm M and Maidfirm E.
3. How can I get a suitable material?
A. We would like to send you a small size of samples to you for testing, you just handle well freight cost that is fine. We accept prepay freight cost and freight collect. We will advise you.
4. How to heat material?
A.: Heating method- water heat or dry heat. Same as other famous brands of thermoplastic like Orfit, Aquaplast and Klarity, same heating method. Normally we use water bath to heat thermoplastic at most.
5. Do you have video to teach us how to fabricate with your thermoplastic splinting material?
A: Sure, we would like to do it.
6. What thickness you can offer?
A: 1.6mm, 2.0mm, 2.4mm, 3.2mm and 4.0mm, we also accept to custom other thickness like less than 1.6mm thick. Welcome to contact us for more details.
