JINN FA High speed JSL 42RBY Precision 8 axis Linkage Driving Turning Milling Cnc Lathe
- Category: >>>
- Supplier: Xiongyi Intelligent Machinery (Changzhou) Co. Ltd.
Share on (1600717319952):
Product Overview
Description
Products Description
01

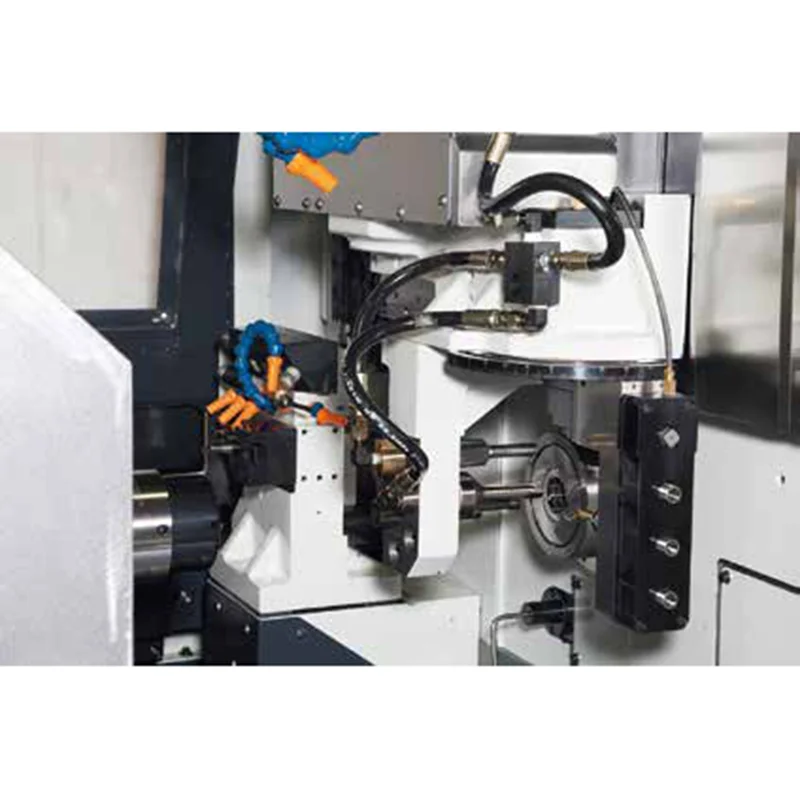

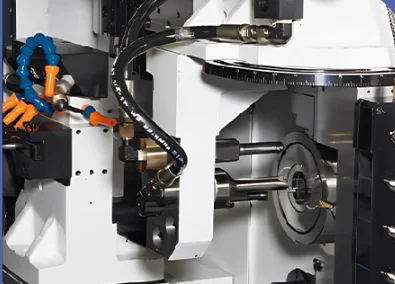

SUB-SPINDLE TOOLING SYSTEM
The sub-spindle tooling system allows the machine to perform backside machining on a part.

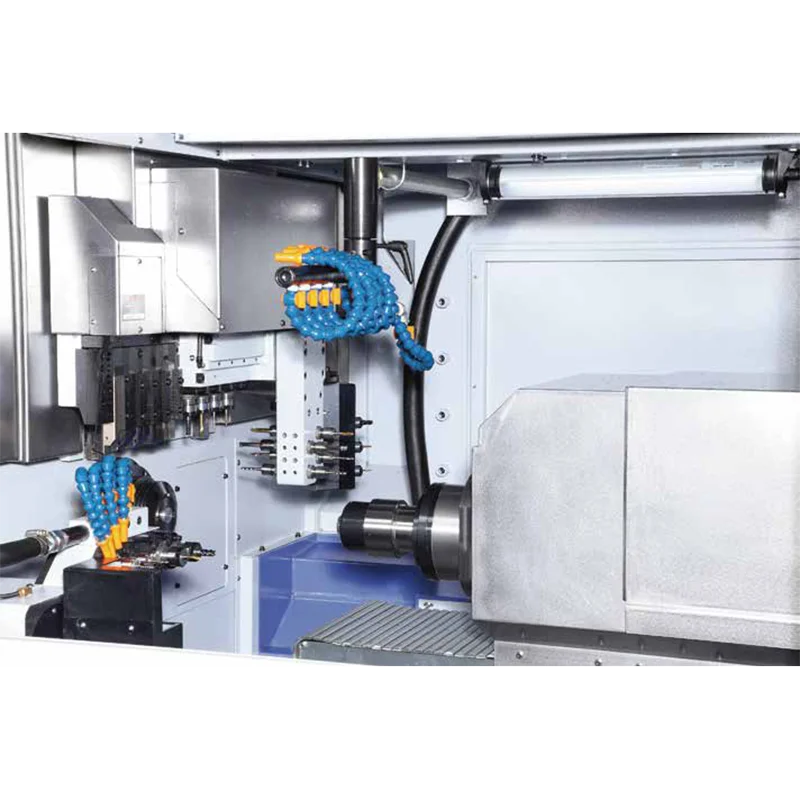

SUB-SPINDLE TOOLING SYSTEM-YAXIS
The sub-spindle tooling system allows the machine to perform backside machining on a workpiece
03

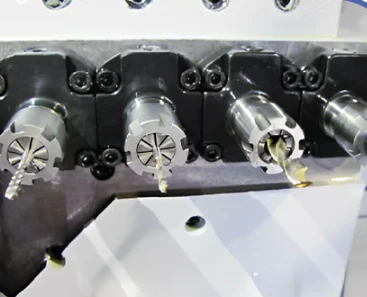

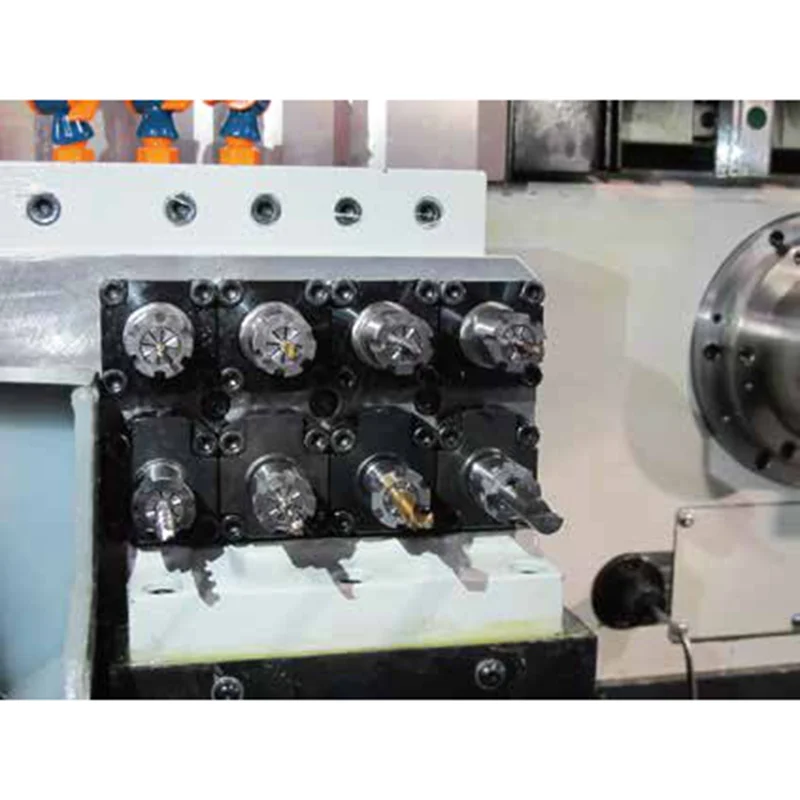

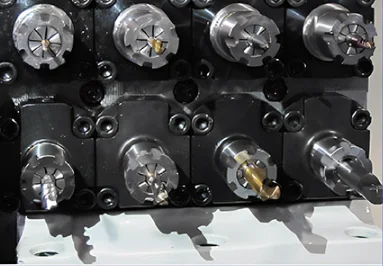

CROSS/FACED RILLING FUNCTION
The side drilling unit can be converted to 3-position face drilling for main and sub spindle.”Angle adjustment (manually)

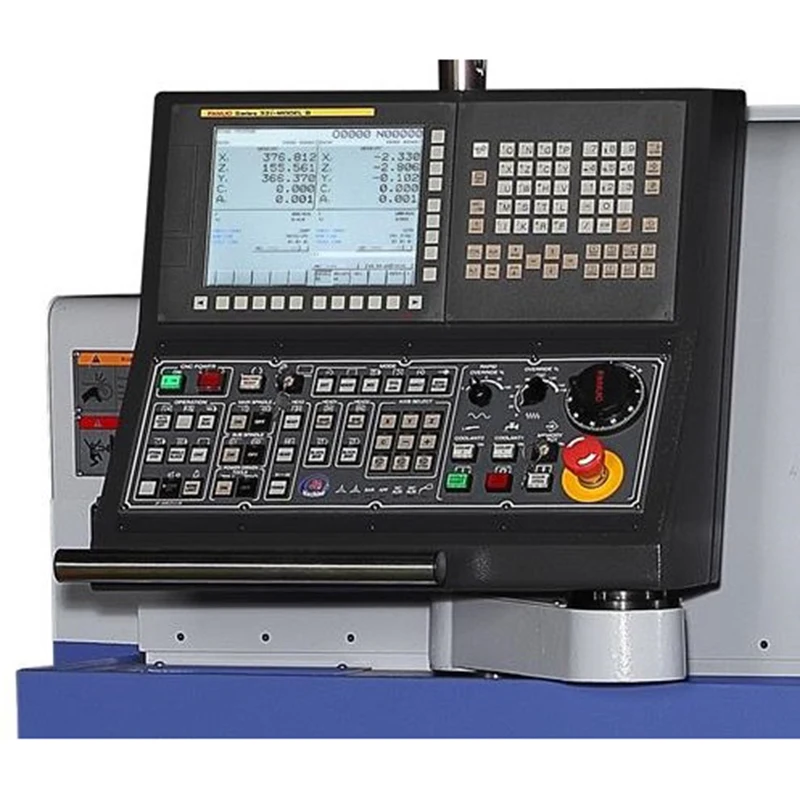

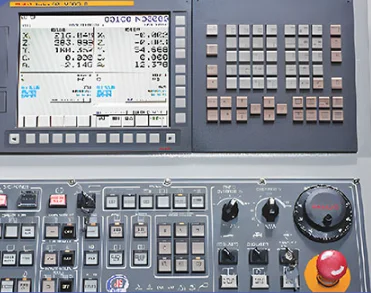

FANUC 321 CNCCONTROL
05

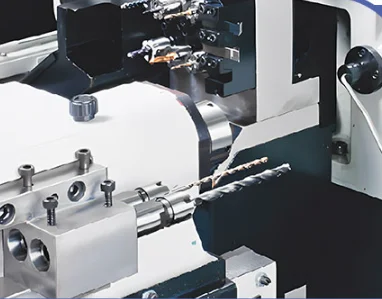

DEEP HOLE DRILLING
DEVICE(MAX.135MM)
The sub-spindle can be equipped with a deep hole drilling device with coolant
through drill.

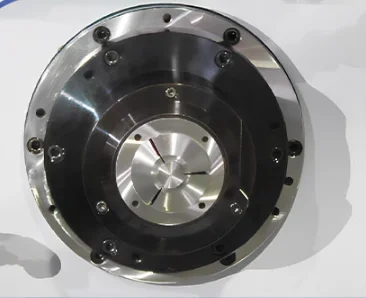

ROTARY GUIDEBUSHING HOLDER
JINN FA industrial co., ltd. JSL-42RBY | ||||
Maximum machining diameter of positive spindle | 42mm | |||
Maximum machining diameter of the counterspindle | 42mm | |||
The maximum bore inner diameter of the positive spindle | 26mm | |||
Maximum bore inner diameter of the counterspindle | 16mm | |||
Positive spindle maximum tapping | M16 | |||
Maximum tapping of the counter-spindle | M12 | |||
The front of the spindle deep hole rhodium hole inner diameter of the secondary spindle maximum tapping | 25mm | |||
The maximum beryllium bore inner diameter of side beryllium | 10mm | |||
The lateral hammer has the maximum tapping teeth | M6 | |||
The maximum beryllium bore inner diameter of the end beryllium | 5mm | |||
The end is the maximum tapping tooth | M4 | |||
Maximun processing length | Fixed guide sleeve:350mm | |||
Rotate the guide sleeve:310mm | ||||
Pass type:105mm | ||||
Number of tools | Outside diameter knife | 6 | ||
Internal hole knife | 6 | |||
Side beryllium knife | 4+(2) | |||
Counterspindle end beryllium knife | 3 | |||
Counter-spindle bore cutter | 3 | |||
Counter-spindle outside diameter cutter | 3 | |||
Tool size | 20mm/25mm | |||
Fast feed | 24M/min | |||
Control the number of axes | 9 | |||

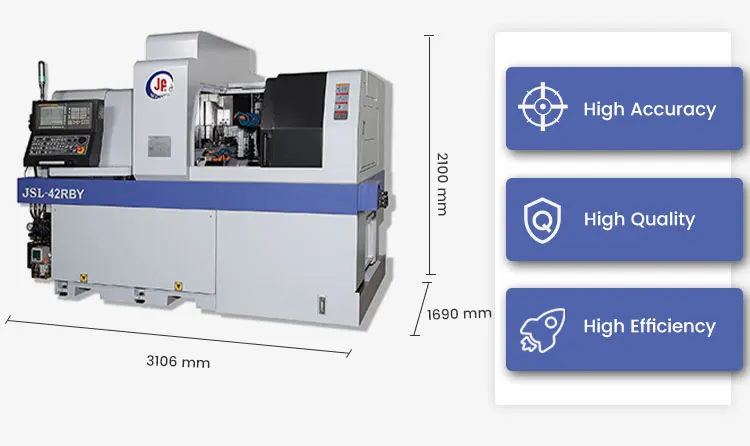

Mechanical appearance (L*W*H) | 3106x1690x2100 | |||
Total mechanical weight (Kg) | 4900kg | |||
Please contact us for more equipment parameters.
