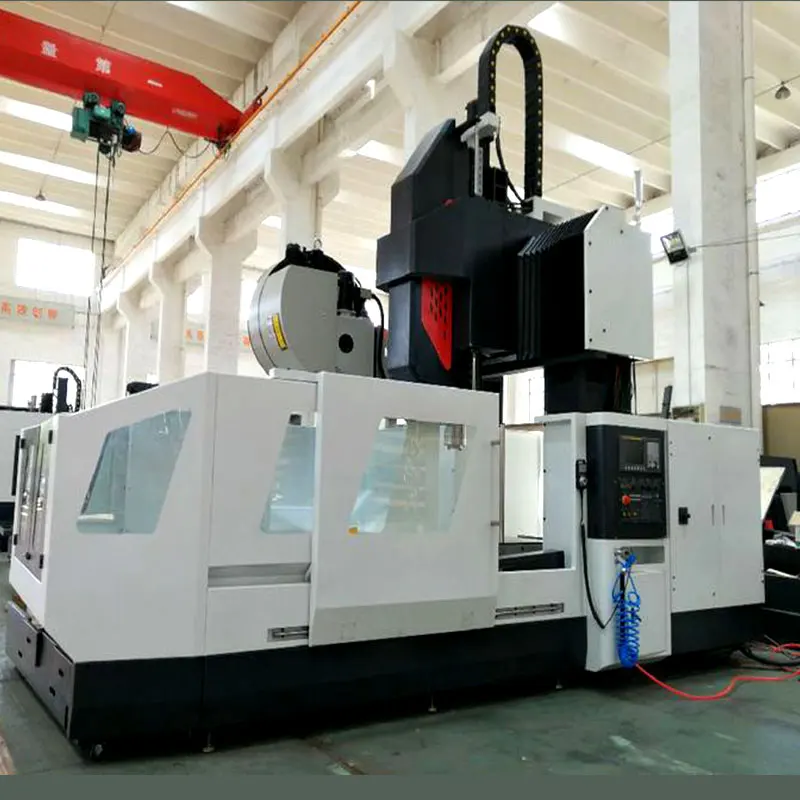

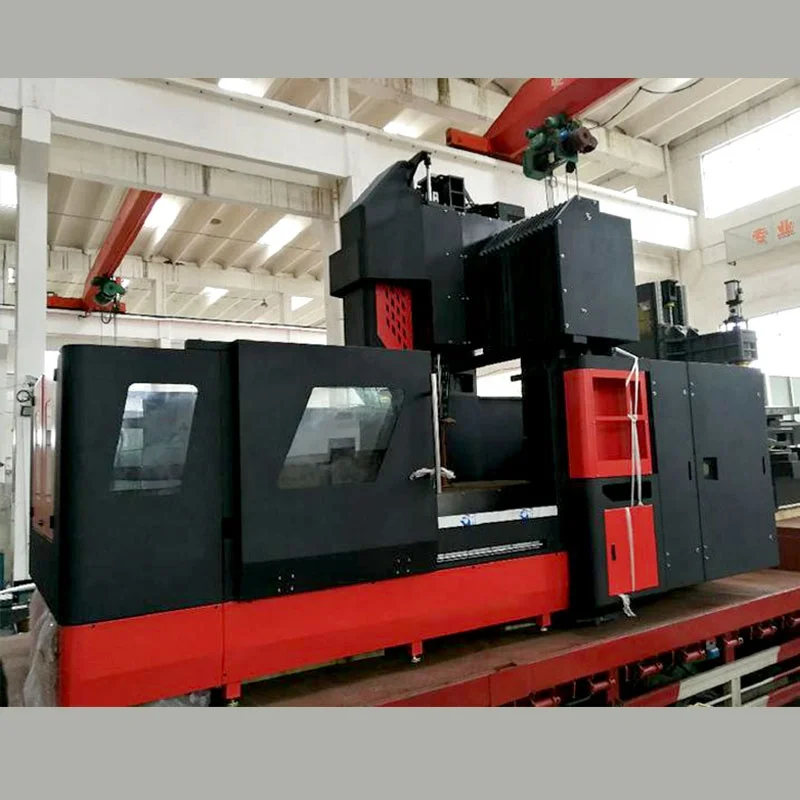

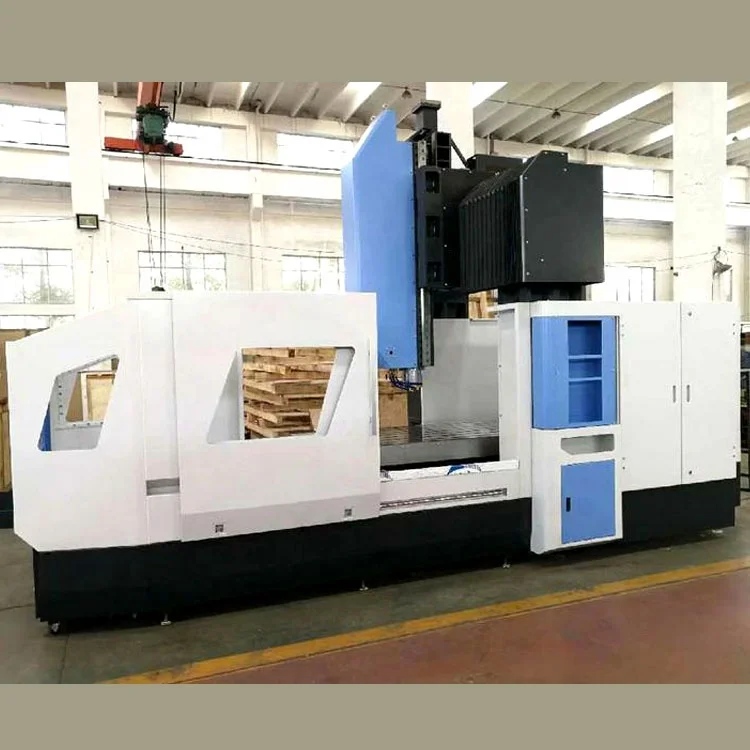

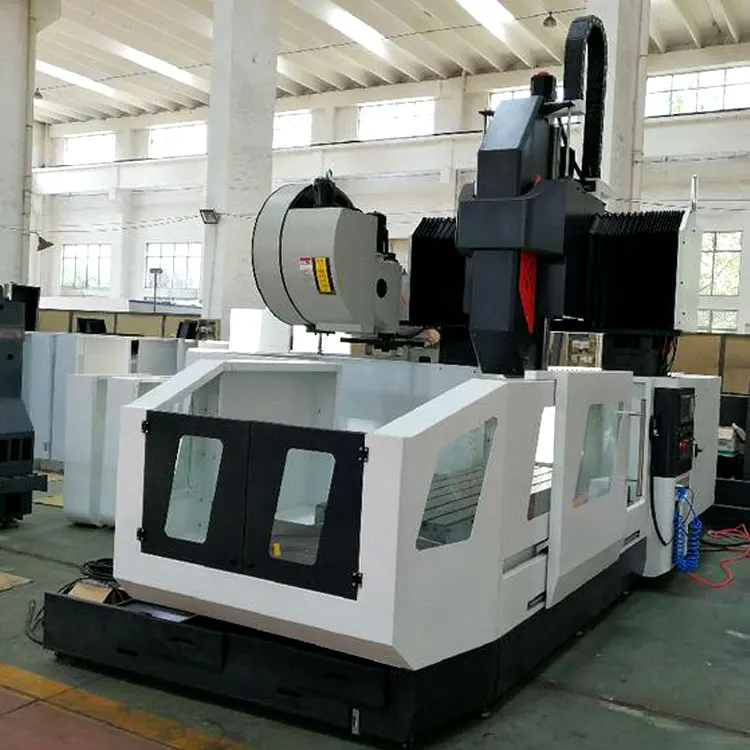

CNC Gantry Machining Center GMC1611 Fixed colum Gantry Milling Machine
- Category: >>>
- Supplier: Shandong Jiucheng Machine Tool Co. Ltd.
Share on (1600717455409):
Product Overview
Description
SPECIFICATIONS | UNIT | GMC1611 |
Table size | mm | 1800*800 |
X axis travel | mm | 1600 |
Y axis travel | mm | 1100 |
Z axis travel | mm | 600 |
Distance from spindle axis to column surface | mm | 406.5 |
Distance between spindle nose and worktable surface | mm | 140-740 |
Columns distance | mm | 1100 |
Distance between table and cross beam | - | 937 |
T slot (number-width-pitch) | - | 5-18x140 |
Max. spindle speed | rpm | 8000 |
Spindle taper | mm | BT40 (Optional: BT50 ) |
Main motor power | kw | 15/18.5 |
Guide rail type | - | Linear rail |
X/Y/Z rapid traverse speed | m/min | 2012/12/12 |
Max. table load | kg | 2500 |
Distance from table to floor | mm | Around 800 |
Cutting feed speed | mm/min | 1-10000 |
Positioning accuracy | mm | ±0.005/300 |
Repeat positioning accuracy | mm | ±0.004 |
Tool magazine | - | Arm 24 |
Max. tool diameter | mm | φ78 (Adjacent) / φ120 (Apart) |
Optional: φ112 (Adjacent) / φ200(Apart) | ||
Max.tool weight | kg | 8 (Optional: 18) |
Machine weight | kg | 13000 |
Overall dimension | mm | 4500*3000*3600 |
Q: What is the minimum order quantity (MOQ)?
A: MOQ is one set. (Only some low cost machines will be more than 1 set)
Q: How can I choose the most suitable machines?
A:Please tell us your requirement of the machine, or you can also send us the products drawing, then we will give you the best solutions.
Q: What's the Payment Terms?
A: 30% by T/T as deposit, 70% balance by T/T before delivery. As for other payment terms, we can discuss.
Q: Where is your factory located?
A: Our factory is located in Tengzhou, Shandong province, China.
Q: What's the main products of your company?
A: We specialized in many kinds of machines, such as CNC machining centers, CNC milling machines, CNC lathes, milling machines, lathe machines, drilling machines, sawing machines, etc.
Q: What is your market advantage?
A: We provide not only machine tools, but one-stop solutions for machine tools. If there is any problem with the equipment, we can go abroad for after-sales service.

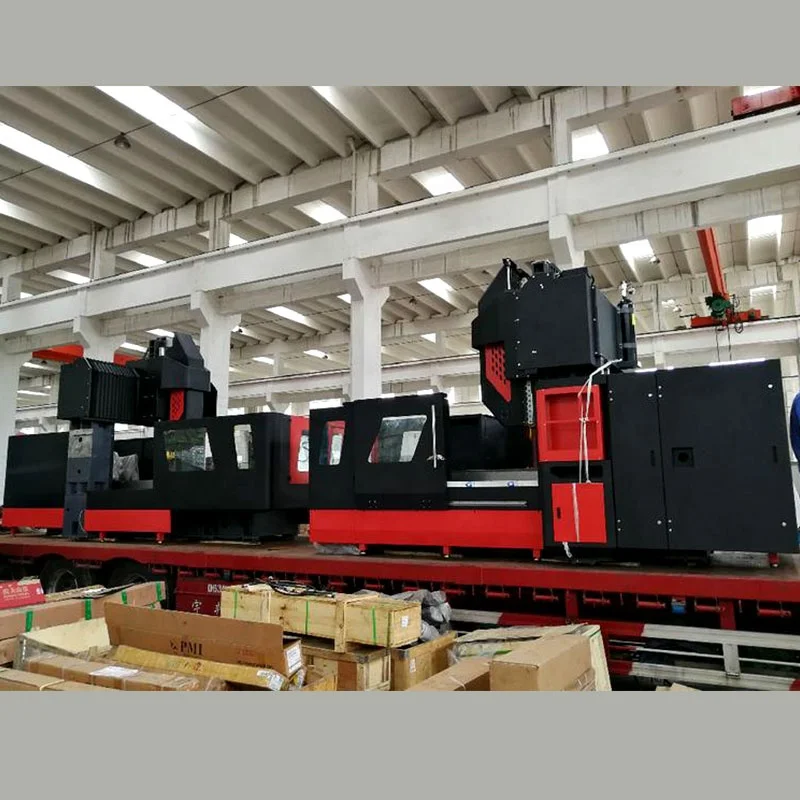

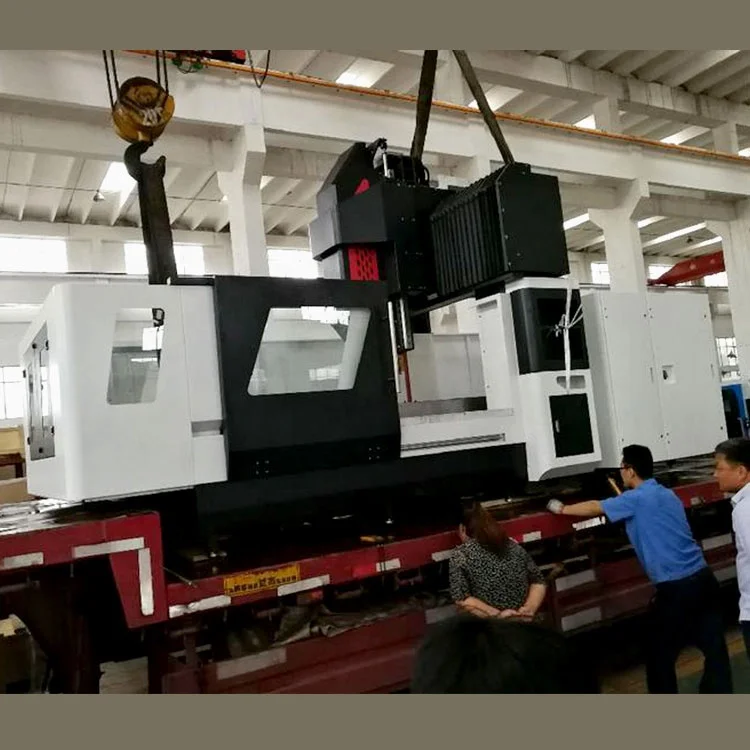

Q: What is the package? Is it suitable for shipment?
A: Machines will be packed by exporting standard package, with water proof, anti-rust and fumigation-free. It is very strong for oversea transportation.
