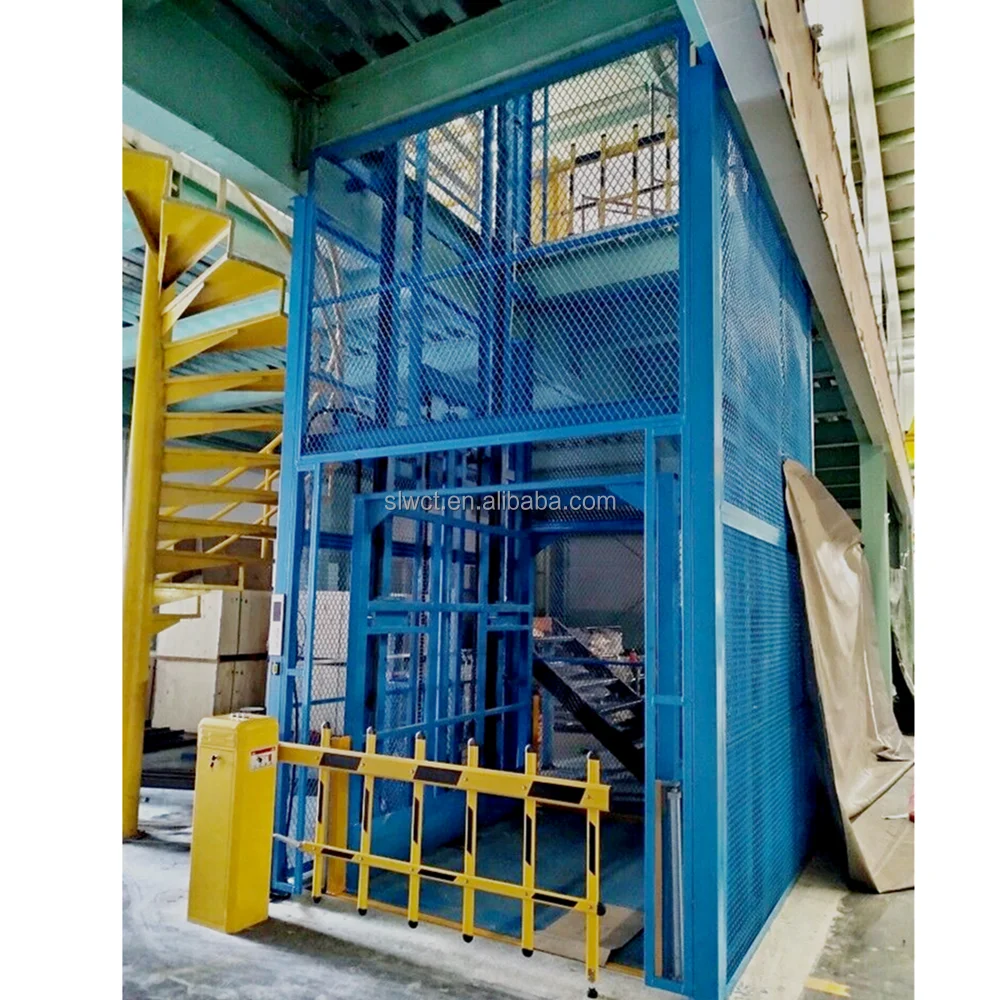

2 ton Industrial Goods Lift for Sale Vertical Hydraulic Warehouse Cargo Lift
- Category: >>>
- Supplier: Zhongshan Shiliwang Machinery Co. Ltd.
Share on (1600717487406):
Product Overview
Description
Product Description
Weld Free Hydraulic cargo lift cage warehouse lift platform outdoor indoor
1, The guide rail lift is a hydraulic lifting machine used for cargo lifting.2, It is easy to install and maintain, beautiful,safe and easy to operate. It is produced according to the actual environment of the site
Model | GL-1030-1616-A | GL-1050-1616-A | GL-2030-2020-A | GL-2050-2020-A | ||||
Lift capacity | 1000kg | 1000kg | 2000kg | 2000kg | ||||
Lift height | 3000mm | 5000mm | 3000mm | 5000mm | ||||
Lowered height | 100mm | 100mm | 100mm | 100mm | ||||
Platform width | 1600mm | 1600mm | 2000mm | 2000mm | ||||
Platform length | 1600mm | 1600mm | 2000mm | 2000mm | ||||
Lift speed | 95mm/s | 95mm/s | 95mm/s | 95mm/s | ||||
Power source | AC 110-380V | AC 110-380V | AC 110-380V | AC 110-380V | ||||
Lift motor | 2.20KW | 2.20KW | 3.75KW | 3.75KW | ||||
Custom size is available | ||||||||

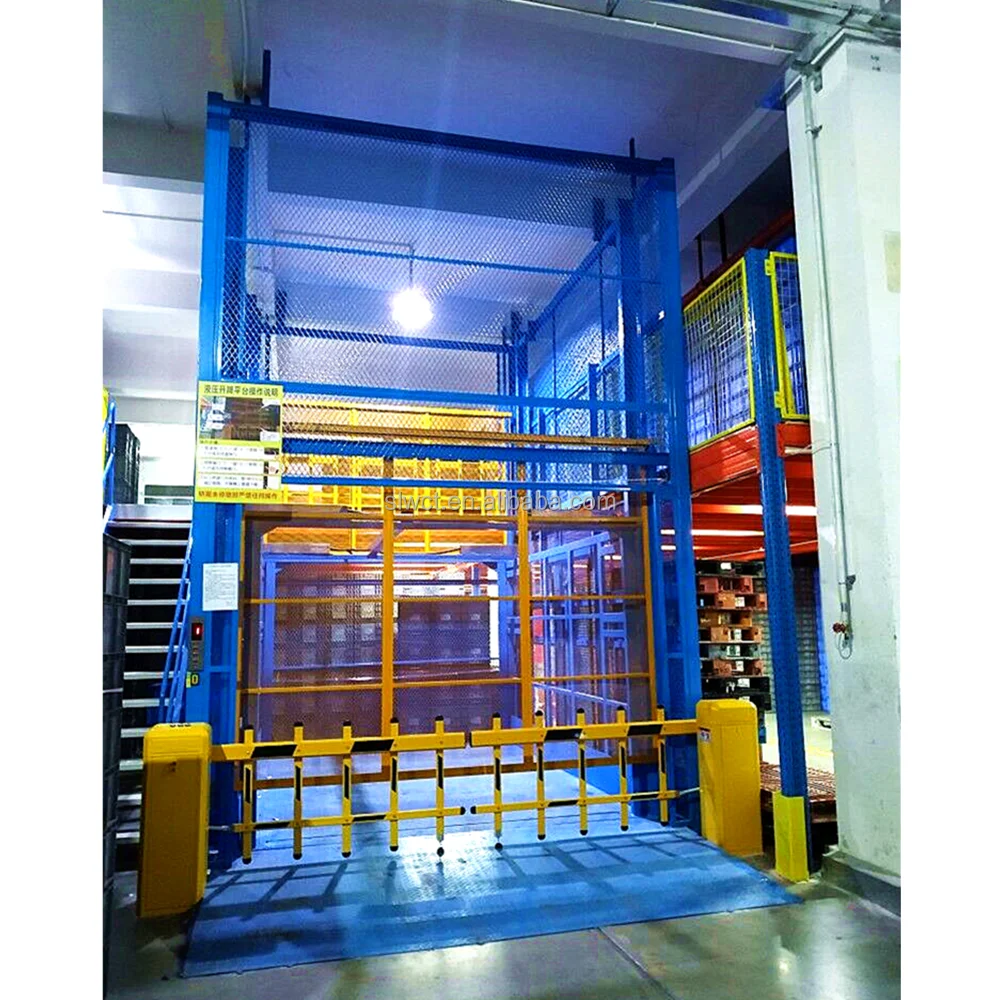

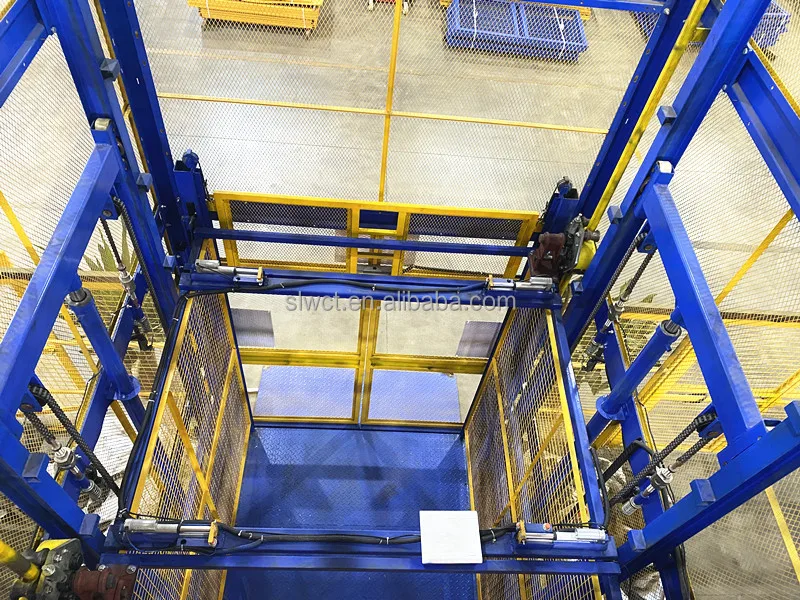

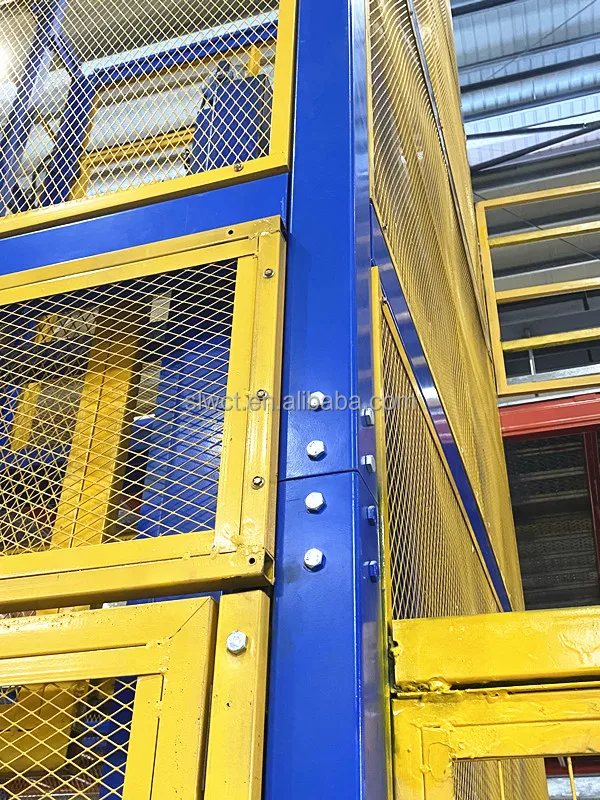

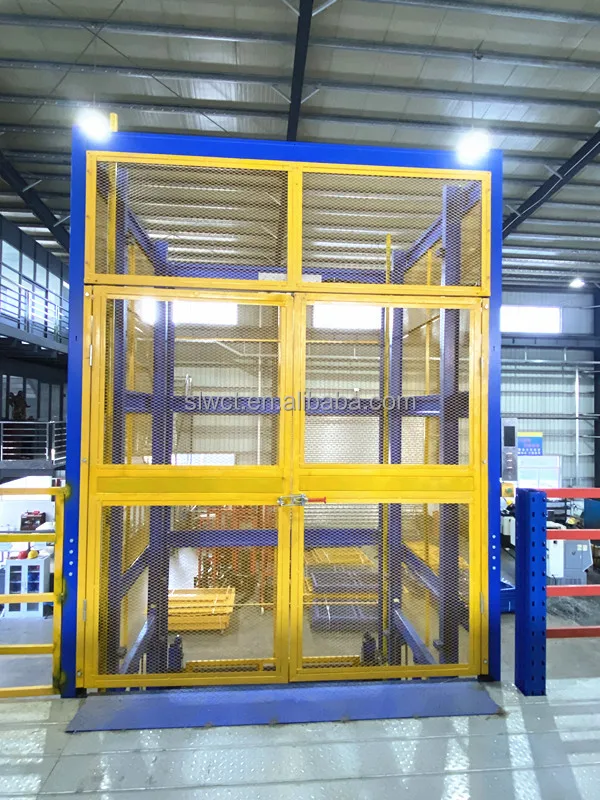

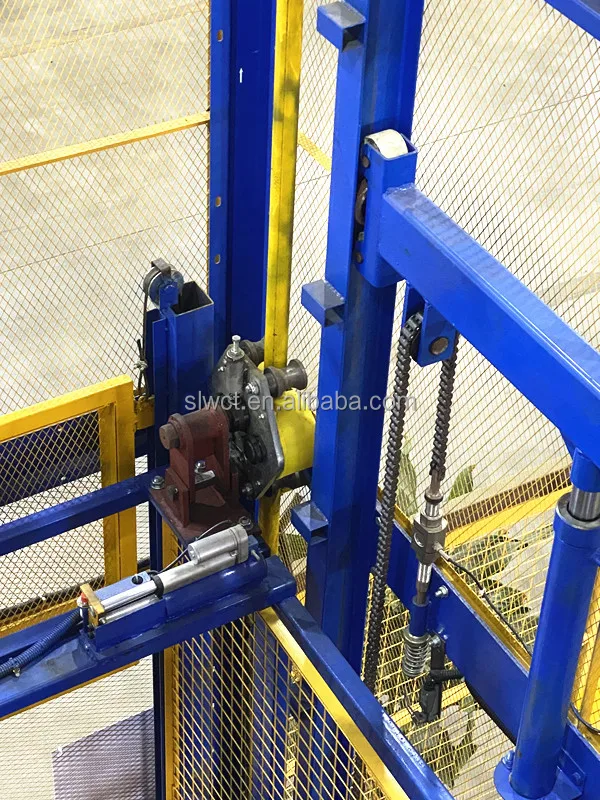

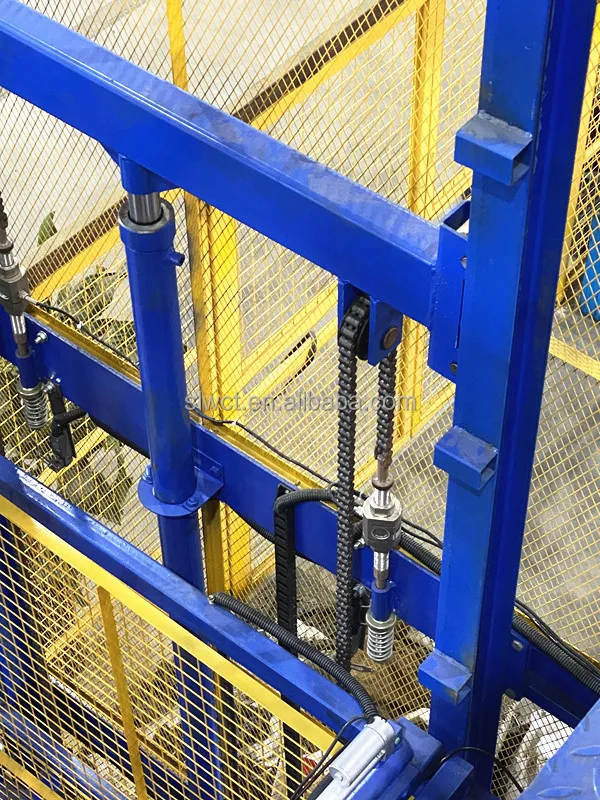

Detailed Images

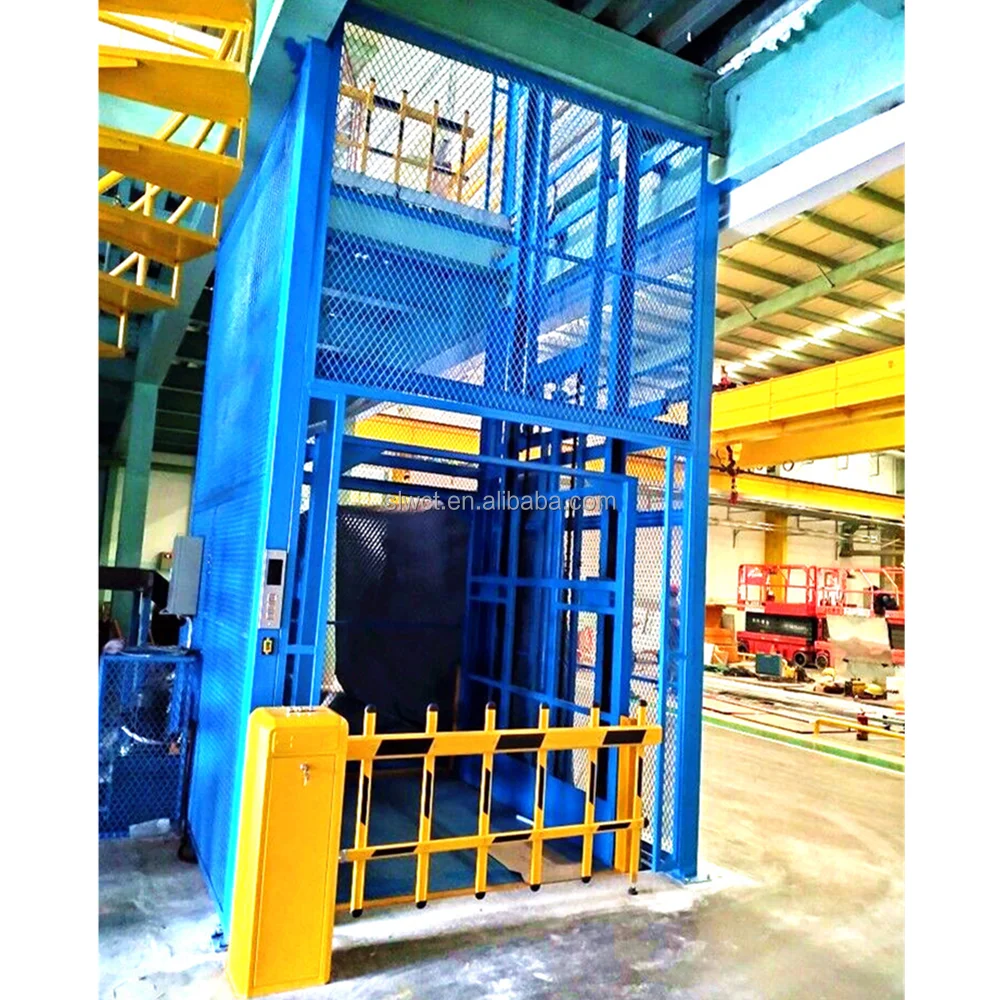

Three-Story (not have safety nets)
Three-Story (have safety nets)
Without safety nets & safety nets
Out-Door Usage

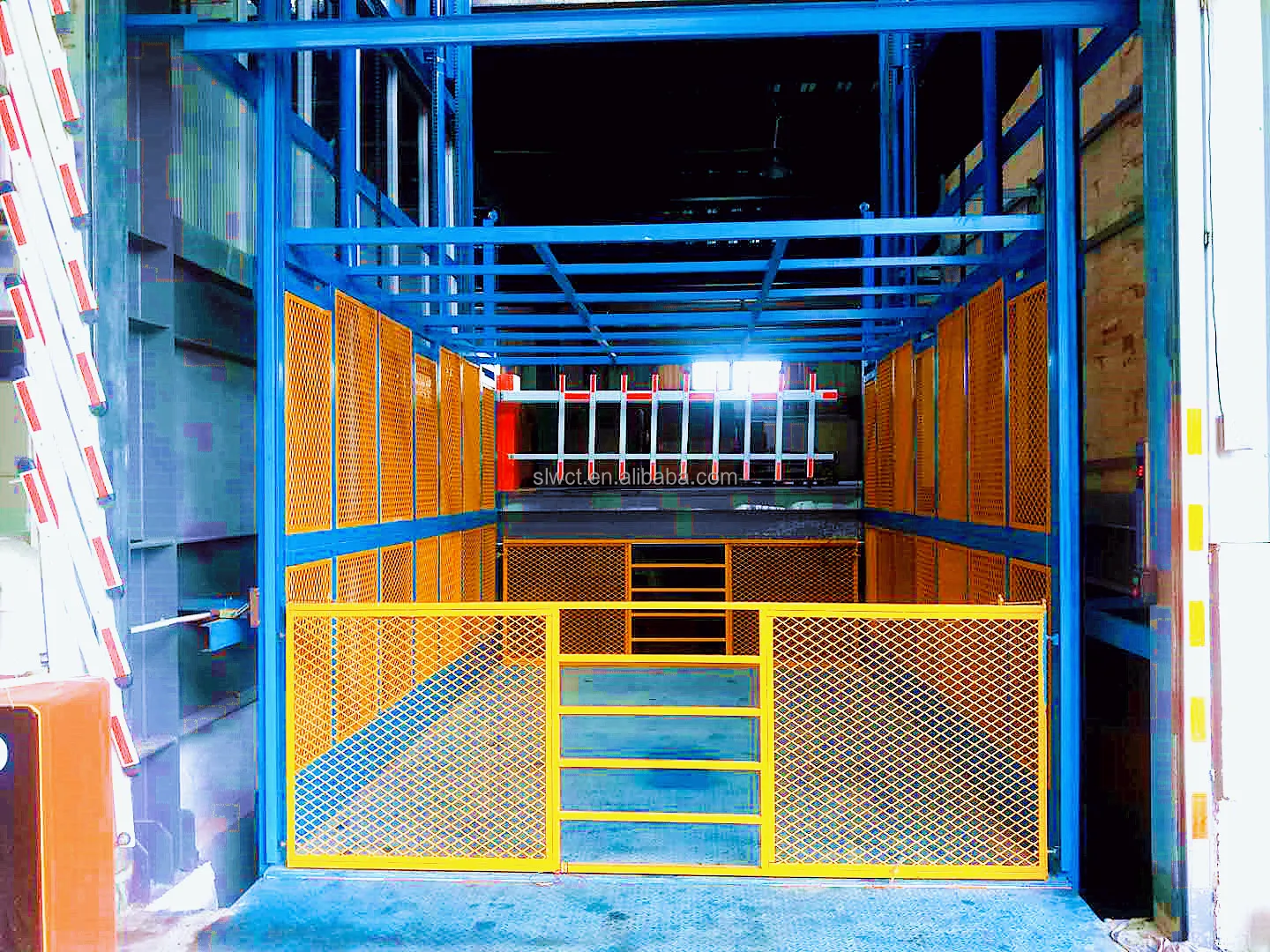

Lift-Shaft Usage

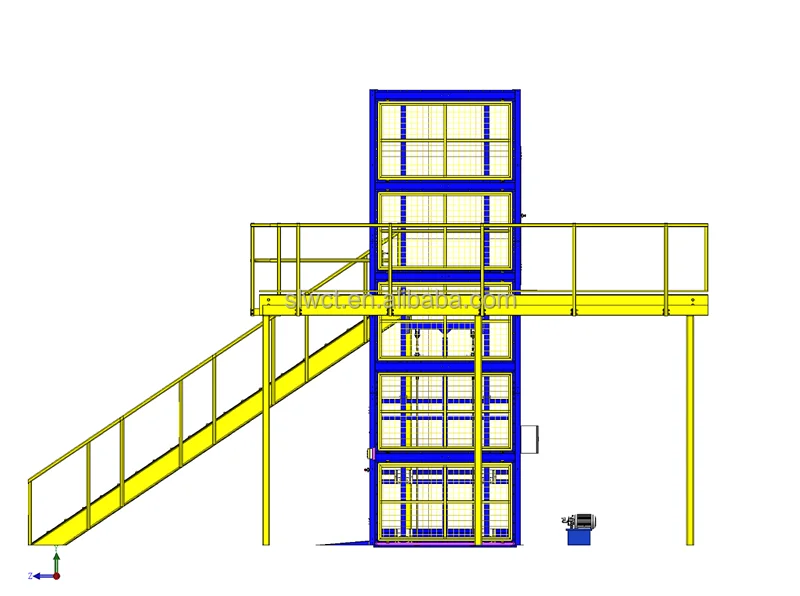

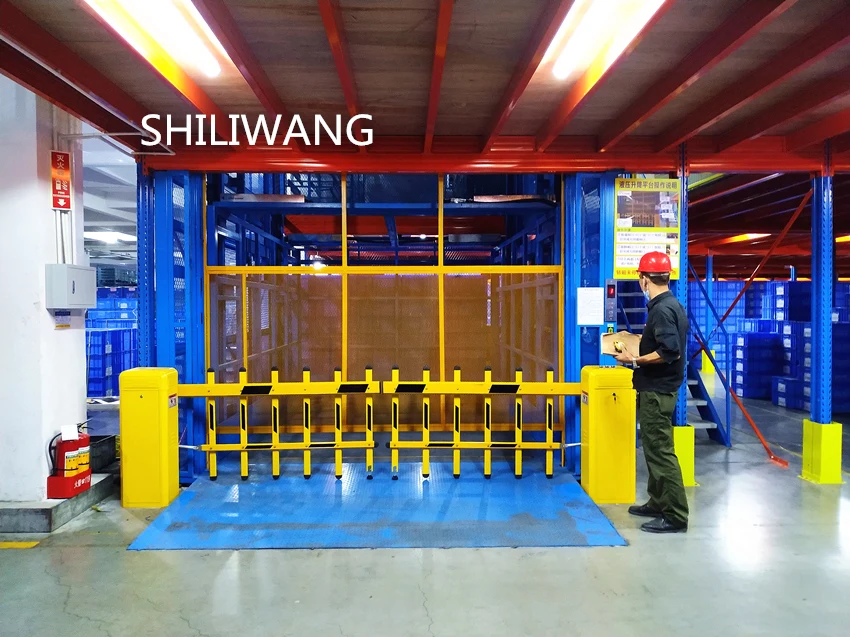

Mezzanine Usage
The use of methods and precautions
1. Cargo lift provides fast, efficient, convenient and safe access to or from mezzanines, balconies, basements, and between levels in multiple story buildings.
2. This cargo lift droved by the electric and hydraulic system, lifting up and down along the guide rail.
3. It is strictly forbidden to overload work.
4. During the lifting process, observe whether the lifting freight elevator platform is synchronized at any time, find abnormalities, stop in time, check and eliminate the fault before it can be put into use.
5. When lowering the operation, first raise the rail-type lifting freight elevator platform a little, pay attention to observe whether the lifting frame and the running rail are completely disengaged, otherwise stop falling.
6. When the rail type freight elevator is not used for a long time, the working platform should be lowered to the lowest position and the power supply should be cut off.
1. Cargo lift provides fast, efficient, convenient and safe access to or from mezzanines, balconies, basements, and between levels in multiple story buildings.
2. This cargo lift droved by the electric and hydraulic system, lifting up and down along the guide rail.
3. It is strictly forbidden to overload work.
4. During the lifting process, observe whether the lifting freight elevator platform is synchronized at any time, find abnormalities, stop in time, check and eliminate the fault before it can be put into use.
5. When lowering the operation, first raise the rail-type lifting freight elevator platform a little, pay attention to observe whether the lifting frame and the running rail are completely disengaged, otherwise stop falling.
6. When the rail type freight elevator is not used for a long time, the working platform should be lowered to the lowest position and the power supply should be cut off.
Show Related product's Details
Features and Benefits
• Easy to operate
• Heavy-gauge steel construction
• Antiskid steel checkered plate platform
• Double anti-rust primer before painting for protection
• Hydraulic cylinders feature emergency velocity fuse if line breaks
• Includes upper travel limit switch and overload relief valve
• Easy to operate
• Heavy-gauge steel construction
• Antiskid steel checkered plate platform
• Double anti-rust primer before painting for protection
• Hydraulic cylinders feature emergency velocity fuse if line breaks
• Includes upper travel limit switch and overload relief valve
Optional of Cargo Lift
Optional Equipments
• Disassembly structure
• Explosion-Proof model
• Low Temperature Hydraulic Oil
• Remote power unit
• Custom paint
• Disassembly structure
• Explosion-Proof model
• Low Temperature Hydraulic Oil
• Remote power unit
• Custom paint
Safety net
Completed Car-elevator component

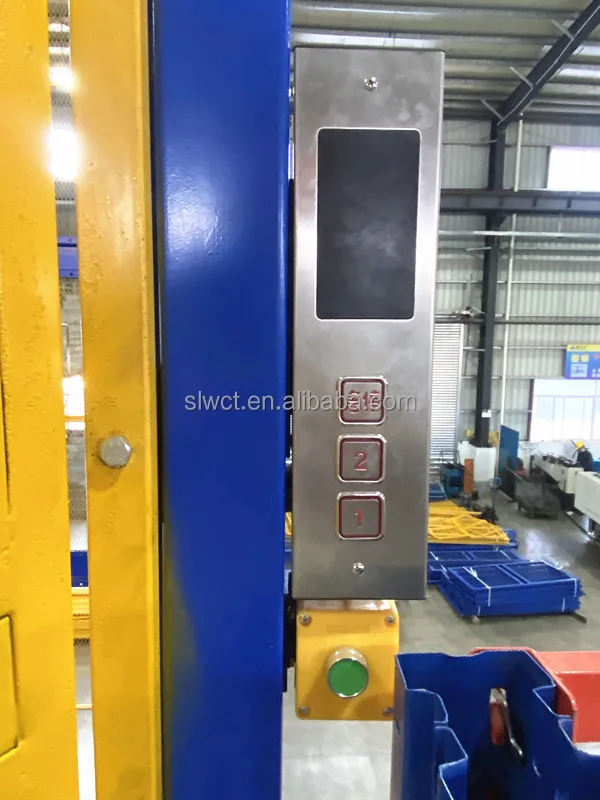

Standard elevator control switch
Schneider electric
Explosion-proof electric machine
Explosion-proof power unit
Explosion-proof control switch
Explosion-proof connect box
