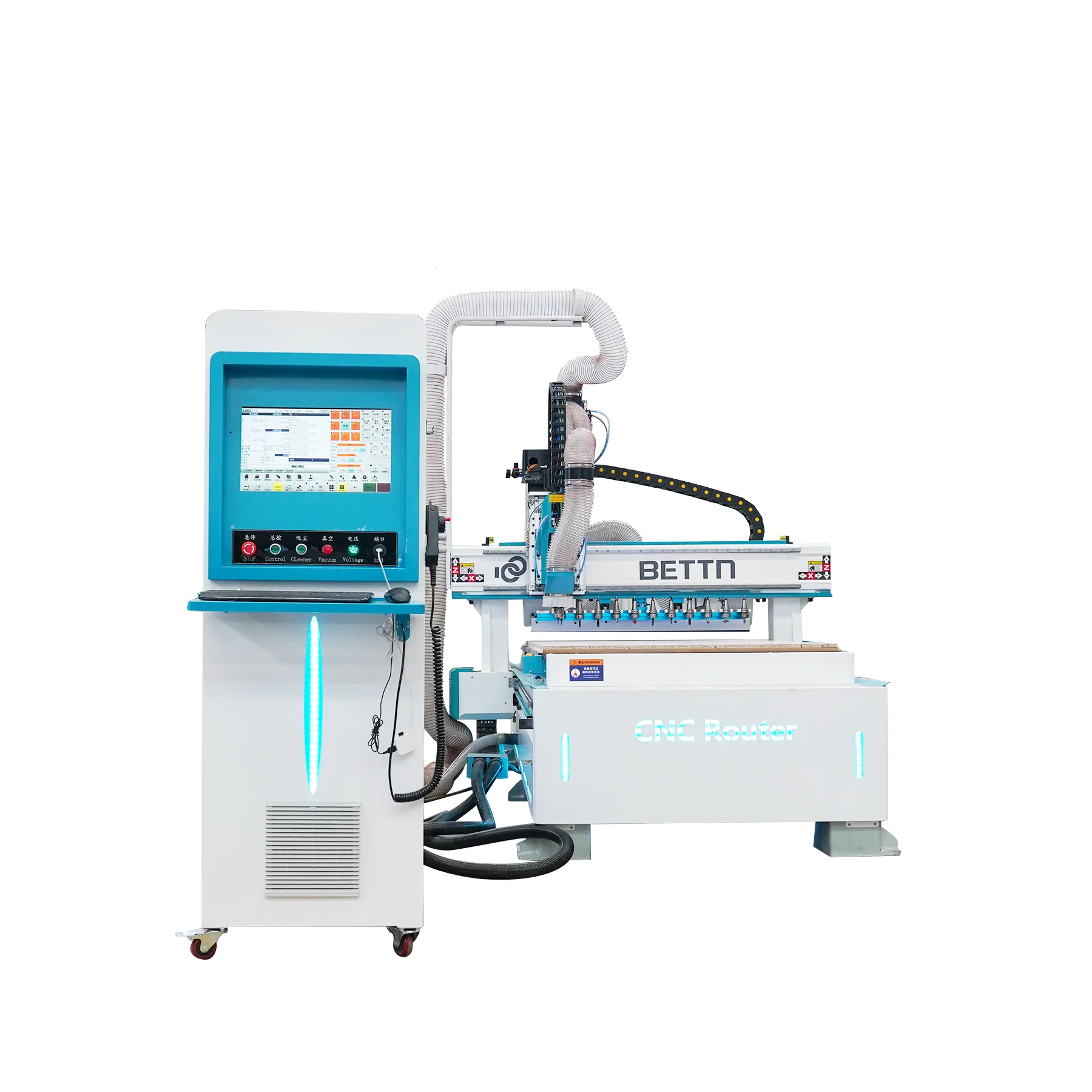

One Click Automatic Linear ATC CNC Router CNC Milling Drilling Machine with 12 Straight Row Tool
- Category: >>>
- Supplier: Zhejiang Baide Machinery Manufacture Co. Ltd.
Share on (1600717491376):
Product Overview
Description
Products Description

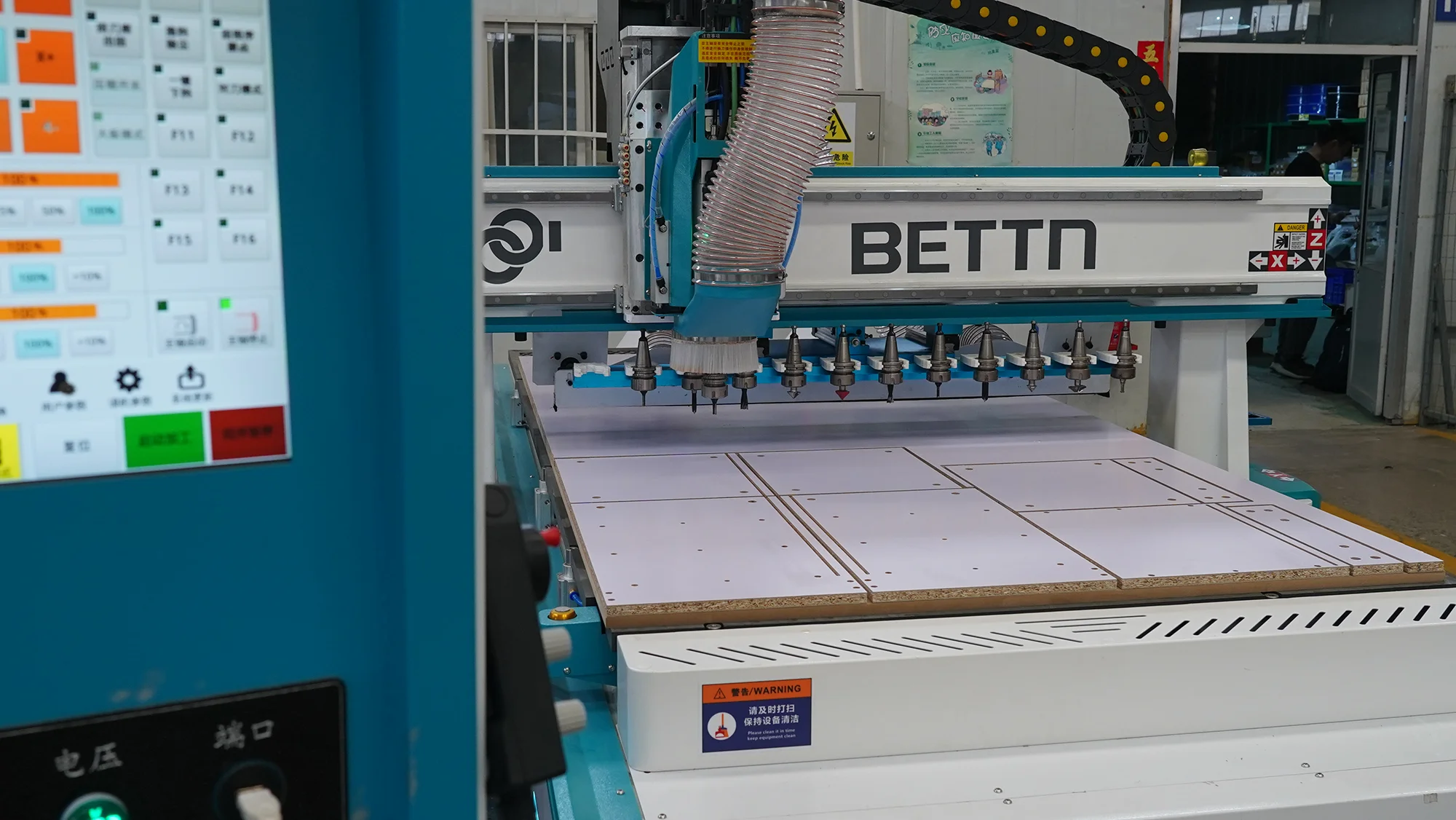

Linear ATC CNC Router With 12 tools
Function: Carving, .Drilling, Cutting, Side milling and beveling.1. 9KW automatic tool changing spindle

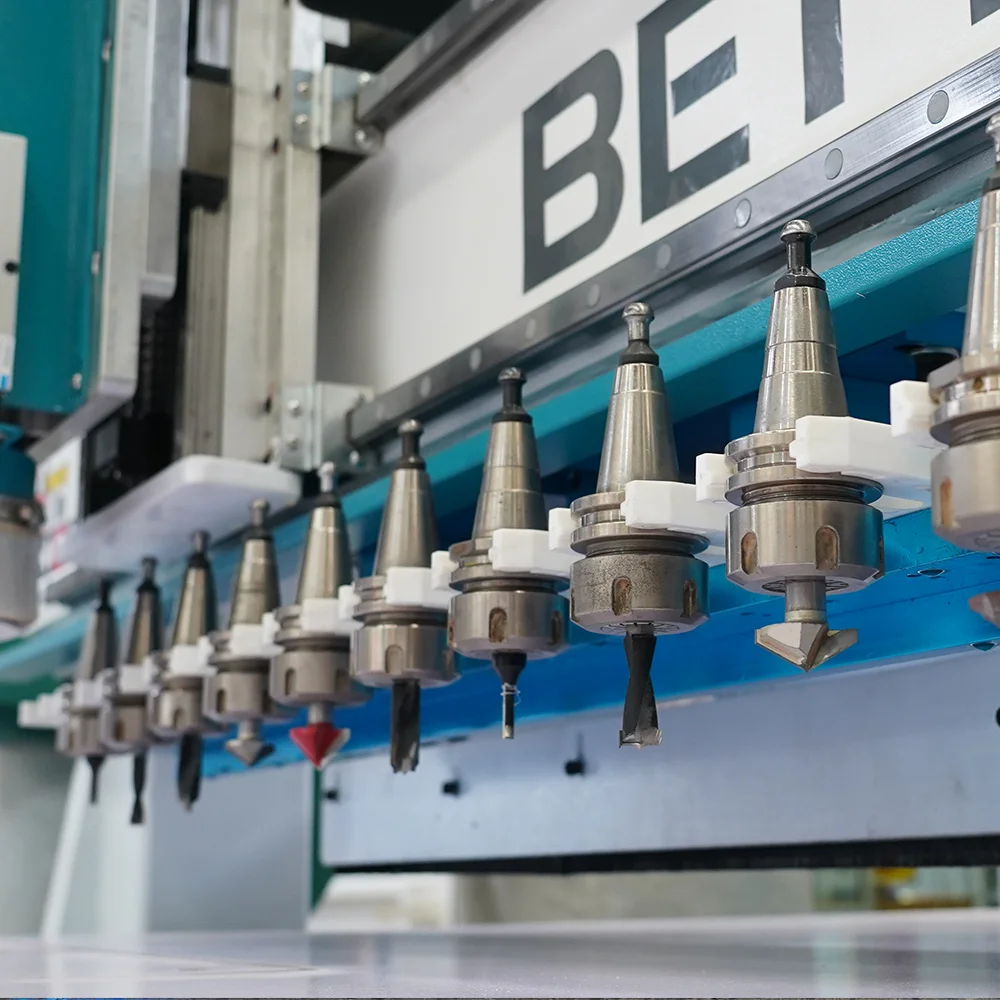

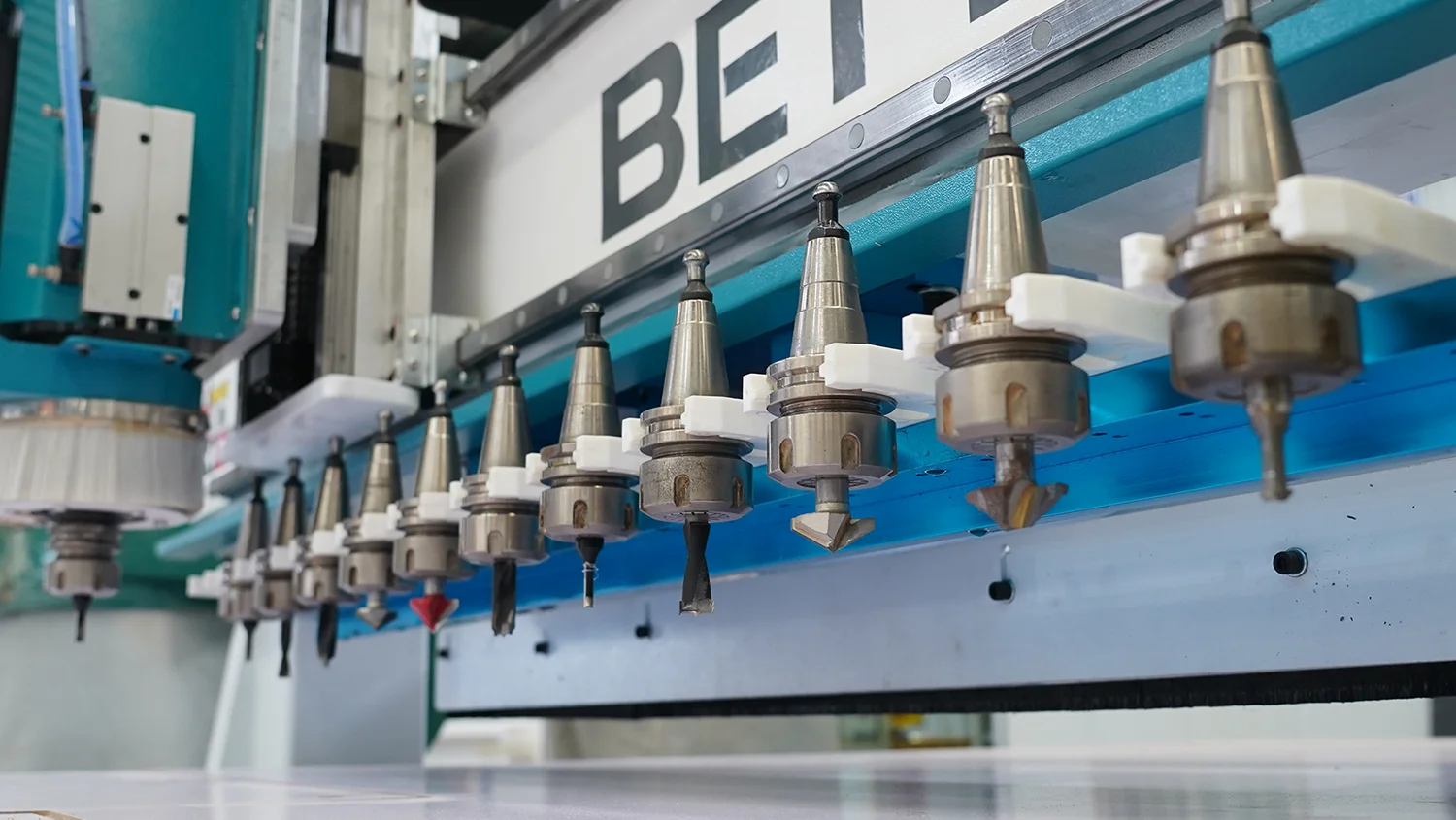

2. 12 straight row tool changing library, second speed switching, realize the process continuous without manual.
3. Taiwan baoyuan control system, efficient and intelligent, low failure rate, easy to learn, powerful, stable, good compatibility.
4. Six partition design, thickened vacuum adsorption table, can be strong adsorption of different plate sizes and materials, lower the plate waste rate.
Remarks: We also can provide customized machine as customer's requirments.
Model NO. | TZ-BD1325-12A | Pump | Liquid ring vacuum pump |
Tool storage | 12 straight row tool | Frequency changer | Bested |
Guide rail | Japanese imported high precision linear Guide rail | Motor | 1.5KW |
Control system | Taiwan baoyuan WM2200 | Reducer | Beto, Japan |
Driver | Rack Drive | Dustproof of Guide rail and Rack | All-round dustproof structure |
Rack | 1.5M High precision grinding helical rack | Control box | Integrated control operating system box |
Spindle | 9KW automatic tool changing spindle(24000r/min) | Assist | Automatic push material, final dusting |
Table | Vacuum adsorption table, six partition design | Warranty | 1 Year |
Adsorption plate | Hard PVC |
Details Images
Certifications

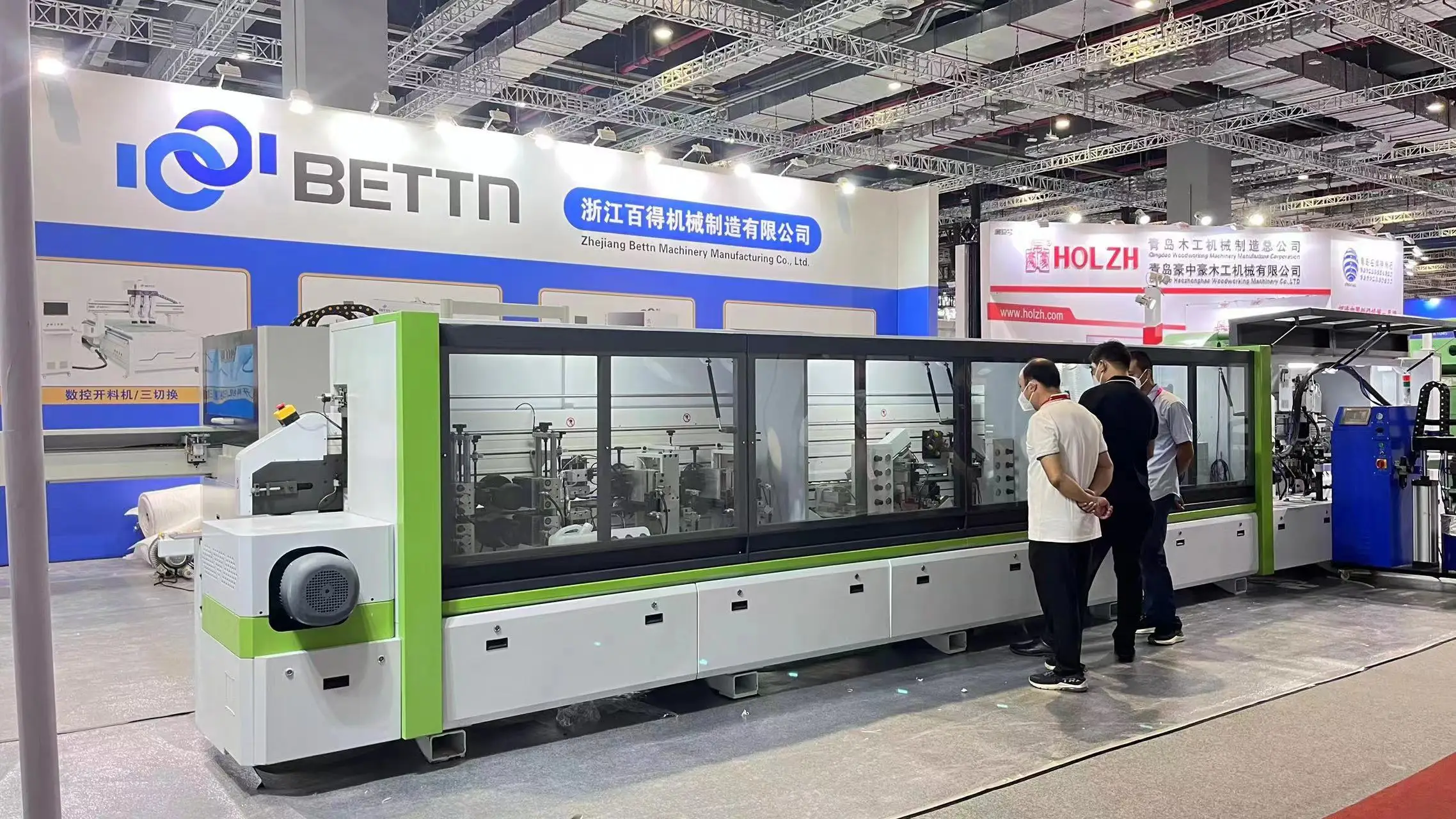

Exhibition
