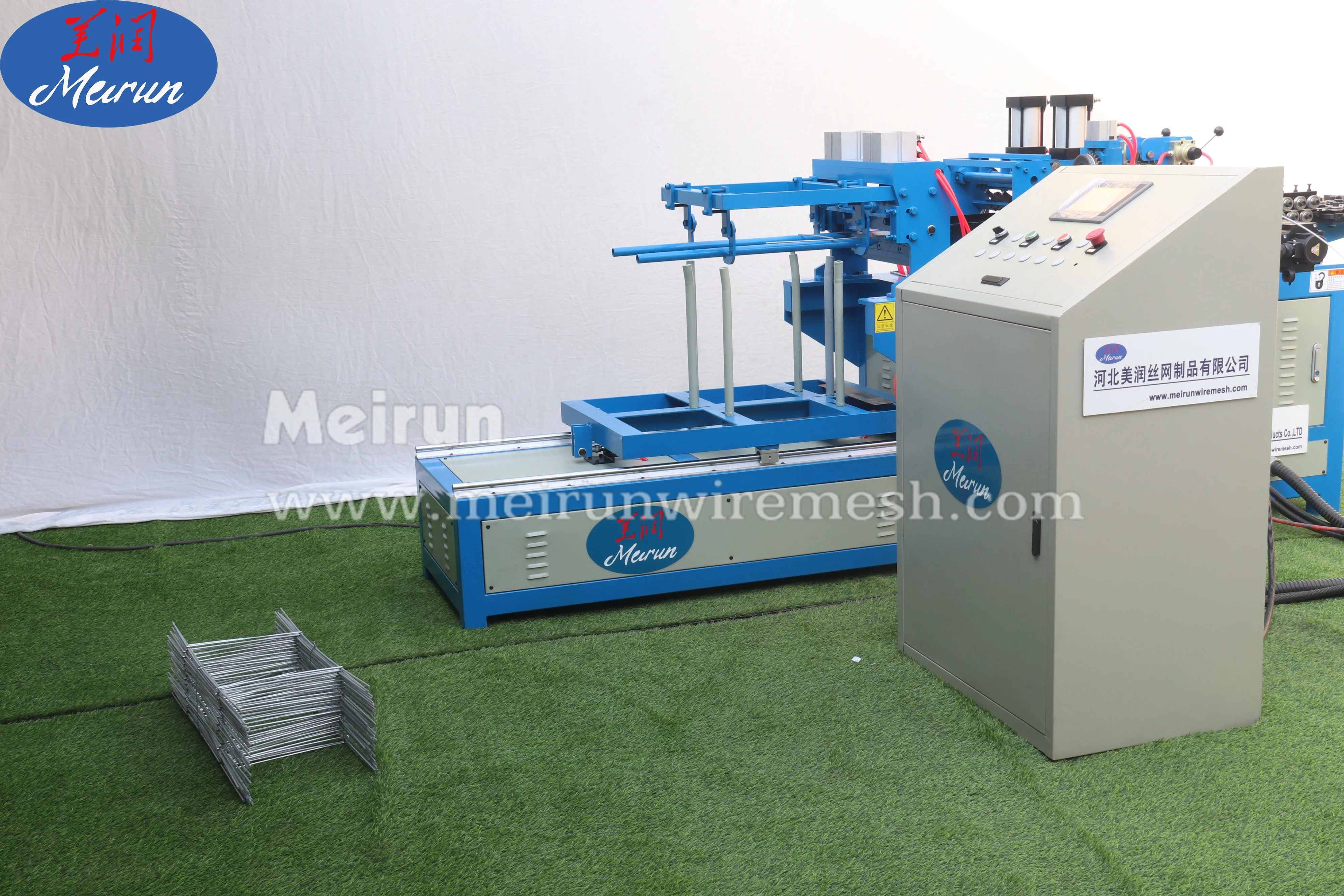

Brick welded making machine
- Category: >>>
- Supplier: Hebei Meirun Wire Mesh Products Co. Ltd.
Share on (1600717498665):
Product Overview
Description
Product Description
The machine adopts numerical control synchronous control technology. The welding time and the sub-control welding time are all
composed of PLC digital programming system. The servo motor pulls the mesh, and the input panel is touch screen or keyboard. The operation is more intelligent and rational. The device has the advantages of stable performance, firm solder joints and precise welding dimensions. The machine adopts power electronic synchronous control technology, which can automatically slice and
automatically wind up, with high output, stable performance, firm solder joints and no burn marks.Usage of finished product: It is mainly used for wall reinforcement and has the characteristics of anti-seismic and anti-cracking.
composed of PLC digital programming system. The servo motor pulls the mesh, and the input panel is touch screen or keyboard. The operation is more intelligent and rational. The device has the advantages of stable performance, firm solder joints and precise welding dimensions. The machine adopts power electronic synchronous control technology, which can automatically slice and
automatically wind up, with high output, stable performance, firm solder joints and no burn marks.Usage of finished product: It is mainly used for wall reinforcement and has the characteristics of anti-seismic and anti-cracking.
Specification
Items | Parameter |
Mesh width | 75mm, 115mm, 230mm (50-230mm adjustable ) |
Electrode no. | 4 |
Wire diameter | 1.6-3.5mm |
Cross wire space | ≥20mm |
Material | Low carbon wire ( carbon contains ≤0.2%,tensile strength ≤550MPa |
Welding speed | 60-90 times/min. |
Transformer | 36KVA×1set |
Line wire feeding | Coils wire feed from coil by servo motor |
Cross wire feeding | Coils wire feed from coil by servo motor |
Welding pressure | Pneumatic |
Welding method | Controlled by SCR |
Mesh pulling | Automatic rolling machine, one time making two coils |
Controller | PLC with touch panel |
Mesh length setting | Automatic cut |
Packing & Delivery

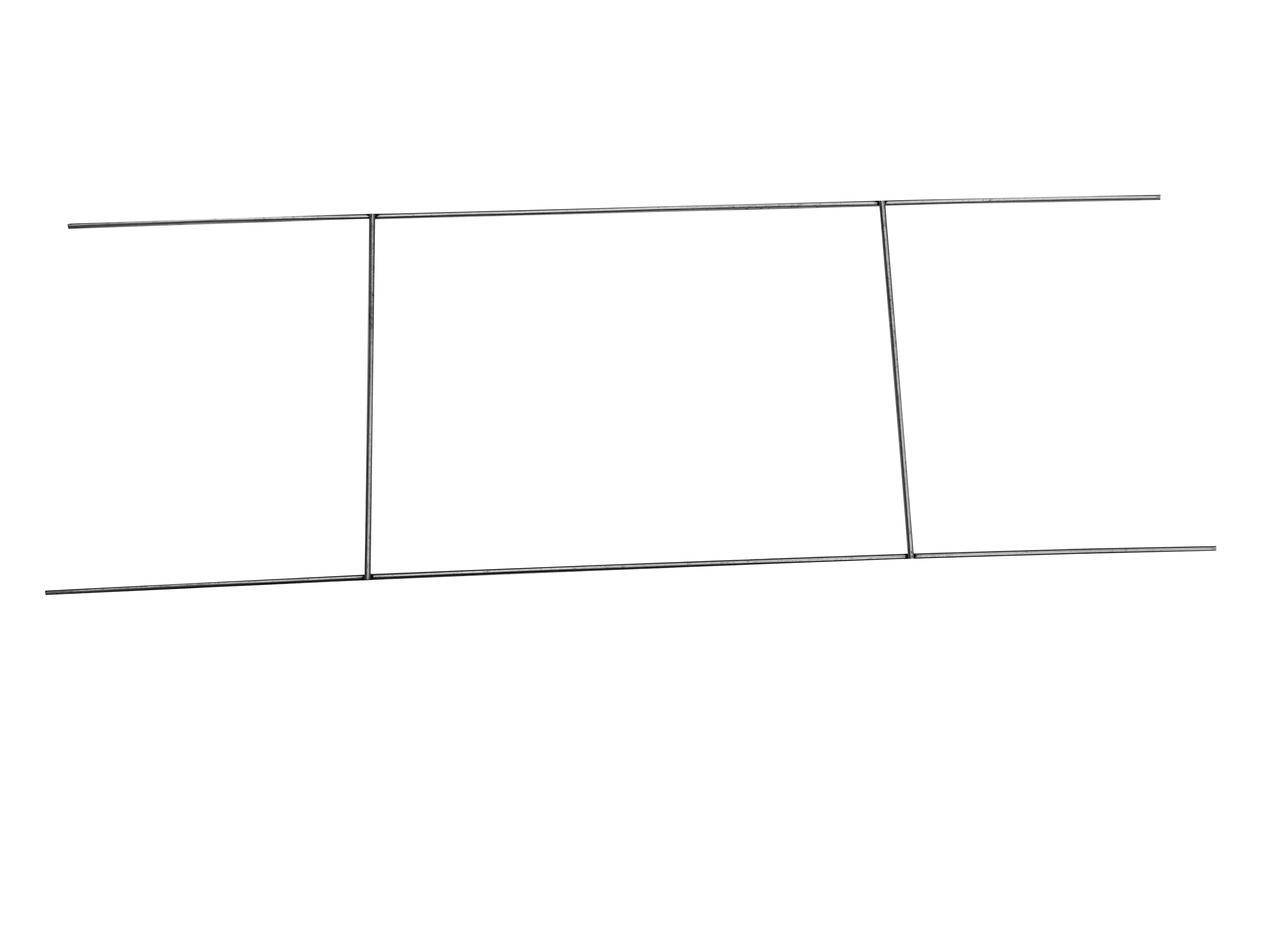

This machine is used to produce the brickforce mesh roll from 1.6-3.5mm wire . This brickforce mesh is very popular in Africa,
South Africa, Malawi,Zamiba
1.Taiwan famous brand PLC and touching screen
2.pneumatic testing, servo alarm
3.mesh size is set from PLC , welding current and welding time is also set from PLC
South Africa, Malawi,Zamiba
1.Taiwan famous brand PLC and touching screen
2.pneumatic testing, servo alarm
3.mesh size is set from PLC , welding current and welding time is also set from PLC
1.The main machine is nude packing or plastic packing.
2.Also can do as customer's request
2.Also can do as customer's request
