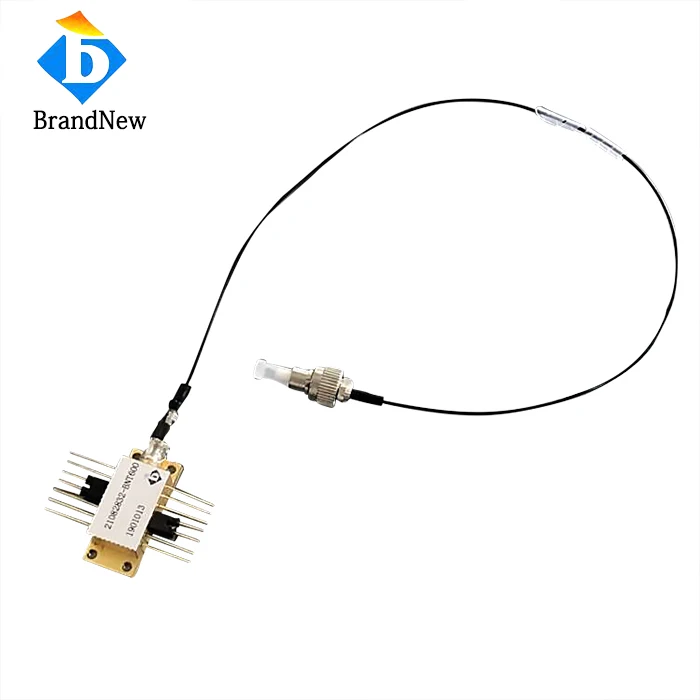

600mW 976nm Fiber Bragg Grating Butterfly 14 Pin Fiber Coupled Diode Laser
- Category: >>>
- Supplier: Hangzhou Brandnew Technology Co. Ltd.
Share on (1600717519935):
Product Overview
Description
Product Description

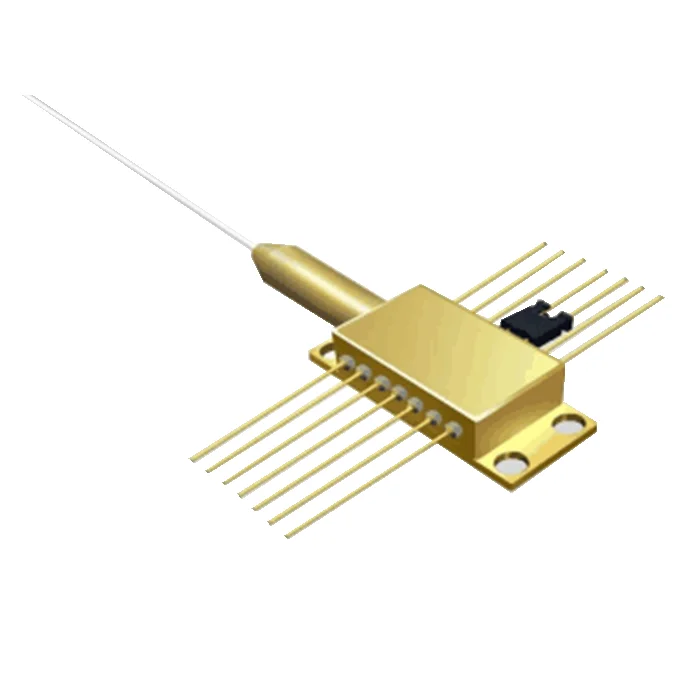

600mW 974nm 976nm Fiber Bragg Grating Butterfly Diode Laser Module
The 980nm pump module uses FBG stabilization to "lock" the emission wavelength. It provides a noise-free narrowband spectrum, even under changes in temperature, drive current, and optical feedback. Wavelength selection is available for applications that require the highest performance in spectrum control with the highest available powers.
Features:
Kink-free operating power up to 600mW
epoxy-free, and flux-free 14-pin butterfly package with SM Hi1060
Fiber Bragg grating stabilization
Wavelength selection available
Integrated thermoelectric cooler, thermistor, and monitor diode
Applications:
LAN, WAN and metro networks;
C/DWDM systems;
Laser sources;
Package drawing:
Data sheet:
Item No.: FC976FBG600
Item Name: 600mW 976nm Fiber Coupled Diode Laser
| Optical | |
| Center Wavelength | 976±1nm |
| Output Power | 600mW |
| TEC | Available |
| PD | Available |
| Thermistor | Available |
| Fiber | |
| Fiber | Hi1060 |
| Fiber Length | >1m |
| Fiber Connector | FC/APC |
| Electrical | |
| Operating Current Iop | 1000mA |
| Threshold Current Ith | 90mA |
| Operating Voltage Vop | 2.5V |
| TEC Working Current/Voltage | 2.5A/6.3V |
| Thermal | |
| Operating Temperature | 25℃ |
| Storage Temperature | -40-80℃ |
| Wavelength Temp. Coefficient | 0.01nm/℃ |
Packing & Delivery
About us
Hangzhou Brandnew Technology Co., Ltd.
Founded in 2011, BrandNew, the laser diode company, manufactures high-power diode lasers and systems in a wide range of output powers and wavelengths including fiber-coupled, stack bar lasers and plug and play lasers.
Cooperated with Institute of semiconductors Chinese academy of sciences and Zhejiang University, Today, over 60 technicians and 2 scientists, 20 technicians are with PHD degree. Production space is 10000 Class Lab Clean Room with 2000 square meters. Turnover per year is more than 10M US dollars.
BrandNew's strengths are in talent employees, quality engineering,Process control, product development and volume manufacturing.
Core Competency
◆ Diode Packaging ◆ Beam Shaping
◆ Reliability Testing ◆ Efficient Cooling
