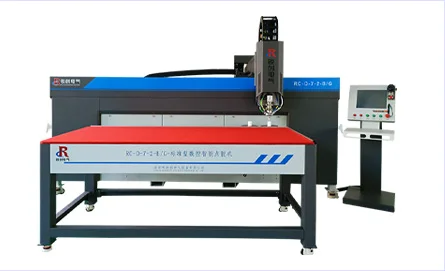

Automatic PU Polyurethane Foam Air Filter Plastic Dispensing Making Component Machine for Car Air Filter
- Category: >>>
- Supplier: Luoyang Ruichuang Electrical Equipment Co. Ltd.
Share on (1600717527467):
Product Overview
Description
PRODUCT DESCRIPTION
Model No. | RC-D-7-2-B/G | Power | 4KW |
Working Stroke | X*Y*Z=2300*1250*300mm | Voltage/Frequency | 3*380V/50-60HZ |
Rack Body Size | L*W*H=4100*1150*2450mm | Gasket Width | 5-30mm |

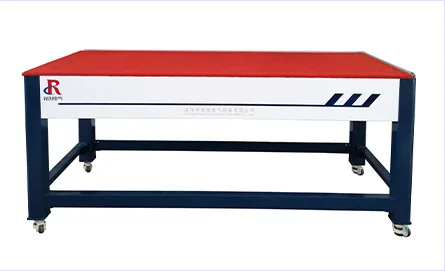

Workbench Size | L*W*H=2300*1000*1000mm | Mixing Ratio | 1:1-10:1 |
Working Speed | 0~30m/min | Material Tanks | 40L both for glue A&B tank |
Control System | Industrial motion control computer system, multi-language | Cleaning Method | Automatic high pressure water cleaning |
Output | 1.0-7.2g/s | Filter Precision | 40~50 μm |
Working Pressure Limits | ≥0.6MPA | Re-Positioning | ±0.05mm |

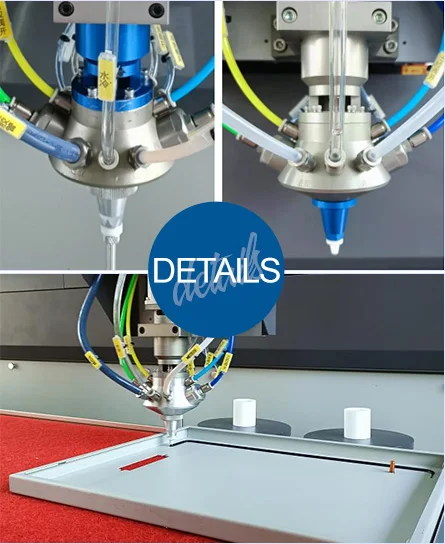

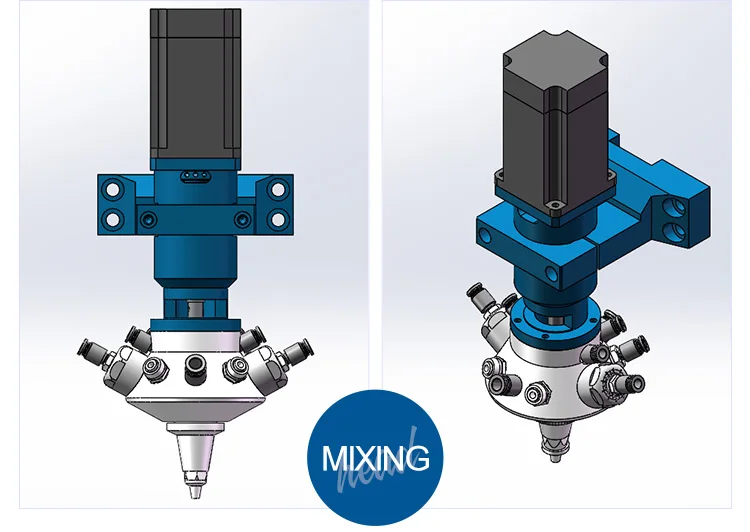

1. Equipped with threaded and wolf-tooth mixing heads, which are suitable for dispensing fine and thick rubber strips respectively. The maximum glue output can reach 7g/s, and the minimum can reach 0.5g/s.
2. The glue nozzle is short, reducing the glue channel, without burning glue, the dispensing effect is bright and bright, and the waterproof effect is better. The nozzle can be quickly replaced according to different workpieces. For example, the nozzle of the aluminum tube can be replaced when it is flat, and the nozzle with sharp corners can be used for deep groove dispensing.
3. The mixing cup and the glue nozzle are designed in one piece, which is convenient to avoid. For special-shaped workpieces, the glue can be dispensed without lengthening the glue nozzle.

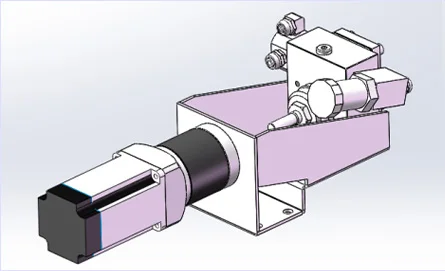

4. The stirring head is lighter and shorter, the motor speed can reach 6000 rpm, and the motor overheating will not occur.
5. Up-moving sealant, perfect joints, the same principle as Germany's Lanpu.
3. The mixing cup and the glue nozzle are designed in one piece, which is convenient to avoid. For special-shaped workpieces, the glue can be dispensed without lengthening the glue nozzle.
4. The stirring head is lighter and shorter, the motor speed can reach 6000 rpm, and the motor overheating will not occur.
5. Up-moving sealant, perfect joints, the same principle as Germany's Lanpu.

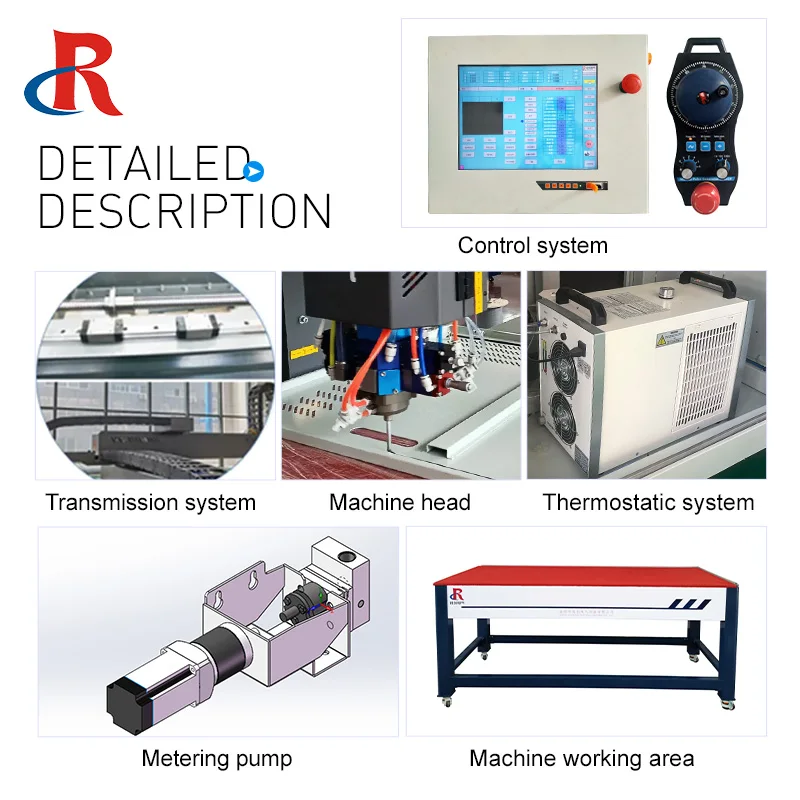

DETAILED DESCRIPTION

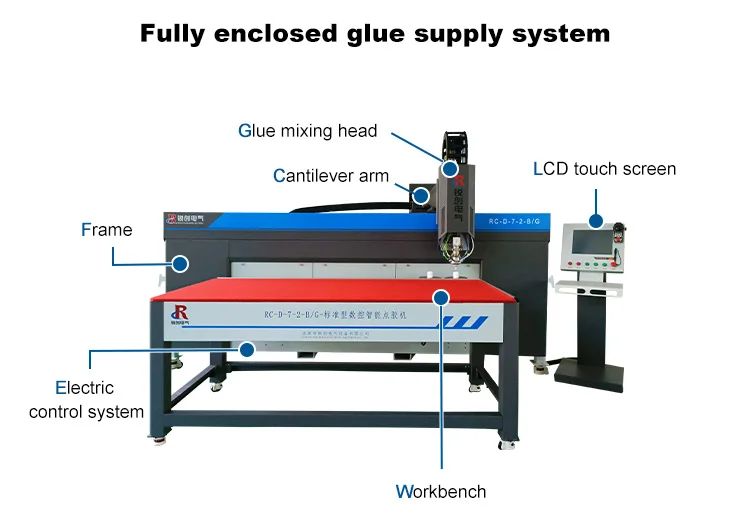

Integrated gantry frame structure, fully surrounded constant temperature system, all the pipelines glue tanks are covered inside, tidy, clean and safe, with wheels, easy to move, no need installation.

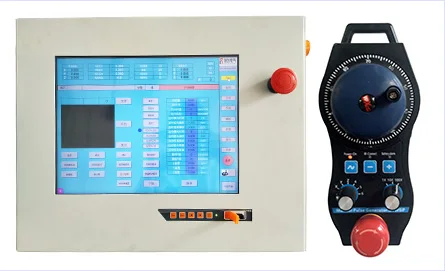

Smart control system, can support CAD, Teaching and Template functions, much more convenient for operation.

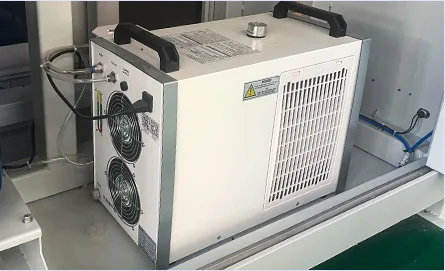

Thermostat water circulation device, heating and cooling all in one, -15℃ to 35℃ environment can still work normally.

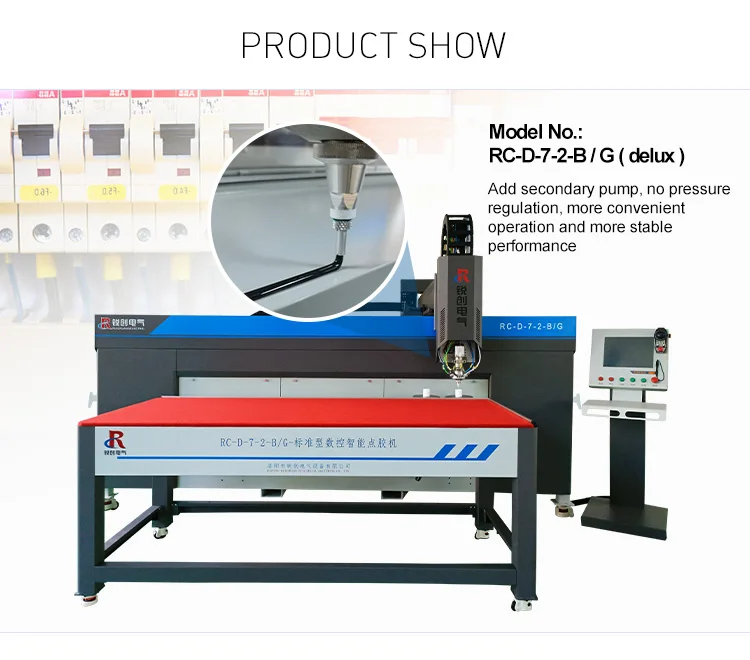

Increase the secondary pump, no need to adjust the pressure, the operation is more convenient, and the performance is more stable.
Machine working area 2400 * 1250 * 300 (mm), the largest working range in China, can be dispensed on the largest and highest products.
OUR SUPPLY ADVANTAGES
Technical solution can be made in 3 working days for customized product,
and finished product can be produced in 20 working days.
ABOUT US

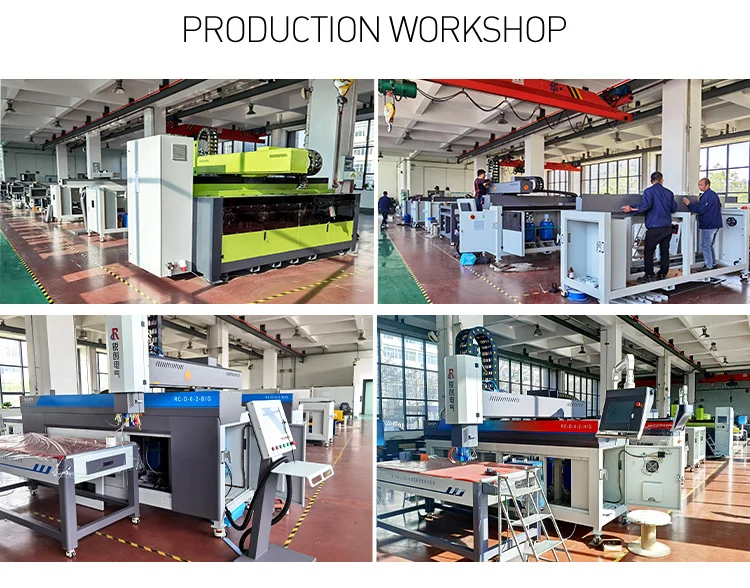

Established in 1993, Luoyang Ruichuang Electrical Equipment Co., Ltd. is located in the High-tech Development Zone of China (Henan) Free Trade Zone. It is a high-tech enterprise integrating R&D, design, manufacture, installation and service. The company has advanced management concepts, high-quality talents, first-class research and development capabilities, advanced processing equipment, complete production chain, strict quality inspection system, and professional service team.Innovation is the inexhaustible driving force for our development.
Since its establishment in 1993, our company has been committed to the development of high and low voltage power distribution equipment, sheet metal processing equipment (polyurethane foam sealing and coating equipment, industrial flat inkjet printing equipment, welding automation equipment), customized automation Solutions, robots, etc. The years of experience and technology accumulation in the sheet metal industry enable Ruichuang to provide customers with the most efficient and flexible automation solutions. Our products have high degree of automation, reliable performance and simple operation, and has gained trust and support from customers at home and abroad.
CERTIFICATION
The factory has passed ISO 9001 quality management system certification, with perfect technology, quality and inspection control ability, to ensure that the whole process from raw materials into the factory production and processing to finished products factory control.
FAQ
Q1. Are you factory or trading company?
We are professional factory in Sheet metal industry and CNC machinery industry with near 30 years of experience, covering sheet metal fabrication, CNC pu foam sealing machine, CNC stud welding machine, industrial Robot, industrial Flatbed Inkjet Printer, etc.
Q2. What is this CNC pu foam sealing machine used for?

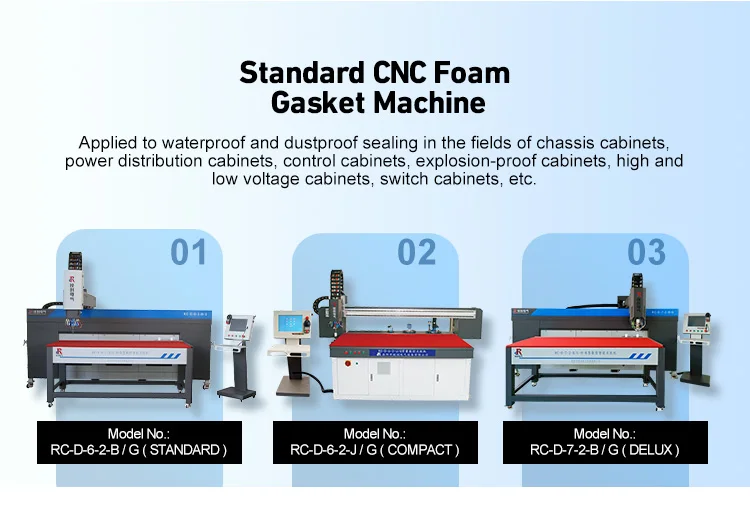

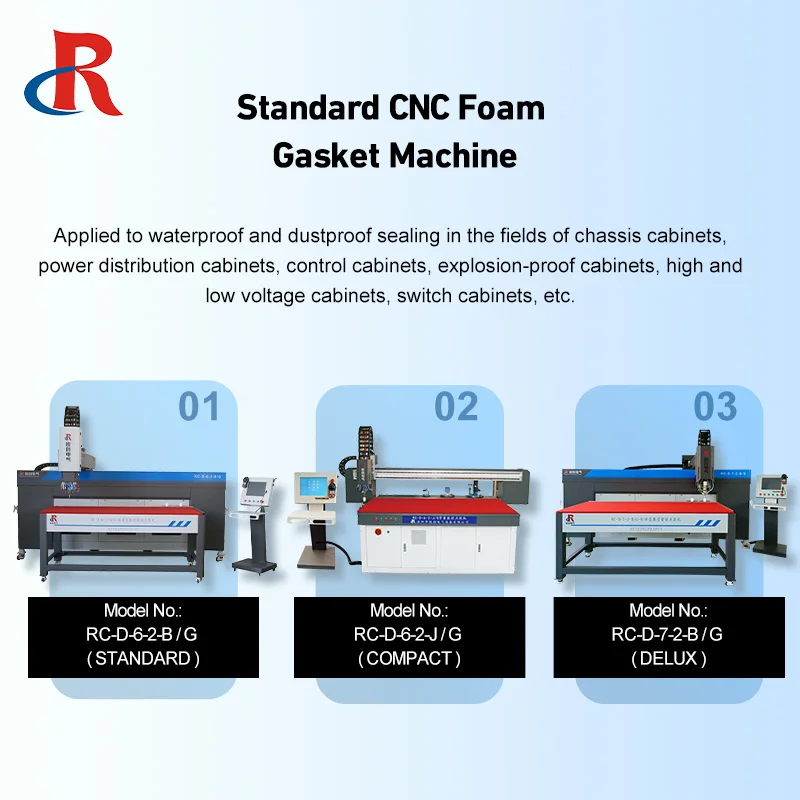

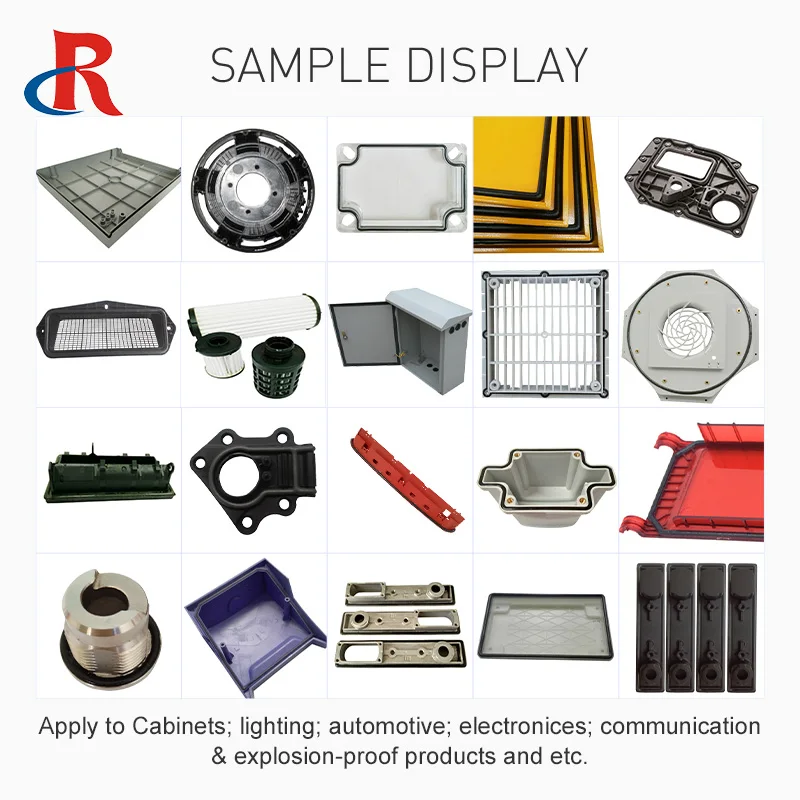

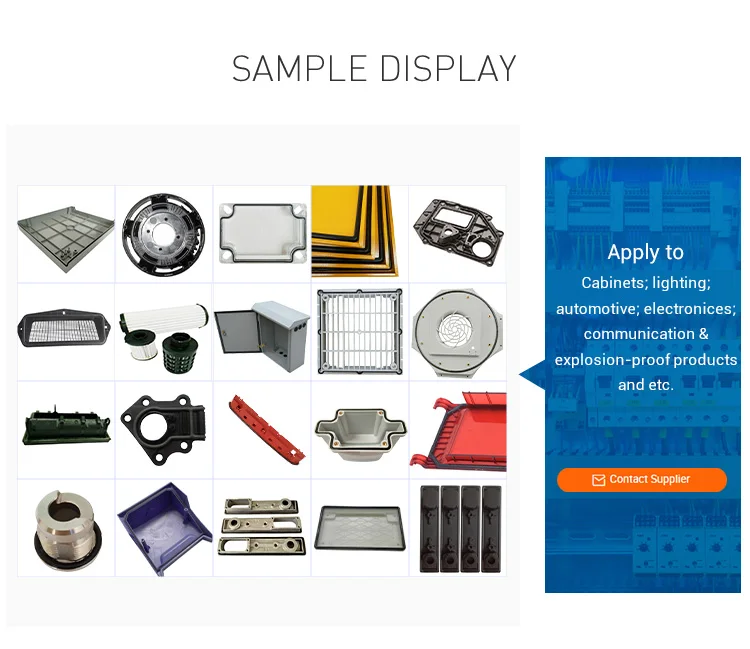

It is used for the sealing of electrical cabinet doors, enclosures, panels, air filters, lighting covers, electronics, auto spare parts and so on, for insulation waterproof and dustproof purpose.
Q3. How long is the lead time?
Normally 20 to 30 working days.
Q4. How long is the warranty of your machines?
Generally 1 year.

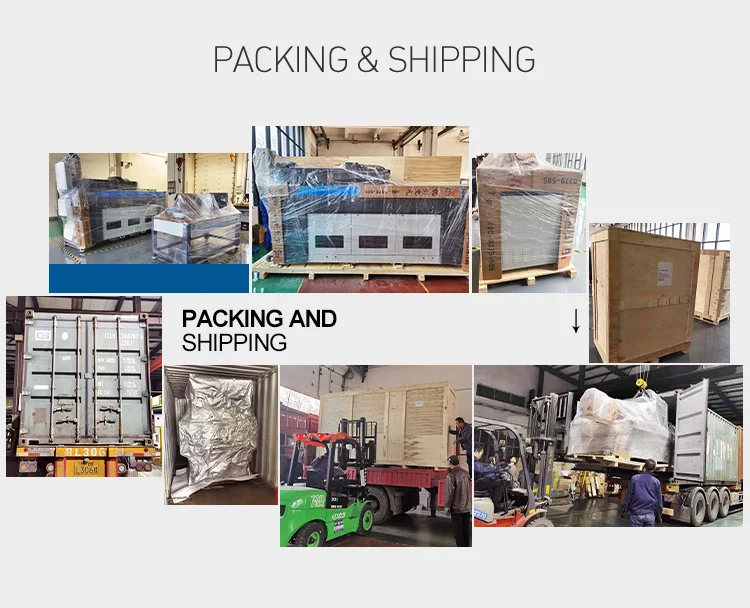

Q5. What shipment ways do you support?
By sea, by air, by train, by international express, etc.
Q6. What payment terms do you accept?
We accept T/T, L/C, Alibaba trade assurance order, etc.
Our service:
1. We offer a 24-hour online service.
2. We provide free remote training, operating guide, remote/onsite technical support, etc.
3. We accept OEM and ODM.
We are professional factory in Sheet metal industry and CNC machinery industry with near 30 years of experience, covering sheet metal fabrication, CNC pu foam sealing machine, CNC stud welding machine, industrial Robot, industrial Flatbed Inkjet Printer, etc.
Q2. What is this CNC pu foam sealing machine used for?
It is used for the sealing of electrical cabinet doors, enclosures, panels, air filters, lighting covers, electronics, auto spare parts and so on, for insulation waterproof and dustproof purpose.
Q3. How long is the lead time?
Normally 20 to 30 working days.
Q4. How long is the warranty of your machines?
Generally 1 year.
Q5. What shipment ways do you support?
By sea, by air, by train, by international express, etc.
Q6. What payment terms do you accept?
We accept T/T, L/C, Alibaba trade assurance order, etc.
Our service:
1. We offer a 24-hour online service.
2. We provide free remote training, operating guide, remote/onsite technical support, etc.
3. We accept OEM and ODM.
