Product Overview
Description
Our Service
Product Introduction

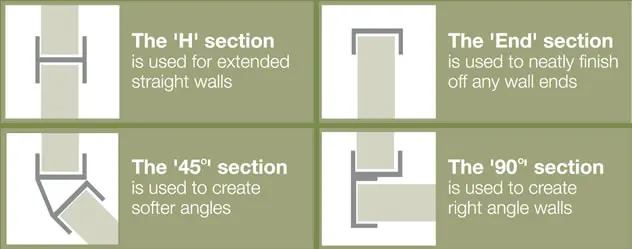

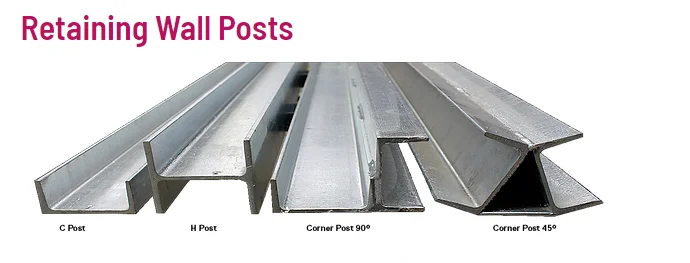

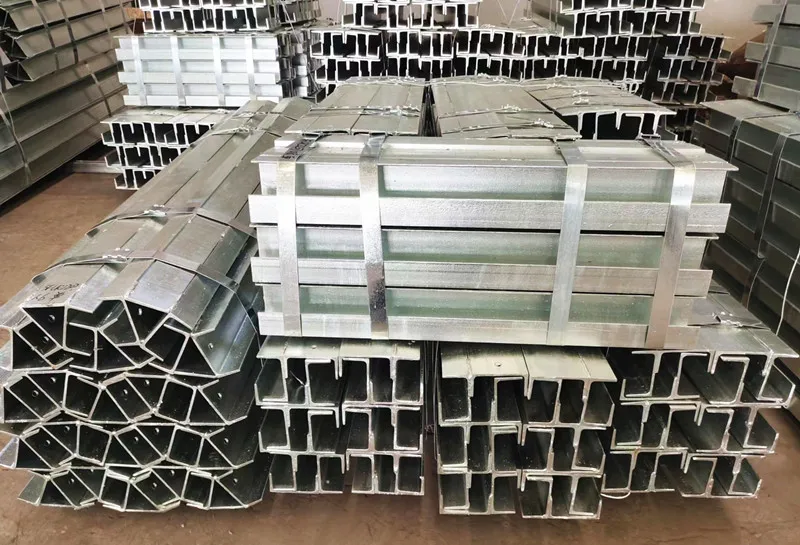

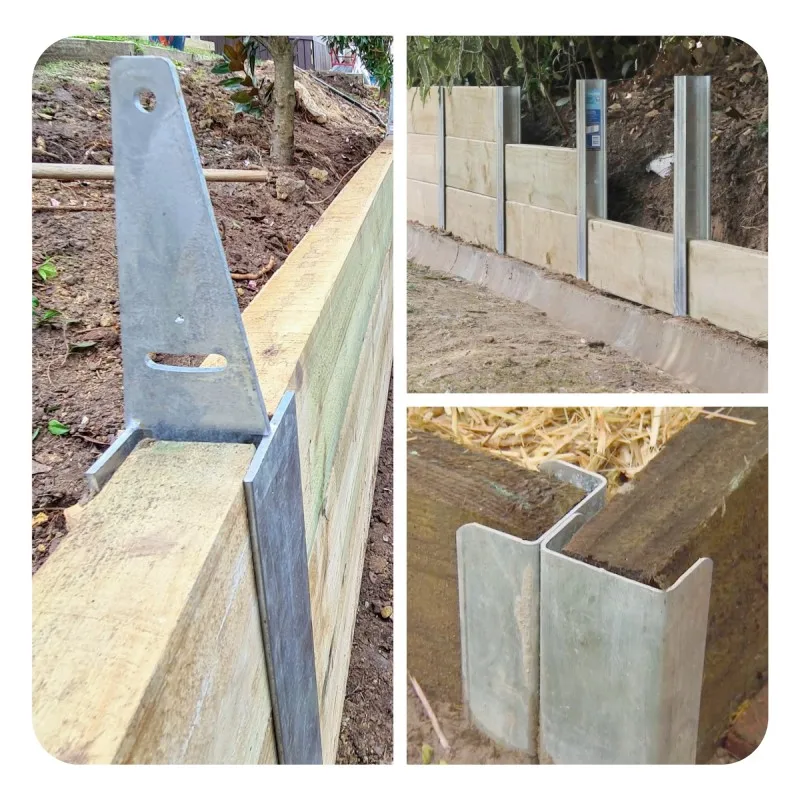

H-Section joiner for straight runs:
Available range:
0.9m/1.2m/1.5m/1.8m/2.1m/2.4m/2.7m/3.0m/
0.9m/1.2m/1.5m/1.8m/2.1m/2.4m/2.7m/3.0m/
3.3m/3.6m
Other lengths are available upon request
Other lengths are available upon request

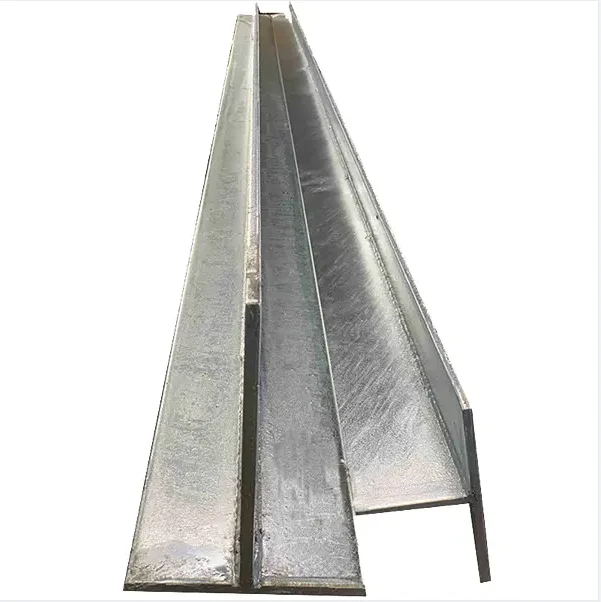

C-Section joiner for ends:
Available range:
0.9m/1.2m/1.5m/1.8m/2.1m/2.4m/2.7m/3.0m/
0.9m/1.2m/1.5m/1.8m/2.1m/2.4m/2.7m/3.0m/
3.3m/3.6m
Other lengths are available upon request
Other lengths are available upon request

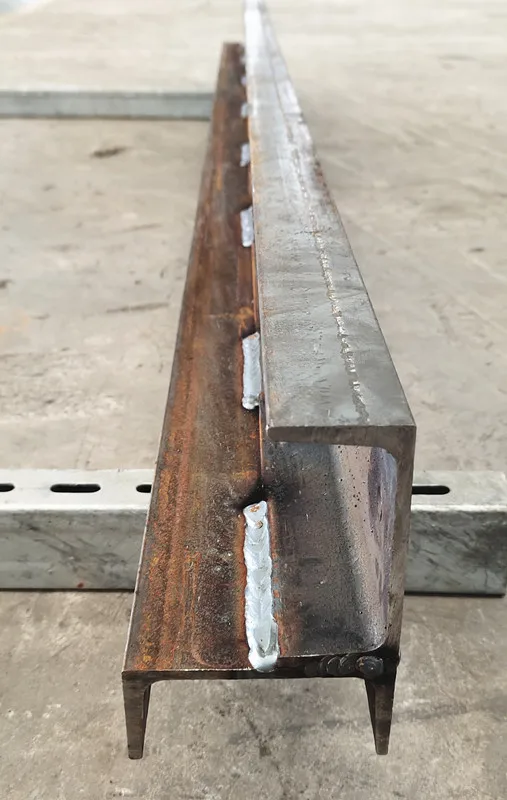

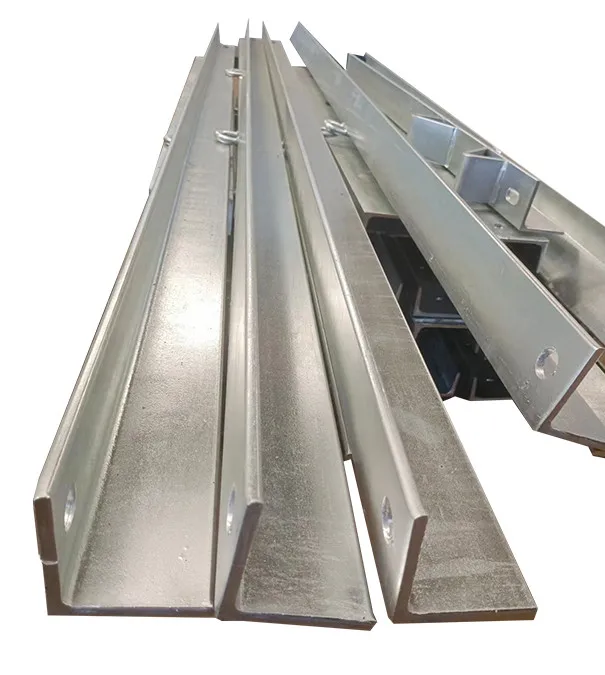

Angle Section joiner for 45° turns:
Available range:
0.9m/1.2m/1.5m/1.8m/2.1m/2.4m/2.7m/3.0m/
0.9m/1.2m/1.5m/1.8m/2.1m/2.4m/2.7m/3.0m/
3.3m/3.6m
Other lengths are available upon request
Other lengths are available upon request
Angle Section joiner for 90° turns:
Other lengths are available upon request
Available range: 90° 0.9m/1.2m/1.5m/1.8m/2.1m/2.4m/2.7m/3.0m/
3.3m/3.6m
Other lengths are available upon request

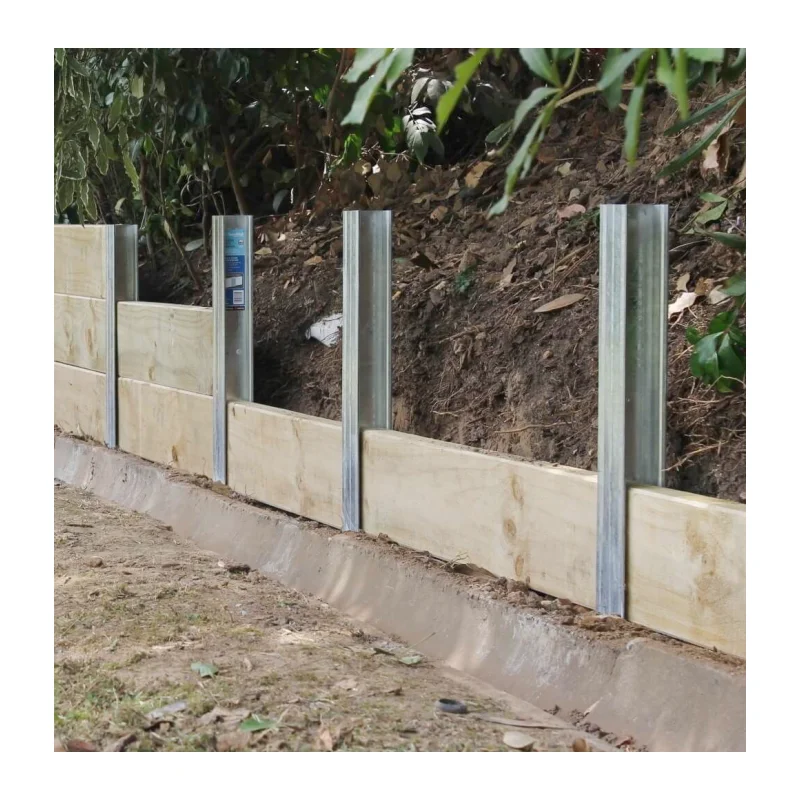

The general rule when planning your wall is to use a post length that is double the height of the wall-so far a 1m high wall you would require a 2m posts as a minimum.

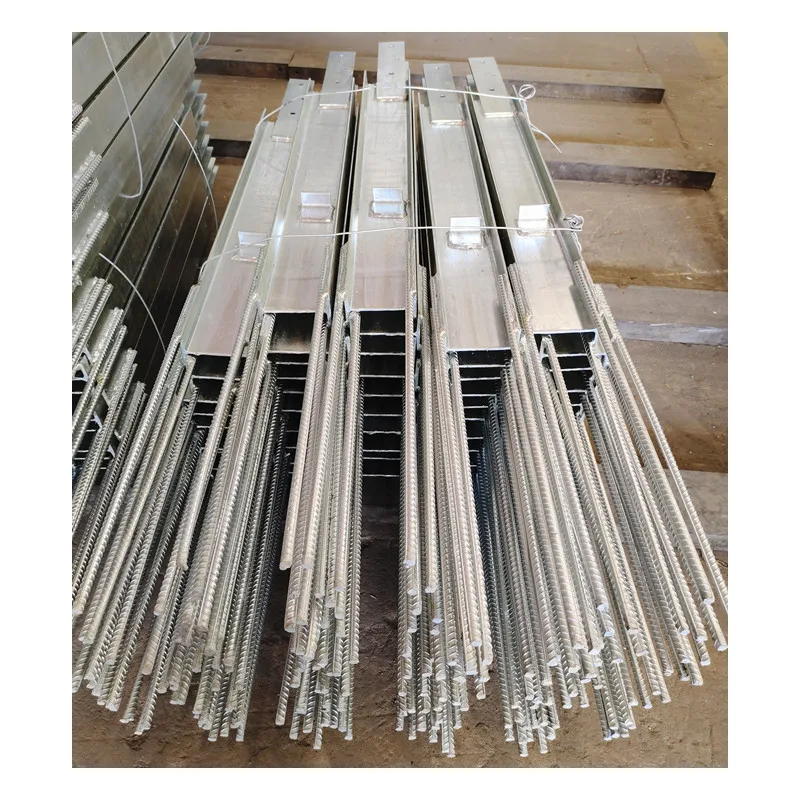

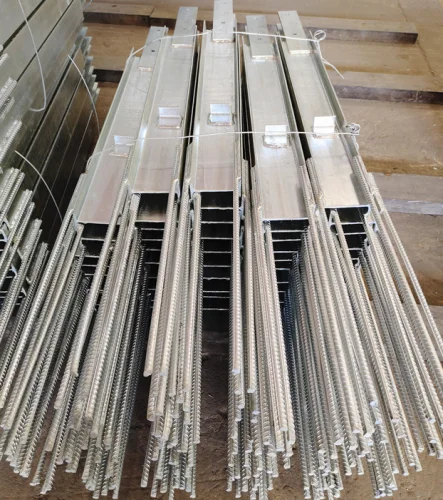

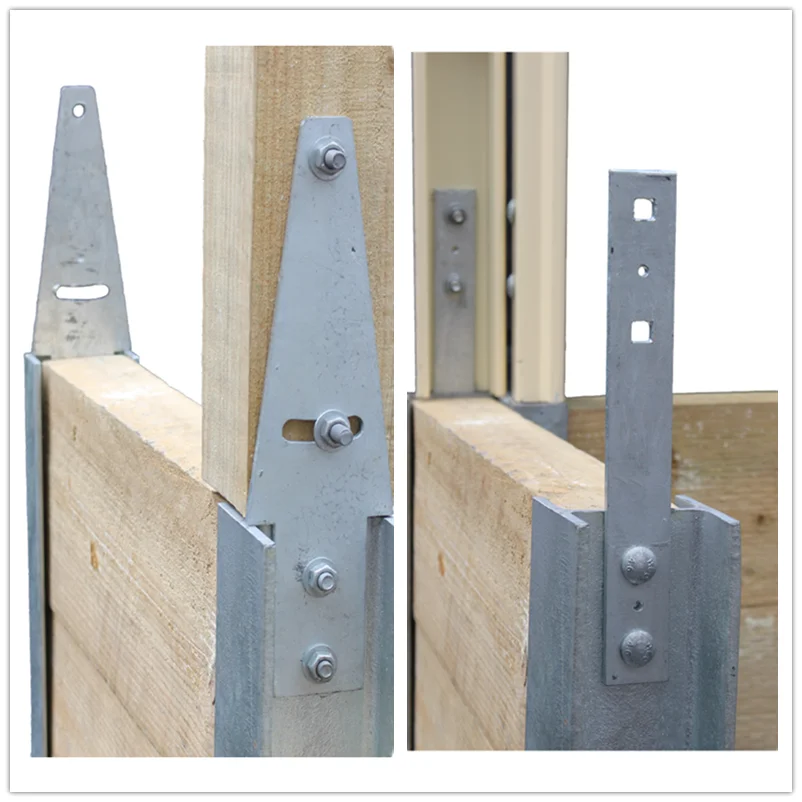

H Beam with Reo:
Available in 100mm minimum our galvanised steel posts with Reo are fully designed and engineered,that would be the perfect fit to build your new retaining wall.
All beams are hot dipped galvanised for increased durability and supplied with predrilled holes for easy installation.
100UC steel posts are suitable for 75mm or 80mm thick sleepers.
150UC steel posts are suitable for 100mm thick sleepers.
Product Name | Galvanized Steel Retaining Wall Post |

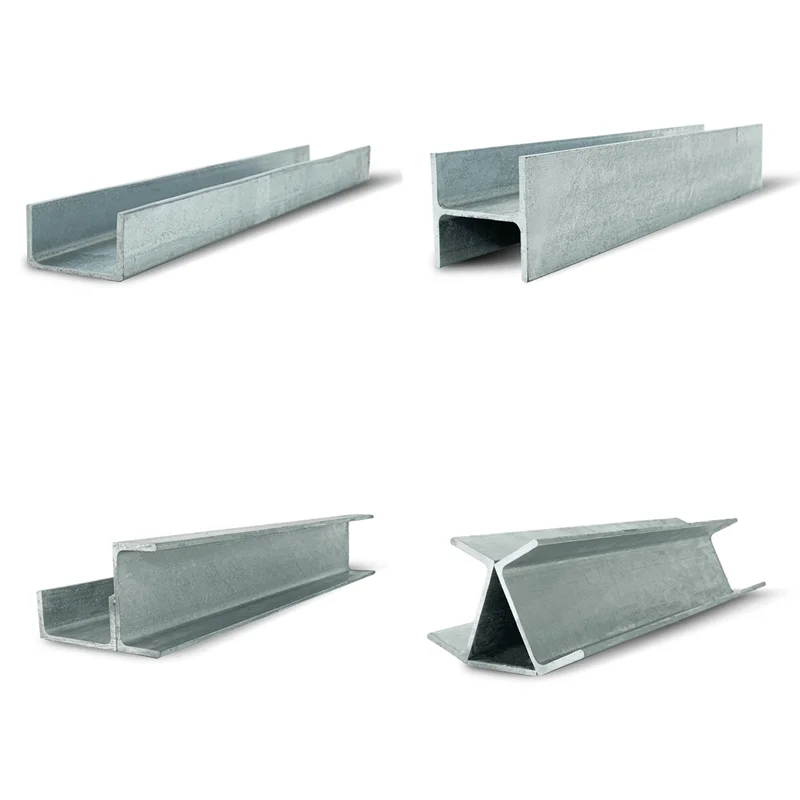

Shape | H section,C section(45 degree or 90 degree) corner Joiner Post |
Material | Q235/Q345/SS400/A36 |
Length | 0.9m/1.2m/1.5m/1.8m/2.1m/2.4m/2.7m/3.0m/3.3m/3.6m or customized |
Processing Service | cut to length,punching,slotting,stamping,welding,galvanizing |
Advantage | Convenient & easy to install according to your garden situation. High quality galvanized surface will be durable lifetime. Customized processing service could meet your special demand. |
Delivery Time | regular 10 days,decided by your order quantity |
Package | customized |
Specification of Steel H Section | ||||||
Size | Weight(Kg/M) | Size | Weight(Kg/M) | |||
100*50*5*7 | 9.54 | 390*300*10*16 | 107 | |||
100*100*6*8 | 17.2 | 394*398*11*18 | 147 | |||
125*60*6*8 | 13.3 | 396*199*7*11 | 56.7 | |||
125*125*6.5*9 | 23.8 | 400*200*8*13 | 66 | |||
148*100*6*9 | 21.4 | 400*400*13*21 | 172 | |||
150*75*5*7 | 14.3 | 400*408*21*21 | 197 | |||
150*150*7*10 | 31.9 | 414*405*18*28 | 233 | |||
175*90*5*8 | 18.2 | 428*407*20*35 | 284 | |||
175*175*7.5*11 | 40.4 | 440*300*11*18 | 124 | |||
194*150*6*9 | 31.2 | 446*199*8*12 | 66.7 | |||
198*99*4.5*7 | 18.5 | 450*200*9*14 | 76.5 | |||
200*100*5.5*8 | 21.7 | 458*417*30*50 | 415 | |||
200*200*8*12 | 50.5 | 482*300*11*15 | 115 | |||
200*204*12*12 | 56.7 | 488*300*11*18 | 129 | |||
244*175*7*11 | 44.1 | 496*199*9*14 | 79.5 | |||
248*124*5*8 | 25.8 | 498*432*45*70 | 605 | |||
250*125*6*9 | 29.7 | 500*200*10*16 | 89.6 | |||
250*250*9*14 | 72.4 | 506*201*11*19 | 103 | |||
250*255*14*14 | 82.2 | 582*300*12*17 | 137 | |||
294*200*8*12 | 57.3 | 588*300*12*20 | 151 | |||
294*302*12*12 | 85 | 594*302*14*23 | 175 | |||
298*149*5.5*8 | 32.6 | 596*199*10*15 | 95.1 | |||
300*150*6.5*9 | 37.3 | 600*200*11*17 | 106 | |||
300*300*10*15 | 94.5 | 606*201*12*20 | 120 | |||
300*305*15*15 | 106 | 692*300*13*20 | 166 | |||
340*250*9*14 | 79.7 | 700*300*13*24 | 185 | |||
344*348*10*16 | 115 | 792*300*14*22 | 191 | |||
346*174*6*9 | 41.8 | 800*300*14*26 | 210 | |||
350*175*7*11 | 50 | 890*299*15*23 | 213 | |||
350*350*12*19 | 137 | 900*300*16*28 | 243 | |||
388*402*15*15 | 141 | 912*302*18*34 | 286 | |||
Related Product

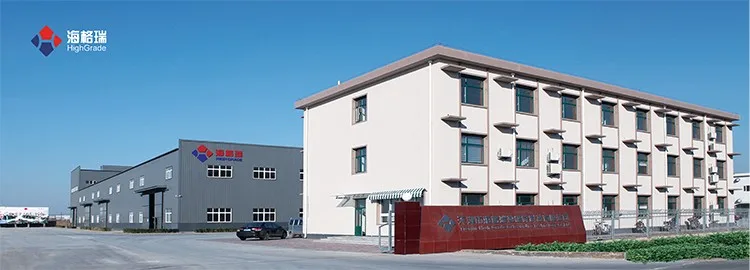

Company Information

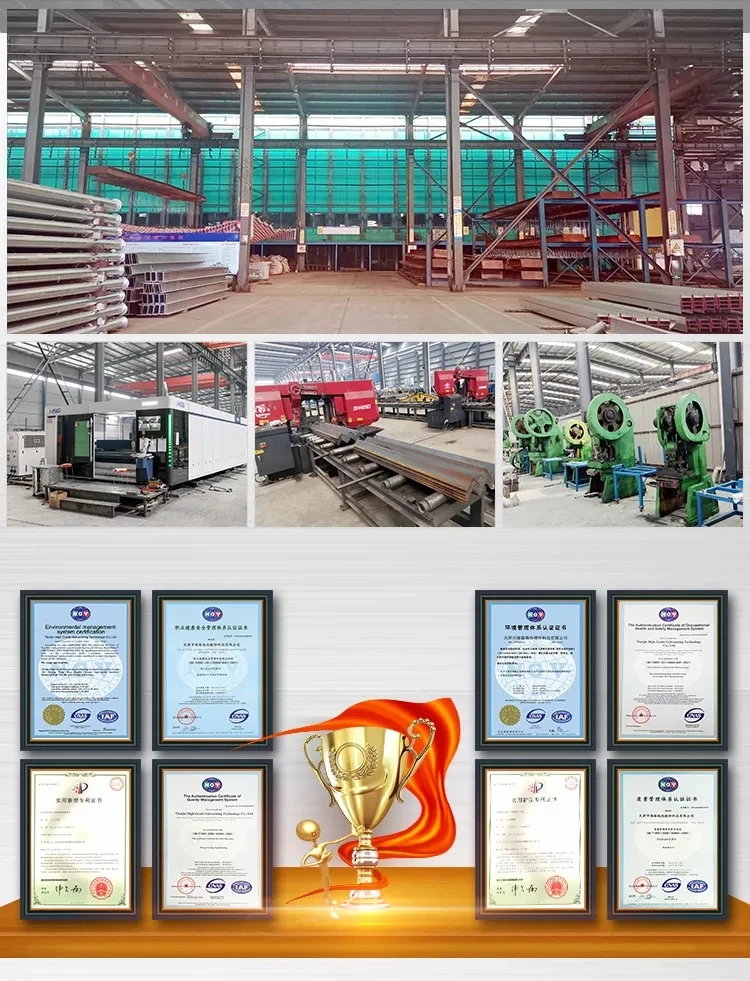

High Grade has developed and efficiently integrated the production all kinds of steel products,
surface treatment and other processes to provide customers with one-step services.Our company undertakes various steel customizedprocessing orders,and implements strict
surface treatment and other processes to provide customers with one-step services.Our company undertakes various steel customizedprocessing orders,and implements strict
testing and inspection procedures from the incoming,unloading,cutting,welding,surface
treatment,packaging and transportation of raw materials to ensure that each product meet the standards.
High Grade has passed ISO9000 quality management system certification,ISO14000 environmental management system,standard certification and ISO18000 occupational health management system certification,and has obtained eight technical patents such as zinc pot isolation smoking device,acid mist purification device,and annular galvanizing production line.At the same time,it has become a project implementing enterprise of of the United Nations Common Fund for Commodities (CFC),which has laid a solid foundation for the development of High Grade.
Our steel products are exported to Australia,Bulgaria,Canada,France,the Netherlands,the United States,Japan,South Korea,Singapore,Malaysia,South Africa and other countries and regions,and have won high recognition and favor from foreign markets.
High Grade has passed ISO9000 quality management system certification,ISO14000 environmental management system,standard certification and ISO18000 occupational health management system certification,and has obtained eight technical patents such as zinc pot isolation smoking device,acid mist purification device,and annular galvanizing production line.At the same time,it has become a project implementing enterprise of of the United Nations Common Fund for Commodities (CFC),which has laid a solid foundation for the development of High Grade.
Our steel products are exported to Australia,Bulgaria,Canada,France,the Netherlands,the United States,Japan,South Korea,Singapore,Malaysia,South Africa and other countries and regions,and have won high recognition and favor from foreign markets.

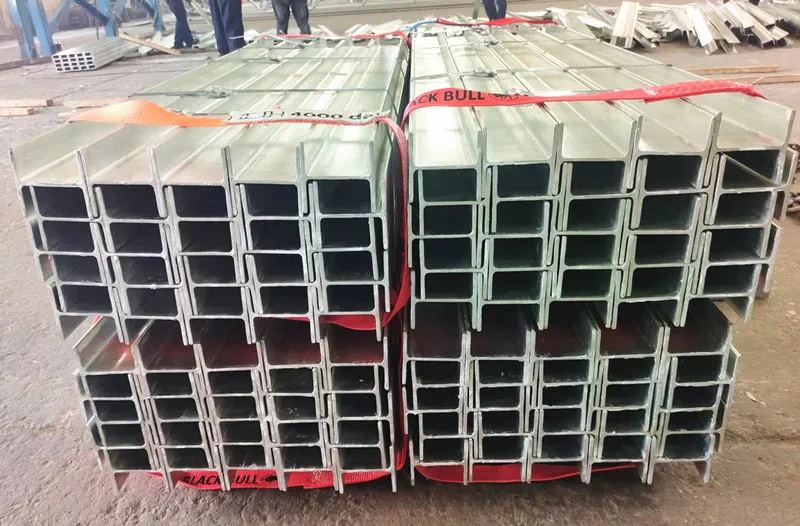

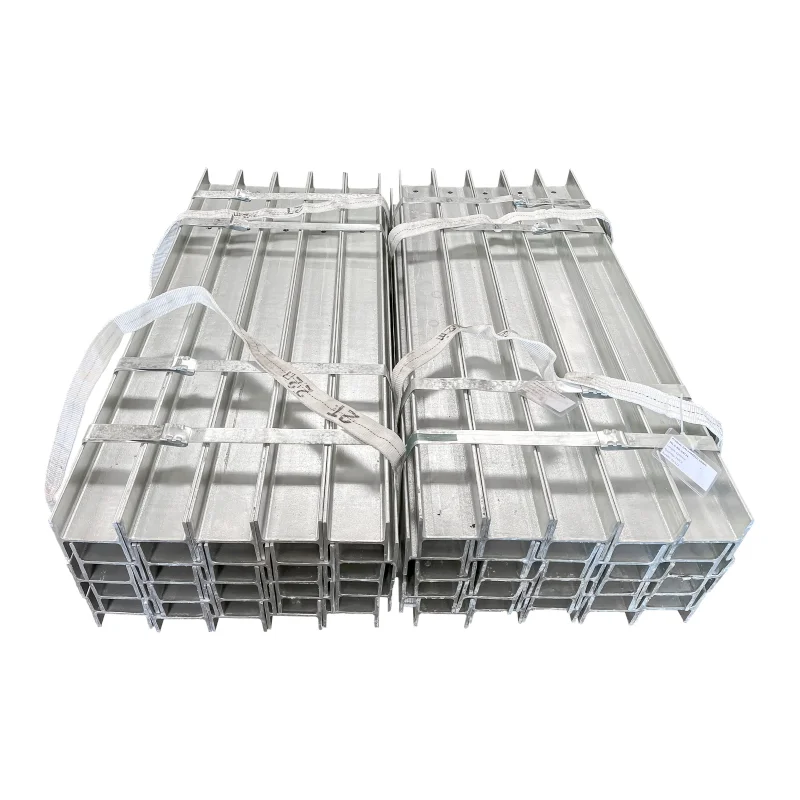

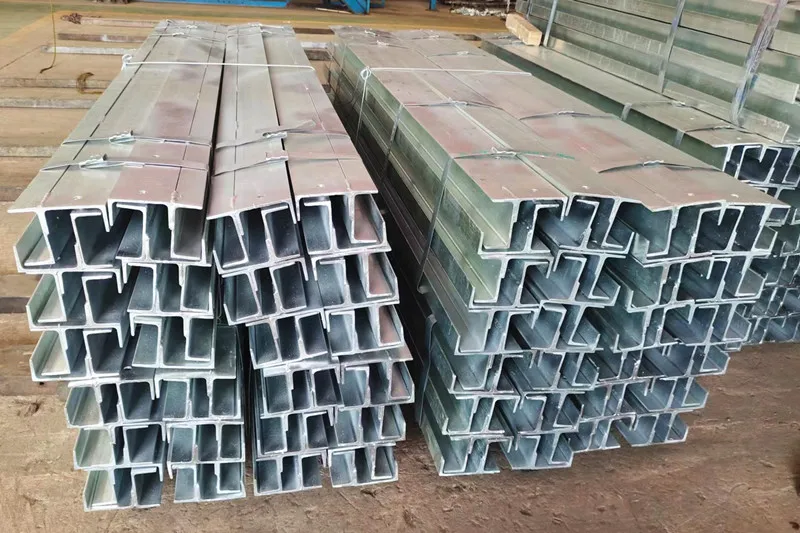

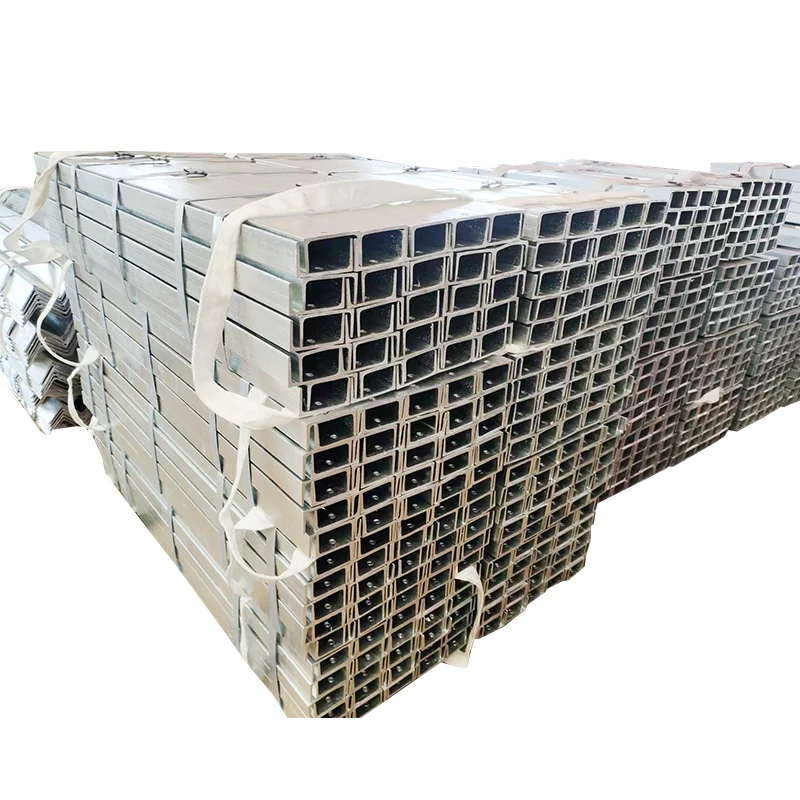

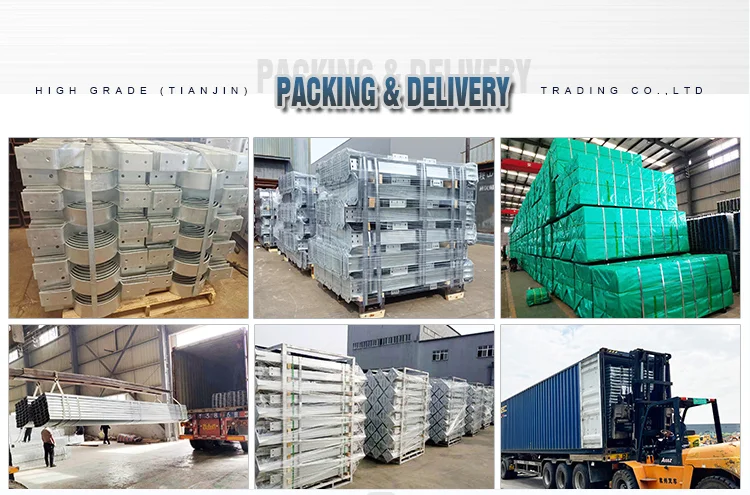

Packing&Shipping
FAQ
1.Are you trader or manufacturer?
We are professional manufacturer of steel processing and galvanizing,owing our own galvanizing mill with first class.
2.Is personalized steel processing services available for customer?
Yes,get in touch with us and we will be happy to discuss your requirements in depth and our highly trained team members will
ensure that the completed service meets all your requirements.
3.What is your regular delivery time?
It will be 5-7 days,it will depend on your exact order quantity.
4.Is free sample available for customer?
Yes,we will send customer free samples,and the freight charge will be paid by customers.
5.How do you control your quality of products?
We will do sampling and full inspection from raw materials to finished products.
We are professional manufacturer of steel processing and galvanizing,owing our own galvanizing mill with first class.
2.Is personalized steel processing services available for customer?
Yes,get in touch with us and we will be happy to discuss your requirements in depth and our highly trained team members will
ensure that the completed service meets all your requirements.
3.What is your regular delivery time?
It will be 5-7 days,it will depend on your exact order quantity.
4.Is free sample available for customer?
Yes,we will send customer free samples,and the freight charge will be paid by customers.
5.How do you control your quality of products?
We will do sampling and full inspection from raw materials to finished products.
